HCMOS OUTPUT SMD TCXO
ASTX-H11
Moisture Sensitivity Level (MSL)–1
FEATURES:
• HCMOS Output
• Compact and low in height
• Low current consumption; IR reflow possible
• Suitable for high-density SMT
ESD Sensitive
Pb
RoHS/RoHS II compliant
3.2 x 2.5 x 1.0mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Cellular and cordless phones
• Standard OSC for exact equipment
• Mobile communication equipment
• Portable radio equipment and music player
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Standard Frequencies
Operating Temperature
Storage Temperature:
Frequency Stability
∆f/f0
vs Tolerance (@+25°C)
vs Temperature (ref. to +25°C)
vs Supply Voltage Change (Vdd±5%)
vs Load Change (ZL±10%)
vs Aging (first year @+25°C)
Supply Voltage (Vdd)
Minimum
Typical
Maximum
Units
MHz
MHz
°C
°C
1 hr after reflow
See option (Table 1)
ppm
Notes
2.500
55.000
5, 10, 12, 16, 20, 24, 32, 40, 44
-30
+75
-40
+125
-2.0
-2.5
-0.2
-0.2
-1.0
+2.97
+3.3
+2.0
+2.5
+0.2
+0.2
+1.0
+3.63
4.0
4.8
5.5
6.0
7.0
5
55
10%Vdd
15
V
See option
4~10MHz
~20MHz
~30MHz
~40MHz
~54MHz
10%-90%Vdd
@1/2 Vdd
Supply Current (Icc)
mA
Rise and Fall Time (Tr/Tf)
Symmetry
Output Voltage
Load
Waveform
V
OH
V
OL
45
90%Vdd
HCMOS
-130
ns
%
V
pF
dBc
V
Phase Noise (Frequency dependant)
Tri-state Function (Stand-by) :
@1kHz offset
@100kHz offset
-158
"1"
(VIH≥0.7
5*Vdd) or Open: Oscillation
"0" (VIL<0.25*Vdd) : Hi Z
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 05.13.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
HCMOS OUTPUT SMD TCXO
ASTX-H11
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
Pb
RoHS/RoHS II compliant
3.2 x 2.5 x 1.0mm
| | | | | | | | | | | | | | |
ASTX-H11-
-
MHz -
-
Packaging
Blank: Bulk
T: 1000pcs/reel
Vdd (V)
Blank: 3.3V±10%
A: 2.8V±10%
B: 2.5V±10%
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 19.200MHz
±2.5ppm
D25
E25
F25
G25
Blank(STD)
I25
±3.0ppm
D30
E30
F30
G30
H30
I30
±4ppm
D40
E40
F40
G40
H40
I40
0°C ~ +50°C
-10°C ~ +60°C
-0°C ~ +70°C
-20°C ~ +75°C
-30°C ~ +75°C
-40°C ~ +85°C
±5ppm
D50
E50
F50
G50
H50
I50
Table 1
OUTLINE DIMENSIONS:
Recommended Land Pattern
Tri-state pin
High or floating
Low
Output
Active
Hi-impedance
Note: Recommend using an approximately 0.01µF
bypass capacitor between Pin 2 and 4.
PIN
1
2
3
4
FUNCTION
Tri-state
GND
Output
Vdd
Dimensions: mm
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 05.13.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CERTIFIED
LLC
HCMOS OUTPUT SMD TCXO
ASTX-H11

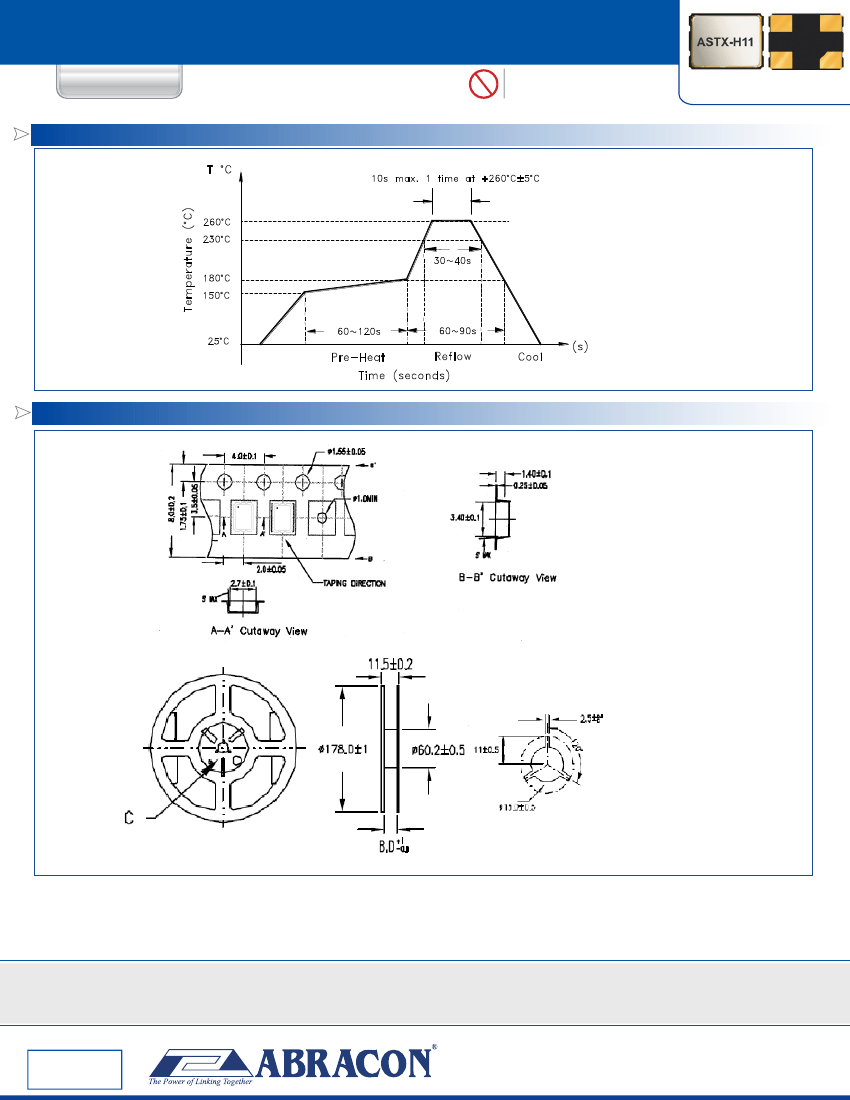

REFLOW PROFILE:
Pb
RoHS/RoHS II compliant
3.2 x 2.5 x 1.0mm
| | | | | | | | | | | | | | |
TAPE & REEL:
T: 1,000pcs/reel
Dimensions: mm
