M
PL
IA
NT
Features
■
JA version available to 100K ohms
■
10 pin with 8 resistors in bussed type for
■
■
■
■
■
Suitable for all types of soldering processes
■
Paper tape on plastic reel for automatic
*R
oH
S
CO
pull up/down circuit
RoHS compliant*
Convex termination style
Resistance tolerance ±5 %
E24 Series from 10 ohms to 43K ohms
placement

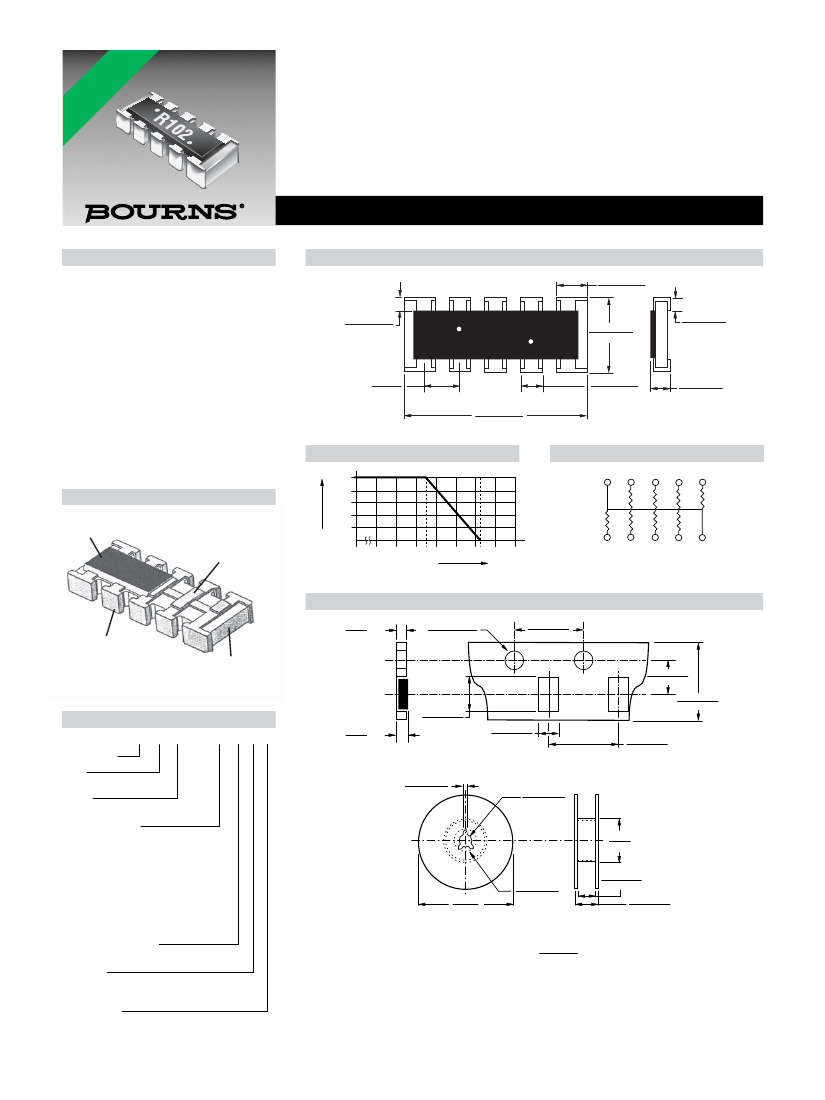

Model CAY17 - Bussed Resistor Array
Characteristics
Number of Resistors .. 8 (bussed circuit)
Power Rating per Resistor @ 70 °C
............................................ 0.0625 W
Package Power Rating @ 70 °C
...............................................0.250 W
Operating Temperature Range
............................... -55 °C to +155 °C
Derated to 0 Load @..................+125 °C
Max. Working Voltage......................25 V
Max. Overload Voltage ....................50 V
Resistance Tolerance .................... ±5 %
Resistance Range/E24 Series
JA version ..... 10 ohms to 100K ohms
JB version ....... 10 ohms to 43K ohms
T.C.R. ................................ ±250 ppm/°C
Construction
Protective
Glass Overcoat
Thick Film
Resistive Element
Product Dimensions
0.55
±
0.1
(.022
±
.004)
0.3
±
0.2
(.012
±
.008)
0.2
±
0.15
(.008
±
.006)
R 10 2
1.6
±
0.2
(.063
±
.008)
0.64
(.025)
3.2
±
0.2
(.126
±
.008)
0.34
±
0.15
(.013
±
.006)
0.5
±
0.1
(.020
±
.004)
Derating Curve
100
Rated Load (%)
80
60
40
20
0
-55
40 60 80
Ambient Temp. (˚C)
100 120 140 160
70
°C
125
°C
Bussed Circuits - Option A
10
9
R
R
1
2
R
3
8
R
R
4
7
R
R
5
6
R
Packaging Dimensions
1.0
MAX.
(.039)
1.5 + 0.1 - 0
(.059 + .004 - 0)
4.0
±
0.1
(.158
±
.004)
Termination
High Purity
Alumina
Substrate
3.5
±
0.05
(.138
±
.002)
8.0
±
0.2
(.315
±
.008)
2.0
±
0.2
(.079
±
.008)
How To Order
CA Y 17 - 103 J A LF
Chip Arrays
Type
• Y = Convex
Model
• 17 = 1206 Package Size
Resistance Code
• <10 ohms: “R” represents decimal
point (example: 4R7 = 4.7 ohms).
• ≥10 ohms: First two digits are signifi-
cant, third digit represents number of
zeros to follow (example: 474 = 470k
ohms)
(JA range: 10 ohms to 100K ohms;
JB range: 10 ohms to 43K ohms)
Resistance Tolerance
• J = ±5 %
Resistors
• A = Common from terminal 5 to 10
• B = Common from terminal 1 to 6
Terminations
• LF = Tin-plated (RoHS compliant)
1.4
MAX.
(.055)
3.6
±
0.2
(.142
±
.008)
4.0
±
0.1
(.157
±
.004)
2.0
±
0.5
(.079
±
.020)
13.0
±
0.2
(.511
±
.008)
60
(2.362)
180
(7.087)
21.0
±
0.8
(.827
±
.031)
9.0
±
0.3
(.354
±
.012)
11.4
±
1.0
(.449
±
.040)
DIMENSIONS:
MM
(INCHES)
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device
performance may vary over time.
Users should verify actual device performance in their specific applications.
