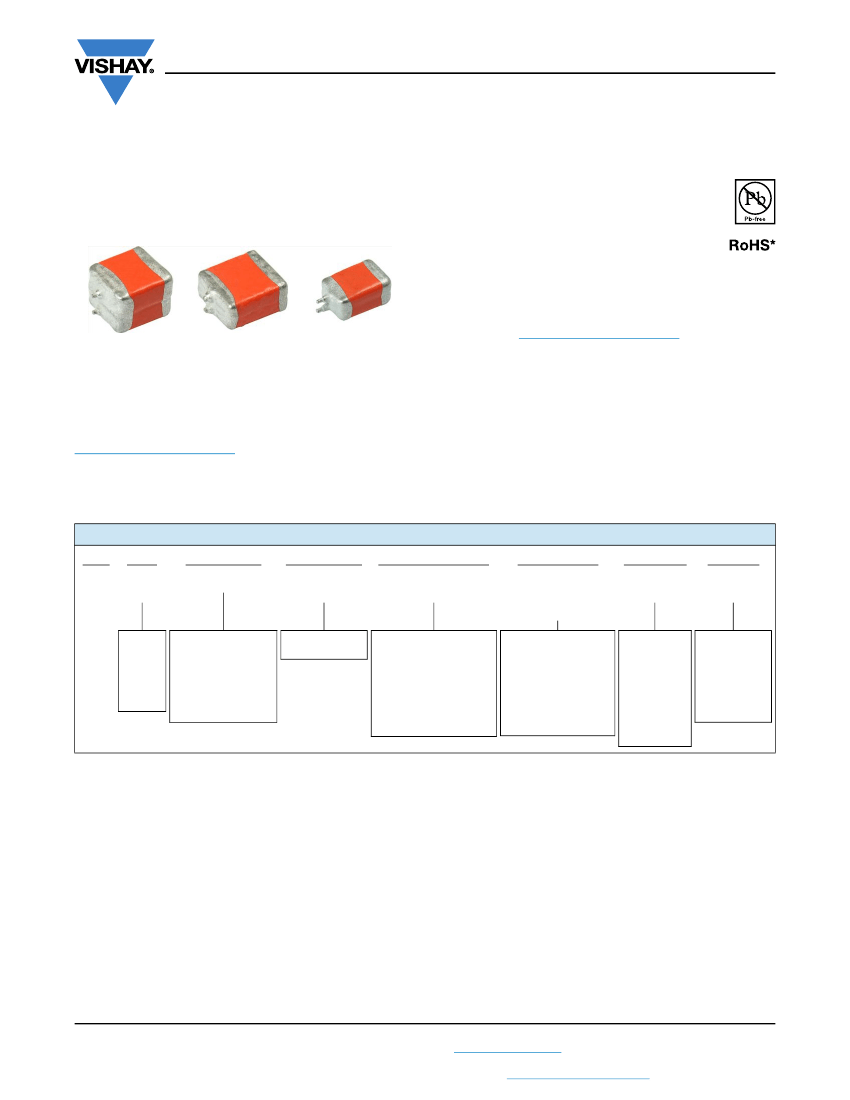

T97
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT
™,
Hi-Rel COTS, Ultra-Low ESR, Conformal Coated Case
FEATURES
• High reliability; Weibull failure rate grading
available
Available
• Surge current testing per MIL-PRF-55365
options available
Available
• Ultra-low ESR
• Tin / lead (SnPb) termination available
• Mounting: surface mount
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40209
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
10 μF to 1500 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 75 V
DC
ORDERING INFORMATION
T97
TYPE
R
CASE
CODE
227
CAPACITANCE
K
CAPACITANCE
TOLERANCE
020
DC VOLTAGE RATING
AT +85 °C
E
TERMINATION /
PACKAGING
(available options are
series dependent)
E = Sn / Pb solder /
7" (178 mm) reel
L = Sn / Pb solder /
7" (178 mm), 1/2 reel
C = 100 % tin /
7" (178 mm), reel
H = 100 % tin /
7" (178 mm), 1/2 reel
S
RELIABILITY
LEVEL
A
SURGE
CURRENT
See
Ratings
and
Case
Code
table
This is expressed in
pF. The first two
digits are the
significant figures.
The third is the
number of zeros
to follow.
K = ± 10 %
M = ± 20 %
This is expressed in
volts. To complete the
three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V).
A = 1.0 %
Weibull
B = 0.1 %
Weibull
(1)
S = 40 h
burn-in
Z = non-
established
reliability
A = 10 cycles
at +25 °C
B = 10 cycles
at -55 °C /
+85 °C
S = 3 cycles
at 25 °C
Notes
(1)
Available on select ratings. See “Standard Ratings” table
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting
Revision: 22-Jan-18
Document Number: 40092
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T97
www.vishay.com
Vishay Sprague
DIMENSIONS
in inches [millimeters]
J
Tantalum wire
nib identifies
anode (+) terminal
D L
B
A
W
H
CASE CODE
V
D
E
R
F
Z
M
H
N
L (MAX.)
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.315
[8.0]
0.315
[8.0]
0.315
[8.0]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
H
0.079
[2.0 max.]
0.138
[3.5 max.]
0.157 ± 0.016
[4.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.185 ± 0.016
[4.7 ± 0.4]
0.236 ± 0.016
[6.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.205 ± 0.016
[5.2 ± 0.4]
0.252 ± 0.016
[6.4 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
0.055 ± 0.016
[1.4 ± 0.4]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
0.056 ± 0.017
[1.4 ± 0.4]
B
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
0.196 ± 0.025
[5.0 ± 0.6]
D (REF.)
0.252
[6.4]
0.252
[6.4]
0.252
[6.4]
0.244
[6.2]
0.244
[6.2]
0.244
[6.2]
0.260
[6.6]
0.260
[6.6]
0.259
[6.6]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
RATINGS AND CASE CODES
μF
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
V
E
E/R
R
V
E
E
R
E
E
R
F
E
F
H
H
R
H/F
H
R
F
F
M
R
F
F/H
H
E/R
R
F
Z/N
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
40 V
50 V
63 V
D
R
F
75 V
R
Revision: 22-Jan-18
Document Number: 40092
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T97
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
8
6
8
8
8
8
6
6
8
6
6
6
20
8
10
14
20
8
10
10
14
6
8
8
8
6
6
8
8
10
MAX. ESR
AT +25 °C
100 kHz
(m)
60
25
20
18
24
56
30
25
31
35
28
28
120
60
100
100
80
80
100
100
100
100
100
80
100
100
100
100
100
150
MAX.
RIPPLE
100 kHz
I
RMS
(A)
2.2
2.9
3.3
3.7
2.9
2.0
2.7
2.9
2.8
2.5
2.8
3.0
1.4
2.3
1.6
1.4
1.8
1.8
1.6
1.6
1.6
1.6
1.6
1.8
1.6
1.6
1.6
1.6
1.4
1.3
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
AVAILABLE
RELIABILITY
LEVELS
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
470
680
1000
1000
1500
330
470
680
1000
330
470
680
1000
220
330
470
680
220
330
330
470
68
100
150
220
47
68
100
100
100
V
E
E
R
R
V
E
E
R
E
E
R
F
E
F
H
H
R
F
H
H
R
F
F
M
R
F
F
H
H
T97V477(1)004(2)(4)(5)
T97E687(1)004(2)(4)(5)
T97E108(1)004(2)(4)(5)
T97R108(1)004(2)(4)(5)
T97R158(1)004(2)(4)(5)
T97V337(1)6R3(2)(4)(5)
T97E477(1)6R3(2)(4)(5)
T97E687(1)6R3(2)(4)(5)
T97R108(1)6R3(2)(4)(5)
T97E337(1)010(2)(4)(5)
T97E477(1)010(2)(4)(5)
T97R687(1)010(2)(6)(5)
T97F108(1)010(2)(3)(5)
T97E227(1)016(2)(4)(5)
T97F337(1)016(2)(4)(5)
T97H477(1)016(2)(4)(5)
T97H687(1)016(2)(4)(5)
T97R227(1)020(2)(4)(5)
T97F337(1)020(2)(6)(5)
T97H337(1)020(2)(4)(5)
T97H477(1)020(2)(3)(5)
T97R686(1)025(2)(4)(5)
T97F107(1)025(2)(4)(5)
T97F157(1)025(2)(4)(5)
T97M227(1)025(2)(3)(5)
T97R476(1)035(2)(4)(5)
T97F686(1)035(2)(3)(5)
T97F107M035(2)(3)(5)
T97H107(1)035(2)(3)(5)
T97H107M040(2)(6)(5)
18.8
27.2
40.0
40.0
60.0
20.8
29.6
42.8
63.0
33.0
47.0
68.0
100.0
35.2
52.8
75.2
100.0
44.0
66.0
66.0
94.0
17.0
25.0
37.5
55.0
16.5
23.8
35.0
35.0
40.0
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
S, Z
A, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
S, Z
A, B, S, Z
A, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, S, Z
A, B, S, Z
A, S, Z
A, S, Z
A, S, Z
S, Z
6.3 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
16 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
25 V
DC
AT +85 °C; 17 V
DC
AT +125 °C
35 V
DC
AT +85 °C; 23 V
DC
AT +125 °C
40 V
DC
AT +85 °C; 26 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, E, H, L
(3) Reliability level: A, S, Z
(4) Reliability level: A, B, S, Z
(5) Surge current: A, B, S
(6) Reliability level: S, Z
Revision: 22-Jan-18
Document Number: 40092
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T97
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(m)
350
250
220
150
240
150
400
400
250
500
MAX.
RIPPLE
100 kHz
I
RMS
(A)
0.9
1.0
1.1
1.3
1.1
1.4
0.6
0.8
1.0
0.7
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
AVAILABLE
RELIABILITY
LEVELS
50 V
DC
AT +85 °C; 33 V
DC
AT +125 °C
15
15
22
33
47
47
10
15
22
10
E
R
R
F
Z
N
D
R
F
R
T97E156(1)050(2)(4)(5)
T97R156(1)050(2)(4)(5)
T97R226(1)050(2)(4)(5)
T97F336(1)050(2)(3)(5)
T97Z476(1)050(2)(6)(5)
T97N476(1)050(2)(4)(5)
T97D106(1)063(2)(3)(5)
T97R156(1)063(2)(3)(5)
T97F226(1)063(2)(3)(5)
T97R106(1)075(2)(6)(5)
7.5
7.5
11.0
16.5
23.5
23.5
10.0
9.5
13.9
7.5
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, S, Z
S, Z
A, B, S, Z
A, S, Z
A, S, Z
A, S, Z
S, Z
63 V
DC
AT +85 °C; 42 V
DC
AT +125 °C
75 V
DC
AT +85 °C; 50 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, E, H, L
(3) Reliability level: A, S, Z
(4) Reliability level: A, B, S, Z
(5) Surge current: A, B, S
(6) Reliability level: S, Z

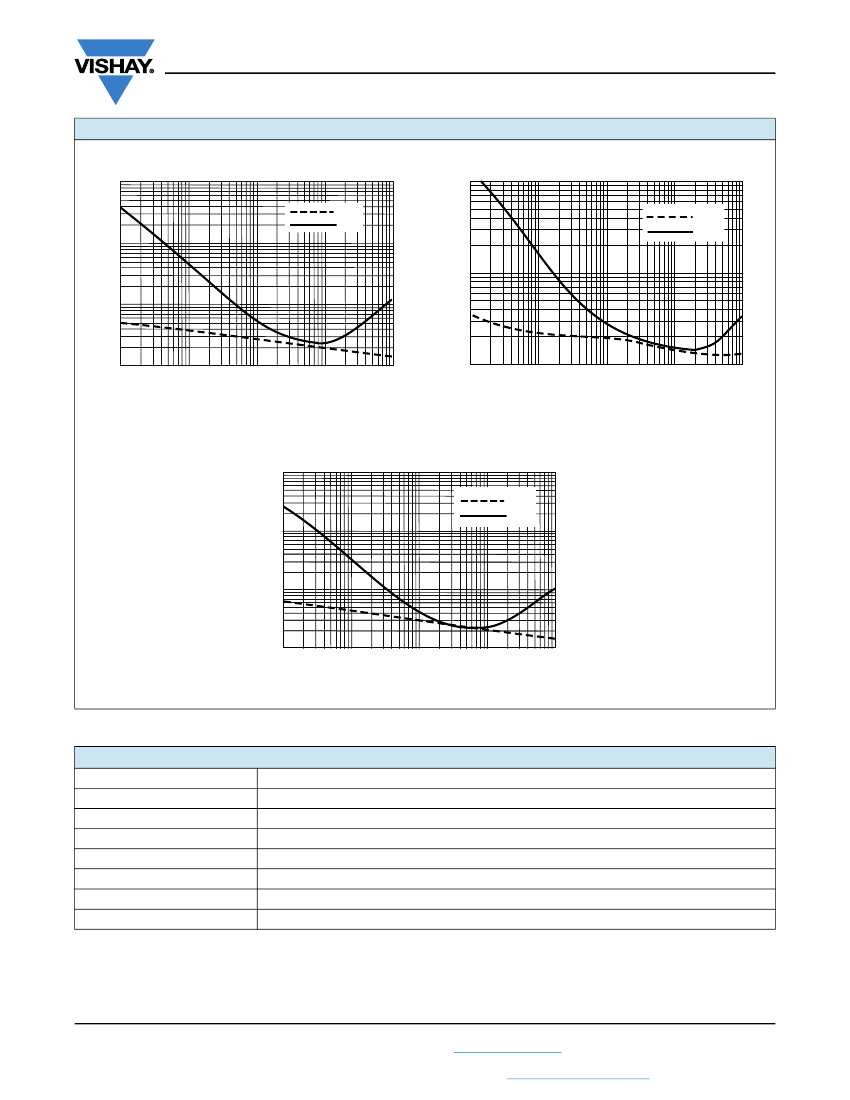

TYPICAL CURVES
1500 μF - 4 V “R” CASE SIZE ESR and Z vs. FREQUENCY
1
1
ESR
Z
ESR and Z ()
ESR and Z (Ω)
ESR
Z
330 μF - 10 V “E” CASE
SIZE
ESR and Z vs. FREQUENCY
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
Revision: 22-Jan-18
Document Number: 40092
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T97
www.vishay.com
Vishay Sprague
TYPICAL CURVES
330 μF - 6.3 V
“V”
CASE SIZE and Z vs. FREQUENCY
10
ESR
Z
ESR and Z ()
1000 μF - 6.3 V “R” CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
Z
ESR and Z ()
1
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
470 μF - 4 V “V” CASE
SIZE
ESR and Z vs. FREQUENCY
10
ESR
Z
ESR and Z (Ω)
1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
POWER DISSIPATION
CASE CODE
V
D
E
R, F, M
Z
H
N
MAXIMUM PERMISSIBLE POWER DISSIPATION AT +25 °C (W) IN FREE AIR
0.141
0.215
0.240
0.250
0.265
0.265
0.280
Revision: 22-Jan-18
Document Number: 40092
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
