3M
Pak 50 Wiremount Socket

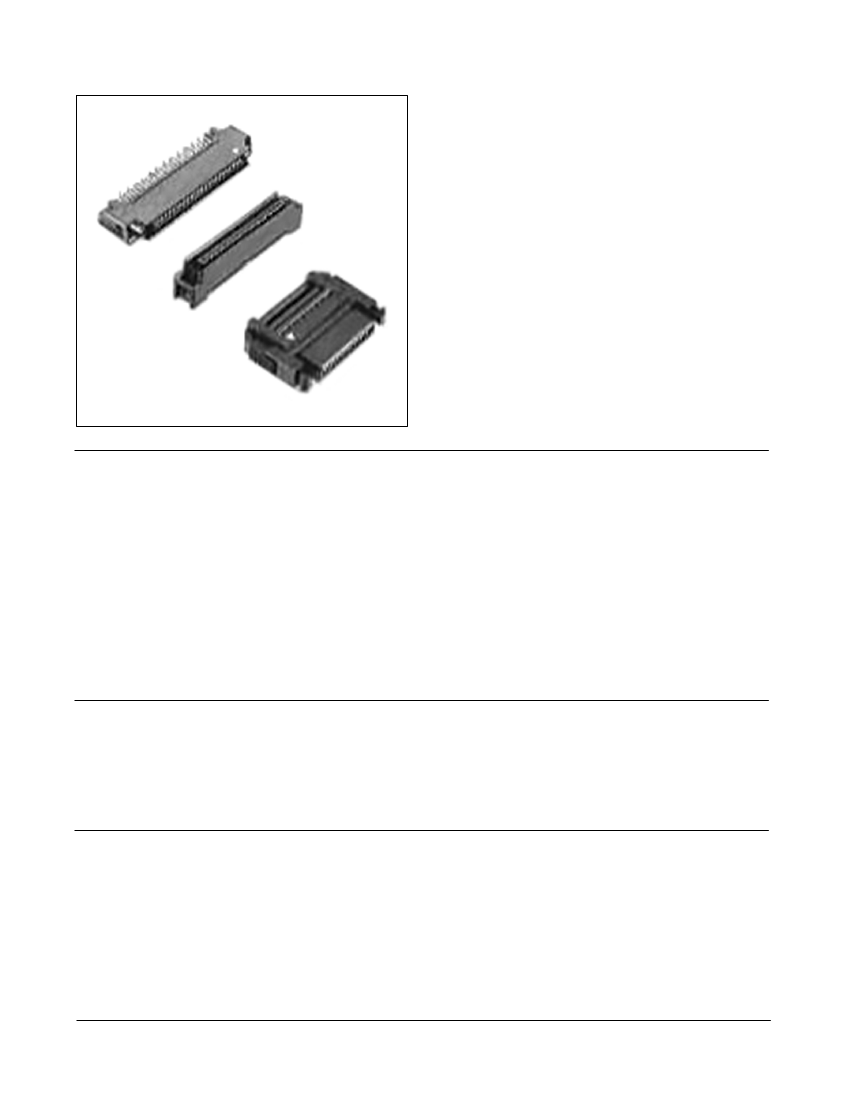

.050″ Wiremount Socket for .050″ Pitch Cable
P50 Series
S
P50 connector terminates two separate 1.27
mm (50 mil) pitch flat ribbon cables
S
Accepts 28 AWG PVC cable (3M 3365
Series)
S
Latch/eject mechanism maintains a secure
connection
S
Cable strain relief standard
S
Tooling available for customer cable
assembly termination
S
RoHS* compliant
Date Modified:
December
15, 2006
TS-1163-0
5
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Termination Area:
Wire Accomodation:
Glass filled Nylon
UL 94V-0
Black
Copper Alloy
Nickel
.25
µm
[10
µ″]
Gold
Go
ld
Flash
28 AWG Stranded PVC Flat Ribbon Cable
Electrical
Current Rating:
0.5 A
Insulation Resistance:
10
3
MΩ min. at 500 V DC
Withstanding Voltage
650 V AC for 1 minute
Environmental
Temperature Rating:
-
-55°C to +85°C
*”RoHS compliant” means that the product or part does not contain any of the following substances in excess of the following maximum concentration values in
any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,
polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated in writing by 3M, this information
represents 3M’s knowledge and belief based on information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Pak 50 Wiremount Socket
.050″ Wiremount Socket for .050″ Pitch Cable

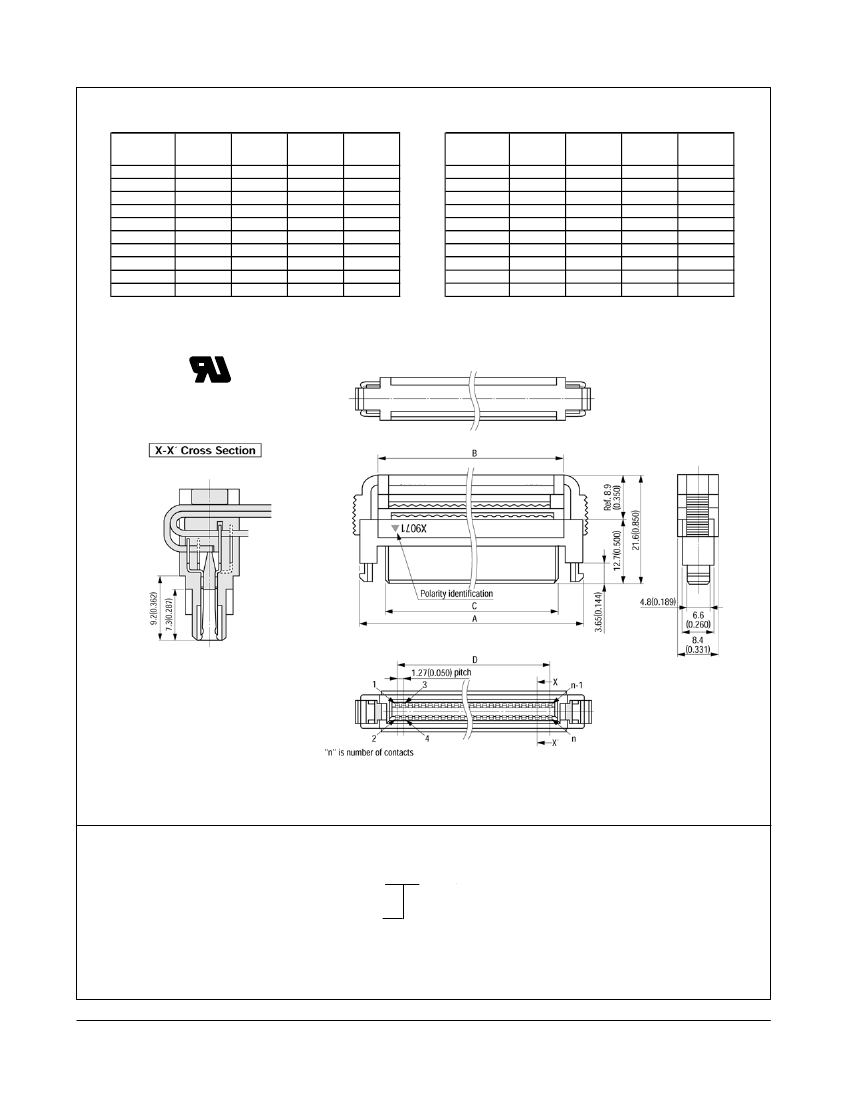

Product Table / Dimensions
Contact
Quantity
20
26
30
32
34
A
25.43
[1.001]
29.24
[1.151]
31.78
[1.251]
33.05
[1.301]
34.32
[1.351]
B
17.83
[0.702]
21.64
[0.852]
24.18
[0.952]
25.45
[1.002]
26.72
[1.052]
C
15.43
[0.607]
19.24
[0.757]
21.78
[0.857]
23.05
[0.907]
24.32
[0.957]
D
11.43
[0.450]
15.24
[0.600]
17.78
[0.700]
19.05
[0.750]
20.32
[0.800]
Contact
Quantity
40
50
52
60
68
A
38.13
[1.501]
44.48
[1.751]
45.75
[1.801]
50.83
[2.001]
55.91
[2.201]
B
30.53
[1.202]
36.88
[1.452]
38.15
[1.502]
43.23
[1.702]
48.31
[1.902]
C
28.13
[1.107]
34.48
[1.357]
35.75
[1.407]
40.83
[1.607]
45.91
[1.807]
D
24.13
[0.950]
30.48
[1.200]
31.75
[1.250]
36.83
[1.450]
41.91
[1.650]
P50 Series
Note: Strain relief standard.
Ordering Information
P50 - XXXS -
EA
Contact Quantity
See Table
Application tools: 3640 press (or equivalent), 3443--128 locator platen, 3442--126 platen.
TS -- 1163 -- 05
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
