0.6" SERIES INPUT MODULES
•
Plug into mounting boards for 0.6" modules
•
AC Inputs for 24 V, 120 V, 240 V
•
DC Inputs for 3.3 to 32 V, 10 to 48 V
•
4kV Optical isolation
•
Open-collector Output
•
Industry standard packaging
I/O Modules
SPECIFICATIONS
Input
Part Number
(1)
Voltage Range
Maximum Current [mA]
(4)
Resistance [Ohms]
(2)(3)
Drop-out Current [mA]
(5)
Voltage for No Output [VAC/VDC]
(6)
Allowable Current [mA]
90-140 VAC/DC
6
28 k
2
50
2.5
IAC5
180-280 VAC/DC
5
75 k
1.5
50
2
IAC5A
90-140 VAC/DC
6
28 k
2
50
2.5
IAC24
180-280 VAC/DC
5
75 k
1.5
50
2
IAC24A
3.3-32 VDC/AC
34
500
1.0
2.0
1.5
IDC5
Output
Maximum Voltage[VDC]
(9)
Maximum Voltage Drop [VDC]
(12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA]
(10)
Maximum Logic Supply Current [mA]
(7)
Maximum Logic Supply Leakage Current [µA]
(8)
Maximum Leakage Current [µA]
(11)
Maximum Turn-On Time [msec]
(13)
Maximum Turn-Off Time [msec]
(13)
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
1.0
1.0
SPECIFICATIONS (1)
Input
Part Number
Voltage Range (VAC or VDC)
Maximum Current [mA]
(4)
Resistance [Ohms]
(2)(3)
Drop-out Current [mA]
(5)
Voltage for No Output [VAC/VDC]
(6)
Allowable Current [mA]
3.3-32 VDC/AC
34
1k
1
2
1.5
IDC24
4-32 VDC
68
500
1
2
1.5
IDC5F
IDC24F
4-32 VDC
68
500
1
2
1.5
10-48 VDC/AC
34
1k
1
4
1.5
IDC5N
10-48 VDC/AC
34
1k
1
4
1.5
IDC24N
Output
Maximum Voltage[VDC]
(9)
Maximum Voltage Drop [VDC]
(12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA]
(10)
Maximum Logic Supply Current [mA]
(7)
Maximum Logic Supply Leakage Current [µA]
(8)
Maximum Leakage Current [µA]
(11)
Maximum Turn-On Time [msec]
(13)
Maximum Turn-Off Time [msec]
(13)
30
0.2
24
20-30
50
16.0
10.0
10.0
1.0
1.0
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
0.05
0.10
30
0.2
24
20-30
50
16.0
10.0
10.0
0.05
0.10
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
8.0
7.0
30
0.2
24
20-30
50
16.0
10.0
10.0
8.0
7.0
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
Description
Input/Output Isolation Voltage
(14)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
4000 Vrms
8 pF
-30 to 80°C
-40 to 80°C
47 to 63 Hz
1.1 oz. (31.2g)
I/O Modules
GENERAL NOTES:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
Specificat ions apply t o an ambient temperature of -30 to 80 °C unless otherwise noted.
Resistance v alues for I AC modules are effective impedance values at 25 °C .
Resistance v alues are +/-10% at 25 °C.
Measured at maximum specifi ed input voltage, 25°C.
Defined as the maximum current allowed through the module's input t o guarantee that
the out put will switch from "on" to "of f ". Higher current s may result in t he output remaining
i n the "on" s tate.
Defined as the maximum current allowed through the module's input t hat will not switc h
the module's output state f rom "o ff " to "on".
With external LED status indicator at maximum specified logic supply voltage and 25°C.
18mA without external LED.
At maximum specified logic voltage and 25°C.
Applied ac ros s open collec tor output transis tor.
Sink ing current through the open collector out put trans istor.
At maximum output voltage and 25°C.
At maximum output current and 25°C.
At nominal logic supply voltage, 25mA output sinking current, nominal input v olt age
and 25°C
At 25°C for 1 second maximum durat ion.

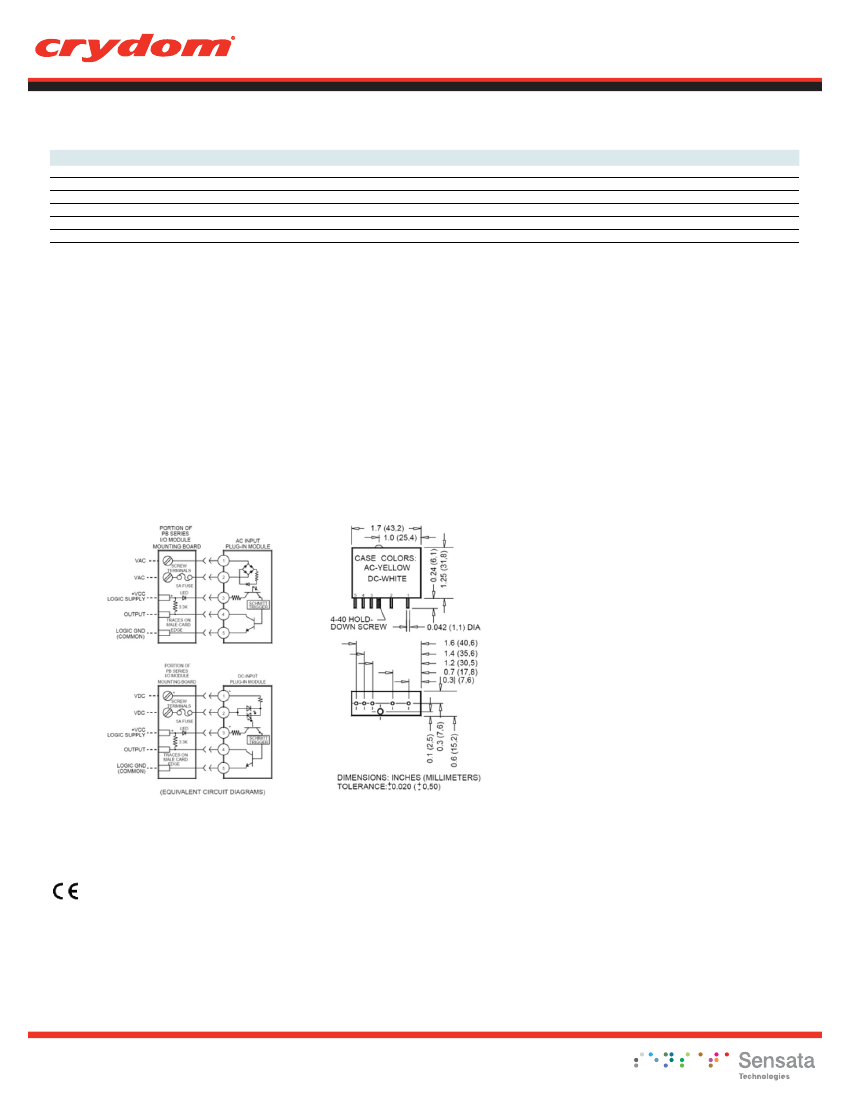

EQUIVALENT CIRCUIT DIAGRAMS / MECHANICAL SPECIFICATIONS
UL E46203
CSA 38595
AGENCY APPROVALS
Rev. 080916
