507H-1AH-F-S-IR-12VDC datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 507H-1AH-F-S-IR-12VDC

Preview

507H-1AH-F-S-IR-12VDC: DescriptionGeneral Purpose Relays SPNO 17A 12VDC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size897KB，9 Pages; ManufacturerSong Chuan

Download Datasheet Parametric Compare View All

507H-1AH-F-S-IR-12VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507H-1AH-F-S-IR-12VDC	-	-	View	Buy Now

507H-1AH-F-S-IR-12VDC Overview

General Purpose Relays SPNO 17A 12VDC

507H-1AH-F-S-IR-12VDC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Song Chuan
Product Category	General Purpose Relays
RoHS	Details
Product	Power Relay
Type	Standard
Contact Termination	Solder Pin
Mounting Style	Through Hole
Coil Termination	Solder Pin
Factory Pack Quantity	20

Preview

Download Datasheet

View All

Song Chuan / Relay Catalog

507

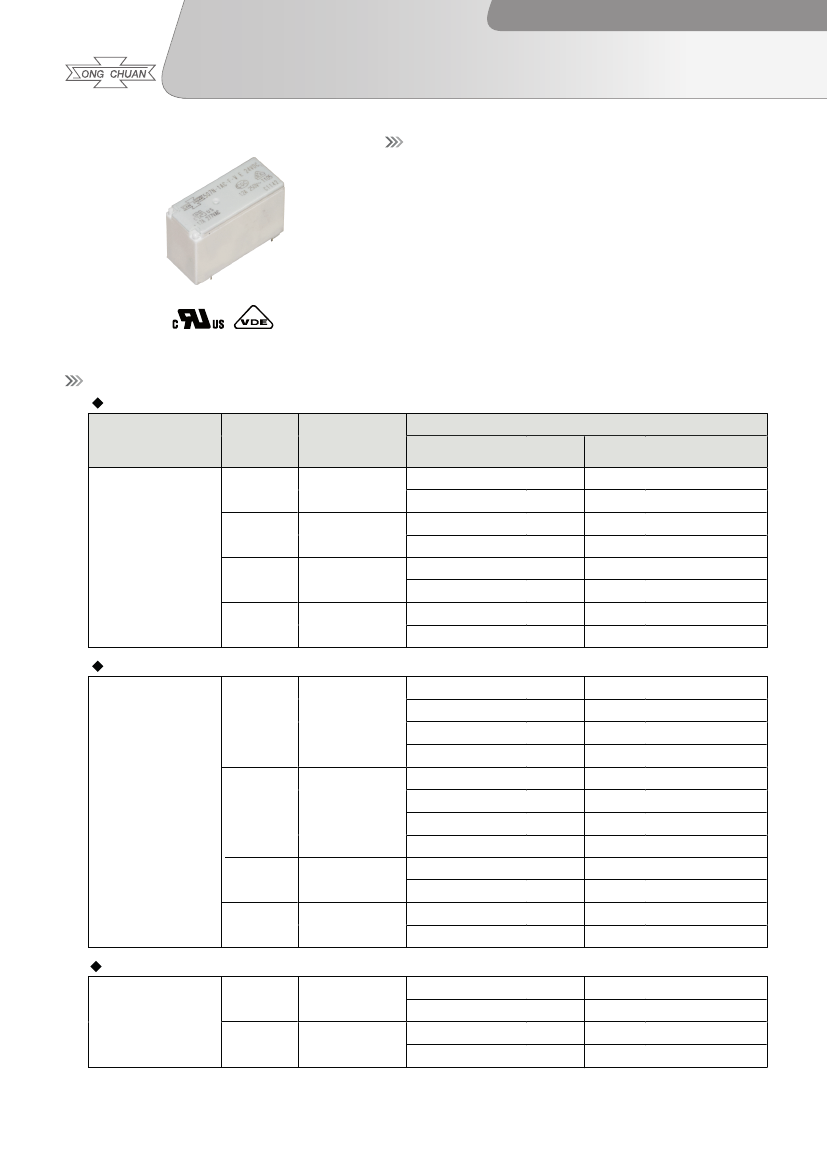

Features

· High rating miniature PCB Relay.

· AC & DC coil are both available.

· UL/CUL and VDE approved.

· 17A 277VAC SPDT.

· 12A 277VAC DPDT.

· Low proﬁle 15.7 and high insulation system class F

· High CTI 250 material & New Glow Wire Approved

(E Version)

· Special version for inrush rating application is available.

(507 IR type)

· Comply with RoHS-Directive 2011/65/EU

Type List

Standard type

Terminal

style

Contact

form

(SPNO)

(SPDT)

(DPNO)

(DPDT)

Insulation

system

Designation (provided with)

Sealed type

Flux tight

washable

507-1AC-F-C

507-1AC-F-S

507-1AH-F-C

507-1CC-F-C

507-1CH-F-C

507-2AC-F-C

507-2AH-F-C

507-2CC-F-C

507-2CH-F-C

507-1AH-F-S

507-1CC-F-S

507-1CH-F-S

507-2AC-F-S

507-2AH-F-S

507-2CC-F-S

507-2CH-F-S

PCB terminal

High sensitive type (N) / Ultra-sensitive type (N1)

507N-1AC-F-C

(SPNO)

507N1-1AC-F-C

507N-1AH-F-C

507N1-1AH-F-C

507N-1CC-F-C

PCB terminal

(SPDT)

(DPNO)

(DPDT)

507N1-1CC-F-C

507N-1CH-F-C

507N1-1CH-F-C

507N-2AC-F-C

507N-2AH-F-C

507N-2CC-F-C

507N-2CH-F-C

507N-1AC-F-S

507N1-1AC-F-S

507N-1AH-F-S

507N1-1AH-F-S

507N-1CC-F-S

507N1-1CC-F-S

507N-1CH-F-S

507N1-1CH-F-S

507N-2AC-F-S

507N-2AH-F-S

507N-2CC-F-S

507N-2CH-F-S

High power type

(SPNO)

(SPDT)

507H-1AC-F-C

507H-1AH-F-C

507H-1CC-F-C

507H-1CH-F-C

507H-1AC-F-S

507H-1AH-F-S

507H-1CC-F-S

507H-1CH-F-S

PCB terminal

1203
