511R-48H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 511R-48H

511R-48H: DescriptionFixed Inductors 13uH 3% 1.2ohm MoldUnshield Coil TH; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

511R-48H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	511R-48H	-	-	View	Buy Now

511R-48H Overview

Fixed Inductors 13uH 3% 1.2ohm MoldUnshield Coil TH

511R-48H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
core material	IRON
DC Resistance	1.2 Ω
Nominal inductance(L)	13 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.635 mm
Lead length	36.58 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	3.96 mm
Package length	9.53 mm
Package form	Axial
method of packing	TR, 14 INCH
Minimum quality factor (at nominal inductance)	65
Maximum rated current	0.285 A
self resonant frequency	40 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	AXIAL
Terminal shape	WIRE
Tolerance	3%
Base Number Matches	1

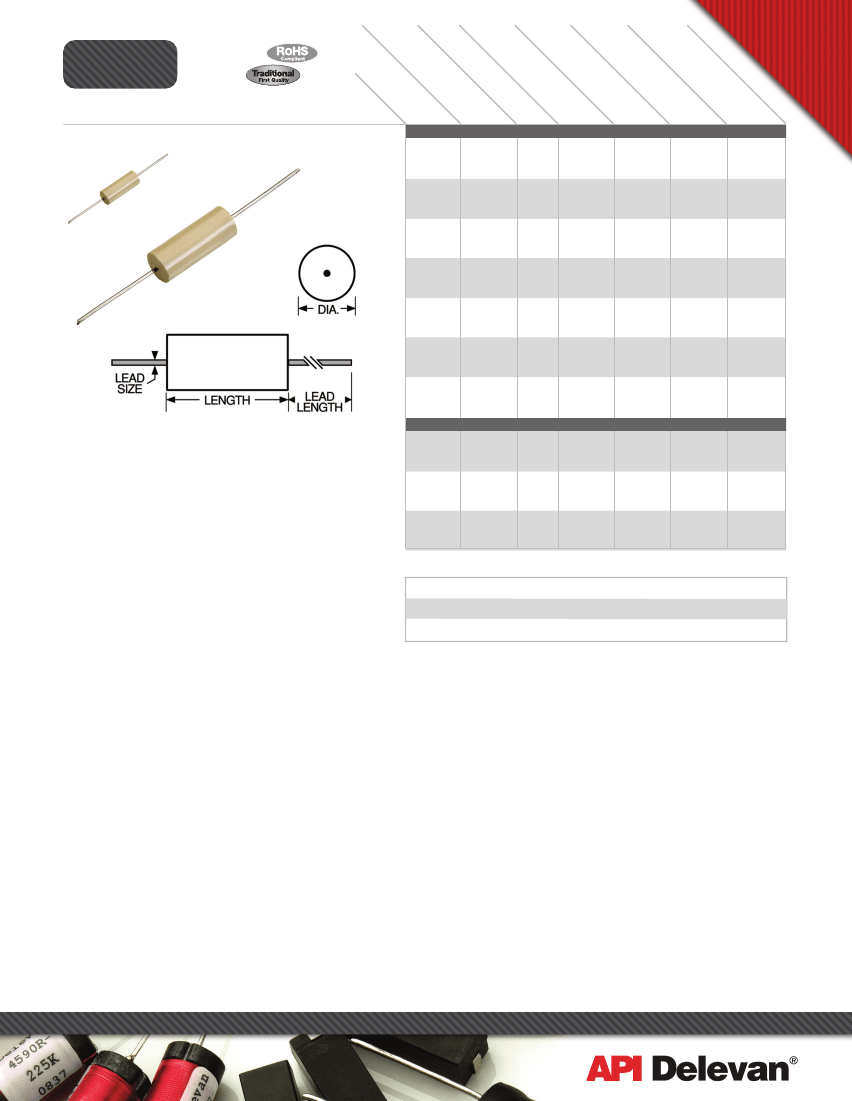

Preview

Download Datasheet

View All

±5

(µ

SERIES

Actual Size

511R

511

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

DC MU

)

Molded Unshielded RF Coils

-2J

-3J

-4J

-6J

-7J

-8J

-10J

-11J

-12J

-14J

-16J

-18J

-20J

-22J

-24J

-26J

-28J

-30J

-32J

-34J

-36J

-38J

-40J

-42J

-44J

-46J

-48J

-50J

-52J

0.16

0.18

0.20

0.24

0.27

0.30

0.36

0.39

0.43

0.51

0.62

0.75

0.91

1.10

1.30

1.60

2.00

2.40

3.00

3.60

4.30

5.10

6.20

7.50

9.10

11.0

13.0

16.0

20.0

Physical Parameters

Inches

Millimeters

Length

0.375 ± 0.010

Diameter

0.156 ± 0.010

Lead Size

AWG #22 TCW

0.025 ± 0.002

Lead Length

1.44 ± 0.12

Current Rating at 90°C Ambient

Phenolic 35°C Rise

Iron 15°C Rise

Operating Temperature Range

Phenolic –55°C to +125°C;

Iron –55°C to +105°C

Maximum Power Dissipation at 90°C

Phenolic 0.312 W

Iron 0.134 W

Weight Max.

(Grams) 0.9

9.53 ± 0.25

3.96 ± 0.25

0.635 ± 0.051

36.58 ± 3.05

SERIES 511 PHENOLIC CORE

25.0

525

25.0

500

25.0

475

25.0

415

25.0

400

25.0

380

25.0

345

25.0

330

25.0

315

25.0

300

25.0

260

25.0

230

25.0

210

7.9

190

7.9

170

7.9

155

7.9

140

7.9

130

7.9

115

7.9

105

7.9

SERIES 511 IRON CORE

7.9

2.5

0.040

0.043

0.047

0.060

0.070

0.080

0.098

0.100

0.110

0.130

0.140

0.180

0.240

0.420

0.480

0.600

0.800

1.100

1.800

2.150

2.400

0.360

0.470

0.550

0.800

1.050

1.200

1.800

2.500

2370

2285

2185

1935

1790

1675

1515

1500

1430

1315

1265

1115

970

730

685

610

530

450

355

325

305

570

455

420

350

310

285

230

195

Optional Tolerances: H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Marking

DELEVAN; inductance with units and tolerance;

date code (YYWWL). Note: An R before the date code

indicates a RoHS component.

Example: 511-16J

Front:

DELEVAN

4.3uH±5%

Reverse:

4.3uH±5%

0628C

Packaging

Tape & reel: 12" reel, 2500 pieces max.; 14"

reel, 4000 pieces max.

Made in the U.S.A.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
