LFB322G45SN1A504 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LFB322G45SN1A504

Preview

LFB322G45SN1A504: DescriptionSignal Conditioning 2450.0 MHz 50 OHM; CategoryAnalog mixed-signal IC filter; File Size207KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LFB322G45SN1A504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFB322G45SN1A504	-	-	View	Buy Now

LFB322G45SN1A504 Overview

Signal Conditioning 2450.0 MHz 50 OHM

LFB322G45SN1A504 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Center frequency or cutoff frequency (fo/fc)	2450 MHz
filter type	BAND PASS FILTER
high	1.5 mm
Maximum insertion loss	1.8 dB
JESD-609 code	e3
length	3.2 mm
Manufacturer's serial number	LFB322G45SN
Installation type	SURFACE MOUNT
physical size	L3.2XB2.5XH1.5 (mm)/L0.126XB0.098XH0.059 (inch)
Terminal surface	Tin (Sn)
width	2.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of LFB155G37CB1C032 from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-us/products/productdetail?partno=LFB155G37CB1C032

LFB155G37CB1C032

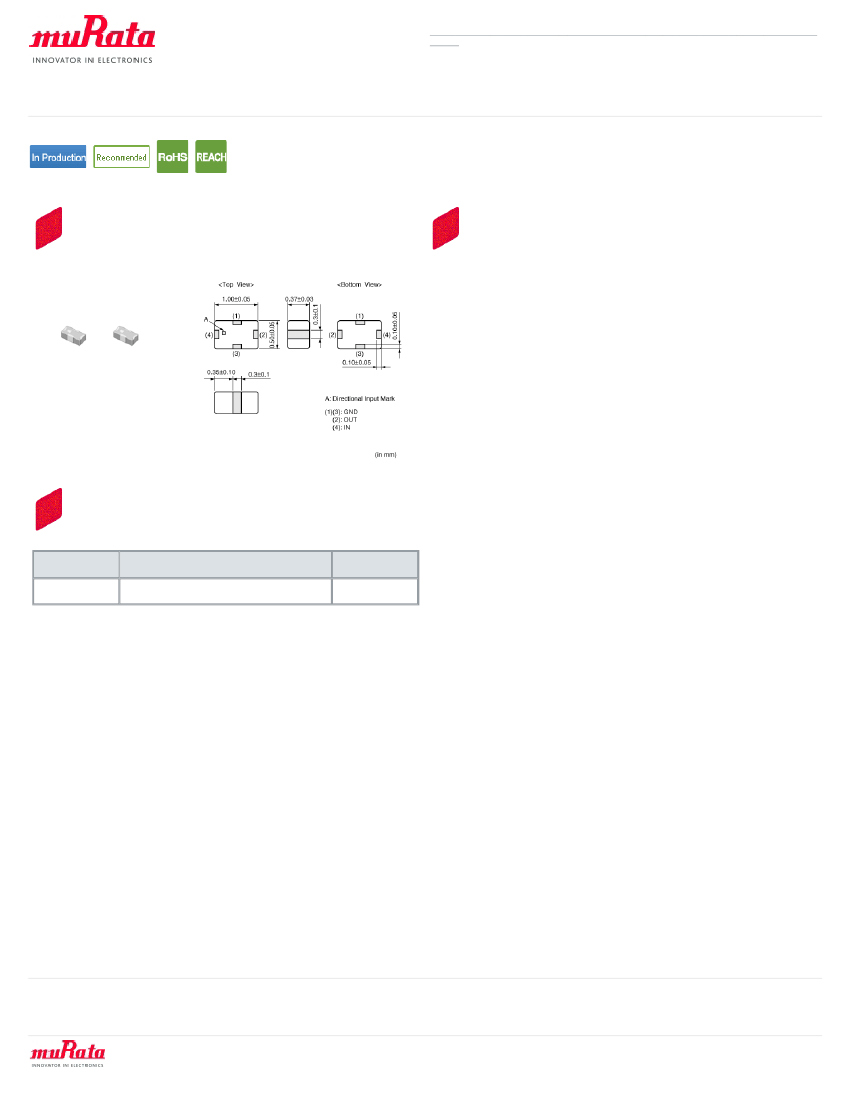

Appearance & Shape

Features

Ultra-small, low-profiled, lightweight chip filters based on ceramic

multilayer technology.

Extremely ultra-small band-bass filters.

1. Ultra-small, low-profiled, lightweight band-pass filters.

2. Absolutely no adjustment required.

3. Reflow solderable.

4. Available in tape and reel packagings for automatic mounting.

5. Available in the 4900MHz to 5850MHz frequency range.

Packaging Information

Packaging

-

Specifications

180mm Paper Tape

Minimum

Order Quantity

10000

1 of 3

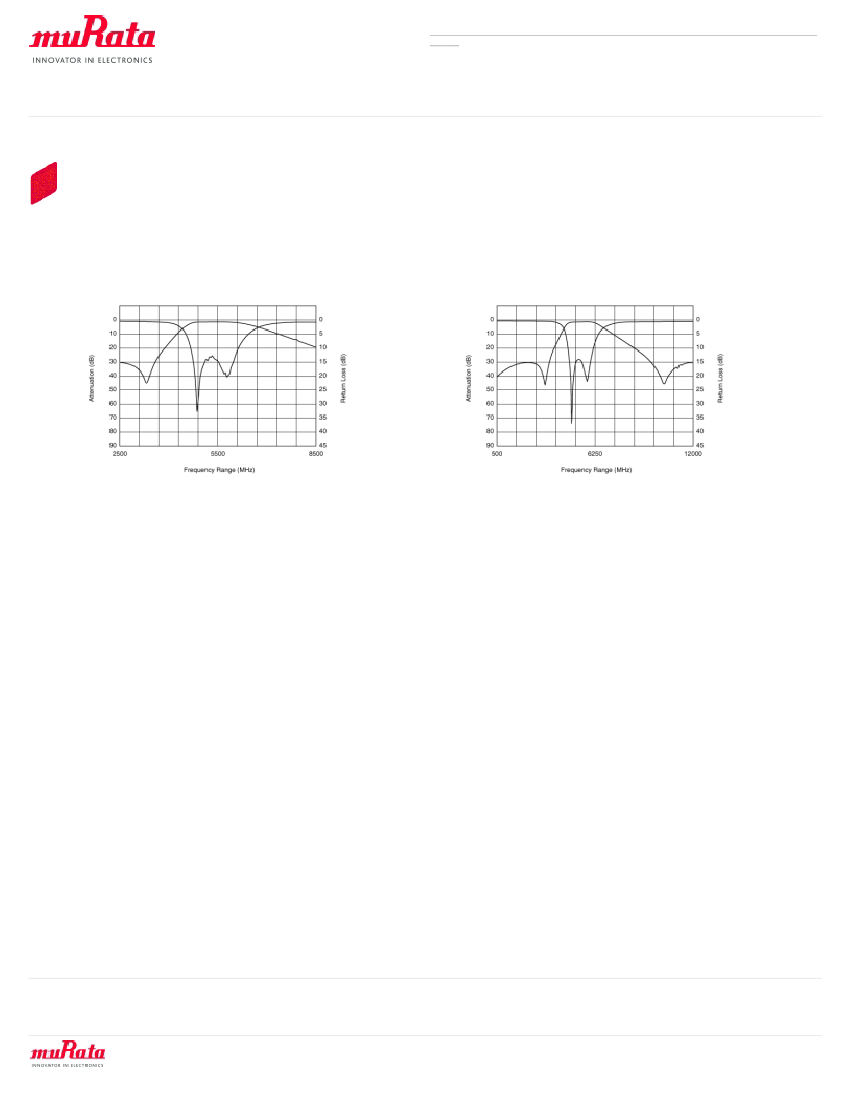

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/02/18
