DS0551 Overview

PIN Diode SPST

Parameter Name	Attribute value
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	400 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPST
Maximum voltage standing wave ratio	1.4
Base Number Matches	1

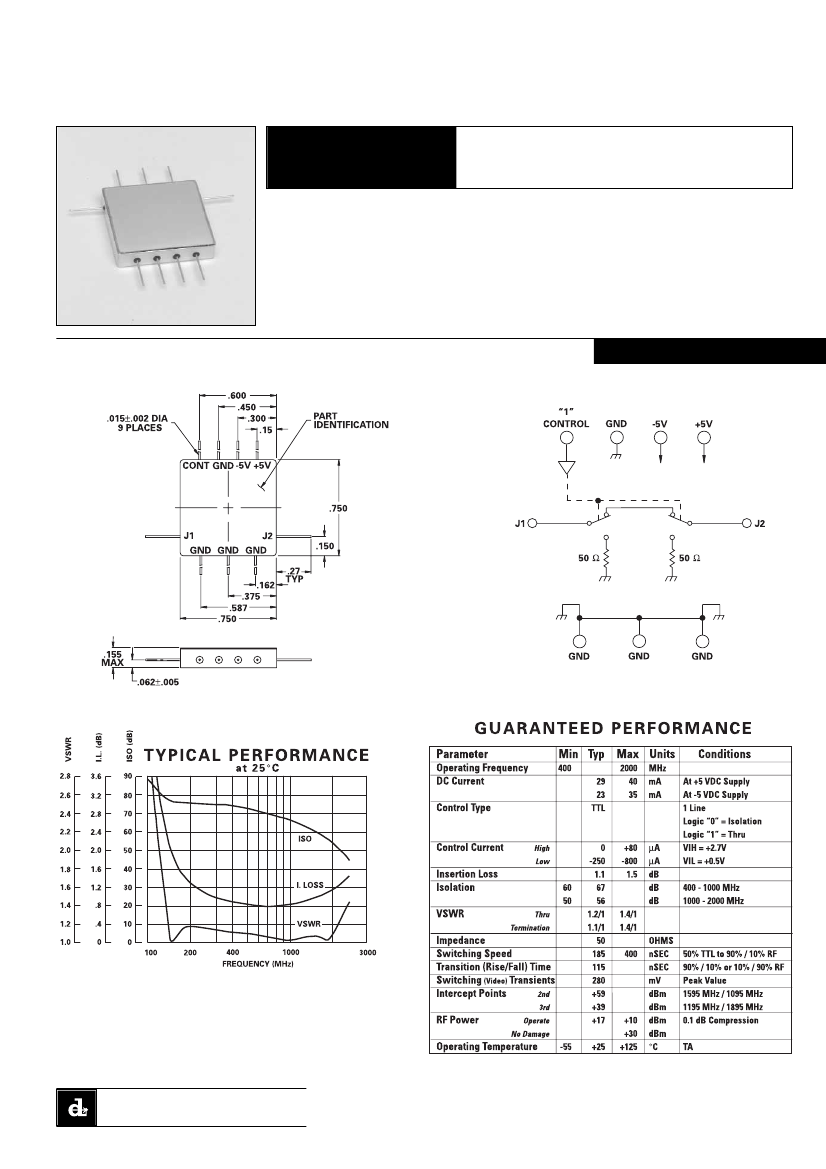

MODEL NUMBER

DS0551

FEATURES

• 400-2000 MHz

• 0.9 dB Insertion Loss

• 60 dB Isolation

PIN Diode SPST

• TTL Driver

• Non-Reflective

• .750 Sq. Flat Pack

SPST

DAICO

Industries

310.507.3242 • FAX 310.507.5701 • www.daico.com

85
