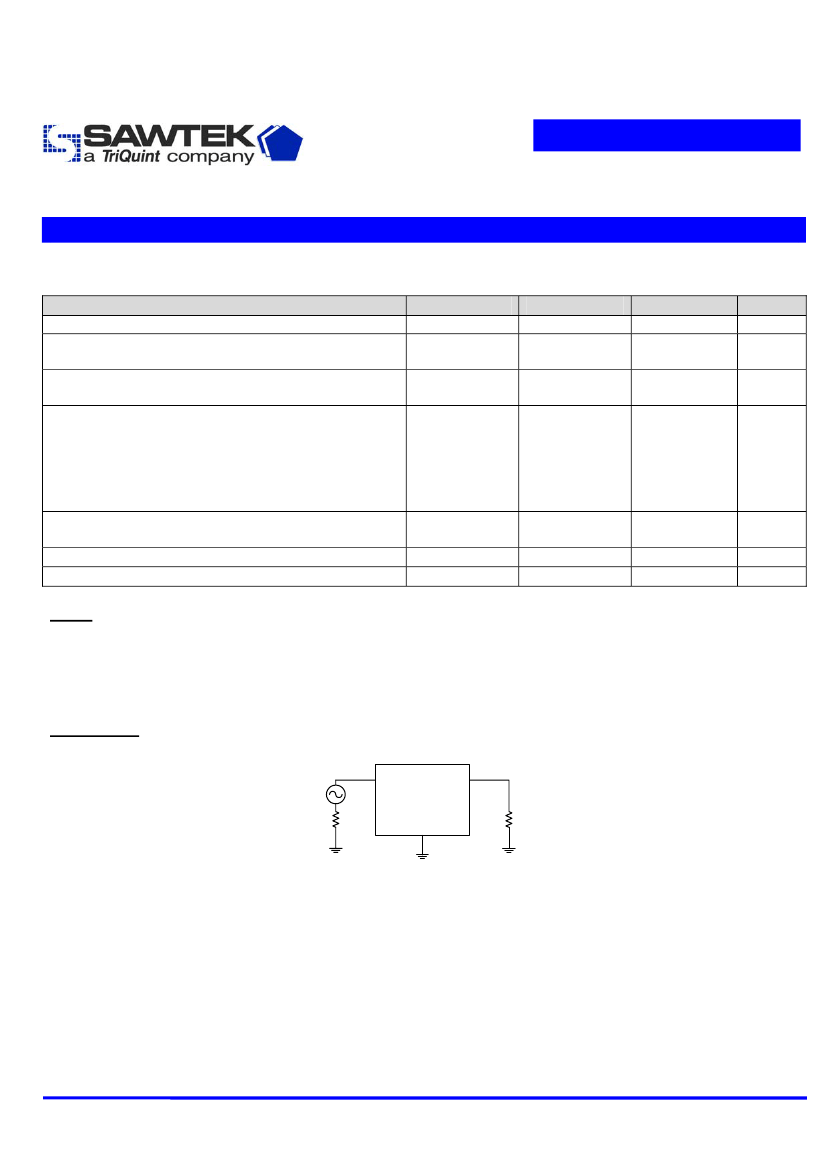

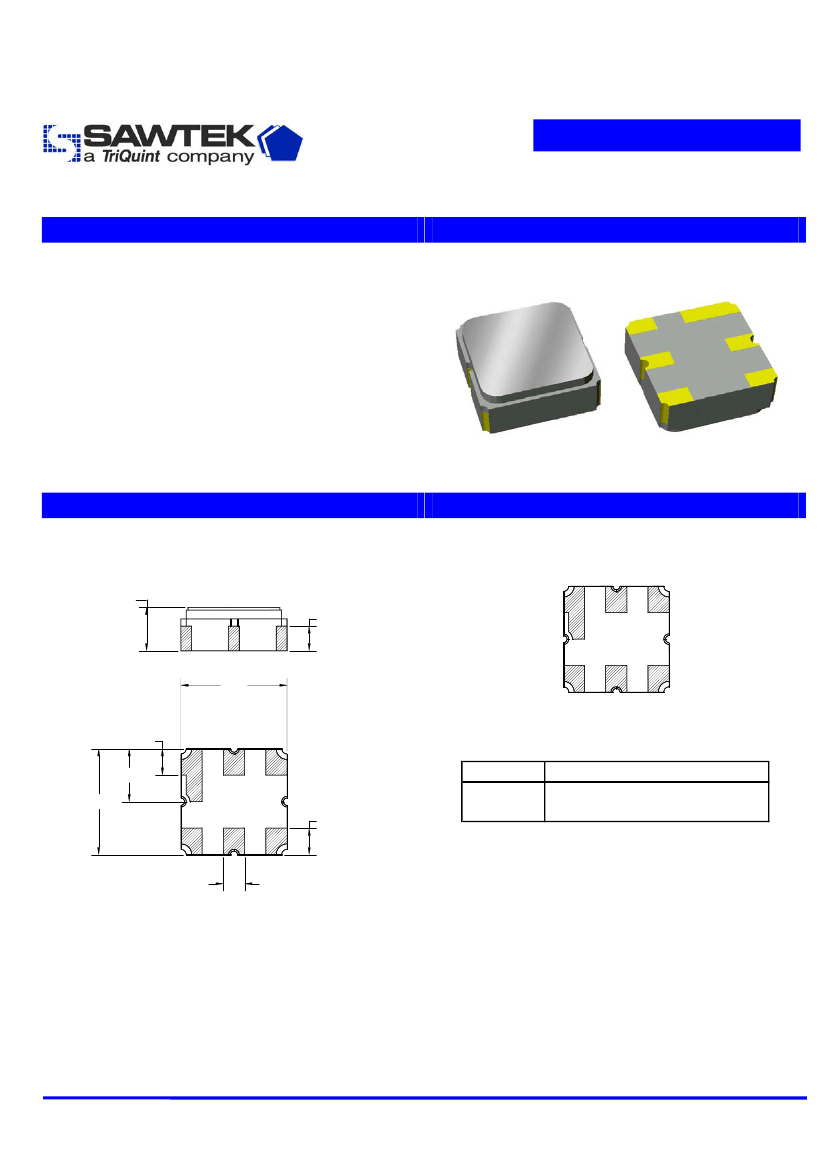

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Subject to change or obsolescence without notice
Rev B
28-Jul-2004
Page 2 of 5
Data Sheet
Part Number 855728
881.5 MHz SAW Filter

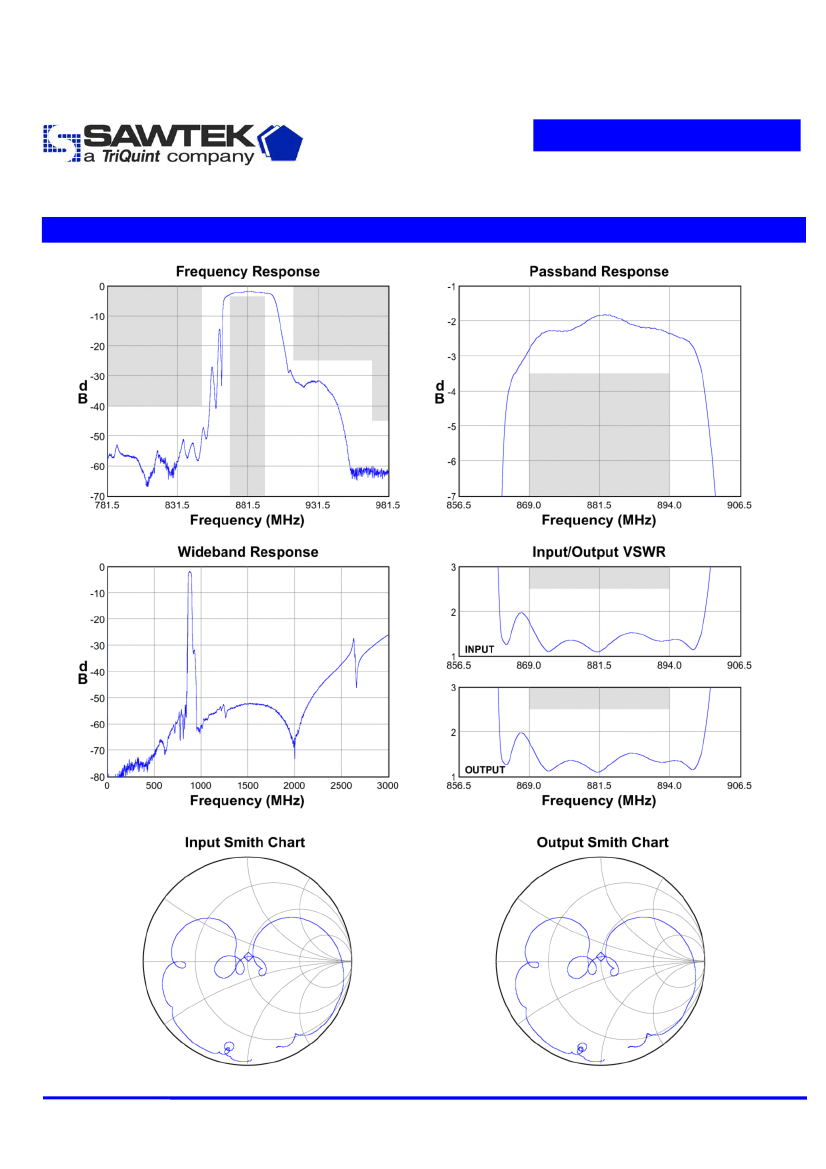

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev B
28-Jul-2004
Page 3 of 5
Data Sheet
Part Number 855728
881.5 MHz SAW Filter

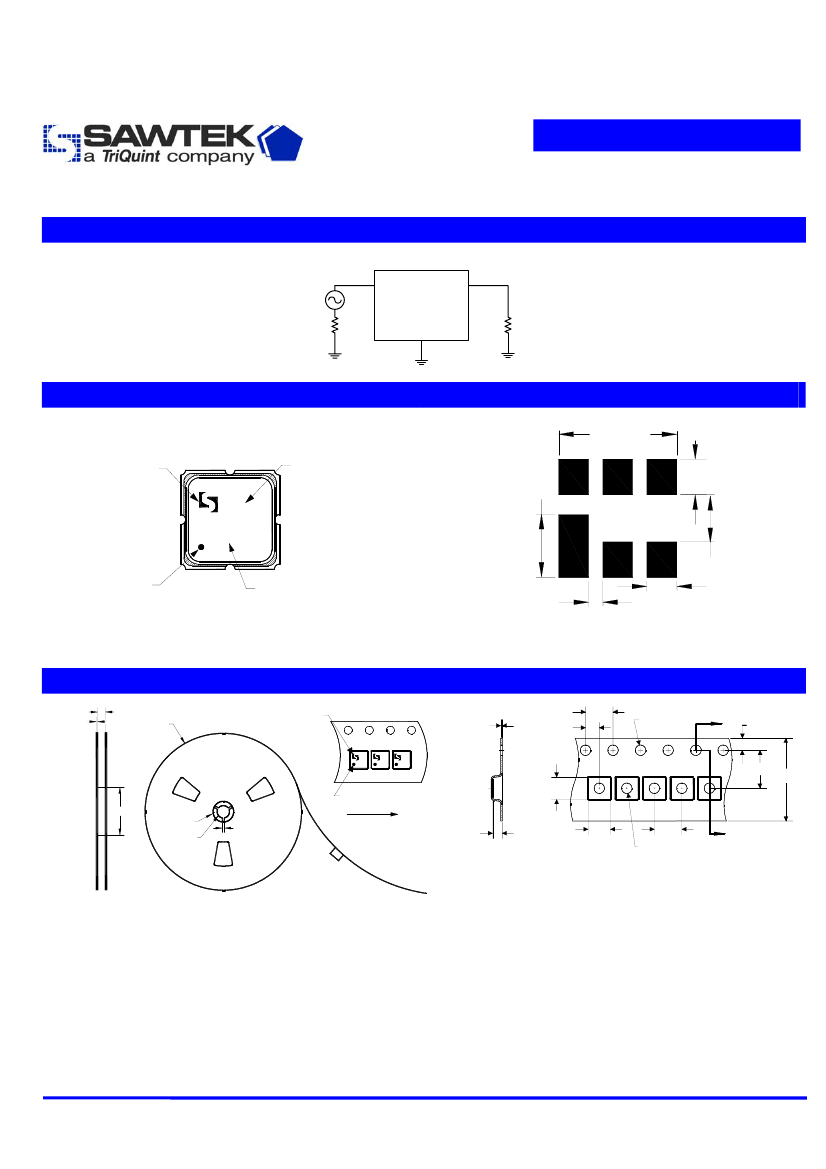

Matching Schematics
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
3.20 SQ
.96
B
JJJYM
1.70
1.27
ID dot
Date code
.81
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
ID dot
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
12.0
3.25
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev B
28-Jul-2004
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
Part Number 855728
881.5 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
P
in
Minimum
-30
-40
-
Maximum
+80
+85
+10
Unit
C
C
dBm
o
o
Warnings
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Material Content
Does not contain lead (Pb) or other RoHS restricted materials
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
