DTC123YS3

Description
PNP Digital Transistors (Built-in Resistors)
File Size155KB,4 Pages
ManufacturerCYSTEKEC
Websitehttp://www.cystekec.com/
Download Datasheet Compare View All

DTC123YS3 Overview

PNP Digital Transistors (Built-in Resistors)

CYStech Electronics Corp.
PNP Digital Transistors (Built-in Resistors
)
Spec. No. : C262S3
Issued Date : 2004.03.03
Revised Date :
Page No. : 1/4

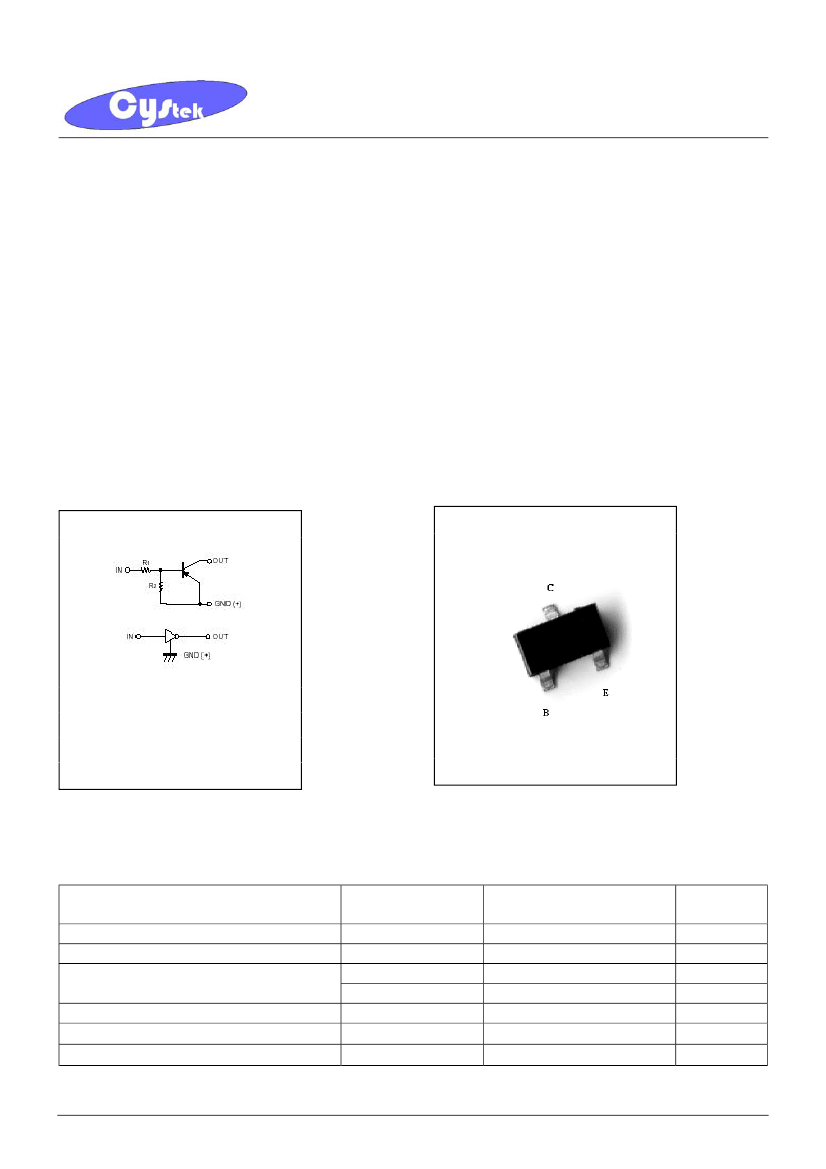

DTA123YS3
Features
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input
resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the
input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC123YS3
Equivalent Circuit
DTA123YS3

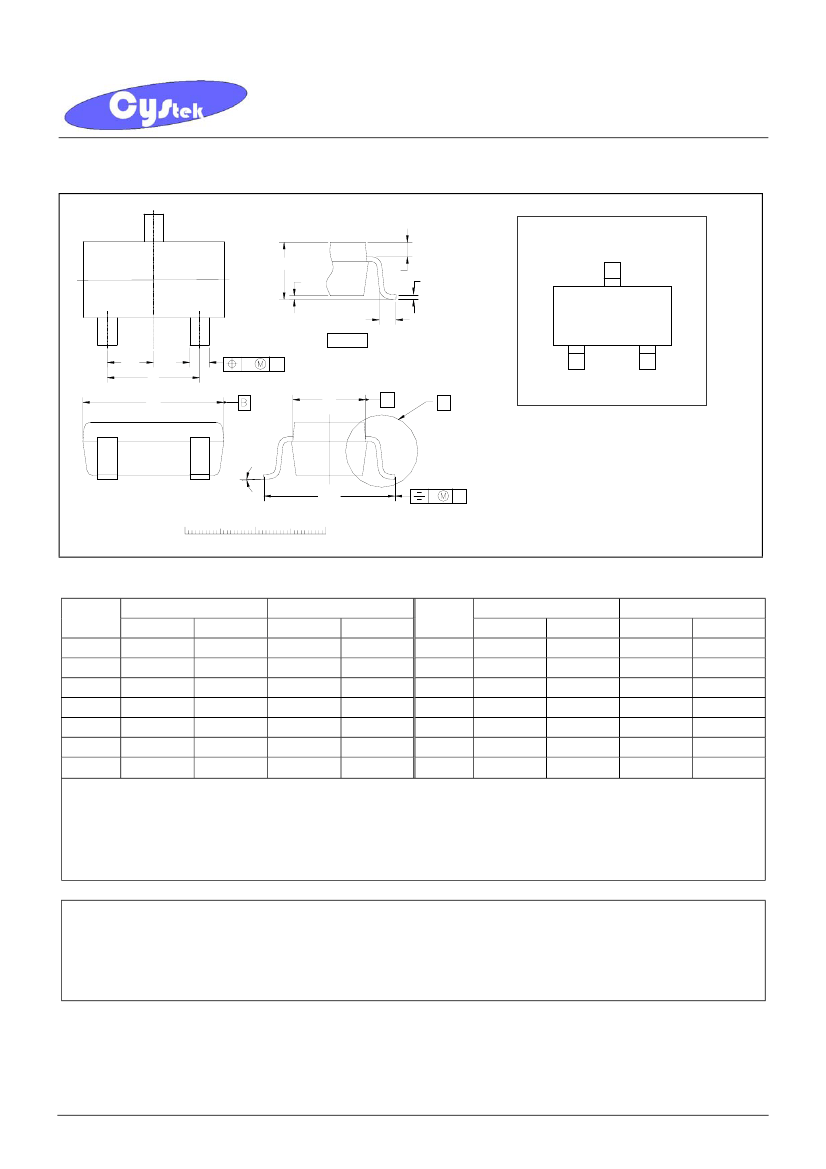

Outline
SOT-323
R1=2.2kΩ , R2=10 kΩ
IN(B) : Base
OUT(C) : Collector
GND(E) : Emitter
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Supply Voltage
Input Voltage
Output Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CC
V
IN
I
O
I
O(Max)
Pd
Tj
Tstg
Limits
-50
-12~+5
-100
-100
200
150
-55~+150
Unit
V
V
mA
mA
mW
°C
°C
DTA123YS3
CYStek Product Specification
