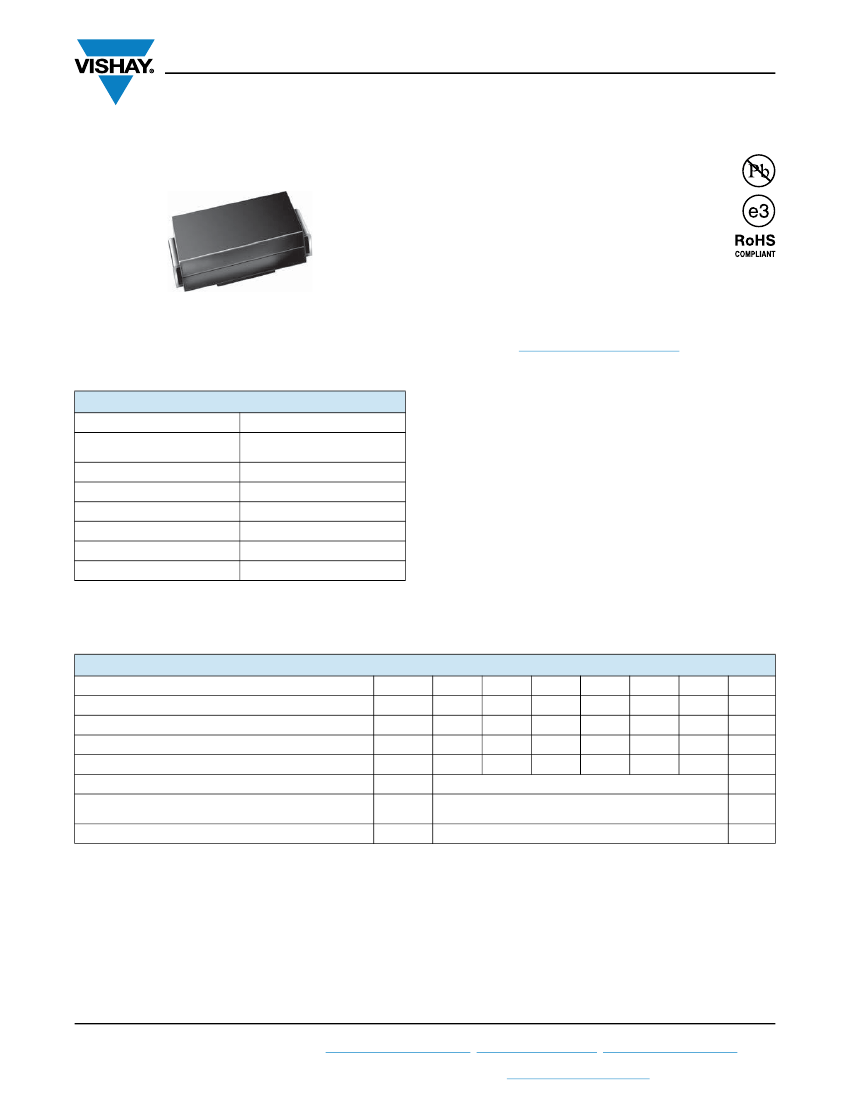

RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
Surface Mount Fast Switching Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast switching for high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
DO-214AC (SMA)
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Diode variation
1.0 A
50 V, 100 V, 200 V, 400 V, 600 V,
800 V
30 A
150 ns, 250 ns, 500 ns
1.3 V
150 °C
DO-214AC (SMA)
Single die
For use in fast switching rectification of power supply,
inverters, converters, and freewheeling diodes for
consumer, automotive and telecommunication.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
= 90 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
RS1A
RA
50
35
50
RS1B
RB
100
70
100
RS1D
RD
200
140
200
1.0
30
-55 to +150
RS1G
RG
400
280
400
RS1J
RJ
600
420
600
RS1K
RK
800
500
800
V
V
V
A
A
°C
UNIT
Revision: 23-Feb-16
Document Number: 88707
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum DC reverse current at
rated DC blocking voltage
Maximum reverse recovery time
Typical junction capacitance
TEST CONDITIONS
1.0 A
T
A
= 25 °C
T
A
= 125 °C
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
SYMBOL
V
F
I
R
t
rr
C
J
150
10
RS1A
RS1B
RS1D
1.3
5.0
50
250
7.0
500
RS1G
RS1J
RS1K
UNIT
V
μA
ns
pF
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JL
(1)
RS1A
RS1B
RS1D
105
32
RS1G
RS1J
RS1K
UNIT
°C/W
Note
(1)
Thermal resistance from junction to ambient and from junction to lead mounted on PCB with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
RS1J-E3/61T
RS1J-E3/5AT
RS1JHE3_A/H
(1)
RS1JHE3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
H
I
BASE QUANTITY
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified

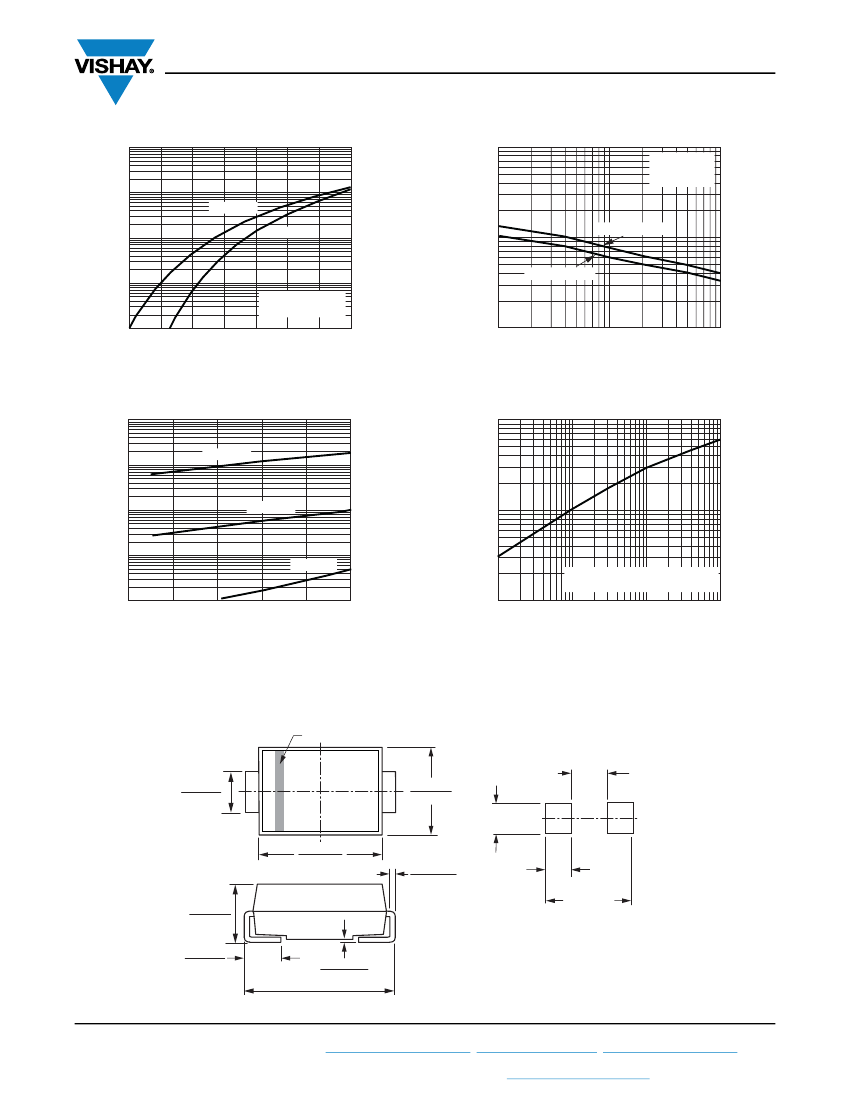

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
50
Average Forward Rectified Current (A)
1.0
Peak Forward Surge Current (A)
Resistive or Inductive Load
T
L
= 90 °C
8.3 ms Single Half Sine-Wave
40
0.8
30
0.6
20
0.4
P.C.B. Mounted on
0.2" x 0.2" (5.0 mm x 5.0 mm)
Copper Pad Areas
0
20
40
60
80
100
120
140
160
180
0.2
10
0
0
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 23-Feb-16
Document Number: 88707
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Instantaneous Forward Current (A)
10
T
J
= 125 °C
1
T
J
= 25 °C
Junction Capacitance (pF)
RS1A thru RS1G
10
RS1J thru RS1K
0.1
Pulse Width = 300 µs
1 % Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
1
1
10
100
Instantaneous Forward
Voltage
(V)
Reverse
Voltage
(V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
T
J
= 125 °C
10
1
T
J
= 100 °C
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (µA)
10
0.1
T
J
= 25 °C
Mounted on 0.2" x 0.2" (5 mm x 5 mm)
Copper Pad Area
1
0.01
0.1
1
10
0.01
0
20
40
60
80
100
Percent of Rated Peak Reverse
Voltage
(%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 23-Feb-16
Document Number: 88707
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
