800-0400: DescriptionXLR Connectors NIKL/SILV CABLE 4C; CategoryThe connector; File Size21KB，1 Pages; ManufacturerDeltron

Download Datasheet Parametric Compare View All

800-0400 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-0400	-	-	View	Buy Now

800-0400 Overview

XLR Connectors NIKL/SILV CABLE 4C

800-0400 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Deltron
Product Category	XLR Connectors
RoHS	Details
Product	Connectors
Standard	Standard XLR
Number of Positions	4 Position
Gender	Female
Termination Style	Solder
Mounting Style	Cable
Contact Plating	Silver
Orientation	Vertical
Contact Material	Brass
Voltage Rating	250 V
Current Rating	10 A
Shell Plating	Nickel
Factory Pack Quantity	100
Unit Weight	1.199315 oz

Preview

Download Datasheet

View All

MOUSER STOCK NO.

164-8113,

164-8114,

164-8115,

164-8213,

164-8214,

164-8215,

164-8123,

164-8124,

164-8125,

164-8223,

164-8224,

164-8225

Connectors

2.68 min.

2.81 max.

164-8123, 164-8124, 164-8125, 164-8223, 164-8224, 164-8225

164-8113, 164-8114, 164-8115, 164-8213, 164-8214, 164-8215

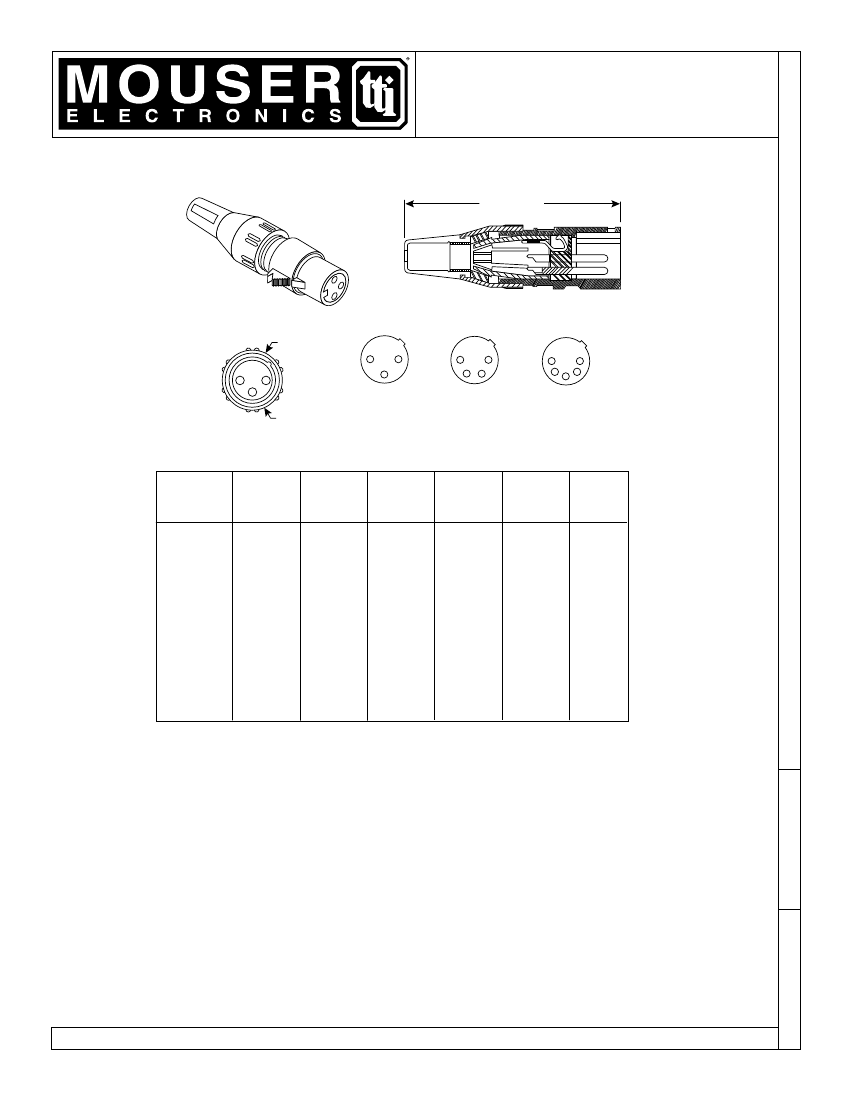

ø.787

Fig. A

3 Pin

2 3

Fig. B

4 Pin

Fig. C

5 Pin

ø.748

Dimensions (In.)

Mouser

Stock No.

164-8113

164-8114

164-8115

164-8213

164-8214

164-8215

164-8123

164-8124

164-8125

164-8223

164-8224

164-8225

Current

Rating

(A)

7.5

Wire

AWG

Cap.

(pf)

≤4

≤7

≤4

≤7

≤4

≤7

≤4

≤7

Fig.

Housing

Nickel

Black

Nickel

Black

Contacts

Silver

Gold

Connectors

Specifications:

• Type: broadcast quality female XLR

• Housing: zinc high-pressure diecasting satin nickel

or black chrome

• Screw collar: polycaronate, 10% glass filled Lexan,

black

• Contact base: valox DR48

• Contacts: brass 3µ silver plated or .5µ gold plated

• Strain relief: PVC, black

• Sealing ring: santoprene, UL 94 HB

• Chuck: acetal, UL 94 HB

• Screen: spring steel, 3µ silver plate, anti-tarnish

• Optional identification rings: acetal, UL 94 HB; colors

(yellow, brown, blue green, red, white, black, and

clear)

•

Cable retention: chuck and screw collar

Terminals: solder buckets

Cable range: ø2.8mm~ø8.0mm

Insertion force:

≤20N

Withdrawal force:

≤10N

Life: 5000 insertions min.

Working voltage: 1500VAC

Test voltage: 1500VAC

Contact resistance:

≤3mΩ

max.

Temperature range: -30°~+80°C

Insulation resistance:

≥1GΩ

0416220

Date:

5-6-02

Quality, Speed, & Service

(800) 346-6873

http://www.mouser.com
