GLASS WIRE WOUND
SENSOR TYPE GO
RTD Temperature Sensor
SPECIFICATIONS
Temperature sensor
Large temperature range
From -200°C to +400°C
High vibrations resistant
Resistant to external forces and pressures
Small dimensions
Good temperature stability
Abrasion resistance
Good pull up force resistance of leads
Resistance to aggressive environment (acid, oil,
solvent)

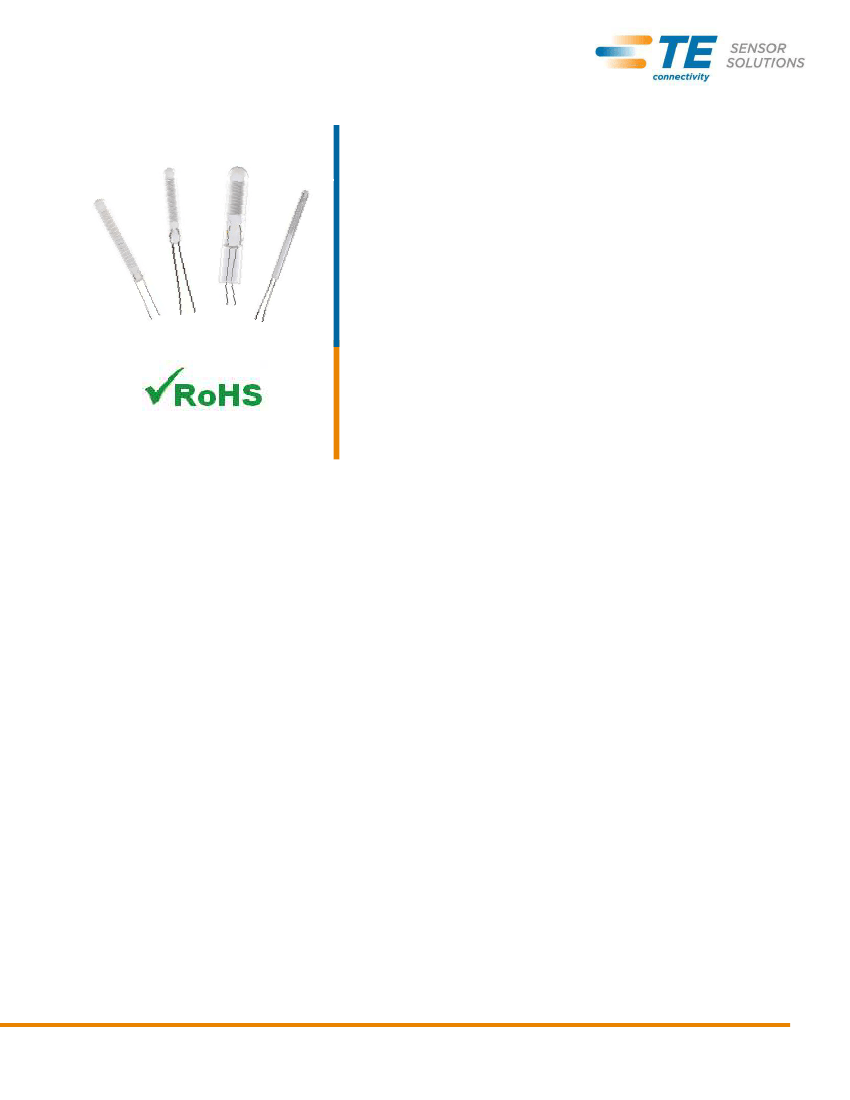

One or two platinum bands wounded on solid glass core and
homogeneously sealed with external tube.
SENSOR SOLUTIONS
///GLASS WIRE WOUND SENSOR TYPE GO
09/2015
Page 1
GLASS WIRE WOUND SENSOR TYPE GO
RTD Temperature Sensor
FEATURES
Nominal Value: 100
at 0°C
Tolerance according to IEC 60751: class W 0.3, W 0.15 and W 0.1
Temperature coefficient
= 3850 ppm/K
Closer tolerances in restricted temperature ranges
Connection Wires: Platinum coated nickel wires
The lead wires connection is pull up force resistant
Housing Advise: Can be used in most of liquids without protection (water, oil, solvent, acid...).
Options: - Lead wires length
- Extension cable
- Glass shape (diameter, length, bent)
- Ohmic values
APPLICATIONS
Chemical and pharmaceutical industry
Food industry
H.V.A.C.
Power generation plants
Analytical equipment
Aerospace industry
Marine...
SENSOR SOLUTIONS
/// GLASS WIRE WOUND SENSOR TYPE GO
09/2015
Page 2
GLASS WIRE WOUND SENSOR TYPE GO
RTD Temperature Sensor
PERFORMANCE SPECIFICATIONS
Desi- Referen
gnation
ce
Nominal
reference
(Ohm at 0°C)
Self-
heating
in air
(K/mW)
Type
L WL D AL1 AL2
(Dimensions in mm)
A
Response time (s)
Air
v = 1 m/s
t0,5
t0,9
7
13
16
13
16
16
7
13
16
13
16
7
13
16
13
16
21
25
40
25
40
40
21
25
40
25
40
21
25
40
25
40
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
GO 1020
GO 1327
GO 1545
GO 2327
GO 3045
GO 4845
GO 1020
GO 1327
GO 1545
GO 2327
GO 3045
GO 1020
GO 1327
GO 1545
GO 2327
GO 3045
Water
v = 0,4 m/s
t0,5
t0,9
Tolerance Class W 0.3 = ± (0.3+0.005 ItI) From -196°C to + 400°C
SB0789
100
10 6 2,0 15
- 0,25
0,26
0,14
0,35
SB0865
100
13 9 2,7 15
- 0,25
0,11
0,40
1,30
SB0862
100
15 9,5 4,5 15
- 0,25
0,09
0,80
2,40
SB0870
100
23 16 2,7 15
- 0,25
0,11
0,40
1,30
SB0873
100
30 21 4,5 15
- 0,25
0,09
0,80
2,40
SB0765
100
48 35 4,5 10 12 0,25
0,09
0,80
2,40
Tolerance Class W 0.15 = ± (0.15+0.002 ItI) From -100°C to + 250°C
SB0794
100
10 6 2,0 15
- 0,25
0,26
0,14
0,35
SB0866
100
13 9 2,7 15
- 0,25
0,11
0,40
1,30
SB0863
100
15 9,5 4,5 15
- 0,25
0,09
0,80
2,40
SB0871
100
23 16 2,7 15
- 0,25
0,11
0,40
1,30
SB0874
100
30 21 4,5 15
- 0,25
0,09
0,80
2,40
Tolerance Class W 0.1 = ± (0.1+0.0017 ItI) From 0°C to + 150°C
SB0795
100
10 6 2,0 15
- 0.25
0,26
0,14
0,35
SB0867
100
13 9 2,7 15
- 0,25
0,11
0,40
1,30
SB0864
100
15 9,5 4,5 15
- 0.25
0,09
0,80
2,40
SB0872
100
23 16 2,7 15
- 0,25
0,11
0,40
1,30
SB0875
100
30 21 4,5 15
- 0.25
0,09
0,80
2,40
VALUES FOR Pt100
°C
-200
-150
-100
-50
0
50
100
Ohms
18.52
39.72
60.26
80.31
100
119.40
138.51
Ohms/°C
0.432
0.417
0.405
0.397
0.391
0.385
0.379
°C
150
200
250
300
350
400
Ohms
157.33
175.86
194.10
212.05
229.72
247.09
Ohms/°C
0.374
0.368
0.362
0.356
0.350
0.345
SENSOR SOLUTIONS
/// GLASS WIRE WOUND SENSOR TYPE GO
09/2015
Page 3
GLASS WIRE WOUND SENSOR TYPE GO
RTD Temperature Sensor

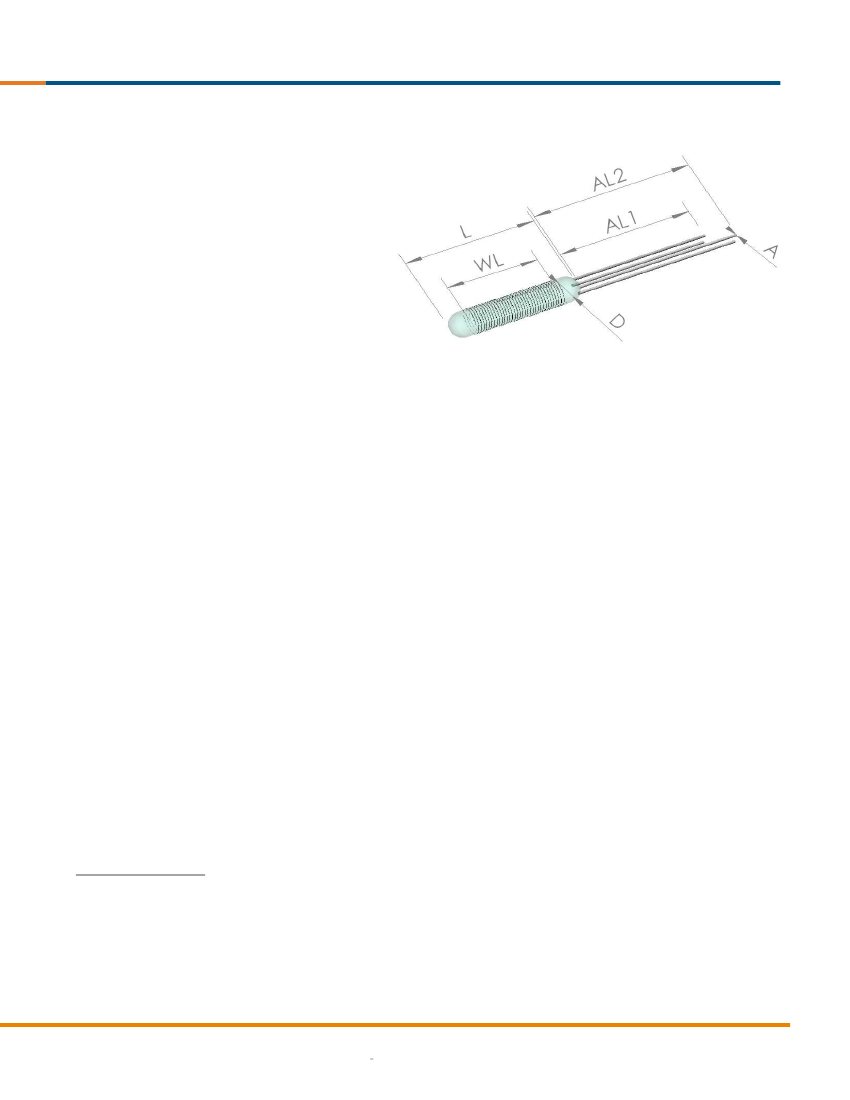

BLOCK DIAGRAM
DIMENSIONAL TOLERANCES:
=
2mm
=
0.2mm
=
2mm
=
0.02 mm
L
D
AL
A
(length of body)
(diameter of body)
(connection wire length)
(connection wire diameter)
