66089-0430 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 66089-0430

66089-0430: DescriptionAntennas 425MHz ETSI LEN=30mm Gain 3dBi; CategoryWireless rf/communication Radio frequency and microwave; File Size644KB，1 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

66089-0430 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	66089-0430	-	-	View	Buy Now

66089-0430 Overview

Antennas 425MHz ETSI LEN=30mm Gain 3dBi

66089-0430 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Anaren
Reach Compliance Code	compliant
Factory Lead Time	20 weeks
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	3 dB
Omnidirectional	YES
RF/Microwave Device Types	ANTENNA-OTHER
Maximum voltage standing wave ratio	1.7
Base Number Matches	1

Preview

Download Datasheet

View All

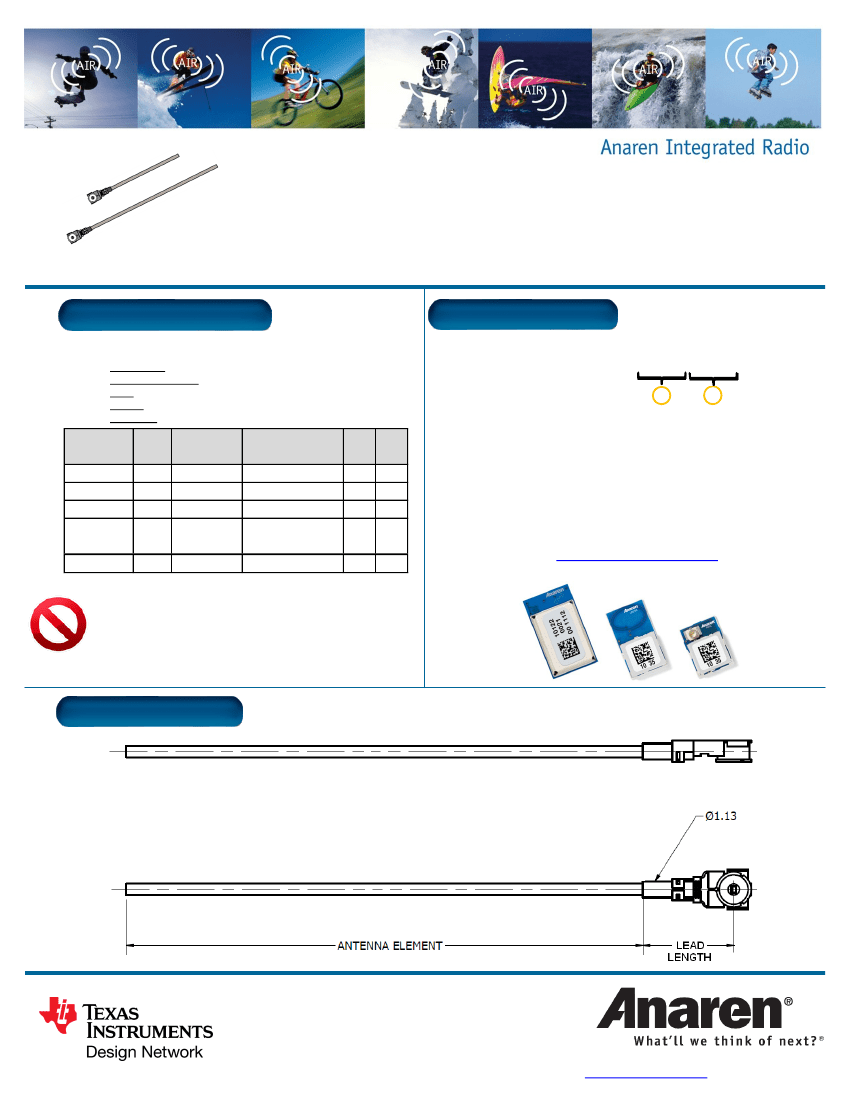

66089 U.FL Antenna Series

The 66089 series antennas are designed for quick connection to Anaren Integrated

Radio modules, and have been certified to meet “intentional radiator” require-

ments for low power non-licensed devices (FCC, IC, and ETSI). The 66089 series

antennas are intended for applications where an embedded antenna module is not

practical—such a radio module mounted inside a shielded enclosure.

66089-xxxx

Specifications

Nomenclature

50 ohms

See table

3 dBI

1.7 max

Omni directional

PERFORMANCE CHARACTERISTICS:

Impedance:

Frequency Range:

Gain:

VSWR:

Radiation:

66089-XX06

FCC

(IC) ETSI

Band Antenna

Module

Element

A1101R04C 04 173±1 mm

A1101R08C 08

86±1 mm

A1101R09C 09

82±1 mm

A25xxE24C

30±1 mm

A25xxR24C

A110LR09C 89

84±1 mm

Center

Frequency

425 MHz

866 MHz

915 MHz

2.442 GHz

898 MHz

Band

Lead Length

See “Band ID” in table

06 = 6mm ‘standard’

30 = 30mm ‘extended’

To view the entire available family of AIR Modules &

Development options, please visit our website at:

http://www.anaren.com/air

This product is not to be used in any implantable medical device or external

medical device intended to regulate or monitor biological functions, including but

not limited to devices such as pacemakers, defibrillators, cardiac

resynchronization devices, pressure sensors, biochemical stimulators and

neurostimulators. ANAREN MAKES NO WARRANTY OF FITNESS OR

MERCHANTABILITY OF THIS PRODUCT FOR ANY USE OF THIS TYPE.

Anaren shall not be responsible for any consequential damages arising from the

sale or use of this product for any use of this type. The ultimate user of the

Layout

Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057

800.411.6596 /

http://www.anaren.com

/ AIR@anaren.com

1306a
