76794-004: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size415KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

76794-004 Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,

76794-004 Parametric

Parameter Name	Attribute value
Objectid	1600819492
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.232 inch
subject depth	0.33 inch
body length	0.4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

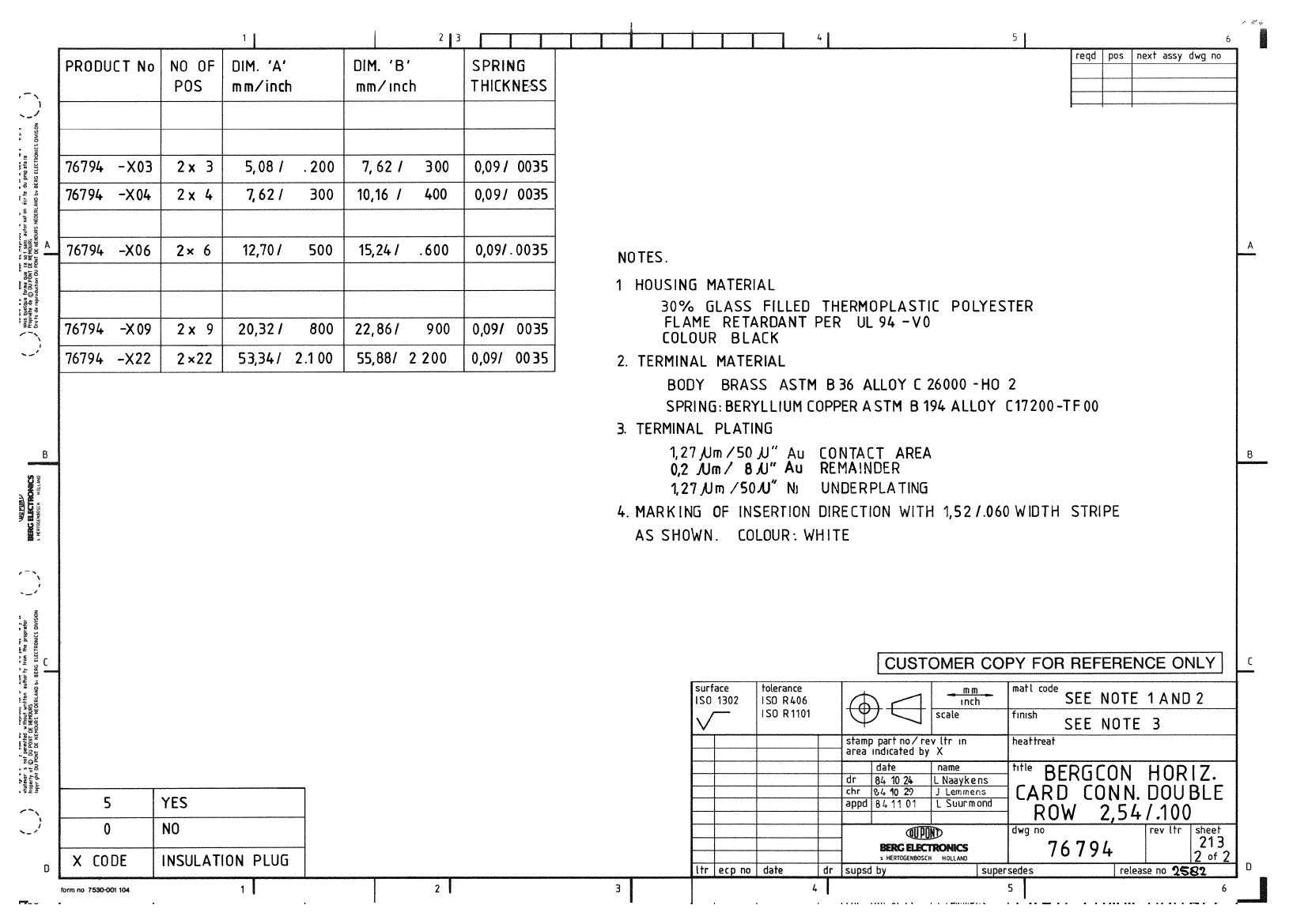

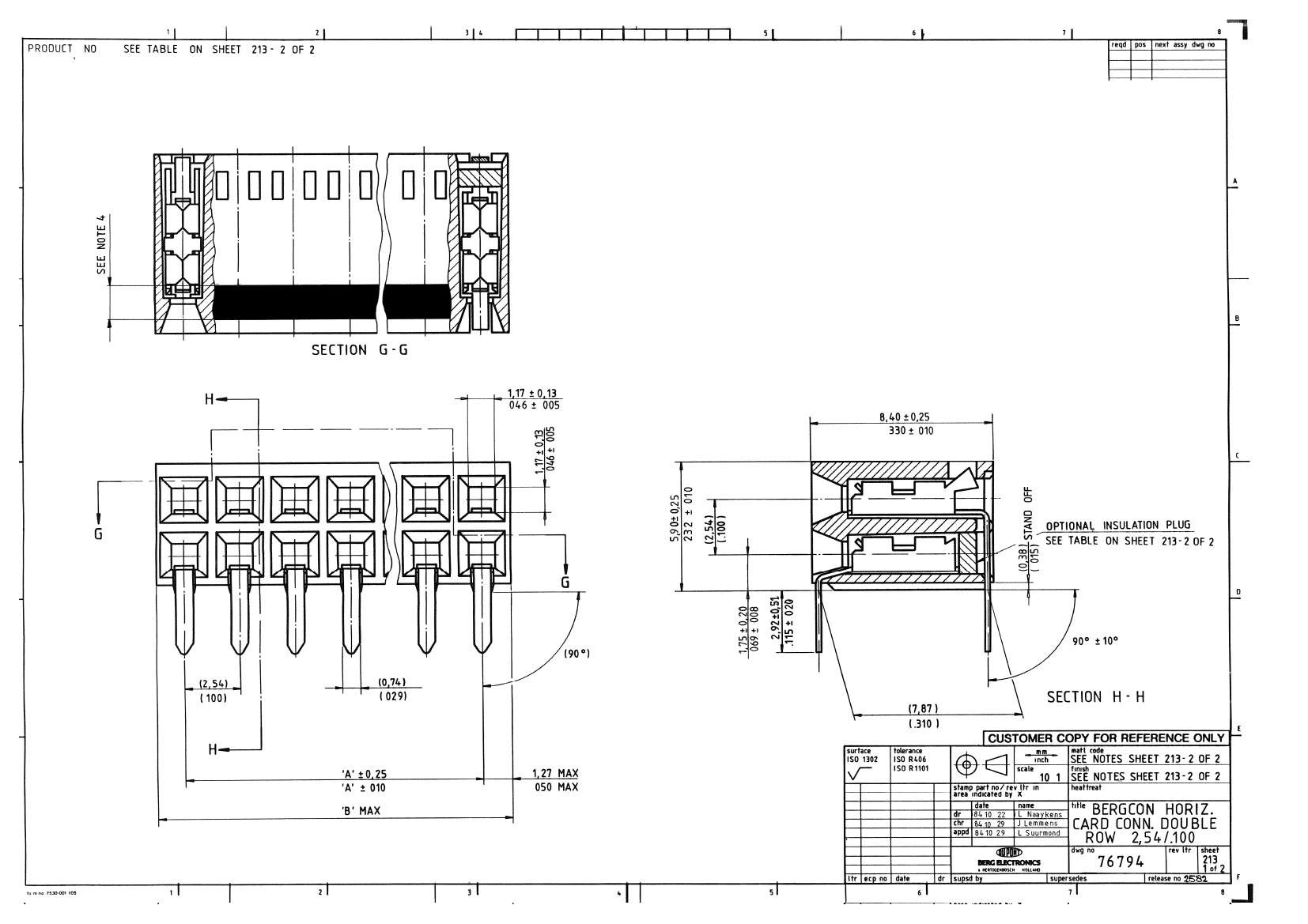

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Aug 29, 2002

76794-004 Related Products

	76794-004	76794-006	76794-503	76794-506	76794-509	76794-522	76794-003
Description	Board Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,	Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,	Board Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.232 inch	0.232 inch	0.232 inch	0.232 inch	0.232 inch	0.232 inch	0.232 inch
subject depth	0.33 inch	0.33 inch	0.33 inch	0.33 inch	0.33 inch	0.33 inch	0.33 inch
body length	0.4 inch	0.6 inch	0.3 inch	0.6 inch	0.9 inch	2.2 inch	0.3 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL
Terminal length	0.115 inch	0.115 inch	0.115 inch	0.115 inch	0.115 inch	0.115 inch	0.115 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	12	6	12	18	44	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	-	-	76794	76794	76794	76794	-
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Base Number Matches	-	-	1	1	1	1	-
