SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 4697, REV. -
SHD124611
SHD124611P
SHD124611N
SHD124611D
HERMETIC POWER SCHOTTKY RECTIFIER
Very Low Forward Voltage
Applications:
•
Switching Power Supply
•
Converters
•
Free-Wheeling Diodes
•
Polarity Protection Diode
Features:
•
•
•
•
•
•
Soft Reverse Recovery at Low and High Temperature
Very Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
Guaranteed Reverse Avalanche Characteristics
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Max. Thermal Resistance
Max. Junction Temperature
Max. Storage Temperature
Symbol
V
RWM
I
F(AV)
I
FSM
R
θJC
T
J
T
stg
Condition
-
50% duty cycle, rectangular
wave form
8.3 ms, half Sine wave
(per leg)
(Single)
-
-
Max.
30
45
200
0.33
-65 to +150
-65 to +150
Units
V
A
A
°C/W
°C
°C
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
Symbol
V
F1
V
F2
Max. Reverse Current
I
R1
I
R2
C
T
Condition
@ 45A, Pulse, T
J
= 25
°C
(per leg)
@ 45A, Pulse, T
J
= 125
°C
(per leg)
@V
R
= 30V, Pulse,
T
J
= 25
°C
(per leg)
@V
R
= 30V, Pulse,
T
J
= 125
°C
(per leg)
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
= 50mV (p-p) (per leg)
Max.
0.71
0.58
12
600
6600
Units
V
V
mA
mA
pF
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SENSITRON
TECHNICAL DATA
DATA SHEET 4697, REV. -

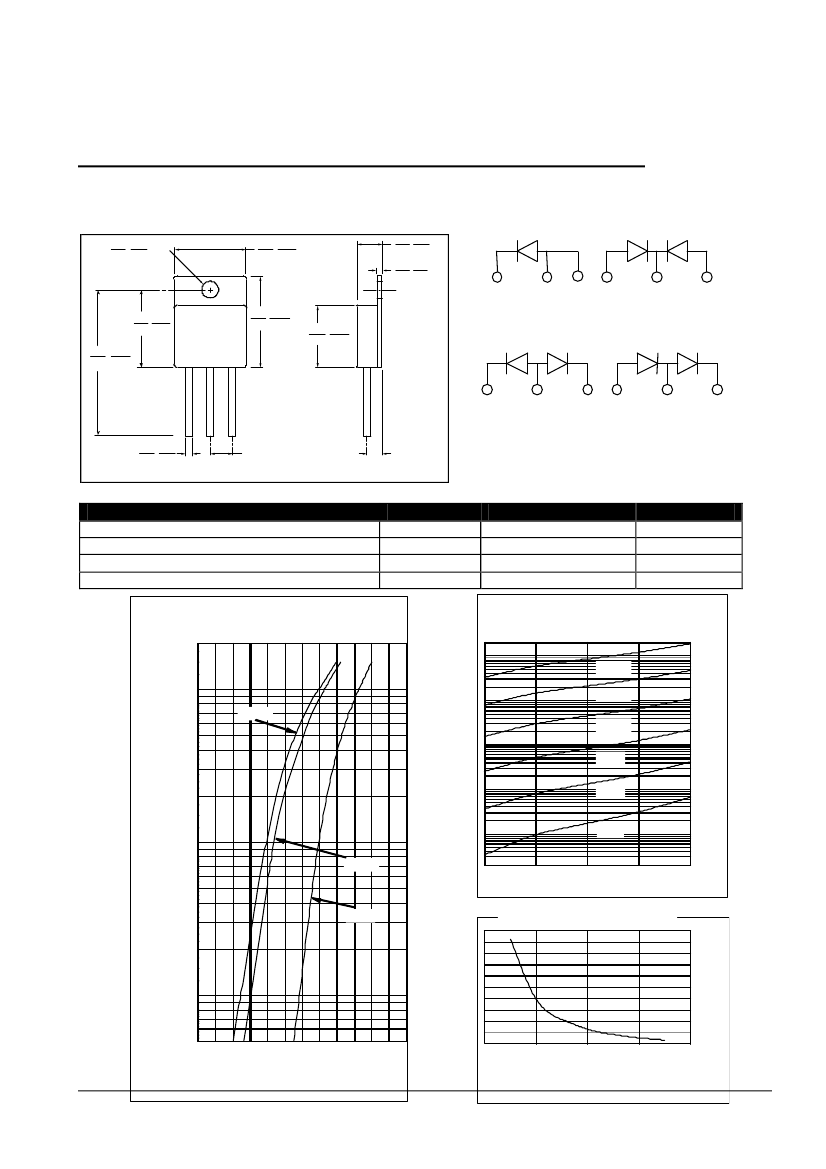

Mechanical Dimensions: In Inches / mm
.165 (4.19
Dia.
.155 3.94)
.695 (17.65
.685 17.40)
.270 (6.86
.240 6.10)
.045 (1.14
.035 0.89)
SHD124611
SHD124611P
SHD124611N
SHD124611D
SINGLE
COMMON CATHODE
.707 (17.96
.697 17.70)
1.302 (33.07
1.202 30.53)
.835 (21.21
.815 20.70)
1
.550 (13.97
.530 13.46)
2
3
1
2
DOUBLER
3
COMMON ANODE
1
2
3
1
.065 (1.65
.055 1.40)
3 Places
.200(5.08) BSC
2 Places
.140(3.56) BSC
2
3
1
2
3
TO-258
PIN 2
ANODE
COMMON CA THODE
COMMON ANODE
CATHODE/ANODE
PIN 3
ANODE
ANODE 2
CATHODE 2
CATHODE
PINOUT TABLE
TYPE
PIN 1
SINGLE RECTIFIER
CATHODE
DUAL RECTIFIER, COMMON CATHODE (P)
ANODE 1
DUAL RECTIFIER, COMMON ANODE (N)
CATHODE 1
DUAL RECTIFIER, DOUBLER (D)
ANODE
Note:
The V
f
curves shown are for the unpackaged die only.
Typical Forward Characteristics
10
3
Typical Reverse Characteristics
150 °C
10
2
Instantaneous Reverse Current -
R
(mA)
I
10
2
125 °C
100 °C
150 °C
10
1
Instantaneous Forward Current -
F
(A)
I
75 °C
10
0
50 °C
10
1
10
-1
25 °C
125 °C
0
10
20
30
Reverse Voltage - V (V)
R
40
25 °C
Junction Capacitance - C
T
(pF)
6000
5500
5000
4500
4000
3500
0
Typical Junction Capacitance
10
0
0.0
0.1
0.2
0.3
0.4
0.5
Forward Voltage Drop - V (V)
F
0.6
10
20
30
Reverse Voltage - V (V)
R
40
•
