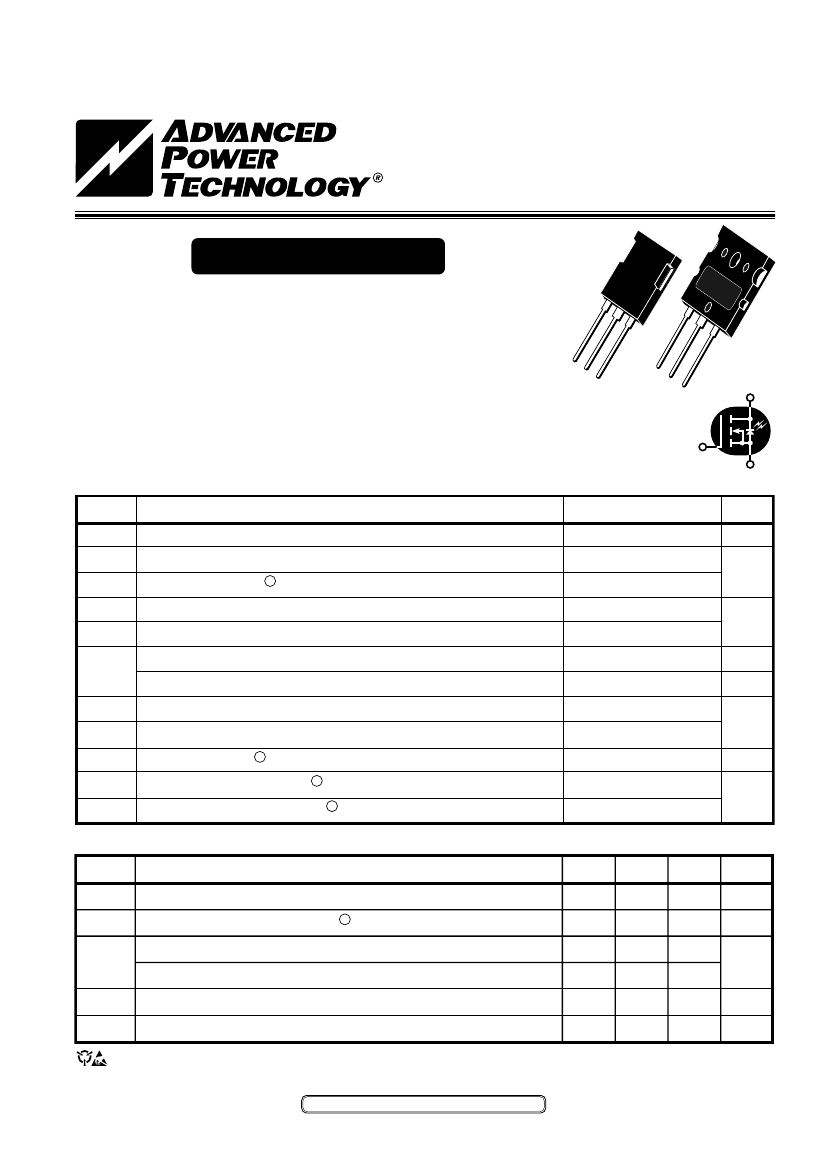

is a new generation of high voltage N-Channel enhancement
mode power MOSFETs. This new technology minimizes the JFET effect,
increases packing density and reduces the on-resistance. Power MOS V
®
also achieves faster switching speeds through optimized gate layout.
T-MAX™
1200V 20A 0.600
Ω
TO-264
• Faster Switching
• Lower Leakage
• Avalanche Energy Rated
FREDFET
D
G
S
• Popular
T-MAX™
or TO-264
Package
MAXIMUM RATINGS
Symbol
V
DSS
I
D
I
DM
V
GS
V
GSM
P
D
T
J
,T
STG
T
L
I
AR
E
AR
E
AS
Parameter
Drain-Source Voltage
Continuous Drain Current @ T
C
= 25°C
Pulsed Drain Current
1
All Ratings: T
C
= 25°C unless otherwise specified.
APT12060B2VFR_LVFR
UNIT
Volts
Amps
1200
20
80
±30
±40
625
5.00
-55 to 150
300
20
50
4
Gate-Source Voltage Continuous
Gate-Source Voltage Transient
Total Power Dissipation @ T
C
= 25°C
Linear Derating Factor
Operating and Storage Junction Temperature Range
Lead Temperature: 0.063" from Case for 10 Sec.
Avalanche Current
1
Volts
Watts
W/°C
°C
Amps
mJ
(Repetitive and Non-Repetitive)
1
Repetitive Avalanche Energy
Single Pulse Avalanche Energy
3000
STATIC ELECTRICAL CHARACTERISTICS
Symbol
BV
DSS
R
DS(on)
I
DSS
I
GSS
V
GS(th)
Characteristic / Test Conditions
Drain-Source Breakdown Voltage (V
GS
= 0V, I
D
= 250µA)
Drain-Source On-State Resistance
2
MIN
TYP
MAX
UNIT
Volts
1200
0.600
250
1000
(V
GS
= 10V, I
D
= 10A)
Ohms
µA
nA
Volts
Zero Gate Voltage Drain Current (V
DS
= 1200, V
GS
= 0V)
Zero Gate Voltage Drain Current (V
DS
= 960V, V
GS
= 0V, T
C
= 125°C)
Gate-Source Leakage Current (V
GS
= ±30V, V
DS
= 0V)
Gate Threshold Voltage (V
DS
= V
GS
, I
D
= 1mA)
2
4
CAUTION:
These Devices are Sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed.
APT Website - http://www.advancedpower.com
050-5845 Rev A
4-2004
±100
DYNAMIC CHARACTERISTICS
Symbol
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
t
d
(on)
t
r
t
d
(off)
t
f
Characteristic
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
3
APT12060B2VFR _ LVFR
Test Conditions
V
GS
= 0V
V
DS
= 25V
f = 1 MHz
V
GS
= 10V
V
DD
= 0.5 V
DSS
I
D
= I
D
[Cont.] @ 25°C
V
GS
= 15V
V
DD
= 0.5 V
DSS
I
D
= I
D
[Cont.] @ 25°C
R
G
= 0.6Ω
MIN
TYP
MAX
UNIT
pF
7545
650
350
431
34
210
13
12
63
12
9500
980
490
650
41
320
26
24
95
25
ns
nC
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
SOURCE-DRAIN DIODE RATINGS AND CHARACTERISTICS
Symbol
I
S
I
SM
V
SD
dv
/
dt
Characteristic / Test Conditions
Continuous Source Current (Body Diode)
Pulsed Source Current
Diode Forward Voltage
Peak Diode Recovery
1
2
MIN
TYP
MAX
UNIT
Amps
Volts
V/ns
ns
µC
Amps
20
80
1.3
18
T
j
= 25°C
T
j
= 125°C
T
j
= 25°C
T
j
= 125°C
T
j
= 25°C
T
j
= 125°C
(Body Diode)
(V
GS
= 0V, I
S
= -I
D
[Cont.])
dt
5
dv
/
t
rr
Q
rr
I
RRM
Reverse Recovery Time
(I
S
= -I
D
[Cont.],
di
/
dt
= 100A/µs)
Reverse Recovery Charge
(I
S
= -I
D
[Cont.],
di
/
dt
= 100A/µs)
Peak Recovery Current
(I
S
= -I
D
[Cont.],
di
/
dt
= 100A/µs)
320
650
3
9
15
25
THERMAL CHARACTERISTICS
Symbol
R
θJC
R
θJA
Characteristic
Junction to Case
Junction to Ambient
3
See MIL-STD-750 Method 3471
4
Starting T = +25°C, L = 15mH, R
j
G
MIN
TYP
MAX
UNIT
°C/W
0.20
40
= 25Ω, Peak I
L
= 20A
1
Repetitive Rating: Pulse width limited by maximum junction
temperature.
2
Pulse Test: Pulse width < 380 µS, Duty Cycle < 2%
5
I
≤
I [Cont.],
di
/
= 100A/µs, T
≤
150°C, R = 2.0Ω V = 200V.
S
D
j
G
R
dt
APT Reserves the right to change, without notice, the specifications and information contained herein.
0.2
Z
JC
, THERMAL IMPEDANCE (°C/W)
θ
0.1
0.05
D=0.5
0.2
0.1
0.01
0.005
0.05
0.02
0.01
SINGLE PULSE
Note:
PDM
t1
t2
Peak TJ = PDM x Z
θJC
+ TC
Duty Factor D = t1/t2
050-5845 Rev A
4-2004
0.001
10
-5
10
-3
10
-2
10
-1
1.0
10
RECTANGULAR PULSE DURATION (SECONDS)
FIGURE 1, MAXIMUM EFFECTIVE TRANSIENT THERMAL IMPEDANCE, JUNCTION-TO-CASE vs PULSE DURATION
10
-4
Typical Performance Curves
I
D
, DRAIN CURRENT (AMPERES)
30
25
20
15
10
5
0
VGS =15 &10V
APT12060B2VFR_LVFR
5V
4.5V
Graph Deleted
4V
V
DS
, DRAIN-TO-SOURCE VOLTAGE (VOLTS)

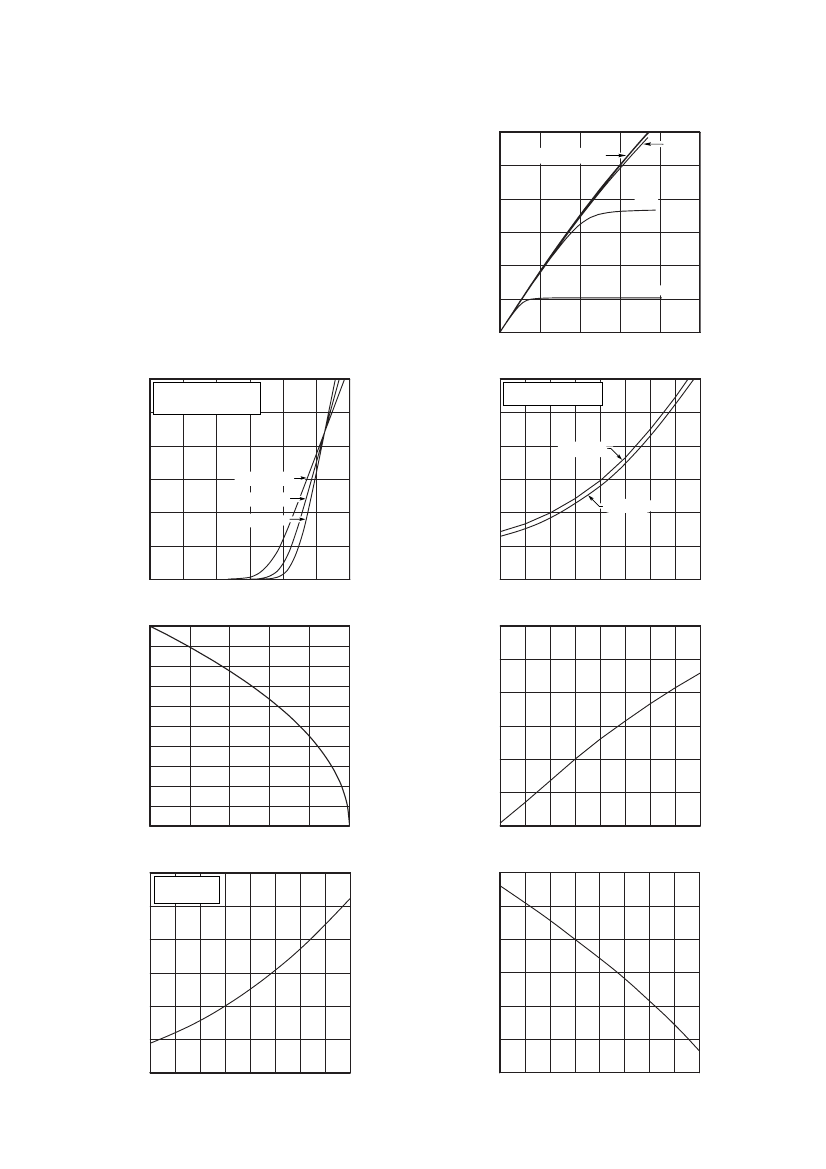

FIGURE 2, HIGH VOLTAGE OUTPUT CHARACTERISTICS
60
I
D
, DRAIN CURRENT (AMPERES)
R
DS
(ON), DRAIN-TO-SOURCE ON RESISTANCE
VDS> ID (ON) x RDS (ON)MAX.
250µSEC. PULSE TEST
@ <0.5 % DUTY CYCLE
0
5
10
15
20
25
V
DS
, DRAIN-TO-SOURCE VOLTAGE (VOLTS)
FIGURE 3, LOW VOLTAGE OUTPUT CHARACTERISTICS
1.2
V
GS
NORMALIZED TO
= 10V @ 0.5 I [Cont.]
D
50
40
30
20
10
0
1.15
1.10
1.05
1.0
0.95
0.9
VGS=20V
VGS=10V
TJ = +125°C
TJ = +25°C
TJ = -55°C
0
1
2
3
4
5
6
V
GS
, GATE-TO-SOURCE VOLTAGE (VOLTS)
FIGURE 4, TRANSFER CHARACTERISTICS
0
20
18
I
D
, DRAIN CURRENT (AMPERES)
BV
DSS
, DRAIN-TO-SOURCE BREAKDOWN
VOLTAGE (NORMALIZED)
1.2
1.15
1.10
1.05
1.00
0.95
0.90
5
10 15 20
25 30 35 40
I
D
, DRAIN CURRENT (AMPERES)
FIGURE 5, R
DS
(ON) vs DRAIN CURRENT
16
14
12
10
8
6
4
2
0
25
50
75
100
125
150
T
C
, CASE TEMPERATURE (°C)
FIGURE 6, MAXIMUM DRAIN CURRENT vs CASE TEMPERATURE
R
DS
(ON), DRAIN-TO-SOURCE ON RESISTANCE
(NORMALIZED)
-25
0
25 50 75 100 125 150
T
J
, JUNCTION TEMPERATURE (°C)
FIGURE 7, BREAKDOWN VOLTAGE vs TEMPERATURE
1.2
V
GS
(TH), THRESHOLD VOLTAGE
(NORMALIZED)
-50
3.0
2.5
2.0
1.5
1.0
0.5
I = 0.5 I [Cont.]
D
D
V
GS
= 10V
1.1
1.0
0.9
0.8
0.7
0.6
0.0
-50
-25
0
25 50
75 100 125 150
T
J
, JUNCTION TEMPERATURE (°C)
FIGURE 8, ON-RESISTANCE vs. TEMPERATURE
-25
0
25 50 75 100 125 150
T
C
, CASE TEMPERATURE (°C)
FIGURE 9, THRESHOLD VOLTAGE vs TEMPERATURE
-50
050-5845 Rev A
4-2004
80
I
D
, DRAIN CURRENT (AMPERES)
50
OPERATION HERE
LIMITED BY RDS (ON)
40,000
100µS
C, CAPACITANCE (pF)
APT12060B2VFR_LVFR
10,000
5,000
Ciss
10
5
1mS
1,000
500
Coss
1
5 10
50 100
500 1200
V
DS
, DRAIN-TO-SOURCE VOLTAGE (VOLTS)

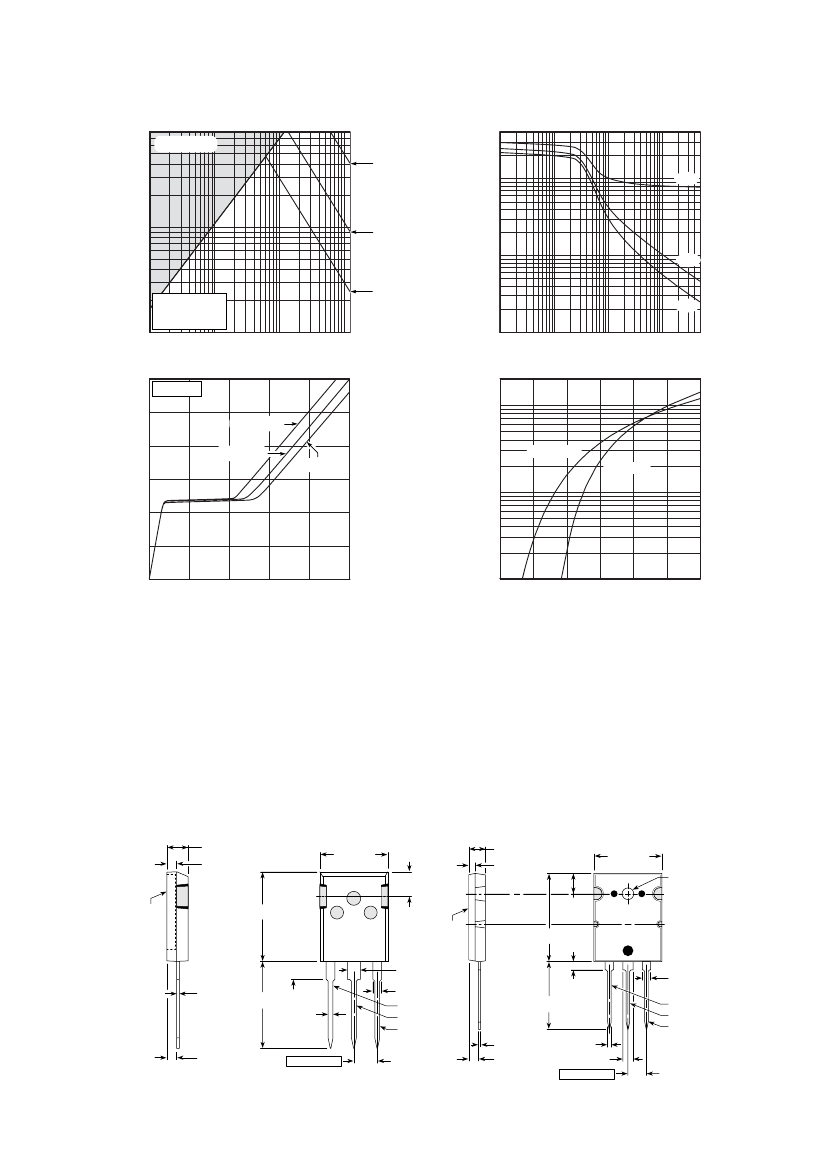

FIGURE 10, MAXIMUM SAFE OPERATING AREA
V
GS
, GATE-TO-SOURCE VOLTAGE (VOLTS)
1
TC =+25°C
TJ =+150°C
SINGLE PULSE
10mS
Crss
.01
.1
1
10
50
V
DS
, DRAIN-TO-SOURCE VOLTAGE (VOLTS)
FIGURE 11, CAPACITANCE vs DRAIN-TO-SOURCE VOLTAGE
I
DR
, REVERSE DRAIN CURRENT (AMPERES)
100
12
10
8
6
4
2
0
I = I [Cont.]
D
D
200
100
50
TJ =+150°C
TJ =+25°C
10
5
VDS=100V
VDS=250V
VDS=400V
100
200
300
400
500
Q
g
, TOTAL GATE CHARGE (nC)
FIGURE 12, GATE CHARGE vs GATE-TO-SOURCE VOLTAGE
0
0.3
0.5
0.7
0.9
1.1
1.3
1.5
V
SD
, SOURCE-TO-DRAIN VOLTAGE (VOLTS)
FIGURE 13, SOURCE-DRAIN DIODE FORWARD VOLTAGE
1
T-MAX
TM
(B2) Package Outline
4.69 (.185)
5.31 (.209)
1.49 (.059)
2.49 (.098)
15.49 (.610)
16.26 (.640)
5.38 (.212)
6.20 (.244)
TO-264 (L) Package Outline
4.60 (.181)
5.21 (.205)
1.80 (.071)
2.01 (.079)
19.51 (.768)
20.50 (.807)
3.10 (.122)
3.48 (.137)
5.79 (.228)
6.20 (.244)
Drain
20.80 (.819)
21.46 (.845)
Drain
25.48 (1.003)
26.49 (1.043)
4.50 (.177) Max.
0.40 (.016)
0.79 (.031)
2.87 (.113)
3.12 (.123)
1.65 (.065)
2.13 (.084)
2.29 (.090)
2.69 (.106)
19.81 (.780)
21.39 (.842)
2.29 (.090)
2.69 (.106)
4-2004
19.81 (.780)
20.32 (.800)
1.01 (.040)
1.40 (.055)
Gate
Drain
Source
0.48 (.019)
0.84 (.033)
2.59 (.102)
3.00 (.118)
Gate
Drain
Source
050-5845 Rev A
2.21 (.087)
2.59 (.102)
5.45 (.215) BSC
2-Plcs.
0.76 (.030)
1.30 (.051)
2.79 (.110)
3.18 (.125)
5.45 (.215) BSC
2-Plcs.
These dimensions are equal to the TO-247 without the mounting hole.
Dimensions in Millimeters and (Inches)
Dimensions in Millimeters and (Inches)
APT’s products are covered by one or more of U.S.patents 4,895,810 5,045,903 5,089,434 5,182,234 5,019,522
5,262,336 6,503,786 5,256,583 4,748,103 5,283,202 5,231,474 5,434,095 5,528,058 and foreign patents. US and Foreign patents pending. All Rights Reserved.
"[align=left][color=#000][font=Helvetica, Arial, sans-serif]The SIMPLE SWITCHER Nano Module combines ease of use and high performance in a tiny solution size. The Nano Module is the smallest 1A packag...
As the title says, I want to make labels, radiobuttons, panels and other controls transparent. Just like the effect of the transparent property on Windows XP. Not the alpha value. Not using a brush....
Daemons run in the background and are not associated with any control terminal. Daemons usually run when the system starts. They run as the root user or other special users and handle some system-leve...
Features of real-time multitasking operating system uCOS-III1.uCOS-III is a brand new real-time kernel, derived from the world's most popular real-time kernel uC/OS-II. In addition to providing a fami...
[font=Verdana][b]Design of multi-channel controllable pulse delay system based on FPGA[/b][/font] A multi-channel pulse delay system with a maximum resolution of 0.15 ns is designed by using digital a...
Abstract: In 2007, Shanghai JA Solar successfully listed on NASDAQ in less than a year and a half, taking advantage of the development of the photovoltaic industry. In recent years, the emerging photo...
Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
When the WDP500-2A plane grating monochromator is used to test the emission wavelength of a high-power laser diode at different currents, the matching of the laser diode has the disadvantages of lo...[Details]
1. Circuit composition
The whole circuit consists of two parts:
1. Power saving control circuit
As shown in the figure below. Including delay circuit and drive circuit.
(1) Delay ci...[Details]
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
Microcontrollers (MCUs), which are widely used in automotive electronics, are rapidly facing time and cost pressures. The main advantage of using MCUs has always been to create high-level system in...[Details]
1. Introduction
With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
Converged processors meet scalability requirements
In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
Due to the significant increase in electronic devices in automotive and industrial applications, the automotive and industrial markets continue to play an important role in China's electronics in...[Details]
With the continuous improvement of the requirements of intelligent building security systems and the continuous improvement of people's safety awareness, indoor anti-theft has gradually attracted peop...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
0 Introduction
With the rise and continuous improvement of the solid-state lighting industry, light-emitting diodes (LEDs) have become an alternative lighting technology and are gr...[Details]
VP2188 is a color STN LCD module produced by Jingdian Pengyuan. This module is a dot matrix transmissive color STN display screen with a color scale of 65 k colors and white LED backlight. Its core...[Details]
OC faults may be the most frequent and the most frequent of all faults in the inverter. They alarm during the startup process, during the shutdown process, during operation, and even when powered o...[Details]
LED technology has made rapid progress, and improvements in chip design and materials have promoted the development of brighter and more durable light sources, and the scope of light source applica...[Details]
Preface
In recent years, white light LEDs have gradually replaced incandescent bulbs and fluorescent lamps because they have unparalleled advantages over traditional light sources in terms...[Details]
Analogue and Mixed Signal
京公网安备 11010802033920号
EEWORLD
