EB71S-SA1540V Overview

Standard Card Edge Connectors EB71S-A15SGFVT02

EB71S-SA1540V Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryStandard Card Edge Connectors
RoHSDetails
ProductWith Flanges
Number of Positions15 Position
Pitch3.96 mm
Contact PlatingGold
PackagingBulk
Factory Pack Quantity1

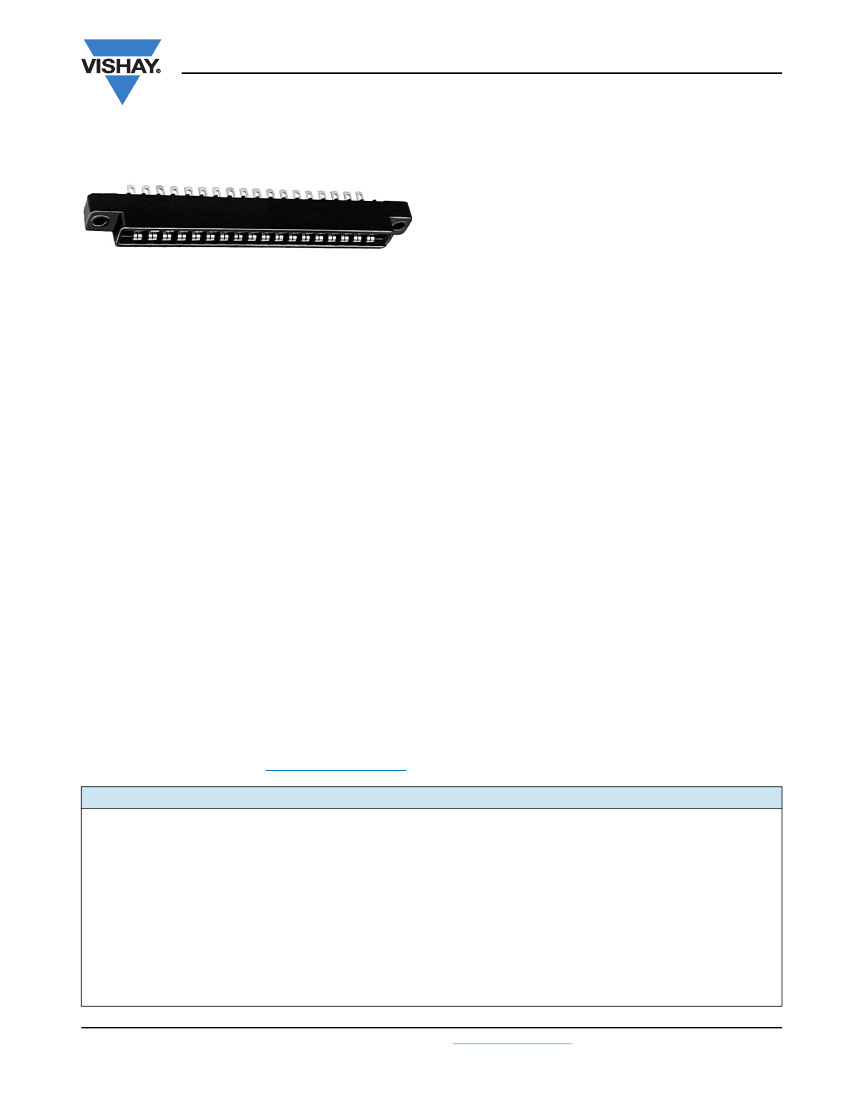

EB7S
Vishay Dale
Edgeboard Connectors, Single Readout
FEATURES
• 0.156" (3.96 mm) C-C
• Bifurcated bellows contacts provide 2 flexing contact
surfaces to assure positive contact under adverse
conditions such as vibration or PC board irregularities
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• Polarization between contact positions in all sizes.
Between contact polarization permits polarizing without
loss of contact position
• Selective gold plating
• Polarizing key is reinforced nylon, may be inserted by
hand, requires no adhesive.
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to straighten and align the
board before electrical contact is made. Prevents damage
to contact which might be caused by warped or out of
tolerance boards
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524, project 77CH3889
ELECTRICAL SPECIFICATIONS
Current Rating:
5 A
Test Voltage Between Contacts:
At sea level: 1800 V
RMS
At 70 000 feet (21 336 meters): 450 V
RMS
Insulation Resistance:
5000 MΩ minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current (with
gold plating)
Operating Temperature:
- 55 °C to + 125 °C
Humidity:
96 h at 90 % relative humidity at + 40 °C, dried at
room temperature for 3 h minimum, insulation resistance
was greater than 5000 MΩ
Durability:
(With gold plating) After 500 cycles of insertion
and withdrawal of a 0.070" (1.78 mm) thick steel test
gauge, contact resistance less than 0.030 V at 5 A and
individual contact retention force when measured with 0.054"
(1.37 mm) thick steel test slug greater than ½ oz.
Shock:
Three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
Vibration:
2 h in each of 3 mutually perpendicular planes,
frequency sweep 10 cps to 55 cps at 0.06 double amplitude
with no loss of continuity
APPLICATIONS
For use with 0.062" (1.57 mm) printed circuit boards requiring
an edgeboard type connector on 0.156" (3.96 mm) centers
MATERIAL SPECIFICATIONS
Body:
(Standard) glass-filled phenolic per MIL-M-14, dark
green, flame retardant (UL 94 V-0). (Optional - see Ordering
Information)
“1” glass-filled diallyl phtalate per MIL-M-14, type SDG-F
green, flame retardant (UL 94 V-0)
“3” thermoplastic polyester, glass-filled, black, flame
retardant (UL 94 V-0)
Contacts:
Phosphor bronze
Polarizing Key:
Glass reinforced nylon, flame retardant
(UL 94H-B)
Contact Plating:
Gold (See Ordering Information)

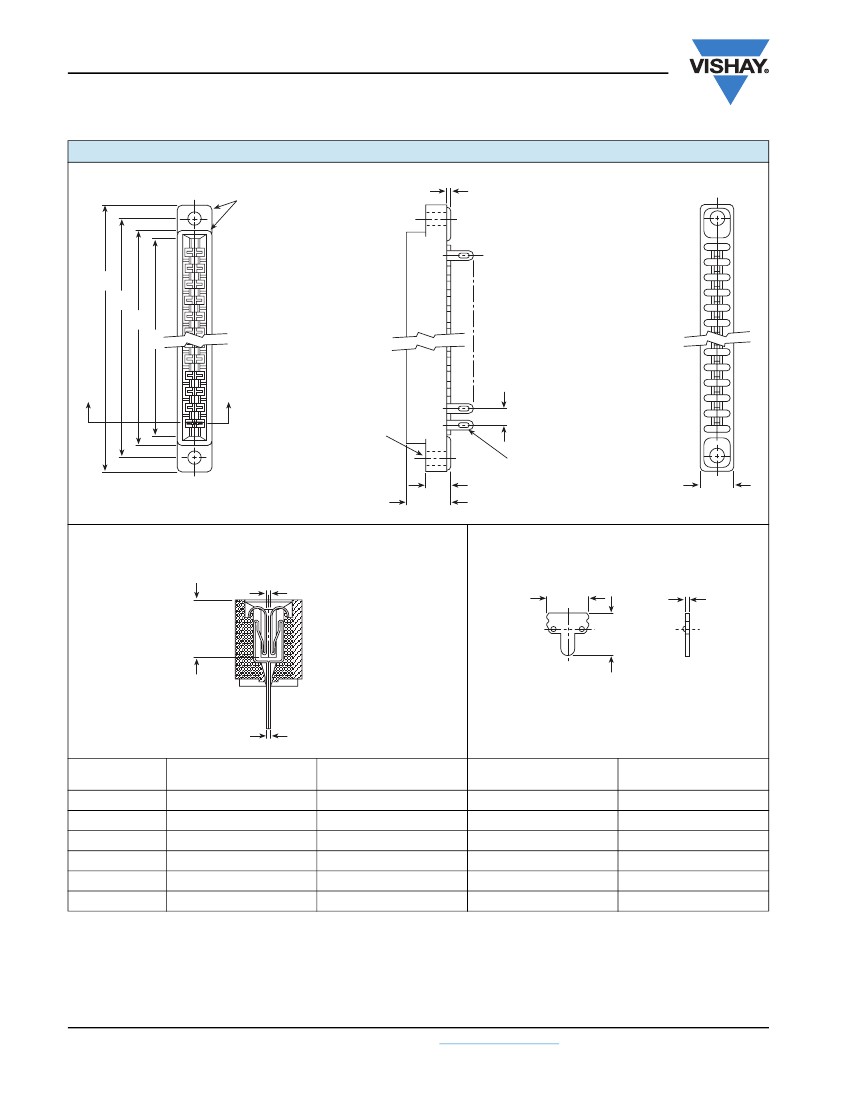

PHYSICAL SPECIFICATIONS
Contact Type:
Bifurcated bellows
Number of Contacts:
6, 10, 12, 15, 18, and 22
Contact Spacing:
0.156" (3.96 mm) center to center
Card Thickness:
0.054" to 0.071" (1.37 mm to 1.80 mm)
Card Slot Depth:
Single readout = 0.300" (7.62 mm)
Note
• High temperature burn-in, edgeboard connectors, 0.156"
(3.96 mm) center to center are on
www.vishay.com/doc?36006
ORDERING INFORMATION
EB7
1
MODEL BODY MATERIAL
Optional body
material
1 = Diallyl
Phthalate
3 = Glass-filled
Polyester
= Omit number
for standard
pheniolic
S
SINGLE
READOUT
A
22
SG
X
A
STANDARD CONTACTS
CONTACT PLATING
MOUNTING
POLARIZING
TERMINAL
VARIATIONS
KEY POSITIONS
VARIATIONS
SG = Selective gold plating
6, 10, 12,
(0.00003" (0.000762 mm)
Key(s) are located to
A or B
15, 18,
minimum thick) on contact area
right of position(s)
or 22
with gold flash on terminal
designated. Required
SGF = Selective gold plating
only when polarizing
(0.000010" (0.000254 mm)
keys are to be factory
minimum thick) on contact area
installed
with gold flash on terminal.
All gold plating over 0.00005"
(0.00127 mm) minimum nickel
underplate.
Contact factory for additional
plating options.
Document Number: 36004
Revision: 16-Feb-09
