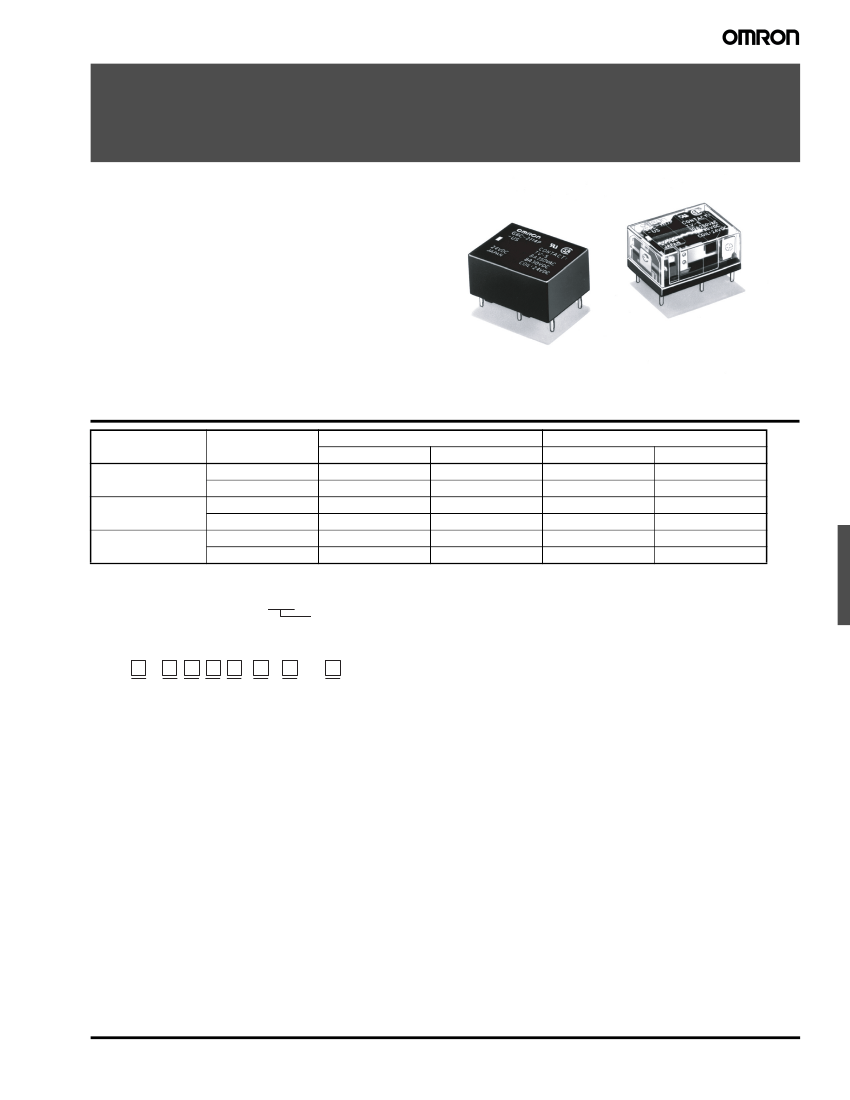

Power PCB Relay
G6C
SPST-NO Type Breaks 10-A Loads;
SPST-NO + SPST-NC Breaks 8-A Load
• Compact: 20 x 15 x 10 mm (L x W x H).
• Low power consumption: 200 mW.
• Semi-sealed or fully sealed construction available.
• Unique moving loop armature reduces relay size, magnetic
interference, and contact bounce.
• Single and Dual coil latching types also available
• RoHS Compliant
R
C
X
+E
VDE
Ordering Information
Classification
Non-latching
Single coil latching
Dual coil latching
Contact form
SPST-NO
SPST-NO
SPST-NO
Straight Through-hole PCB
Semi-sealed
G6C-1117P-US
G6CU-1117P-US
G6CK-1117P-US
SPST-NO + SPST-NC
G6C-2117P-US
SPST-NO + SPST-NC
G6CU-2117P-US
SPST-NO + SPST-NC
G6CK-2117P-US
Fully sealed
G6C-1114P-US
G6C-2114P-US
G6CU-1114P-US
G6CU-2114P-US
G6CK-1114P-US
G6CK-2114P-US
Self-clinching Through-hole PCB
Semi-sealed
G6C-1117C-US
G6C-2117C-US
G6CU-1117C-US
G6CU-2117C-US
G6CK-1117C-US
G6CK-2117C-US
Fully sealed
G6C-1114C-US
G6C-2114C-US
G6CU-1114C-US
G6CU-2114C-US
G6CK-1114C-US
G6CK-2114C-US
Note:
When
ordering, add the rated coil
voltage
to the model number.
Example: G6C-1117P-US DC12
Rated coil
voltage
Model Number Legend
G6C
1
-
2
3
4 5
-
6
-
7
DC
8
3. Contact Type
1: Standard
4. Enclosure Ratings
4: Fully sealed
7: Semi-sealed
5. Terminals
P:
Straight Through-hole PCB
C:
Self-clinching Through-hole PCB
6. Approved Standards
US: UL/CSA certified
7. Mounting Method
None:
Mount directly to PCB
P6C: Mount to Socket
8.
Rated Coil Voltage
3, 5, 6, 12, or 24 VDC
1. Relay Function
None: Non-latching
U:
Single coil latching
K:
Dual coil latching
2. Contact Form
11:
SPST-NO
21:
SPST-NO + SPST-NC
Power PCB Relay
G6C
175
■
Accessories (Order Separately)
Back Connecting Sockets
Applicable Relay
G6C(U)-1114P-US-P6C
G6C(U)-1117P-US-P6C
G6C(U)-2114P-US-P6C
G6C(U)-2117P-US-P6C
G6CK-1114P-US-P6C
G6CK-1117P-US-P6C
G6CK-2114P-US-P6C
G6CK-2117P-US-P6C
Back Connecting Socket (See note 1.)
P6C-06P
P6C-08P
Note: 1.
Not applicable to the self-clinching versions.
The operating current for the socket is 5 A max.
2.
Use the G6C(U)-@@@@P-US-P6C if mounting relays in a P6C Socket.
Removal Tool
Hold-down Clips
P6B-Y1
P6B-C2
Specifications
■
Contact Ratings
Item
Load
Rated load
Contact material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching capacity
Min. permissible load
(reference value - see note)
Resistive load
(cosφ = 1)
10 A at 250
VAC;
10A at 30
VDC
Ag Alloy (Cd free)
10 A
10 A
2,500
VA,
300 W
10 mA at 5
VDC
1,250
VA,
220 W
8A
8A
2,000
VA,
240 W
875
VA,
170 W
380
VAC,
125
VDC
(the case of latching 250
VAC,
125
VDC)
SPST-NO
Inductive load
(cosφ = 0.4; L/R = 7 ms)
5 A at 250
VAC;
5 A at 30
VDC
Resistive load
(cosφ = 1)
8 A at 250
VAC;
8A at 30
VDC
SPST-NO+SPST-NC
Inductive load
(cosφ = 0.4; L/R = 7 ms)
3.5 A at 250
VAC;
3.5 A at 30
VDC
Note:
P level:
λ
60
= 0.1 x 10
–6
operations
■
Coil Data
Non-latching
Rated
voltage
(VDC)
3
5
6
12
24
67
40
33.30
16.70
8.30
Rated
current
(mA)
Coil
resistance
(Ω)
45
125
180
720
2,880
Coil inductance
(ref. value) (H)
Armature
OFF
0.078
0.22
0.36
1.32
4.96
Armature
ON
0.067
0.18
0.29
1.13
4.19
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
160% max.
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 200
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
176
Power PCB Relay
G6C
Single Coil Latching Type
Rated
voltage
(VDC)
3
5
6
12
24
Rated
current
(mA)
67
40
33.30
16.70
8.30
Coil
resistance
(Ω)
45
125
180
720
2,880
Coil inductance
(ref. value) (H)
Armature
OFF
0.09
0.25
0.36
1.75
5.83
Armature
ON
0.06
0.20
0.24
1.17
3.84
Set
Reset
pick-up voltage pick-up voltage
% of rated voltage
70% max.
70% min.
Maximum
voltage
160% max.
at 23°C
Power
consumption
(mW)
Approx. 200
Dual Coil Latching Type
Rated
voltage
(VDC)
3
5
6
12
24
Rated
current
(mA)
93.50
56
46.70
23.30
11.70
Coil
Set Coil
Reset Coil
resistance
(Ω)
Armature Armature Armature Armature
OFF
ON
OFF
ON
32.10
89.30
129
514
2,056
0.03
0.07
0.10
0.37
1.56
0.02
0.06
0.08
0.32
1.18
0.03
0.08
0.12
0.47
1.46
0.02
0.07
0.10
0.38
1.13
Coil inductance
(ref. value) (H)
Set
pick-up
voltage
Reset
pick-up
voltage
Maximum
voltage
Power
consumption
(mW)
Approx. 280
% of rated voltage
70% max.
70% max.
130% max.
at 23°C)
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The minimum pulse width of the set and reset voltage is 20 ms.
■
Characteristics
Contact resistance
Operate (set) time
Release (reset) time
Bounce time
Min. set/reset signal width
Max. switching
frequency
Insulation resistance
Dielectric strength
Mechanical
Electrical
30 mΩ max.
10 ms max. (mean value: approx. 5 ms)
10 ms max. (mean value: approx. 2 ms; latching types: mean value: approx. 5 ms)
5 ms max. (Approx. 3 ms typical)
Latching type: 20 ms (at 23°C)
18,000 operations/hr
1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500
VDC,
at 250
VDC
between set coil and reset coil)
2,000
VAC,
50/60 Hz for 1 min between coil and contacts
2,000
VAC,
50/60 Hz for 1 min between contacts of different polarity
1,000
VAC,
50/60 Hz for 1 min between contacts of same polarity
250
VAC,
50/60 Hz for 1 min between set and reset coils (double winding latching type)
6.000
V
(1.2 x 50
μs)
between coil and contacts (latching types: 4,500
V,
1.2 x 50
μs)
Mechanical durability
Malfunction durability
Shock resistance
Ambient temperature
Ambient humidity
Service Life
Weight
Mechanical:
Electrical:
Mechanical durability
Malfunction durability
10 to 55 Hz, 1.5-mm double amplitude
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
(Appox. 100G)
100 m/s
2
(Approx. 10G)
Operating:
−25°C
to 70°C (with no icing)
Operating: 5% to 85%
50,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at 1,800 operations/hr) See “Characteristic Data”
Approx. 5.6 g
Surge withstand voltage
Vibration resistance
Power PCB Relay
G6C
177
■
Approved Standards
UL Recognized (File No. E41643) - - See note
Model
G6C-1114P-US
G6C-1114C-US
G6C-1117P-US
G6C-1117C-US
Contact form
SPST-NO
Coil rating
3 to 60
VDC
Contact rating
10 A, 250
VAC
(general use)
10 A, 30
VDC
(resistive load)
1/6 hp, 125
VAC
1/4 hp, 125
VAC
1/4 hp, 250
VAC
1/3 hp, 250
VAC
TV-5 (40°C, 25,000 operations)
600 W, 120
VAC
(tungsten)
530
VA,
20 to 265
VAC,
2 A max. (pilot duty)
43.2
VA,
30
VDC
(pilot duty)
12LRA, 2.2FLA, 30
VDC
(30,000 operations)
8 A, 250
VAC
(general use)
8 A, 30
VDC
(resistive load)
1/6 hp, 125
VAC
1/4 hp, 125
VAC
1/4 hp, 250
VAC
1/3 hp, 250
VAC
TV-5 (40°C, 25,000 operations)
600 W, 120
VAC
(tungsten)
530
VA,
20 to 265
VAC,
2 A max. (pilot duty)
43.2
VA,
30
VDC
(pilot duty)
12LRA, 2.2FLA, 30
VDC
(30,000 operations)
G6C-2114P-US
G6C-2114C–US
G6C-2117P-US
G6C-2117C-US
SPST-NO + SPST-NC
Note:
UL Recognition tests performed at 80°C for 6,000 operations unless otherwise specified.
CSA Certified (File No. LR31928)
Model
G6C-1114P-US
G6C-1114C-US
G6C-1117P-US
G6C-1117C-US
Contact form
SPST-NO
Coil rating
3 to 60
VDC
Contact rating
10 A, 250
VAC
(general use)
10 A, 30
VDC
(resistive load)
1/6 hp, 125
VAC
1/4 hp, 125
VAC
1/4 hp, 250
VAC
1/3 hp, 250
VAC
TV-5
600 W, 120
VAC
(tungsten)
8 A, 250
VAC
(general use)
8 A, 30
VDC
(resistive load)
1/6 hp, 125
VAC
1/4 hp, 125
VAC
1/4 hp, 250
VAC
TV-5
600 W, 120
VAC
(tungsten)
G6C-2114P-US
G6C-2114C-US
G6C-2117P-US
G6C-2117C-US
SPST-NO + SPST-NC
3 to 60
VDC
VDE (Approval No. 2413) EN61810-1
Model
G6C-1114P-US
G6C-1114C-US
G6C-1117P-US
G6C-1117C-US
G6C-2114P-US
G6C-2114C-US
G6C-2117P-US
G6C-2117C-US
Contact form
SPST-NO
Coil rating
3, 12, 24
VDC
Contact rating
10 A, 250
VAC
(cosφ = 1)
5 A, 250
VAC
(cosφ = 0.4)
Number of test
operations
100,000 operations
SPST-NO + SPST-NC Single-stable: 3, 5,
12, 24
VDC
Latching: 5
VDC
G6CU-2117P-VD:
3
VDC
7 A, 250
VAC
(cosφ = 1)
3.5 A, 250
VAC
(cosφ = 0.4)
100,000 operations
178
Power PCB Relay
G6C
Engineering Data

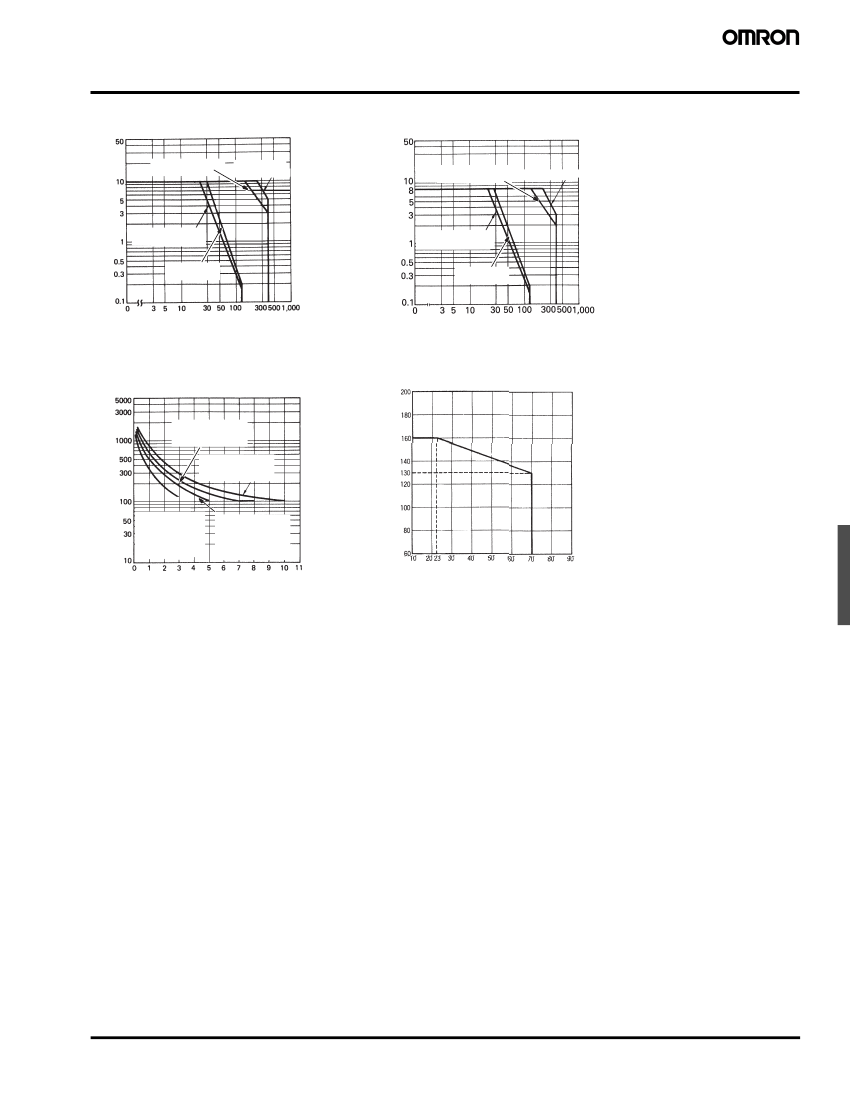

Maximum Switching Capacity
SPST-NO
SPST-NO + SPST-NC
AC inductive load
(cosφ = 0.4)
AC resistive
load
Switching current (A)
Switching current (A)
AC inductive load
(cosφ = 0.4)
AC resistive load
DC inductive load
(L/R = 7 ms)
DC resistive
load
DC inductive load
(L/R = 7 ms)
DC resistive
load
Switching
voltage
(V)
Switching
voltage
(V)
Service Life
Endurance (x10
3
operations)
Ambient Temperature vs.
Maximum Coil Voltage
Maximum coil
voltage
(%)
G6C-2114P-US
250-VAC resistive
30-VDC resistive
G6C-1114P-US
250-VAC resistive
30-VDC resistive
G6C-2114P-US
250-VAC induc
tive (cosφ = 0.4)
30-VDC induc
tive (L/R = 7 ms)
G6C-1114P-US
250-VAC induc
tive (cosφ = 0.4)
30-VDC inductive
(L/R = 7 ms)
Switching current (A)
Ambient temperature (°C)
Note:
The maximum coil
voltage
refers to the maxi-
mum
value
in a
varying
range of operating
power
voltage,
not a continuous
voltage.
Power PCB Relay
G6C
179
