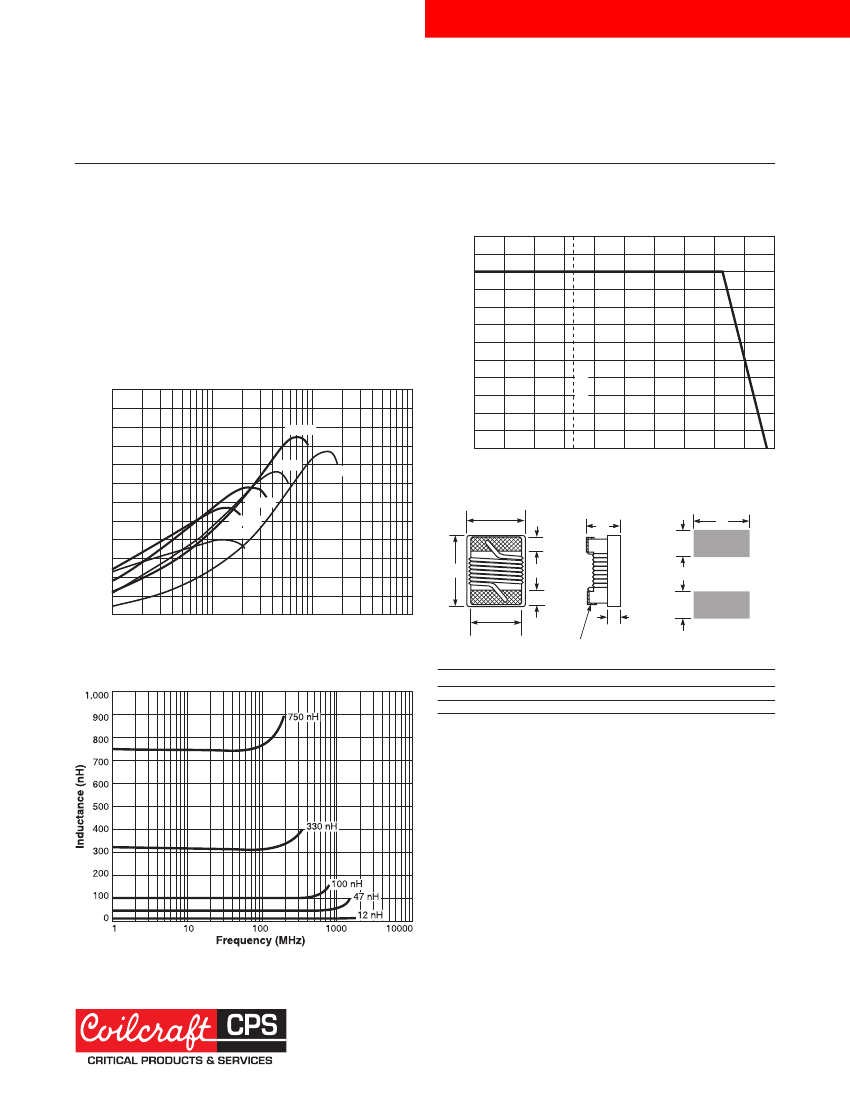

1008 CHIP INDUCTORS
High-Reliability Chip Inductors
MS413RAA
• High SRF and excellent Q values
• Tight tolerances, many values at 1%
• 28 inductance values from 10 nH to 1 µH
Current Derating
120
110
100
90
80
70
60
50
30
20
10
0
-40
12 nH
-20
0
20
40
60
80
100
120
140 160
40
Typical Q vs Frequency
120
100
100
90
80
100 nH
Percent of rated
I
rms
The MS413RAA features high temperature materials that
allow operation in ambient temperatures up to 155°C
and a leach-resistant base metalization with tin-lead (Sn-
Pb) terminations that ensures the best possible board
adhesion.
47 nH
Q Factor
70
60
50
40
30
20
10
0
10
100
1000
10000
E
terminal
A
G
F
330 nH
750 nH
1800 nH
B
overall
F
Ambient temperature (°C)
25°C
C
I
J
I
H
D
Terminal wraparound:
approx 0.015/0,38 both ends
Frequency (MHz)
Typical L vs Frequency
Suggested
Land Pattern
A max B max
0.115 0.110
2,92
2,79
C max D ref
0.080 0.020
2,03
0,51
E
F
0.080 0.020
2,03 0,51
G
H
I
J
0.060 0.100 0.040 0.050
1,52 2,54 1,02 1,27
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing,
2.0 mm pocket depth
®
Document MS101-1 Revised 11/28/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
1008 CHIP INDUCTORS
MS413RAA Series (1008)
Part number
1
Inductance
2
(nH)
10 @ 50 MHz
12 @ 50 MHz
15 @ 50 MHz
18 @ 50 MHz
22 @ 50 MHz
27 @ 50 MHz
33 @ 50 MHz
39 @ 50 MHz
47 @ 50 MHz
56 @ 50 MHz
68 @ 50 MHz
82 @ 50 MHz
100 @ 25 MHz
120 @ 25 MHz
150 @ 25 MHz
180 @ 25 MHz
220 @ 25 MHz
270 @ 25 MHz
330 @ 25 MHz
390 @ 25 MHz
470 @ 25 MHz
560 @ 25 MHz
620 @ 25 MHz
680 @ 25 MHz
750 @ 25 MHz
820 @ 25 MHz
910 @ 25 MHz
1000 @ 25 MHz
Percent
tolerance
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
Q min
3
SRF min
4
(MHz)
3060
2680
2220
2200
2100
1380
1600
1420
1420
1140
1140
940
900
840
740
680
580
540
500
480
400
360
360
345
335
310
280
280
DCR max
5
(Ohms)
0.08
0.09
0.10
0.11
0.12
0.13
0.14
0.15
0.16
0.18
0.20
0.22
0.56
0.63
0.70
0.77
0.84
0.91
1.05
1.12
1.19
1.33
1.40
1.47
1.54
1.61
1.68
1.75
Imax
(mA)
900
900
850
900
900
900
850
850
820
780
710
710
440
410
400
390
370
330
330
310
280
280
270
270
270
250
250
230
Color
code
6
Black
Red
Orange
Yellow
Blue
Black
Orange
Violet
Red
Yellow
Gray
Red
Violet
White
Red
Orange
Green
White
Orange
Blue
Black
Green
Blue
Gray
Black
Brown
Red
Yellow
MS413RAA100_SZ
MS413RAA120_SZ
MS413RAA150_SZ
MS413RAA180_SZ
MS413RAA220_SZ
MS413RAA270_SZ
MS413RAA330_SZ
MS413RAA390_SZ
MS413RAA470_SZ
MS413RAA560_SZ
MS413RAA680_SZ
MS413RAA820_SZ
MS413RAA101_SZ
MS413RAA121_SZ
MS413RAA151_SZ
MS413RAA181_SZ
MS413RAA221_SZ
MS413RAA271_SZ
MS413RAA331_SZ
MS413RAA391_SZ
MS413RAA471_SZ
MS413RAA561_SZ
MS413RAA621_SZ
MS413RAA681_SZ
MS413RAA751_SZ
MS413RAA821_SZ
MS413RAA911_SZ
MS413RAA102_SZ
44 @ 500 MHz
45 @ 500 MHz
50 @ 500 MHz
50 @350 MHz
55 @ 350 MHz
55 @ 350 MHz
60 @ 350 MHz
60 @ 350 MHz
65 @ 350 MHz
60 @ 350 MHz
46 @ 100 MHz
48 @ 100 MHz
37 @ 100 MHz
40 @ 100 MHz
40 @ 100 MHz
38 @ 100 MHz
40 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
40 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
35 @ 50 MHz
34 @ 50 MHz
1. When ordering, please specify tolerance,
termination
and
testing
codes:
MS413RAA102GSZ
Tolerance:
F
= 1%
G
= 2%
J
= 5%
Termination: S
= Tin-lead (63/37) over silver-platinum-glass frit.
Special order:
T
= Tin-silver-copper (95.5/4/0.5) over silver-platinum-glass frit.
P
= Tin-lead (63/37) over tin over nickel over silver-platinum-glass frit.
Q
= Tin-silver-copper (95.5/4/0.5) over tin over nickel over silver-platinum-glass frit.
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10003
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer or equivalent with Coilcraft-provided correlation
pieces.
3. Q measured using an Agilent/HP 4291A with an AgilentHP 16197A test fixture or equivalents.
4. SRF measured using an Aglilent/HP 8753D network analyzer or equivalent and a Coilcraft CCF1297 test fixture.
5. DCR measured on a Keithley 580 micro-ohmmeter or equivalent and a Coilcraft CCF858 test fixture.
6. Current production parts are marked with one dot. Prior production parts were marked with three dots. Part marking does not indicate polarity
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document MS101-2 Revised 11/28/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
