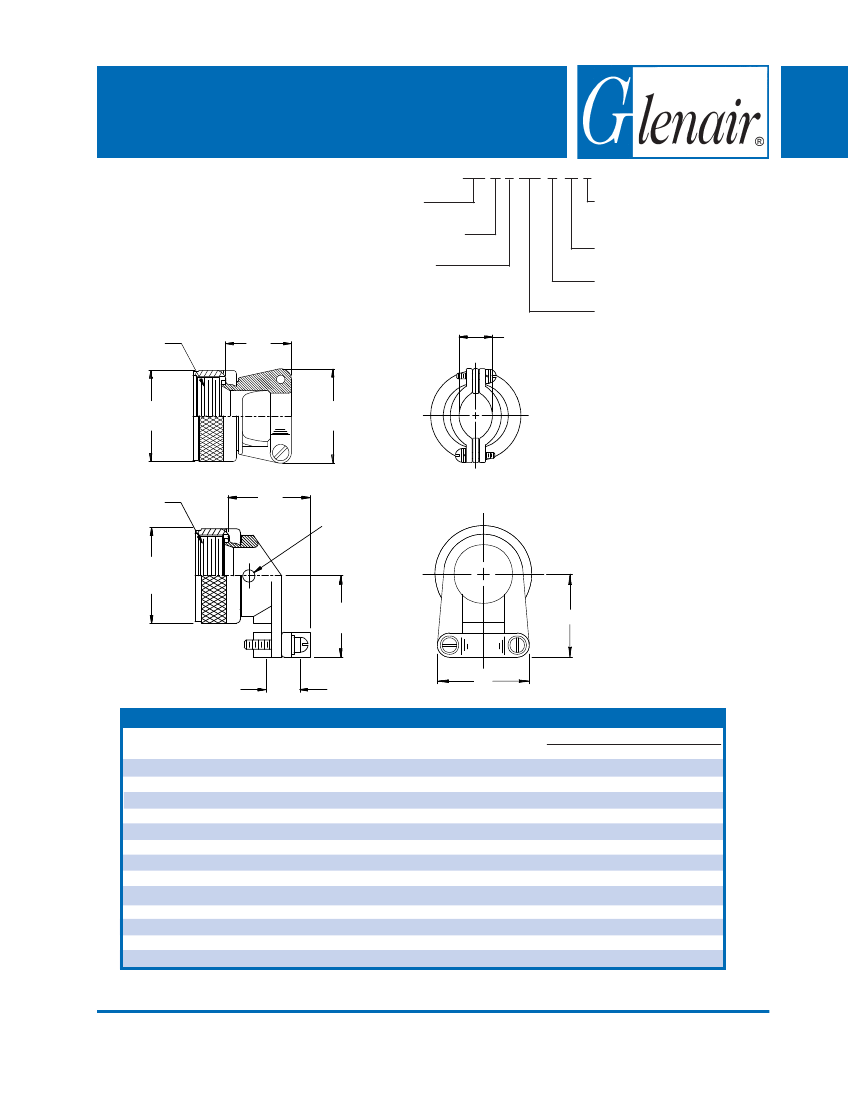

Rotatable Coupling - Straight and 90°
620 A S 046 M 16 D
CONNECTOR
DESIGNATOR
Product Series
Connector Designator
Drain Hole Option - 90° only
(Omit for None)
Shell Size (Table III)
A
ROTATABLE
COUPLING
A Thread
(Table I)
E
(Table III)
Angle and Profile
S = Straight
A = 90°
Cable
Entry
Finish (Table II)
Basic Part No.
C (Table I)
F (Table III)
See inside back
cover fold-out or
pages 13 and 14 for
Tables I and II.
1. Cable Entry is defined
as the accommodation
entry for the wire
bundle or cable.
Dimensions are not
intended for inspection
criteria.
2. Metric dimensions
(mm) are indicated in
H (Table III)
parentheses.
A Thread
(Table I)
G
(Table III)
Drain Holes,
4 Places,
90° Apart
C (Table I)
H
(Table III)
Cable
Entry
F
(Table III)
Cable Entry
Closed
Open
.125 (3.2)
.204 (5.2)
.187 (4.7)
.286 (7.3)
.291 (7.4)
.416 (10.6)
.351 (8.9)
.476 (12.1)
.501 (12.7)
.626 (15.9)
.518 (13.2)
.706 (17.9)
.581 (14.8)
.831 (21.1)
.644 (16.4)
.956 (24.3)
.706 (17.9)
1.081 (27.5)
.750 (19.1)
1.187 (30.1)
.875 (22.2)
1.250 (31.8)
.938 (23.8)
1.375 (34.9)
.938 (23.8)
1.500 (38.1)
Printed in U.S.A.
Shell
Size
08
10
12
14
16
18
20
22
24
28
32
36
40
E
Max
.630 (16.0)
.740 (18.8)
.860 (21.8)
.860 (21.8)
.990 (25.1)
1.240 (31.5)
1.360 (34.5)
1.490 (38.0)
1.610 (40.9)
1.760 (44.7)
1.950 (49.5)
2.330 (59.2)
2.510 (63.8)
TABLE III: CABLE ENTRY
F
G
H
Max
Max
Max
.782 (19.9)
.780 (19.8)
.808 (20.5)
.862 (21.9)
.861 (21.9)
.867 (22.0)
1.003 (25.5) 1.050 (26.7)
.929 (23.6)
1.061 (26.9) 1.110 (29.0)
.992 (25.2)
1.334 (33.9) 1.260 (32.0) 1.056 (26.8)
1.466 (37.2) 1.370 (34.8) 1.233 (31.3)
1.572 (39.9) 1.500 (38.1) 1.296 (32.9)
1.688 (42.9) 1.620 (41.1) 1.358 (34.5)
1.790 (45.5) 1.750 (44.5) 1.420 (36.1)
2.035 (51.7) 1.890 (58.0) 1.634 (41.5)
2.386 (60.6) 1.950 (49.5) 1.859 (47.2)
2.496 (63.4) 2.070 (52.6) 1.984 (50.4)
2.566 (65.2) 2.200 (55.9) 2.109 (53.6)
CAGE Code 06324
© 2005 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 62 - Page 5
