Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
PANDUIT
Stranded Copper; Class B:
Compact, Compressed or
Concentric, Class C: Concentric
15/16 in.
1/4 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
BROWN
P33
(10)
.42±.04
Wire Strip Length
Stud Size
UL Listed Wire
Connector
2 STR CU
2 AWG
Wire inspection
window
.25±.04
.63±.02
.27±.02 DIA
(2) PLS
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
Panduit Die Index No.
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
1.26±.04
.13±.01
90°±5°
1.44
REF
.88±.04
LCDN2
BROWN DIE P33 (10)
.31±.01
CERTIFIED
LISTED
Wire Connector
.42±.01
1.86 REF
Color coded
barrel markings
Beveled wire
entry
CORP.
02
REV
TINLEY PARK, ILLINOIS
1/11
DATE
JHNU JHNU
REVISED OVERALL HEIGHT: WAS 1.38
BY
LCDN2-14AF-Q

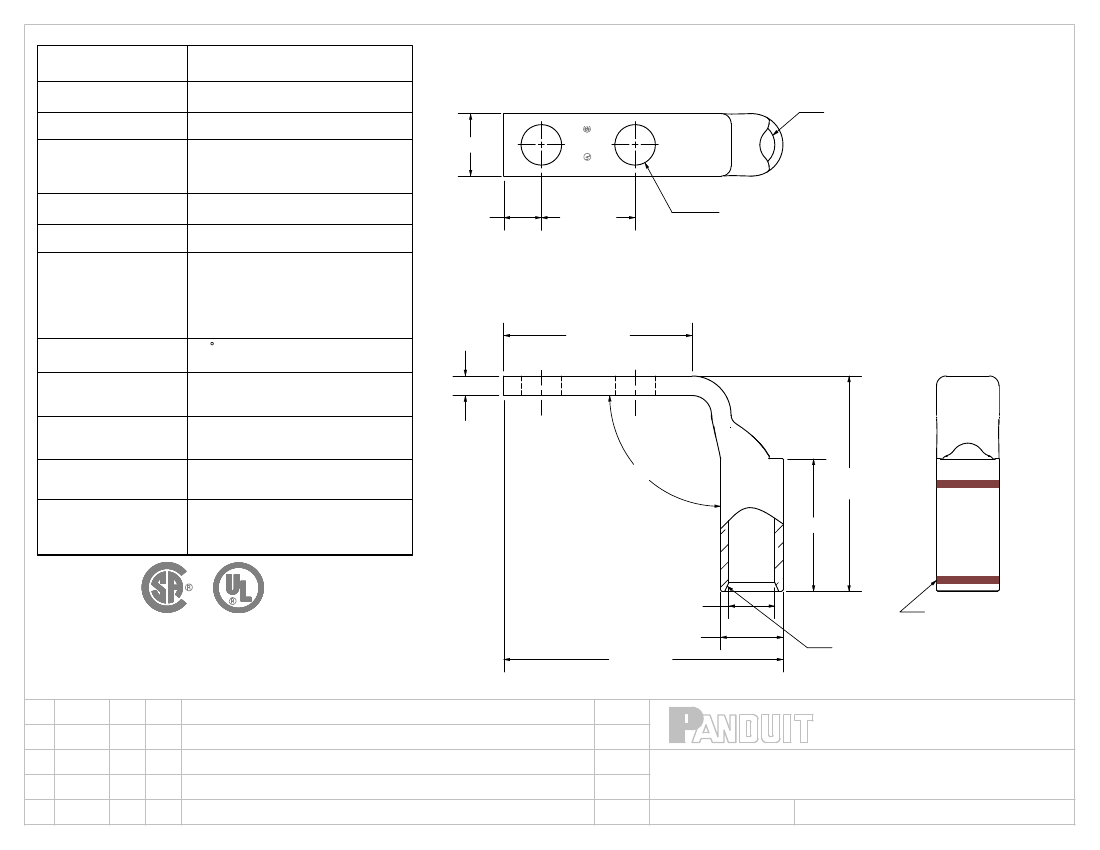

Copper Lug - Two-Hole Narrow Tongue, Standard Barrel, 90° Angle Tongue
REVISED TONGUE THICKNESS: WAS .11
CHK
DESCRIPTION
ECN
SCALE
N/A
DRAWING NO / CAD FILE
LCDN2-14AF-CUST
