TECHNICAL DATA SHEET
ADAPTOR
QMA PLUG – SMA PLUG
28S132-S00N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

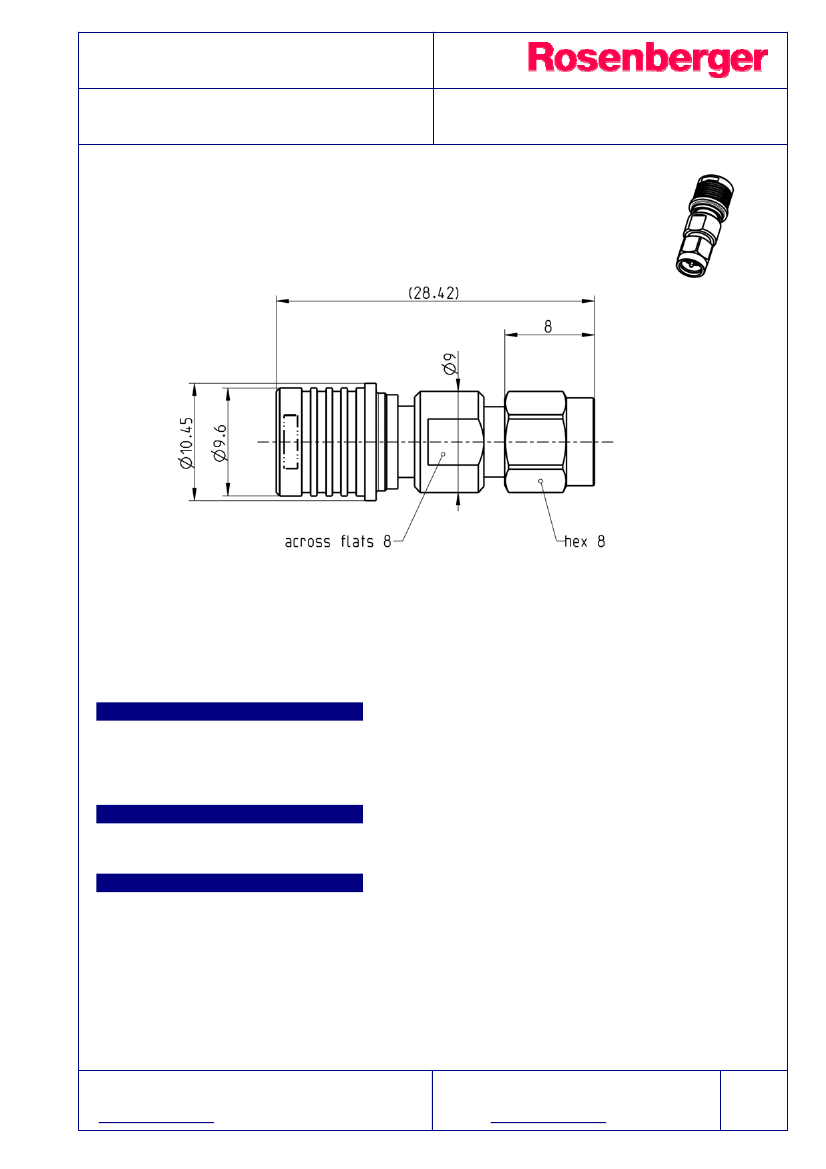

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
QMA side:
SMA side:
Rosenberger 28S000-000, series QMA
Rosenberger is an authorised QLF manufacturer
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact QMA side
Outer contact SMA side
Dielectric
Unlocking sleeve
Coupling nut SMA side
Gasket
Material
Brass
Spring bronze
Brass
PTFE
Brass
Brass
Silicone
Plating
AuroDur®, gold plated
White bronze(e.g. Optalloy®)
Flash white bronze over silver(e.g. Optargen®)
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
RF_35/08.06/4.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
QMA PLUG – SMA PLUG
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
50
DC to 18 GHz
32 dB, DC to 3 GHz
28 dB, 3 to 6 GHz
0.03 x
f(GHz)
dB, DC to 6 GHz
5 x10
3
M
3 m, QMA side
3 m, SMA side
2.5 m, QMA side
2 m, SMA side
1000 V rms
480 V rms
95 dB up to 2 GHz
80 dB up to 4 GHz
70 dB up to 6 GHz
28S132-S00N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
Engagement force
Disengagement force
Retention force for interface
QMA side
min. 100
N/A
20 N
N/A
N/A
typ. 25 N
typ. 20 N
60 N min.
SMA side
min. 100
180 N
20 N
0.5 Nm
max. 0.6 Nm
N/A
N/A
N/A
Environmental data
Temperature range
Storage temperature
Thermal shock
Corrosion
Vibration
Damp heat, steady state
RoHS
-40°C to +85°C
-40°C to +85°C
IEC 60169-1 16.4 (-40 / +85°C)
IEC 60169-1 16.7 (48 hrs)
IEC 60068-2-64 random
IEC 60169-1 16.3 (96 hrs)
compliant
Weight
Weight
9.21 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Rong Fang
Date
26/02/07
Approved
Sa. Krautenbacher
Date
13.03.14
Rev.
d00
Engineering change number
14-0352
Name
T. Krojer
Date
13.03.14
RF_35/08.06/4.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
