0.4mm Pitch, 0.98/1.5mm Mated Height, Board-to-Board / Board-to-FPC Connectors
DF37 Series
■Further
reduction of the board space.
●Comparison
of board mounting space
30 positions, 0.4 mm pitch, 0.98 mm height
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF37
8.22mm
2.98mm
4.56mm
Fig.1
0.98
DF30
■Features

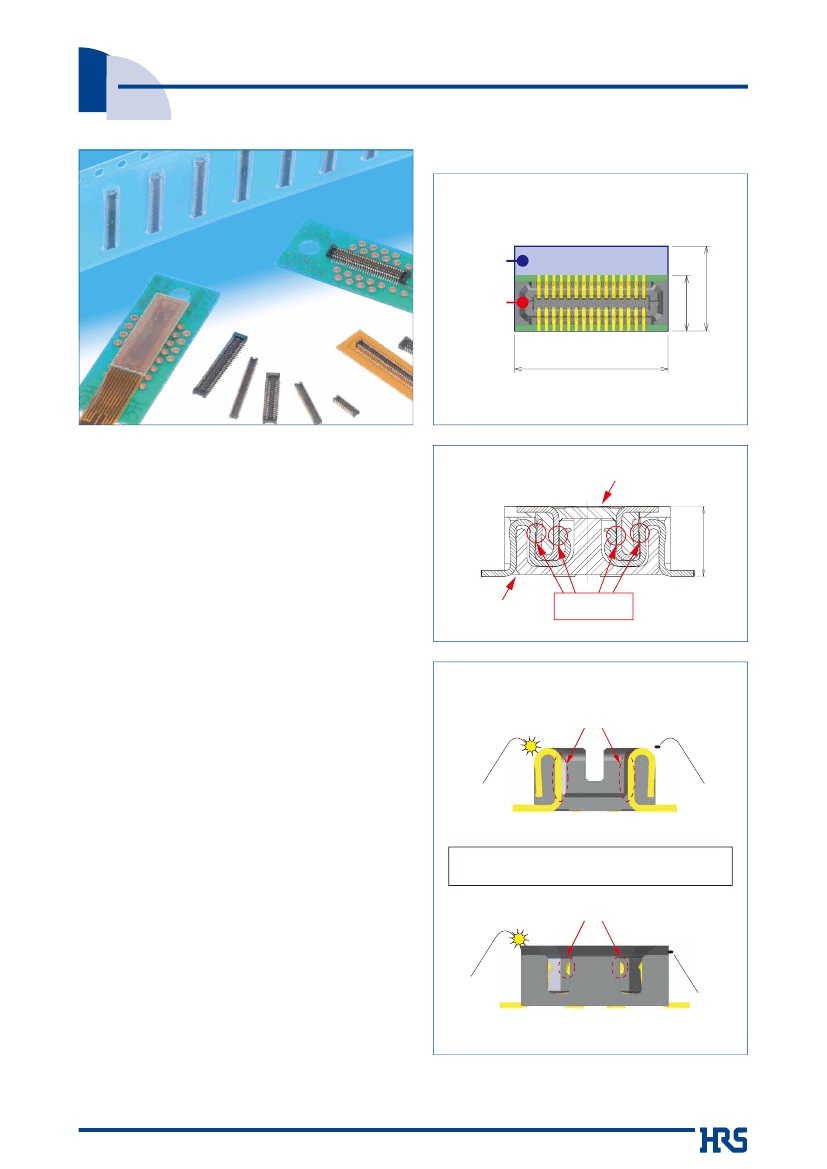

1. Reduced size and board-occupied area
With the mated height of 0.98/1.5mm, width of
2.98mm and length of 8.22mm (30 positions) the
connectors are one of the smallest in its class. Also
2.6mm depth short-lead type is available. (Fig.1)
Sufficiently large flat areas allow pick-up with
vacuum nozzles of automatic placement
equipment.
Header
2. Reliable electrical and mechanical
connection
Despite its small mated height, unique contact
configuration, with a 2-point contacts and effective
mating length of 0.25mm, assures highly reliable
connection while confirming a complete mating with
a definite tactile feel.
Receptacle
Lock
Fig.2
●Splatter
protection
Contact areas
3. Self alignment
Recognizing the difficulties of mating extremely small
connectors in limited spaces, the connectors will self-
align within 0.3mm.
4. Physical shock and vibration protection
2-point contact assures electrical connection in a
shock or vibration applications. (Fig.2)
Contact areas are not exposed to the outside
penetration of the flux or other physical particles.
5. Solder wicking prevention
Nickel barriers (receptacles) and unique forming of the
contacts (headers) prevent un-intentional solder
wicking.
Contact areas
6. Contamination protection
Insulator walls protect the contact areas against flux
splatter or other physical particles contamination. (Fig.3)
Fig.3
2016.8④
1
DF37 Series●0.4mm Pitch, 0.98/1.5mm Mated Height, Board-to-Board / Board-to-FPC Connectors
■Product
Specifications
Current rating
Ratings
Voltage rating
30V AC, DC
0.3A
Operating
-35°C to +85°C (Note 1)
temperature range
Operating
RH 20% to 80%
humidity range
Storage
-10°C to +60°C (Note 2)
temperature range
Storage
RH 40% to 70% (Note 2)
humidity range
Conditions
100V DC
100V AC / 1minute
20mV AC, 1kHz, 1mA
Frequency : 10 to 55 Hz, single amplitude of 0.75
mm, 2 hours, 3 axis
96 hours at 40 ±2°C and humidity of 90 to 95%
No damage or parts dislocation
-55°C
➝
5 to 35°C
➝
85°C
➝
5 to 35°C
Time: 30 min.
➝
10 min.
➝
30 min.
➝
10 min.
5 cycles
10 cycles
Reflow : At the recommended temperature profile
Manual soldering : 350°C for 3 seconds
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Item
Specification
1.Insulation resistance 50Mø min
2.Withstanding voltage No flashover or insulation breakdown
3.Contact resistance
100mø max.
No electrical discontinuity of 1μs or longer
4.Vibration
No damage or parts dislocation
Contact resistance : 100mø max.,
5.Humidity
Insulation resistance : 25Mø min.
Contact resistance : 100mø max.,
Insulation resistance : 50Mø min.
6.Temperature cycle
No damage or parts dislocation
Contact resistance : 100mø max.
7.Durability
No deformation of components affecting
8.Resistance to
performance
soldering heat
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" here refers to products stored for a long period prior to board mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after
board mounting and the temporary storage conditions of transportation, etc.
■Materials
/ Finish
Receptacle
Part
Insulator
Material
LCP
Finish
Color: Black
Remarks
UL94V-0
Header
Part
Contacts
Material
Phosphor bronze
Finish
Gold plated
Remarks
---------------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Receptacles
DF 37 # - (
**
) -
*
DS - 0.4 V (
**
)
1
2
3
4
5
6
7
8
: DF37
5
Connector style
DS : Receptacle
6
Contact pitch : 0.4mm
7
Terminal type V : SMT vertical mount
8
Packaging
(51) Stacking height 0.98mm : Embossed tape packaging (8,000 pcs/reel)
(51) Stacking height 1.5mm : Embossed tape packaging (5,000 pcs/reel)
(53) : Embossed tape packaging (1,000 pcs/reel)
1
Series name
2
Configuration
NB : With metal fittings
NC : Without metal fittings
SB : Short-lead type with metal fittings
3
Stacking height
Blank : 0.98mm, 1.5 : 1.5mm
4
Number of contacts
●Headers
DF 37 # -
*
DP - 0.4 V (**)
1
2
3
4
5
6
7
: DF37
4
Connector style
DP : Header
5
Contact pitch : 0.4mm
6
Terminal type V : SMT vertical mount
7
Packaging
(51) : Embossed tape packaging (8,000 pcs/reel)
(53) : Embossed tape packaging (1,000 pcs/reel)
1
Series name
2
Configuration
B : With metal fittings
C : Without metal fittings
3
Number of contacts
Note : The short-lead type is only available for the receptacle side (with hardware).
2
DF37 Series●0.4mm Pitch, 0.98/1.5mm Mated Height, Board-to-Board / Board-to-FPC Connectors
■

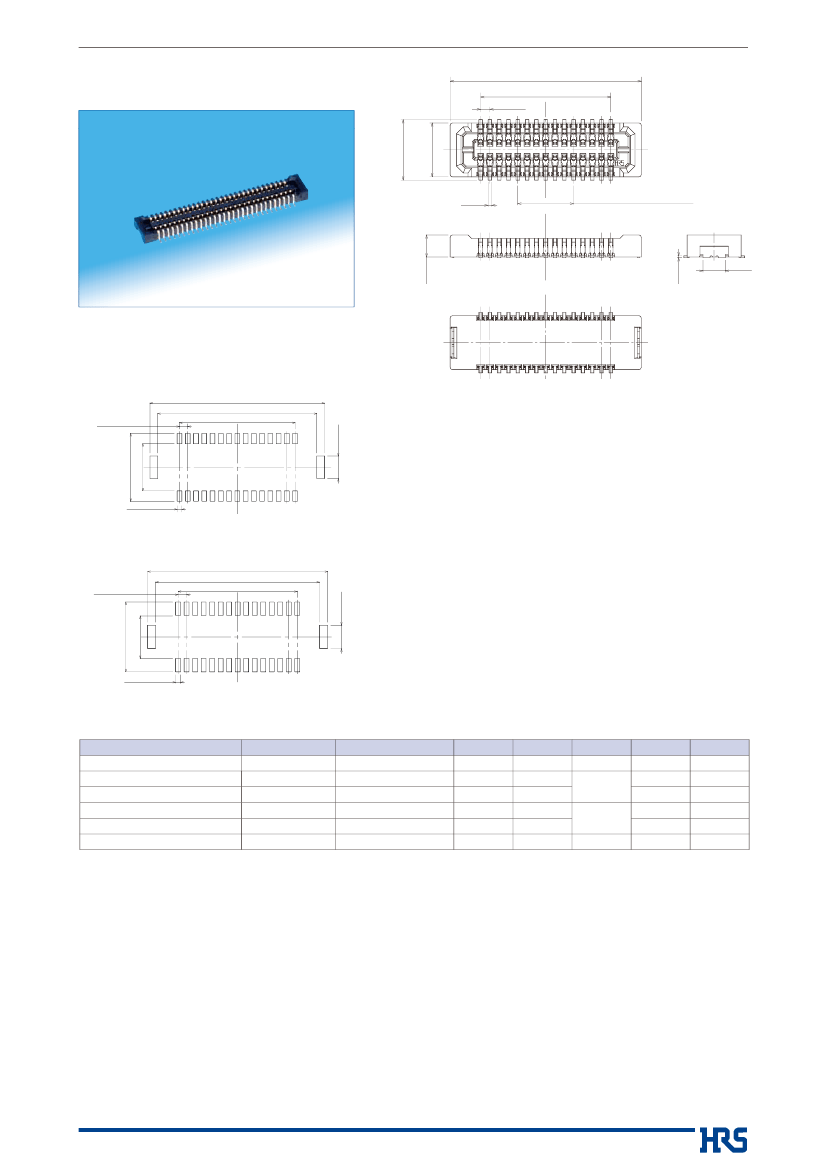

Receptacles(Stacking Height=0.98mm)
2.98
2.32
A
B
P=0.4
0.98
0.15
Vacuum pick-up area : C
0.08
0.96
(With metal fittings only)
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
metal mask dimensions
With metal fittings
P=0.4±0.02
3.28±0.01
2.28±0.01
0
D
-0.05
B±0.02
E
+0.05
0
Without metal fittings
P=0.4±0.02
1.1
+0.05
0
3.28±0.01
2.28±0.01
B±0.02
0.23±0.01
B
Recommended PCB mounting pattern
With metal fittings
P=0.4±0.02
3.28
+0.05
0
E
+0.05
0
0
D
-0.05
B±0.02
0.23±0.01
Without metal fittings
P=0.4±0.02
1.1
+0.05
0
B±0.02
3.28
+0.05
0
0.23±0.02
0.23±0.02
●With
metal fittings
Part No.
DF37NB-10DS-0.4V(51)
DF37NB-16DS-0.4V(51)
DF37NB-20DS-0.4V(51)
DF37NB-24DS-0.4V(51)
DF37NB-30DS-0.4V(51)
DF37NB-34DS-0.4V(51)
DF37NB-40DS-0.4V(51)
DF37NB-44DS-0.4V(51)
DF37NB-50DS-0.4V(51)
DF37NB-60DS-0.4V(51)
DF37NB-70DS-0.4V(51)
HRS No.
684-3301-6 51
684-3302-9 51
684-3303-1 51
684-3304-4 51
684-3305-7 51
684-3082-4 51
684-3306-0 51
684-3407-7 51
684-3307-2 51
684-3308-5 51
684-3409-2 51
No. of Contacts
10
16
20
24
30
34
40
44
50
60
70
A
4.22
5.42
6.22
7.02
8.22
9.02
10.22
11.02
12.22
14.22
16.22
B
1.6
2.8
3.6
4.4
5.6
6.4
7.6
8.4
9.6
11.6
13.6
C
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
Unit : mm
HRS No.
684-3309-8 51
684-3310-7 51
684-3311-0 51
684-3312-2 51
684-3313-5 51
684-3083-7 51
684-3314-8 51
684-3324-1 51
684-3315-0 51
684-3316-3 51
684-3084-0 51
No. of Contacts
10
16
20
24
30
34
40
44
50
60
70
A
4.22
5.42
6.22
7.02
8.22
9.02
10.22
11.02
12.22
14.22
16.22
B
1.6
2.8
3.6
4.4
5.6
6.4
7.6
8.4
9.6
11.6
13.6
C
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
D
3.7
4.9
5.7
6.5
7.7
8.5
9.7
10.5
11.7
13.7
15.7
0
2.02
-0.05
0
2.02
-0.05
Unit : mm
E
4.46
5.66
6.46
7.26
8.46
9.26
10.46
11.26
12.46
14.46
16.46
●Without
metal fittings
Part No.
DF37NC-10DS-0.4V(51)
DF37NC-16DS-0.4V(51)
DF37NC-20DS-0.4V(51)
DF37NC-24DS-0.4V(51)
DF37NC-30DS-0.4V(51)
DF37NC-34DS-0.4V(51)
DF37NC-40DS-0.4V(51)
DF37NC-44DS-0.4V(51)
DF37NC-50DS-0.4V(51)
DF37NC-60DS-0.4V(51)
DF37NC-70DS-0.4V(51)
Note 1 : Tape and reel packaging (8,000 pcs/reel). Order by number of reels.
Note 2 : This connector is NOT polarized.
3
DF37 Series●0.4mm Pitch, 0.98/1.5mm Mated Height, Board-to-Board / Board-to-FPC Connectors
■
Receptacles(Stacking Height=1.5mm)
2.98
2.32
A
B
P=0.4
0.15
1.5
Vacuum pick-up area : C
0.08
0.96
(With metal fitting only)
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
metal mask dimensions
With metal fittings
P=0.4±0.02
3.28±0.01
2.28±0.01
0
D
-0.05
B±0.02
E
+0.05
0
Without metal fittings
P=0.4±0.02
1.1
+0.05
0
3.28±0.01
2.28±0.01
B±0.02
0.23±0.01
B
Recommended PCB mounting pattern
With metal fittings
P=0.4±0.02
3.28
+0.05
0
E
+0.05
0
0
D
-0.05
B±0.02
0.23±0.01
Without metal fittings
P=0.4±0.02
1.1
+0.05
0
B±0.02
3.28
+0.05
0
0.23±0.02
0.23±0.02
●With
metal fittings
Part No.
HRS No.
DF37NB(1.5)-24DS-0.4V(51) 684-3602-2 51
No. of Contacts
24
A
7.02
B
4.4
C
2
Unit : mm
HRS No.
684-3603-5 51
684-3604-8 51
684-3618-0 51
684-3606-3 51
684-3610-0 51
684-3613-9 51
684-3614-1 51
No. of Contacts
24
30
34
40
50
60
70
A
7.02
8.22
9.02
10.22
12.22
14.22
16.22
B
4.4
5.6
6.4
7.6
9.6
11.6
13.6
C
2
2.4
2.8
3.2
3.6
D
6.5
0
2.02
-0.05
0
2.02
-0.05
Unit : mm
E
7.26
●Without
metal fittings
Part No.
DF37NC(1.5)-24DS-0.4V(51)
DF37NC(1.5)-30DS-0.4V(51)
DF37NC(1.5)-34DS-0.4V(51)
DF37NC(1.5)-40DS-0.4V(51)
DF37NC(1.5)-50DS-0.4V(51)
DF37NC(1.5)-60DS-0.4V(51)
DF37NC(1.5)-70DS-0.4V(51)
Note 1 : Tape and reel packaging (5,000 pcs/reel). Order by number of reels.
Note 2 : This connector is NOT polarized.
4
DF37 Series●0.4mm Pitch, 0.98/1.5mm Mated Height, Board-to-Board / Board-to-FPC Connectors
■
Receptacles(DF37SB)
2.32
2.6
A
P=0.4
B
0.15
A
Vacuum pick-up area : C
0.98
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
B
Recommended metal mask dimensions
1.1
+0.05
0
P=0.4±0.02
3±0.01
1.84±0.01
0
D
-0.05
B±0.02
E
+0.05
0
0.23±0.01
B
Recommended PCB mounting pattern
1.1
+0.05
0
P=0.4±0.02
2.9
+0.05
0
E
+0.05
0
0
D
-0.05
B±0.02
0.23±0.02
●With
metal fittings
Part No.
DF37SB-20DS-0.4V(51)
DF37SB-24DS-0.4V(51)
DF37SB-30DS-0.4V(51)
DF37SB-34DS-0.4V(51)
DF37SB-40DS-0.4V(51)
DF37SB-50DS-0.4V(51)
HRS No.
684-3502-8 51
684-3503-0 51
684-3504-3 51
684-3505-6 51
684-3506-9 51
684-3507-1 51
No. of Contacts
20
24
30
34
40
50
A
6.22
7.02
8.22
9.02
10.22
12.22
B
3.6
4.4
5.6
6.4
7.6
9.6
C
1.6
2
2.4
2.8
D
5.7
6.5
7.7
8.5
9.7
11.7
0
1.9
-0.05
0.08
0.96
Unit : mm
E
6.46
7.26
8.46
9.26
10.46
12.46
Note 1 : Tape and reel packaging (8,000 pcs/reel). Order by number of reels.
Note 2 : This connector is NOT polarized.
5
