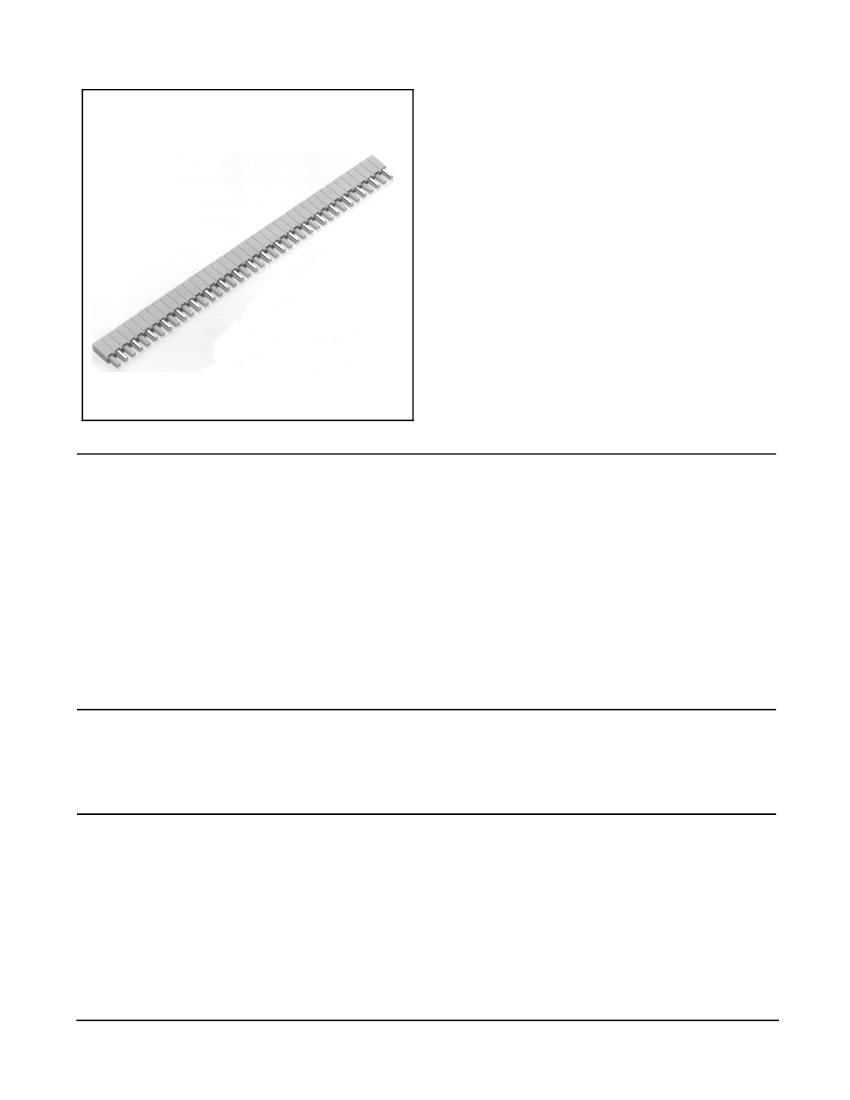

1. It is recommended that the plated thru-hole on the ends be .062″ [1.57] to .063″ [1.60]. This will prevent the connector from floating during the wave soldering
process.
2. Integral solder mask plugs are removed after soldering by using the 3M™ Hand Tool 929013 with the 3M™ Molded Head 929025-0X-XX or 3M™ Hand Tool
929012 with the 3M™ Press 929050.
3. Do not hand solder this connector because the solder heat and volume of solder cannot be adequately controlled. This wouldmake the integral plugs difficult
or impossible to remove.
4. The connector should be flow soldered such that it enters the solder wave, end first (width).
Ordering Information
929XXX-01-XX-XX
Plating Options:
2 Row
1 Row
841 = Gold 842 = Gold
Contact Quantity:
(per row) see table
Gold Plating Thickness:
10 = Wiping Area 10 µ" [0.25 µm] gold with tin-lead tails (RIA E3 & C2 apply)
30 = Wiping Area 30 µ" [0.76 µm] gold with tin-lead tails (RIA E3 & C2 apply)
RA = 10 µ" [0.25 µm] gold wiping area with matte tin tails (RIA E1 & C1 apply)
RB = 30 µ" [0.76 µm] gold wiping area with matte tin tails (RIA E1 & C1 apply)
D
IS

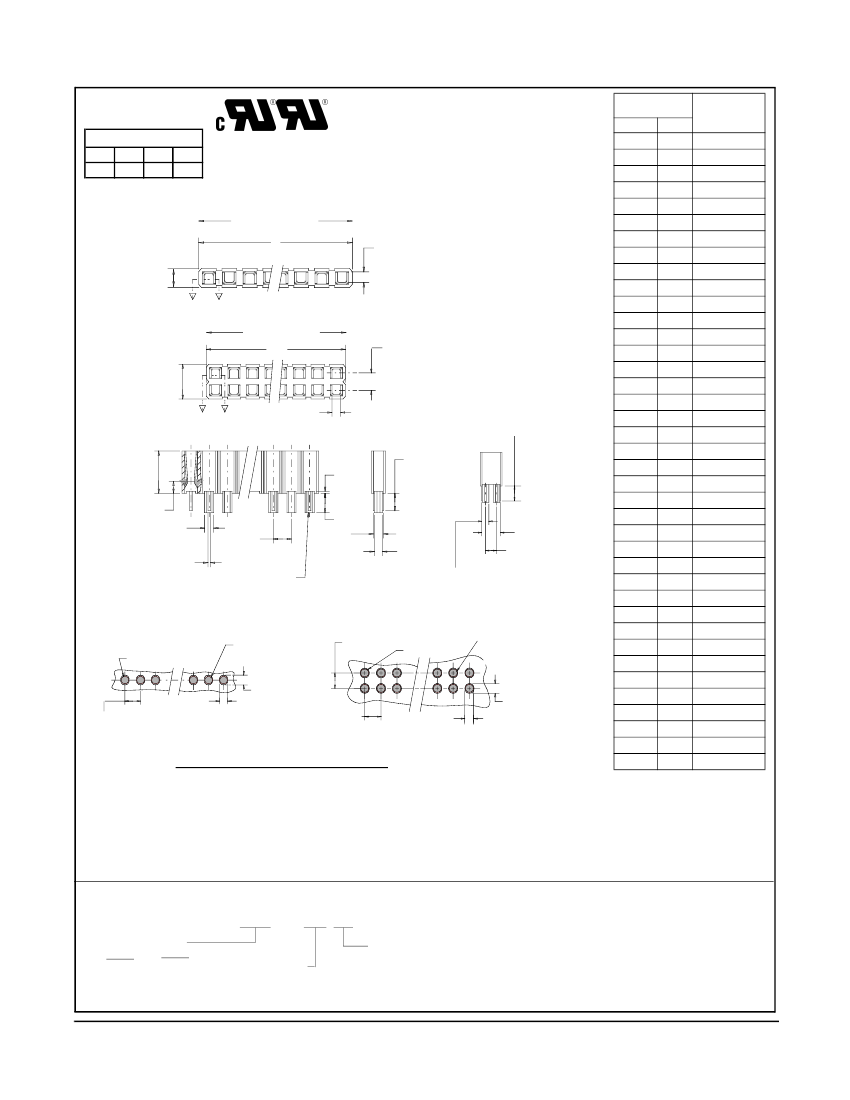

Recommended Mounting Hole Pattern
D
.160
[ 4.06 ]
.100 Ref
[ 2.54 ]
.005 Typ
.002
.085 Typ
[ 2.16 ]
Pad Size
+.010
-.005
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
0.20 [ 5.08 ]
0.30 [ 7.62 ]
0.40 [ 10.16 ]
0.50 [ 12.70 ]
0.60 [ 15.24 ]
0.70 [ 17.78 ]
0.80 [ 20.32 ]
0.90 [ 22.86 ]
1.00 [ 25.40 ]
1.10 [ 27.94 ]
1.20 [ 30.48 ]
1.30 [ 33.02 ]
1.40 [ 35.56 ]
1.50 [ 38.10 ]
1.60 [ 40.64 ]
1.70 [ 43.18 ]
1.80 [ 45.72 ]
1.90 [ 48.26 ]
2.00 [ 50.80 ]
2.10 [ 53.34 ]
2.20 [ 55.88 ]
2.30 [ 58.42 ]
2.40 [ 60.96 ]
2.50 [ 63.50 ]
2.60 [ 66.04 ]
2.70 [ 68.58 ]
2.80 [ 71.12 ]
2.90 [ 73.66 ]
3.00 [ 76.20 ]
3.10 [ 78.74 ]
3.20 [ 81.28 ]
3.30 [ 83.82 ]
3.40 [ 86.36 ]
3.50 [ 88.90 ]
3.60 [ 91.44 ]
3.70 [ 93.98 ]
3.80 [ 96.52 ]
3.90 [ 99.06 ]
4.00 [ 101.60 ]
1/
17
TS-0814-05
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision
2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party
suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
D
IS
C
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
O
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon
information provided by third party suppliers to 3M.
N
T
Appendix E3: European Union RoHS
IN
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
U
E
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
D
1/
Appendix E2: European Union RoHS
17
RIA-2217-A
CHINA

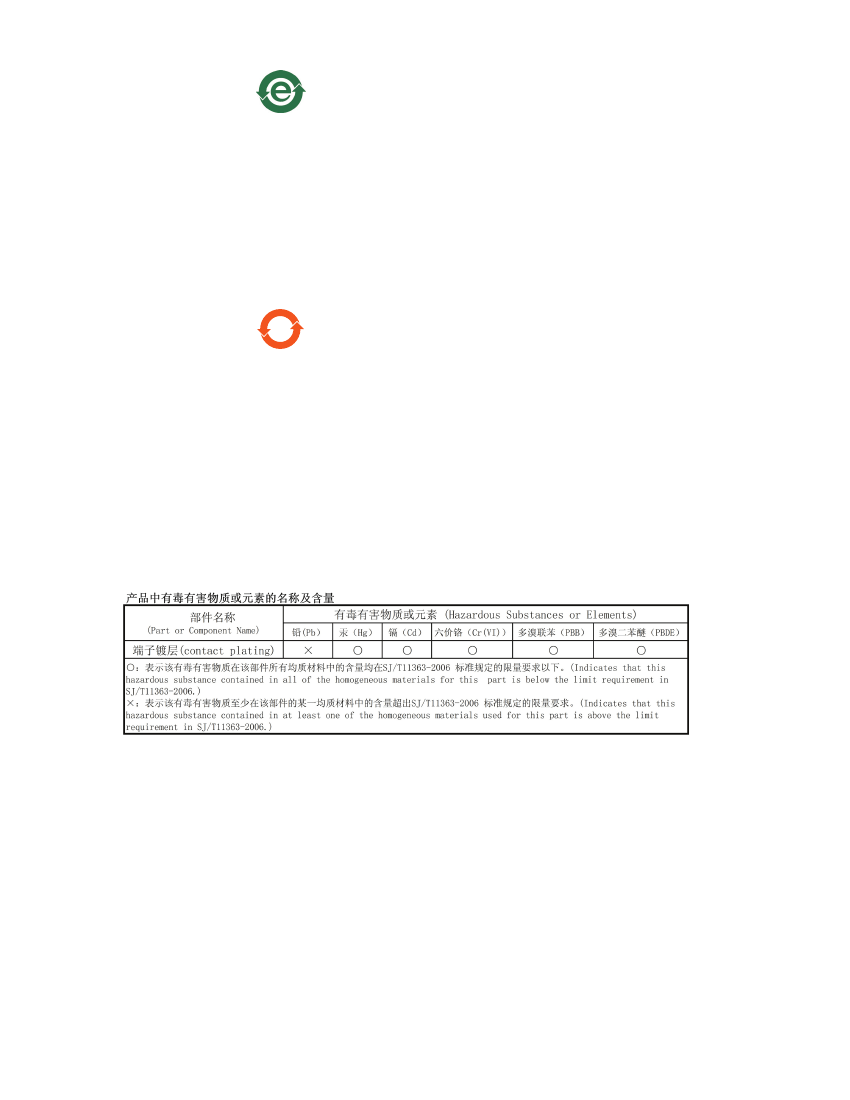

Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does not
contain any of the following substances in excess of the following maximum
concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,
polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise
stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by
third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
20
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s
current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in
writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for
any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
