8291A datasheet, PDF - EEWORLD Datasheet

8291A: DescriptionGPIB TALKER/LISTENER; File Size2MB，32 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Compare View All

8291A Overview

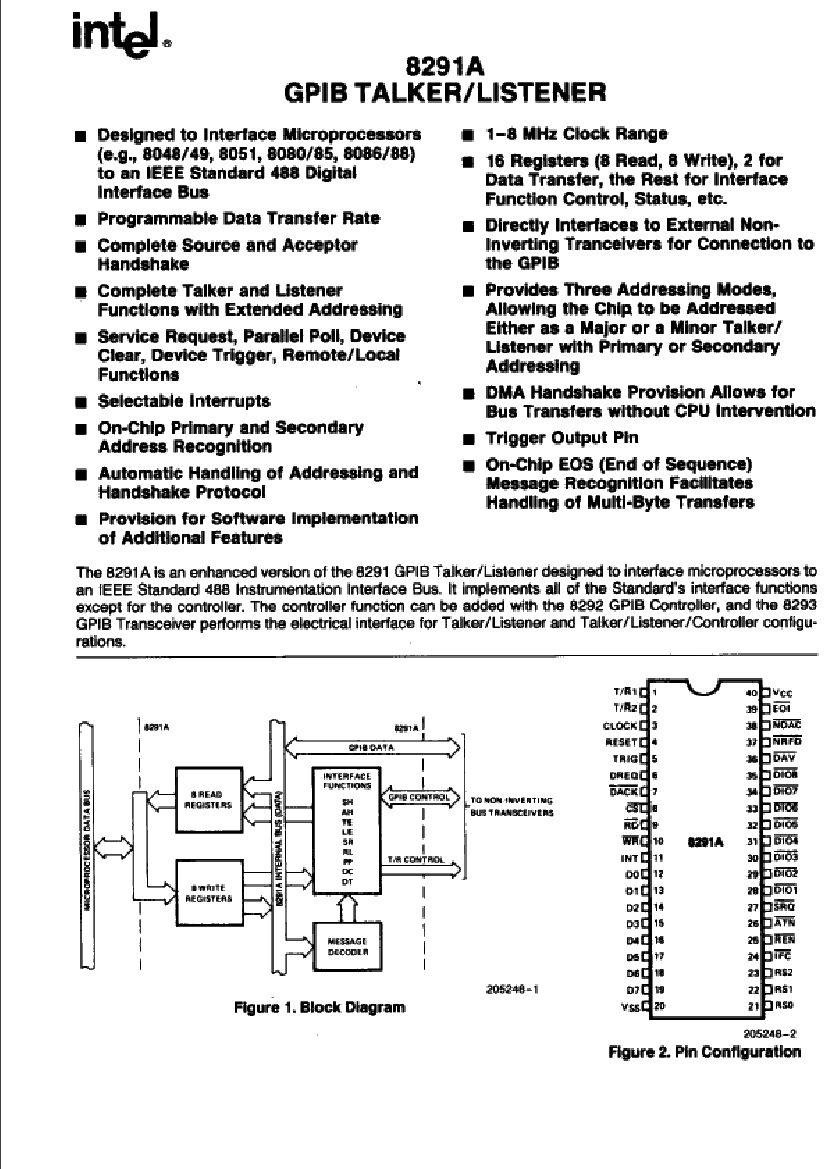

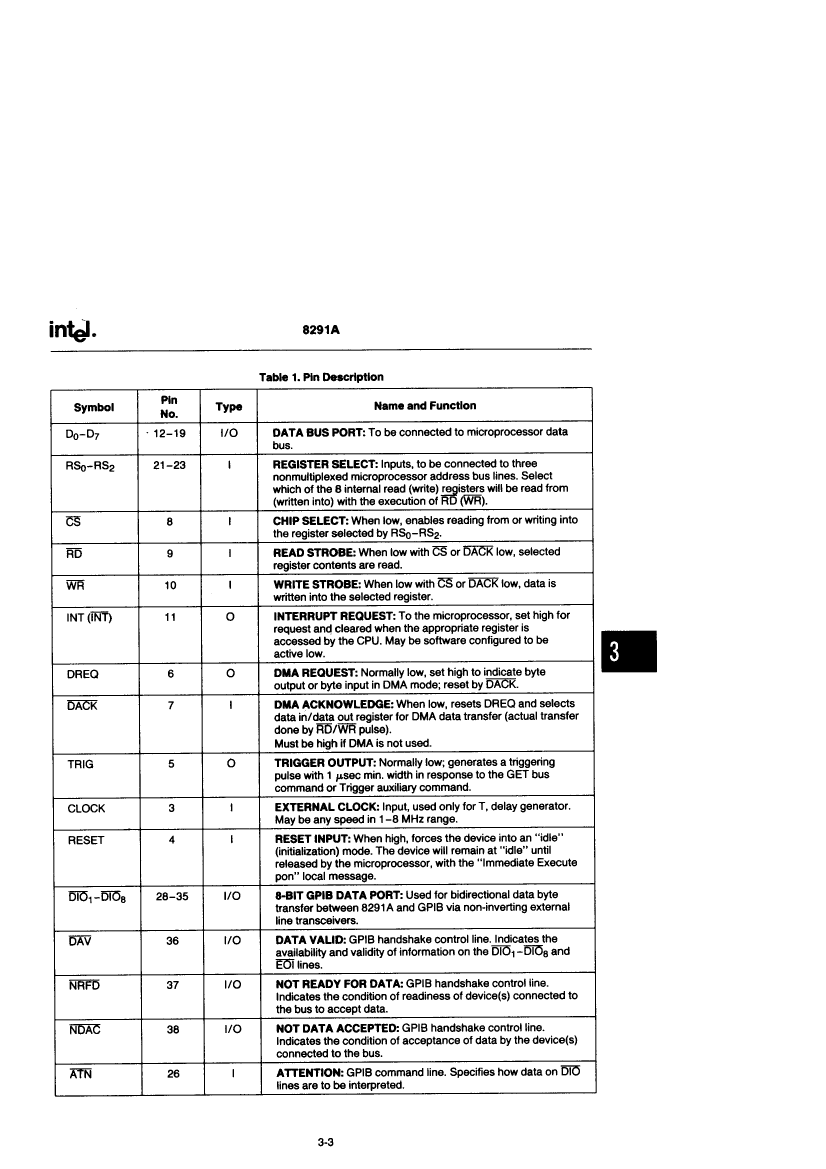

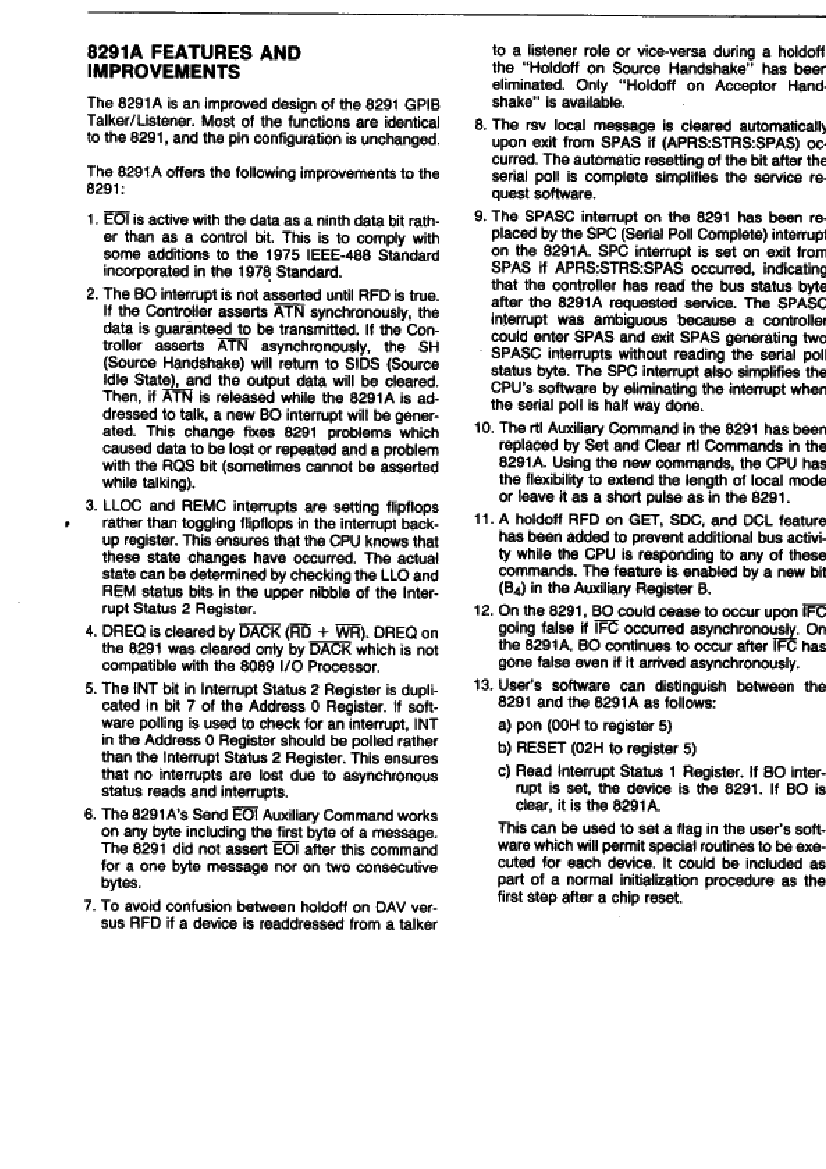

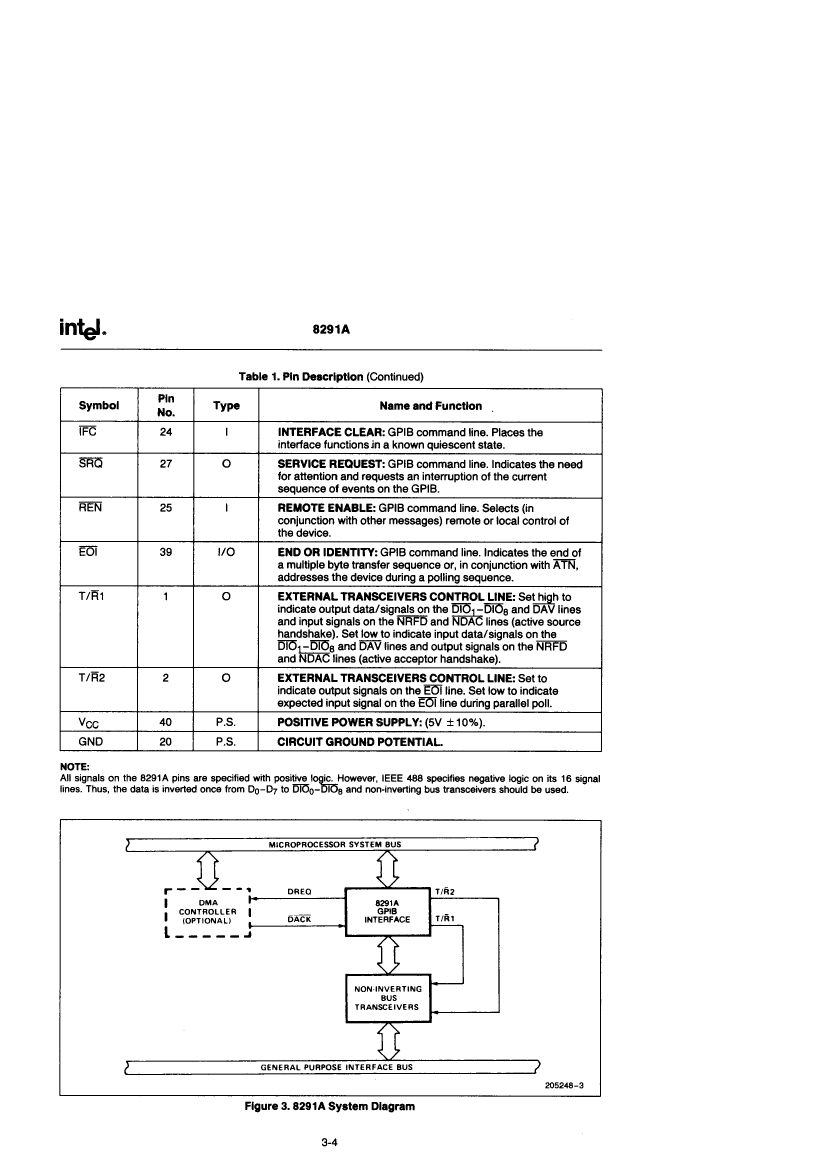

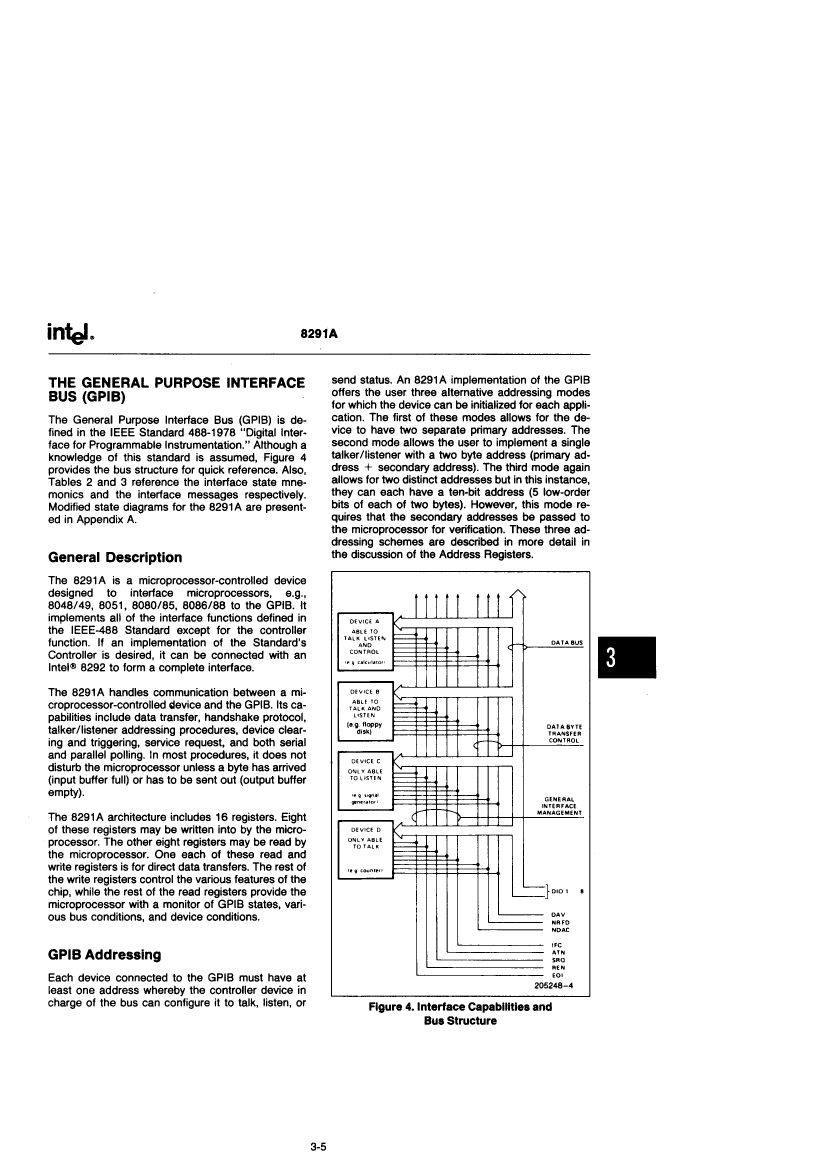

GPIB TALKER/LISTENER

	8291A	D8291A	P8291A
Description	GPIB TALKER/LISTENER	GPIB TALKER/LISTENER	GPIB TALKER/LISTENER
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	Intel	Intel
package instruction	-	DIP,	DIP,
Reach Compliance Code	-	unknow	unknow
Address bus width	-	3	3
Bus compatibility	-	8048; 8049; 8051; 8080; 8085; 8086; 8088	8048; 8049; 8051; 8080; 8085; 8086; 8088
maximum clock frequency	-	8 MHz	8 MHz
Drive interface standards	-	IEEE 488	IEEE 488
External data bus width	-	8	8
JESD-30 code	-	R-GDIP-T40	R-PDIP-T40
JESD-609 code	-	e0	e0
length	-	52.325 mm	52.26 mm
Number of terminals	-	40	40
Maximum operating temperature	-	70 °C	70 °C
Package body material	-	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	5.72 mm	5.08 mm
Maximum slew rate	-	120 mA	120 mA
Maximum supply voltage	-	5.5 V	5.5 V
Minimum supply voltage	-	4.5 V	4.5 V
Nominal supply voltage	-	5 V	5 V
surface mount	-	NO	NO
technology	-	MOS	MOS
Temperature level	-	COMMERCIAL	COMMERCIAL
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	-	BUS CONTROLLER, IEEE 488 (GPIB)	BUS CONTROLLER, IEEE 488 (GPIB)
