TD5C060-45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> TD5C060-45

TD5C060-45: Description16 MACROCELL CMOS PLD; CategoryProgrammable logic devices Programmable logic; File Size1006KB，18 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

TD5C060-45 Overview

16 MACROCELL CMOS PLD

TD5C060-45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.3
Reach Compliance Code	compliant
Architecture	PAL-TYPE
maximum clock frequency	22 MHz
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of entries	20
Output times	16
Number of product terms	160
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output function	MACROCELL
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	EE PLD
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

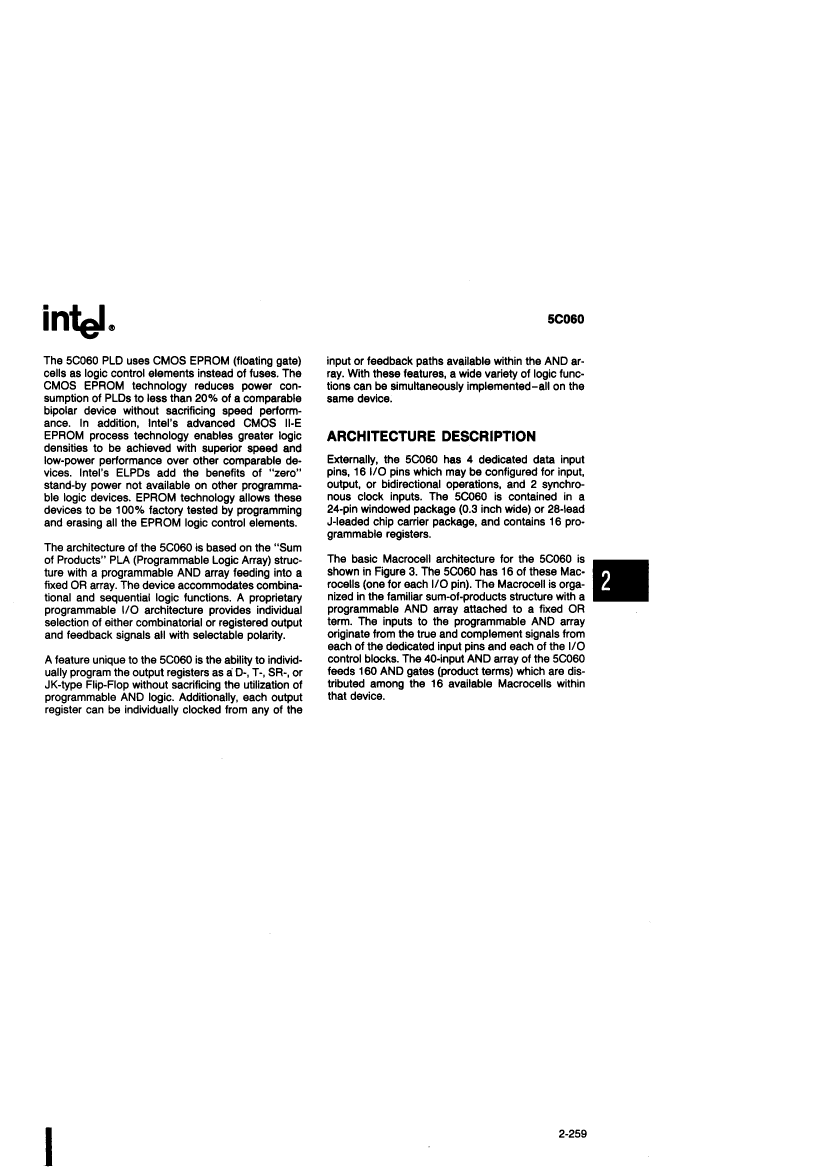

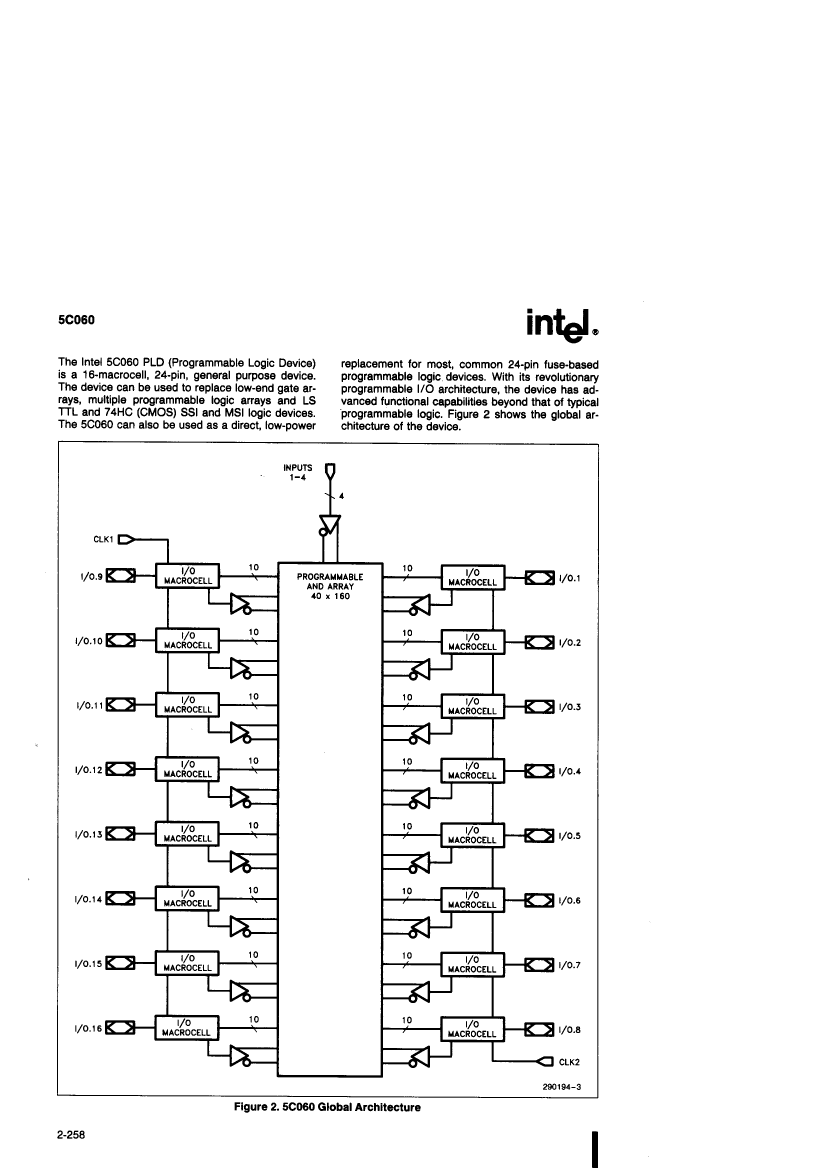

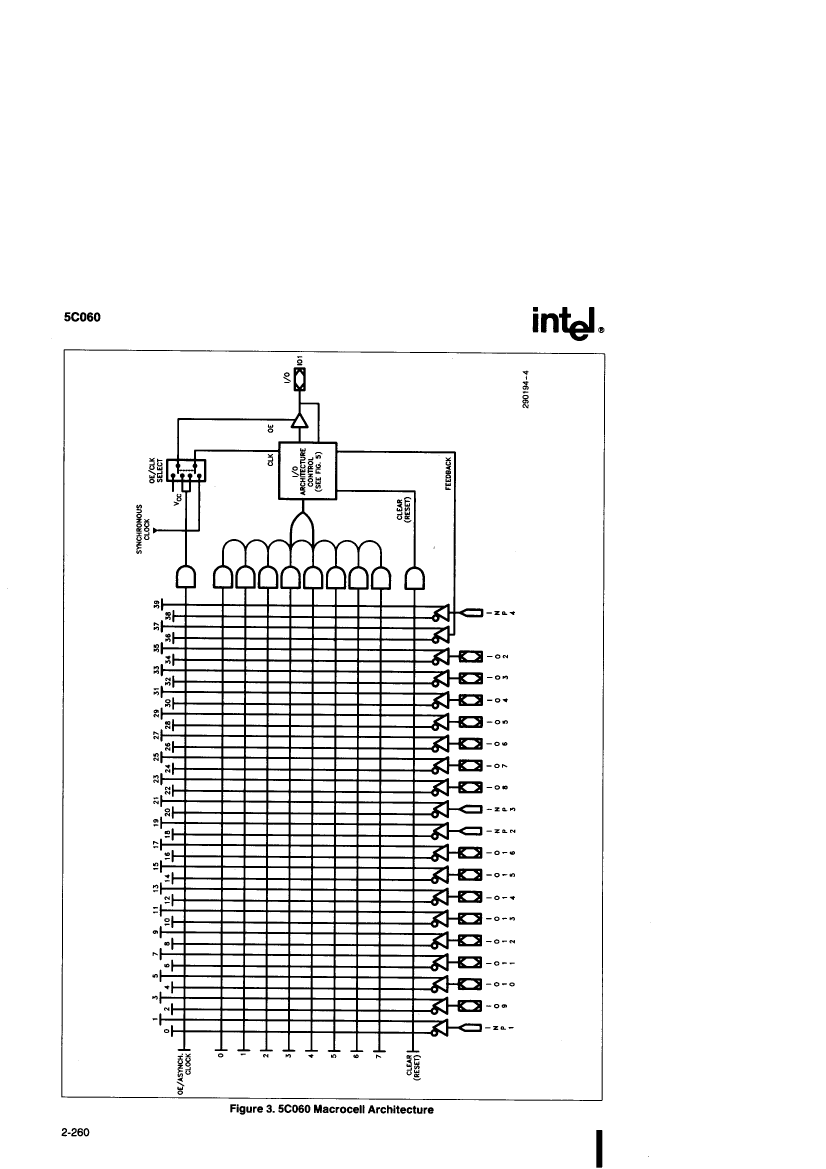

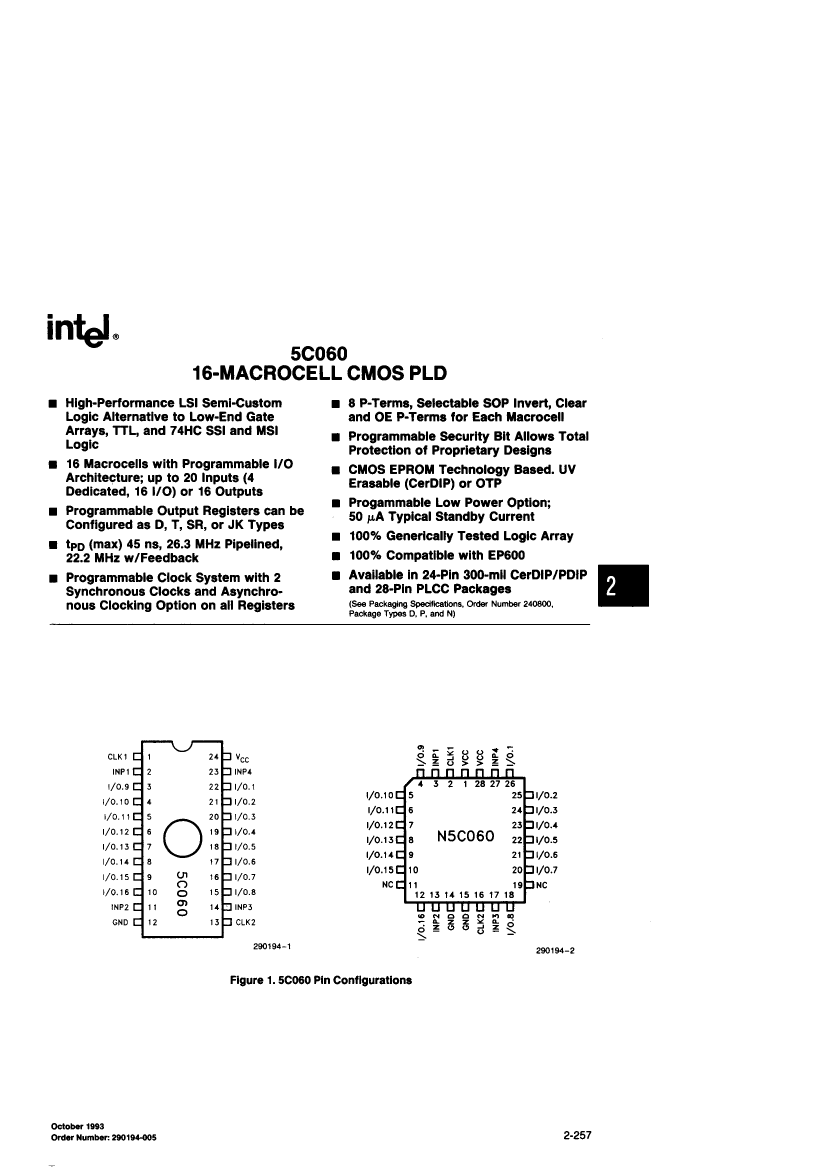

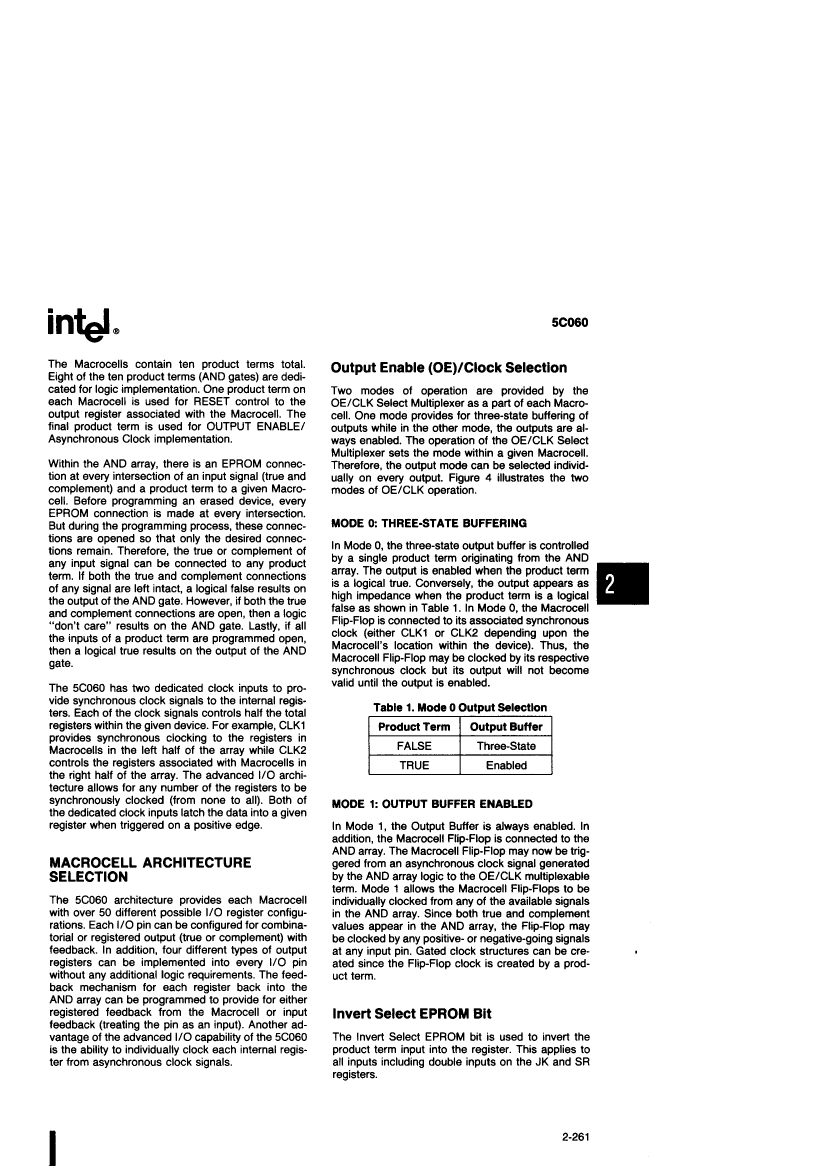

Preview

Download Datasheet

View All

TD5C060-45 Related Products

	TD5C060-45	5C060	D5C060-55	D5C060-45	N5C060-45	N5C060-55	P5C060-45	P5C060-55	TN5C060-45
Description	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD	16 MACROCELL CMOS PLD
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.3	-	WDIP, DIP24,.3	WDIP, DIP24,.3	QCCJ, LDCC28,.5SQ	QCCJ, LDCC28,.5SQ	DIP, DIP24,.3	DIP, DIP24,.3	QCCJ, LDCC28,.5SQ
Reach Compliance Code	compliant	-	compliant	compliant	compli	compli	compliant	compliant	compli
Architecture	PAL-TYPE	-	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE
maximum clock frequency	22 MHz	-	14.28 MHz	16.13 MHz	16.13 MHz	14.28 MHz	16.13 MHz	14.28 MHz	22 MHz
JESD-30 code	R-XDIP-T24	-	R-GDIP-T24	R-GDIP-T24	S-PQCC-J28	S-PQCC-J28	R-PDIP-T24	R-PDIP-T24	S-PQCC-J28
JESD-609 code	e0	-	e0	e0	e0	e0	e0	e0	e0
Number of entries	20	-	20	20	20	20	20	20	20
Output times	16	-	16	16	16	16	16	16	16
Number of product terms	160	-	160	160	160	160	160	160	160
Number of terminals	24	-	24	24	28	28	24	24	28
Maximum operating temperature	85 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C
Output function	MACROCELL	-	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	WDIP	WDIP	QCCJ	QCCJ	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP24,.3	-	DIP24,.3	DIP24,.3	LDCC28,.5SQ	LDCC28,.5SQ	DIP24,.3	DIP24,.3	LDCC28,.5SQ
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	-	IN-LINE, WINDOW	IN-LINE, WINDOW	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	-	UV PLD	UV PLD	OT PLD	OT PLD	OT PLD	OT PLD	EE PLD
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	-	NO	NO	YES	YES	NO	NO	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	-	1	1	-	-	1	1	1
Parts packaging code	-	-	DIP	DIP	QLCC	QLCC	DIP	DIP	-
Contacts	-	-	24	24	28	28	24	24	-
Other features	-	-	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	PAL WITH MACROCELLS; 16 MACROCELLS; 2 EXTERNAL CLOCKS; ASYNCHRONOUS CLOCKS	-
length	-	-	32.07 mm	32.07 mm	11.5062 mm	11.5062 mm	31.61 mm	31.61 mm	-
Dedicated input times	-	-	4	4	4	4	4	4	-
Number of I/O lines	-	-	16	16	16	16	16	16	-
organize	-	-	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O	-
propagation delay	-	-	55 ns	45 ns	45 ns	55 ns	45 ns	55 ns	-
Maximum seat height	-	-	5.72 mm	5.72 mm	4.57 mm	4.57 mm	4.32 mm	4.32 mm	-
Maximum supply voltage	-	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	-	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-
width	-	-	7.62 mm	7.62 mm	11.5062 mm	11.5062 mm	7.62 mm	7.62 mm	-
