AN7205S datasheet, PDF - EEWORLD Datasheet

AN7205S: DescriptionFM FRONT-END CIRCUIT FOR RADIOS AND RADIO / CASSETTE TAPE RECORDERS (3V OPERATION); CategoryOther integrated circuit (IC) Consumption circuit; File Size169KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

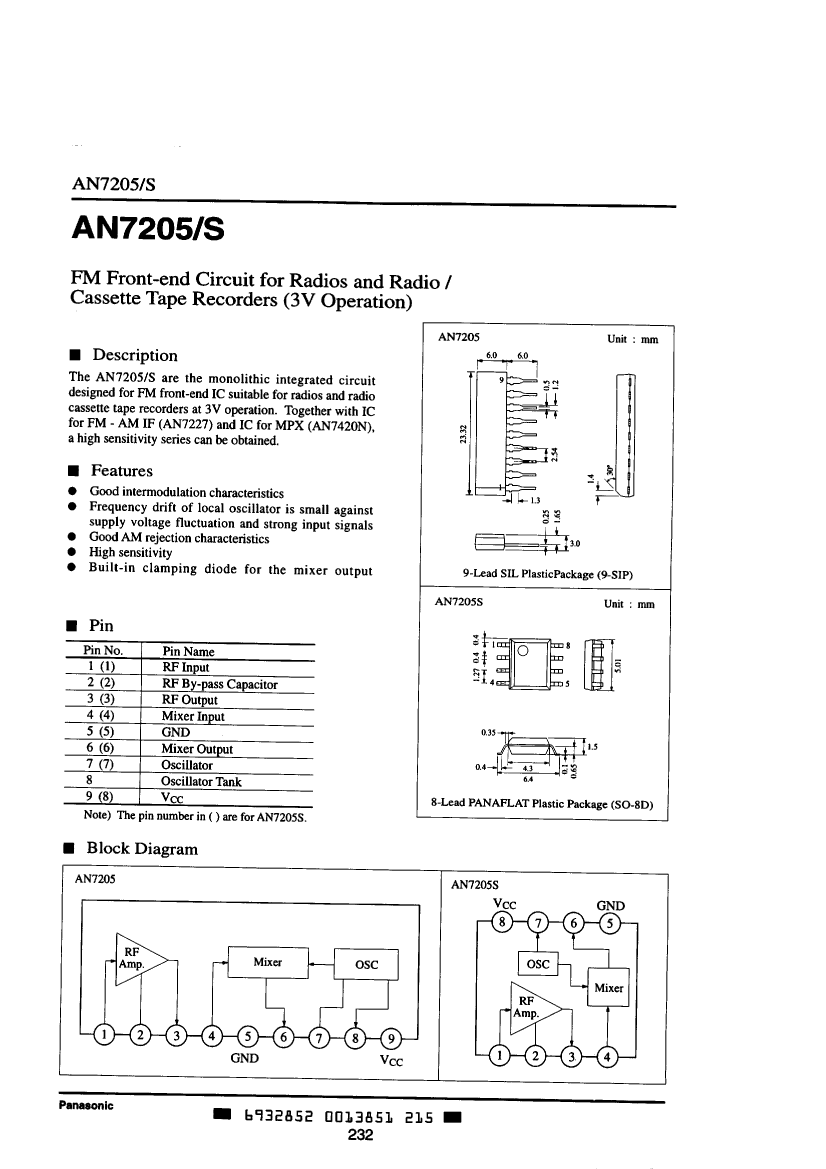

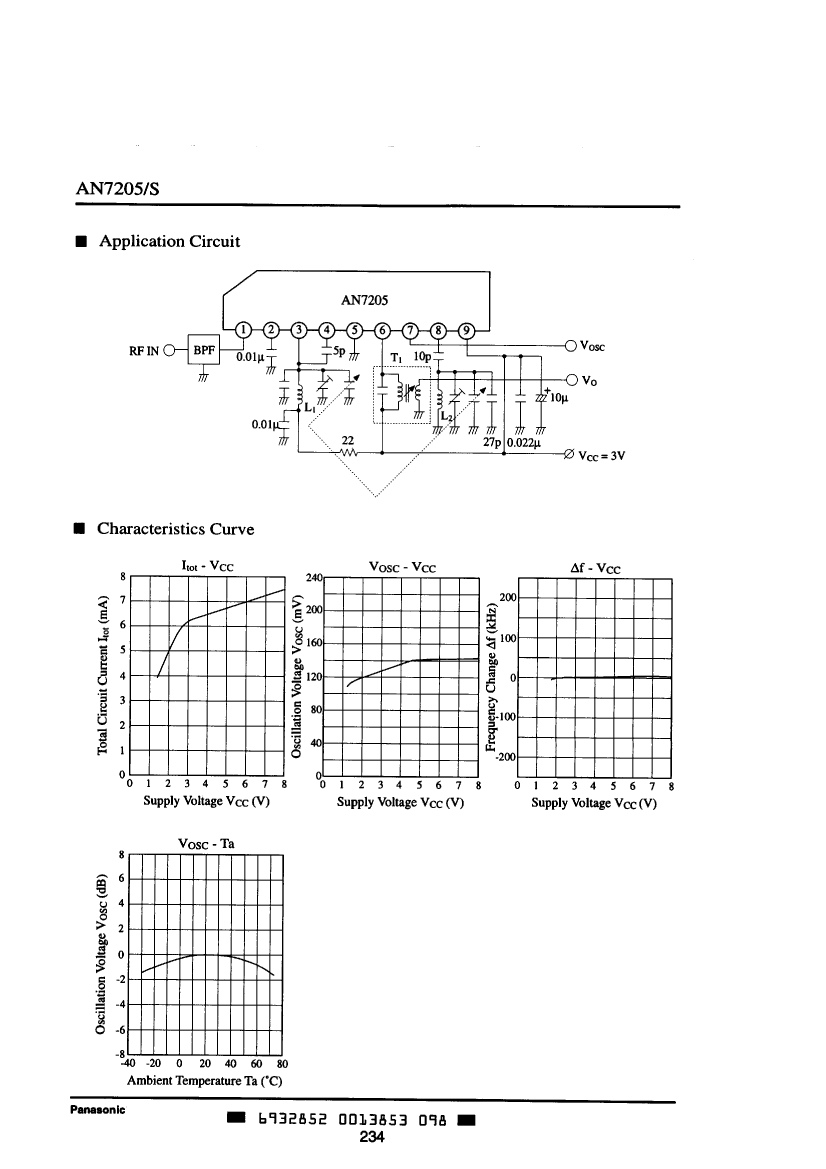

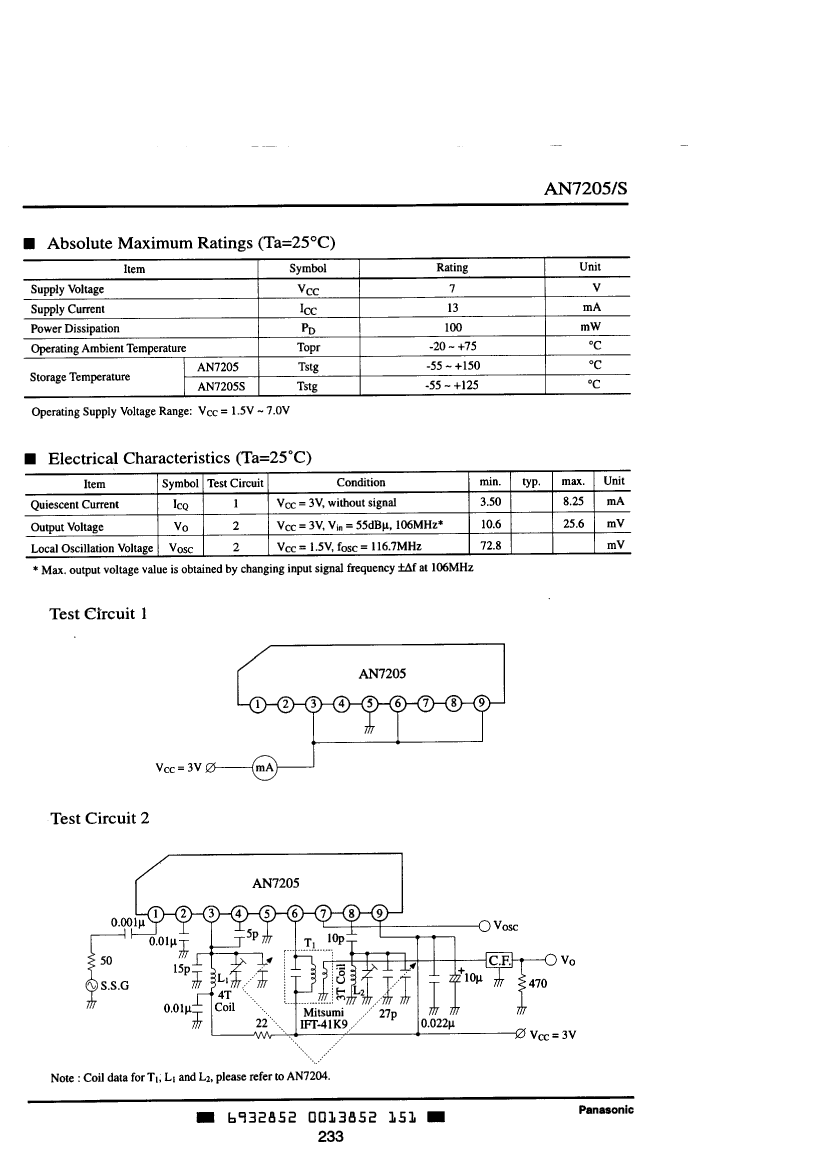

AN7205S Overview

FM FRONT-END CIRCUIT FOR RADIOS AND RADIO / CASSETTE TAPE RECORDERS (3V OPERATION)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	0.225 INCH, PLASTIC, SOP-8
Contacts	8
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	7 V
Minimum supply voltage (Vsup)	1.5 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.2 mm
Base Number Matches	1

	AN7205S	AN7205
Description	FM FRONT-END CIRCUIT FOR RADIOS AND RADIO / CASSETTE TAPE RECORDERS (3V OPERATION)	FM FRONT-END CIRCUIT FOR RADIOS AND RADIO / CASSETTE TAPE RECORDERS (3V OPERATION)
Parts packaging code	SOIC	SIP
package instruction	0.225 INCH, PLASTIC, SOP-8	PLASTIC, SIP-9
Contacts	8	9
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G8	R-PSIP-T9
length	5 mm	23.3 mm
Number of functions	1	1
Number of terminals	8	9
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	7 V	7 V
Minimum supply voltage (Vsup)	1.5 V	1.5 V
surface mount	YES	NO
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	SINGLE
width	4.2 mm	3 mm
Base Number Matches	1	1
