L235-2790AHLGBBAC0 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> L235-2790AHLGBBAC0

L235-2790AHLGBBAC0: DescriptionLED Lighting Bars and Strips Warm White, 2700K; CategoryLED optoelectronic/LED; File Size3MB，18 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/

Download Datasheet Parametric View All

L235-2790AHLGBBAC0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L235-2790AHLGBBAC0	-	-	View	Buy Now

L235-2790AHLGBBAC0 Overview

LED Lighting Bars and Strips Warm White, 2700K

L235-2790AHLGBBAC0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumileds
Product Category	LED Lighting Bars and Strips
RoHS	Details
Product	LED Flexible Strips
Illumination Color	White (Warm White)
Wavelength/Color Temperature	2700 K
Number of LEDs	36 LED
Length	600 mm
Width	10 mm
Power Rating	-
Packaging	Reel
Material	-
Wavelength	-
LED Size	3.5 mm x 3.5 mm x 0.8 mm
Luminous Flux	1224 lm
Mounting Style	Adhesive
Color Temperature	2700 K
If - Forward Current	600 mA
Illuminance	-
NumOfPackaging	1
Factory Pack Quantity	25
Vf - Forward Voltage	18 V

Preview

Download Datasheet

View All

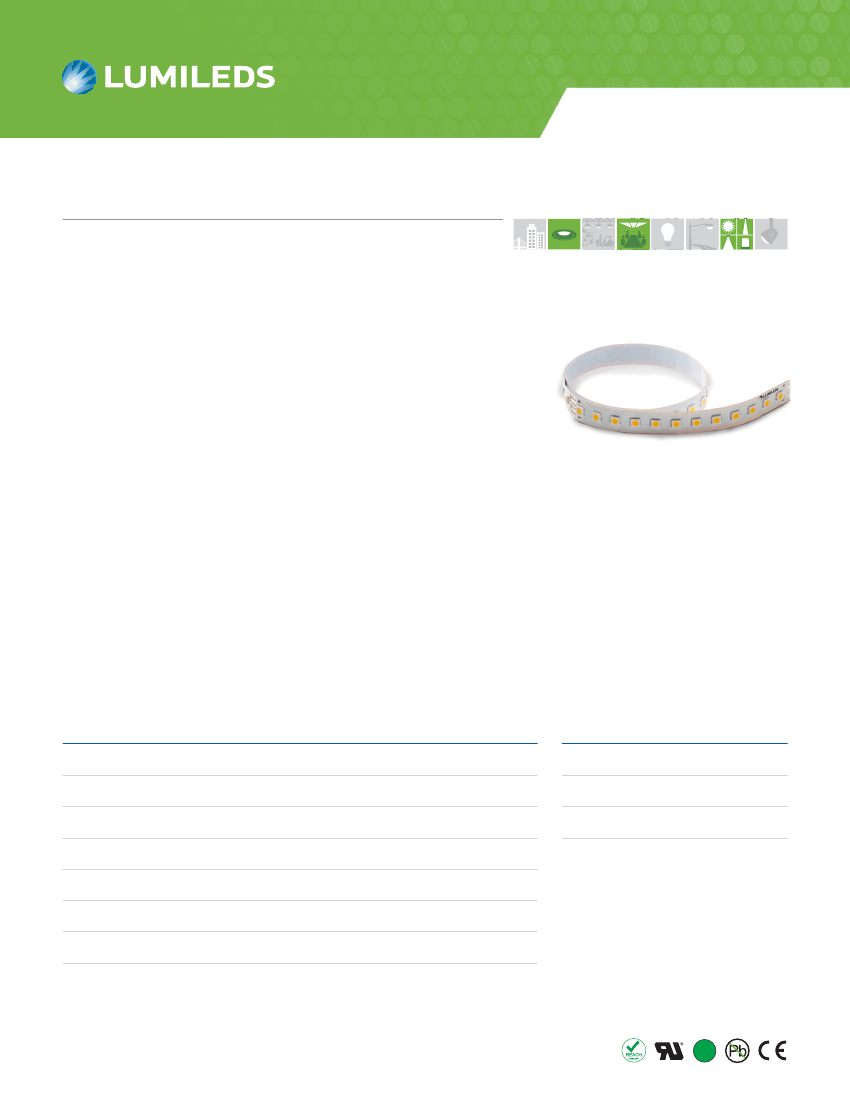

IllumInatIon

luXeon XF-3535l

Turnkey solution on a flexible substrate

with optimized performance and uniform

light distribution

LUXEON XF-3535L is a fully integrated solution optimized for lighting

applications requiring flexible linear LED arrays that can easily fit into

any luminaire housing form factor. The turnkey solution minimizes time

to market and simplifies supply chain by reducing optical and mechanical

design efforts. Combined with LUXEON 3535L, LUXEON XF-3535L

provides the same powerful optical performance guaranteed by

LUXEON LEDs.

Features and BeneFIts

1000–5000 lumen strips enabling efficacies of up to 157 lm/W

A full range of CCT/CRI offerings: 2200–5700K with 70–90CRI minimums

Complete integrated solution guarantees simplified supply chain and

faster time to market

Backside adhesive for attachment to heat sink allows for ease of mounting

and assembly

Available with solder terminals or push-in wire connectors for easy

electrical connection

UL-recognized component [E335118]

5 year limited warranty

PrImary aPPlIcatIons

Downlights

Indoor Area Lighting

Specialty Lighting

COMPLIANT

RoHS

Table of Contents

General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part Number Nomenclature

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Configurations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Spectral Power Distribution Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Color Bin Definition

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

L235-xxyyAHLGBAAC0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

L235-xxyyAHLGBBAC0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

L235-xxyyAHLCBAAC0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

L235-xxyyAHLCBBAC0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

L235-xxyyAMLF5WAD0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

L235-xxyyAULM5JAI0.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

IDC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Assembly Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Flexible Substrate Material.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TIM/PSA Material

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

General Product Information

Test Conditions

The nominal current for LUXEON XF-3535L is 100mA x the number of parallel LED strings. A LUXEON XF-3535L configuration with

6 parallel strings has a nominal drive current of 600mA.

The LEDs on LUXEON XR-3535L are tested and specified individually at a junction temperature of 25°C with a drive current of

100mA and pulse duration of 20ms. The minimum, typical, and maximum performance numbers for LUXEON XF-3535L in this

datasheet are derived from the individual LED measurements. The confidence level on all minimum and maximum performance

parameters in this datasheet is 99% to within individual LED tolerance.

Part Number Nomenclature

Part numbers for LUXEON XF-3535L follow the convention below:

L 2 3 5 –

A A B B

D E F

Where:

A A

–

B B

–

designates nominal ANSI CCT (22=2200K, 27=2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K, 57=5700K)

designates minimum CRI (80=80CRI, 85=90CRI)

designates number of LEDs per board (H=36, M=56, U=108)

designates strip length (C=300mm, F=525mm, G=600mm, M=1150mm)

designates strip width (5=5.25mm, B=10mm)

designates electrical connectivity (A=tin contacts at same end (36-up), B=two connectors at the same end

(36-up), W=two connectors at opposite ends (56-up), J=two connectors at opposite ends (108-up))

–

designates typical forward voltage (C=18V, D=21V, I=36V)

Therefore, the following part number is used for a LUXEON XF-3535L 3000K 80CRI, 56 LEDs per board, 525mm length, 5.25mm

width, two connectors at opposite ends and forward voltage of 21V:

L 2 3 5 –

3 0 8 0

F 5 W

Lumen Maintenance

Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-

term performance of this product.

Environmental Compliance

Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON XF-3535L is

compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the RoHS

Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted materials to

its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).
