EM6821
Ultra Low Power µController with 4x20 LCD Driver
Features
•
Low Power
- 1.3 µA active mode, LCD On
- 0.4 µA standby mode, LCD Off
- 0.1 µA sleep mode
@ 3 V, 32 KHz, 25 ºC
Low Voltage
- 1.2 to 3.6 V
2 clocks per instruction cycle
72 basic instructions
ROM 4k x 16 bits
RAM 128 x 4 bits
Max. 12 inputs ; port A, port B, port SP
Max. 8 outputs ; port B, port SP
Voltage Level Detector, 8 levels software
selectable from 1.2 V up to 4.0 V
Melody, 7 tones + silence inclusive 4-bit timer
Universal 10-bit counter, PWM, event counter
Prescaler down to 1 second ( crystal = 32 KHz )
1/1000 sec 12 bit binary coded decimal counter
with hard or software start/stop function
LCD 20 Segments, 3 or 4 times multiplexed
3 wire serial port , 8 bit, master and slave mode
5 external interrupts (port A, serial interface)
8 internal interrupts (3x prescaler, BCD counter
2x10-bit counter, melody timer, serial interface)
timer watchdog and oscillation supervisor

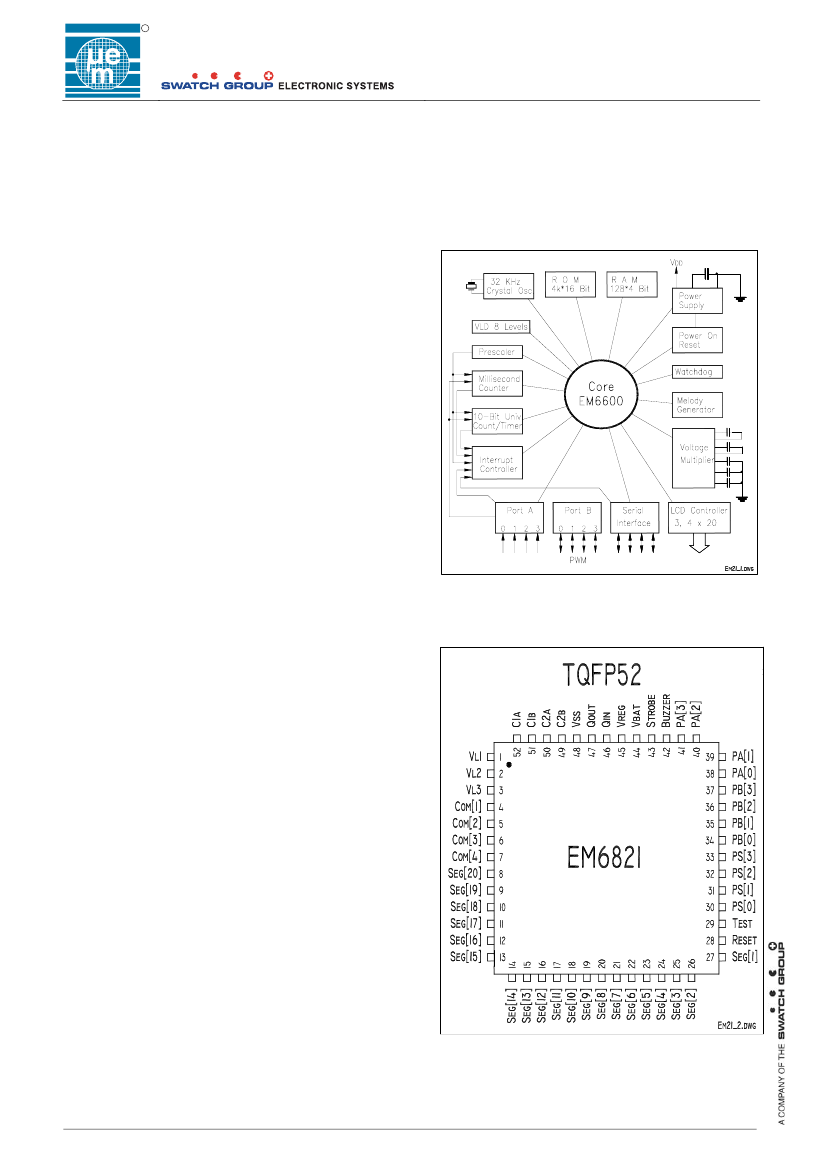

Figure 1. Architecture
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Figure 2. Pin Configuration, TQFP52 10x10x1 mm
Description
The EM6821 is an advanced single chip low cost
CMOS microcontroller. It contains ROM, RAM,
LCD driver, power on reset, watchdog timer,
oscillation detection circuit, 10-bit up/down and
event counter, 1ms BCD counter, prescaler,
voltage level detector (Vld), serial interface and
several clock functions. The low voltage feature
and low power consumption make it the most
suitable controller for battery, stand alone and
mobile equipment. The EM6821 is manufactured
using EM Microelectronic’a advanced low power
(ALP) CMOS process.
Typical
•
•
•
•
•
•
•
•
Applications
Timing device
Timer / sports timing devices
Bicycle computers
Measurement equipment
Domestic appliance
Interactive system with display
Automotive controls with display
Safety and security devices
Copyright
©
2005, EM Microelectronic-Marin SA
1
www.emmicroelectronic.com
R
EM6821
EM6821 at a glance
• Power Supply
- Low voltage low power architecture
including internal voltage regulator
- 1.2 ... 3.6 V battery voltage
- 1.3 µA in active mode (Xtal, LCD on, 25
°C)
- 0.4 µA in standby mode (Xtal, LCD off, 25
°C)
- 0.1 µA in sleep mode (25
°C)
- 32 KHz Oscillator
• 4-Bit Input Port A
- Direct input read on the port terminals
- Debouncer function available on all inputs
- Interrupt request on positive or negative edge
- Pull-up or pull-down or none selectable by register
- Test variables (software) for conditional jumps
- PA[0] and PA[3] are inputs for the event counter
- PA[3] is Start/Stop input for the millisecond counter
- Reset with input combination (register selectable)
• RAM
- 64 x 4 bit, direct addressable
-
64 x 4 bit, indexed addressable
• 4-Bit Bi-directional Port B
- All different functions bit-wise selectable
- Direct input read on the port terminals
- Data output latches
- CMOS or Nch. open drain outputs
- Pull-down or pull-up selectable
- Weak pull-up in Nch. open drain mode
- Selectable PWM, 32kHz, 1kHz and 1Hz output
• ROM
- 4k x 16 bit, metal mask programmable
• CPU
- 4-bit RISC architecture
- 2 clock cycles per instruction
- 72 basic instructions
• Melody Generator
- Dedicated Buzzer terminal
- 7 tones plus silence output
- The output can be put tristate (default)
- Internal 4-bit timer, usable also in standalone mode
- 4 different timer input clocks
- Timer with automatic reload or single run
- Timer interrupt request when reaching 0
• Main Operating Modes and Resets
- Active mode (CPU is running)
- Standby mode (CPU in halt)
- Sleep mode (no clock, reset state)
- Initial reset on power on (POR)
- Watchdog reset (logic and oscillation watchdogs)
- Reset terminal
- Reset with input combination on port A (register
selectable)
• Voltage Level Detector (SVLD)
- 8 different levels from 1.2 V to 4.0 V.
- Busy flag during measure
• Prescaler
- 15 stage system clock divider down to 1Hz
- 3 Interrupt requests; 1Hz, 32Hz or 8Hz, Blink
- Prescaler reset (4kHz to 1Hz)
• 10-Bit Universal Counter
- 10, 8, 6 or 4 bit up/down counting
- Parallel load
- Event counting (PA[0] or PA[3])
- 8 different input clocks-
- Full 10 bit or limited (8, 6, 4 bit) compare function
- 2 interrupt requests (on compare and on 0)
- Hi-frequency input on PA[3] and PA[0]
- Pulse width modulation (PWM) output
• Liquid Crystal Display Driver (LCD)
- 20 Segments 3 or 4 times multiplexed
- Internal or external voltage multiplier
- Free Segment allocation architecture (metal 2 mask)
- LCD switch off for power save
• 8-Bit Serial Interface
- 3 wire (Clock, DataIn , DataOut) master/slave mode
- READY output during data transfer
- Maximum shift clock is equal to the main system clock
- Interrupt request to the CPU after 8 bits data transfer
- Supports different serial formats
- Can be configured as a parallel 4 bit input/output port
- Direct input read on the port terminals
- All outputs can be put tristate (default)
- Selectable pull-downs in input mode
- CMOS or Nch. open drain outputs
- Weak pull-up selectable in Nch. open drain
mode
• Millisecond Counter
- 3 digits binary coded decimal counter (12 bits)
- PA[3] input signal pulse width and period measurement
- Internal 1000 Hz clock generation
- Hardware or software controlled start stop mode
- Interrupt request on either 1/10 Sec or 1Sec
• Interrupt Controller
- 5 external and 8 internal interrupt request sources
- Each interrupt request can individually be masked
- Each interrupt flag can individually be reset
- Automatic reset of each interrupt request after read
- General interrupt request to CPU can be disabled
- Automatic enabling of general interrupt request flag
when going into HALT mode.
Copyright
©
2005, EM Microelectronic-Marin SA
2
www.emmicroelectronic.com
R
EM6821
