P22-2F-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> P22-2F-M

P22-2F-M: DescriptionTerminals NON INSULATED FORK 26-SSAUG #2 STUD; CategoryThe connector terminals; File Size98KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

P22-2F-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P22-2F-M	-	-	View	Buy Now

P22-2F-M Overview

Terminals NON INSULATED FORK 26-SSAUG #2 STUD

P22-2F-M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Terminal and terminal strip types	FORK TERMINAL
Wire gauge	22 AWG

Preview

Download Datasheet

View All

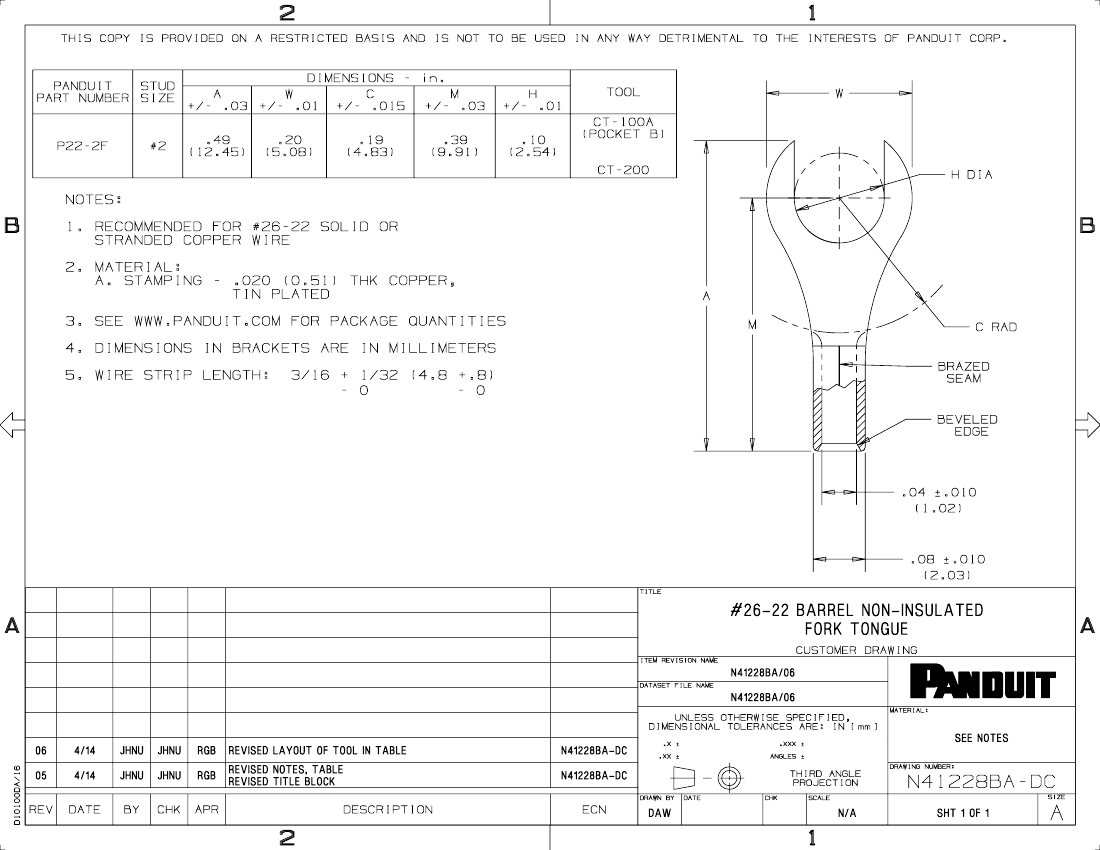

DIMENSIONS - in.

+/- .03 +/- .01 +/- .015

+/- .03

.49

(12.45)

.20

(5.08)

.19

(4.83)

.39

(9.91)

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

PANDUIT

STUD

PART NUMBER SIZE

+/- .01

.10

(2.54)

TOOL

CT-100A

(POCKET B)

CT-200

P22-2F

H DIA

NOTES:

1. RECOMMENDED FOR #26-22 SOLID OR

STRANDED COPPER WIRE

2. MATERIAL:

A. STAMPING - .020 (0.51) THK COPPER,

TIN PLATED

3. SEE WWW.PANDUIT.COM FOR PACKAGE QUANTITIES

4. DIMENSIONS IN BRACKETS ARE IN MILLIMETERS

5. WIRE STRIP LENGTH:

3/16 + 1/32 (4.8 +.8)

- 0

BRAZED

SEAM

C RAD

BEVELED

EDGE

.04 .010

(1.02)

.08 .010

(2.03)

TITLE

ITEM REVISION NAME

DATASET FILE NAME

#26-22

BARREL

NON-INSULATED

FORK

TONGUE

CUSTOMER DRAWING

N41228BA/06

MATERIAL:

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

D10100DA/16

4/14

DATE

JHNU

RGB

REVISED

LAYOUT

TOOL

TABLE

REVISED

NOTES,

TABLE

REVISED

TITLE

BLOCK

N41228BA-DC

.XX

.XXX

ANGLES

DRAWING NUMBER:

SEE

NOTES

REV

THIRD ANGLE

PROJECTION

DRAWN BY

DATE

CHK

SCALE

N41228BA-DC

SIZE

CHK

APR

DESCRIPTION

ECN

DAW

N/A

SHT
