Preview

5010: DescriptionLighting Connectors 4 Conductor Cable 250cm, 22awg; CategoryThe connector; File Size131KB，1 Pages; ManufacturerInspired LED

Download Datasheet Parametric Compare View All

5010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5010	-	-	View	Buy Now

5010 Overview

Lighting Connectors 4 Conductor Cable 250cm, 22awg

5010 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Inspired LED
Product Category	Lighting Connectors
RoHS	Details
Packaging	Bulk
Length	250 cm
Mounting Style	Cable
NumOfPackaging	1
Factory Pack Quantity	1

Preview

Download Datasheet

View All

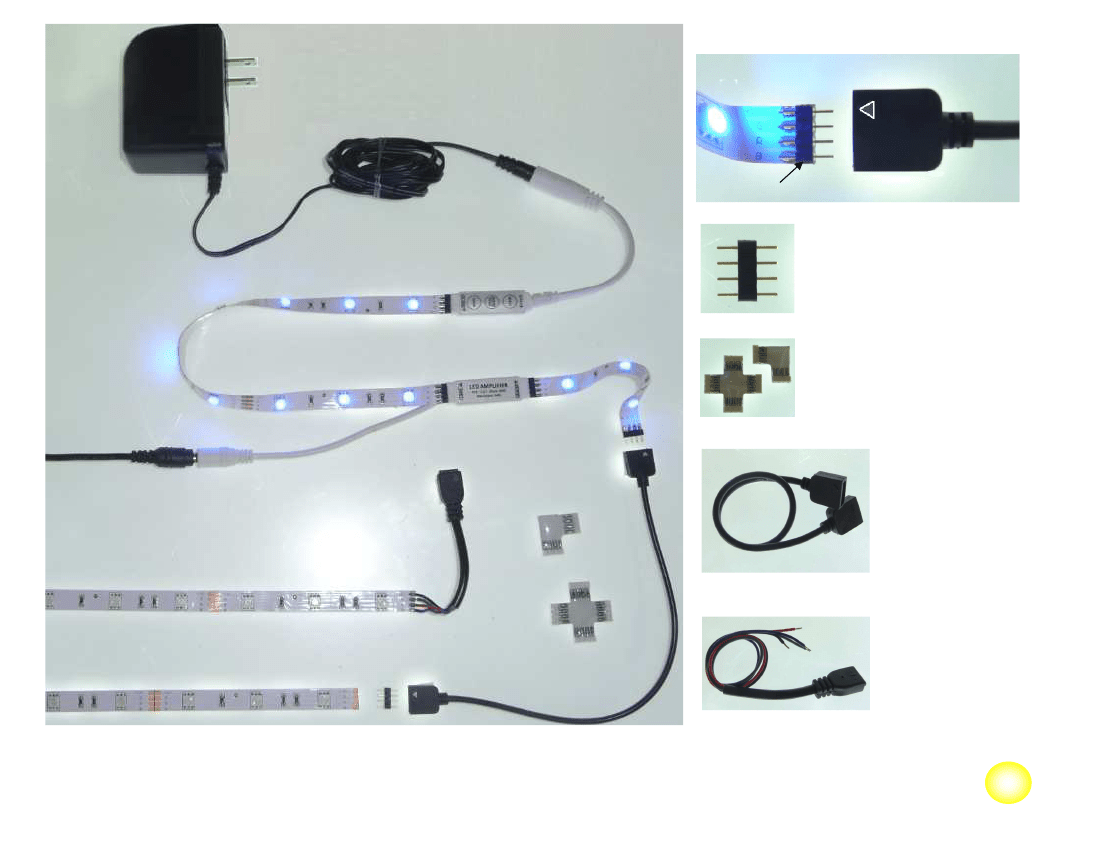

Typical Installation

12 VDC

Power

Supply

DC Connector

5.5 x 2.1mm

Four Conductor Cable Options

Look for

+ or Arrow

on connector products

Connect to +12VDC

+12VDC

G

R

B

Cut Flex to length and solder on interface connector

Interface Connector

5012 RGB Controller

Solder to Flex Strip or use to connect

Interconnect Cables and Controllers

5001-

Bag of 100

5002-

Bag of 6

Use a Amplifier to make

continuous length strips

Amplifier installed every

6 meters (20')

Install tip:

Power form center

of strip to make a 12

meter strip (40')

5013 RGB Amplifier

Junction Blocks

5003-

Right Angle Block

5004-

four way angle Block

12 VDC Power Supply to

Power Amplifier

Four Conductor

Products

Four Conductor

Interconnect Cables

5005-

20 cm 26AWG

5006-

100 cm 26AWG

5007-

250 cm 26AWG

5008-

20 cm 22AWG

5009-

100 cm 22AWG

5010-

250 cm 22AWG

DC Connector

5.5 x 2.1mm

Controller Cable

Solder to Flex Strip or use connect

to Controller products

5011-

20 cm 22AWG

Inspired LED 1733 E McKellips Rd #112 Tempe, AZ 85281

480-941-4286

www.inspiredled.com

inspired LED

5010 Related Products

	5010	5009	5005	5008	5006	5003	5007
Description	Lighting Connectors 4 Conductor Cable 250cm, 22awg	Lighting Connectors 4 Conductor Cable 100 cm, 22awg	LED Lighting Fixture Accessories 4 Conductor Cable 20cm, 26awg	Lighting Connectors 4 Conductor Cable 20cm, 22awg	Lighting Connectors 4 Conductor Cable 100cm, 26awg	LED Lighting Fixture Accessories Junction Block Right Angle	Lighting Connectors 4 Conductor Cable 250cm, 26awg
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Inspired LED	Inspired LED	Inspired LED	Inspired LED	Inspired LED	Inspired LED	Inspired LED
Product Category	Lighting Connectors	Lighting Connectors	LED Lighting Fixture Accessories	Lighting Connectors	Lighting Connectors	LED Lighting Fixture Accessories	Lighting Connectors
RoHS	Details	Details	Details	Details	Details	Details	Details
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Length	250 cm	100 cm	20 cm	20 cm	100 cm	0.75 in	250 cm
Factory Pack Quantity	1	1	1	1	1	1	1
Mounting Style	Cable	Cable	Cable	Cable	Cable	-	Cable
