0257030PXAPCRT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 0257030PXAPCRT

0257030PXAPCRT: DescriptionAutomotive Fuses 32V 30A ATO Opaque Trim Terminals; CategoryCircuit protection; File Size115KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

0257030PXAPCRT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0257030PXAPCRT	-	-	View	Buy Now

0257030PXAPCRT Overview

Automotive Fuses 32V 30A ATO Opaque Trim Terminals

0257030PXAPCRT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Automotive Fuses
RoHS	Details
Product	Blade Fuse
Current Rating	30 A
Voltage Rating DC	32 VDC
Mounting Style	Holder
Termination Style	Blade
Fuse Type	Medium / Normal Blow
Color	Green
Indicator Style	Element Window
Fuse Size / Group	ATO
Packaging	Bulk
Diameter	-
Height	12.3 mm
Length	19.05 mm
Type	ATO Blade Fuse
Width	5.08 mm
NumOfPackaging	1
Factory Pack Quantity	4000

Preview

Download Datasheet

View All

Blade Fuses

ATO

Blade Fuse Rated 32V

Specifications

ISO 8820-3

UL 248 Special Purpose Fuses

Blade Fuses

Voltage Rating:

Interrupting Rating:

Operating Temperature Range:

Terminals:

Packaging:

32 VDC

1000A @ 32 VDC

-40˚C to +105˚C

Sn plated

Series

Serien

0257xxx.LXN

0257xxx.PXPV

Pack

Size

2000

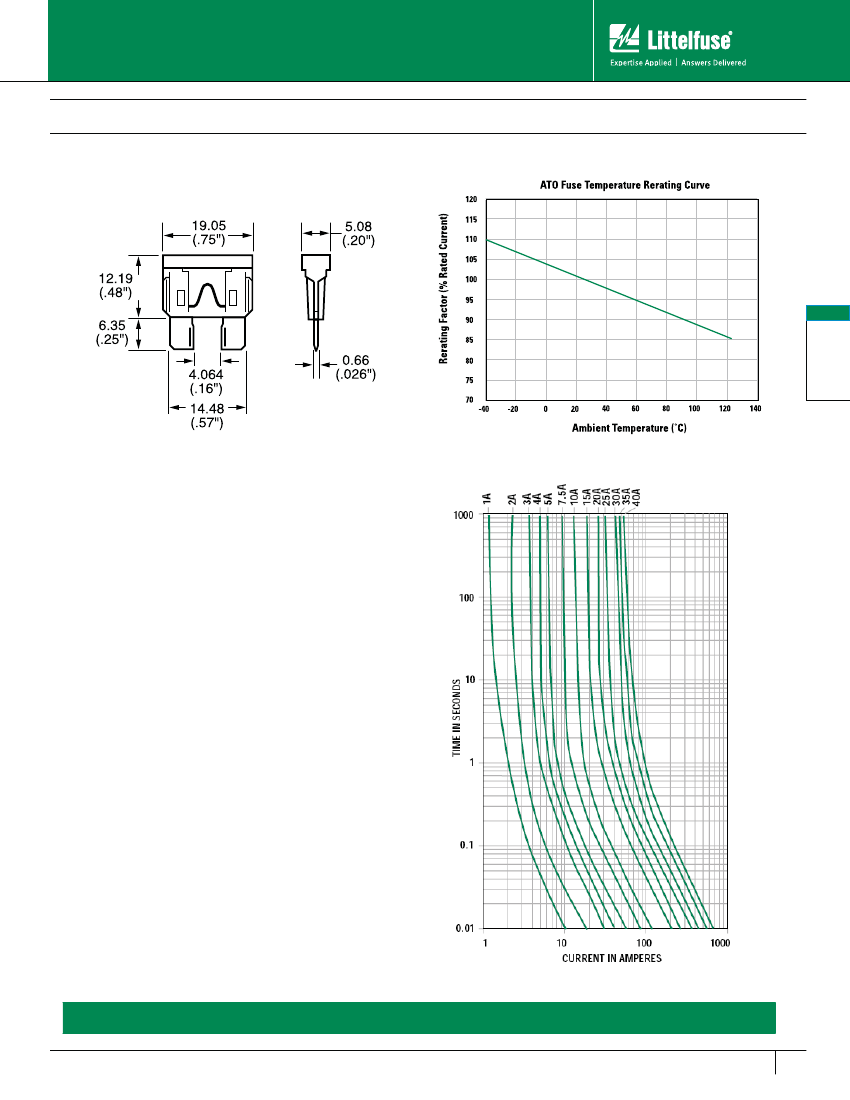

Time-Current Characteristics / Schmelzzeit-Grenzwerte

% of Rating

Opening Time

% des Nennstromes Nennstrom

Developed by Littelfuse for the automotive industry, the ATO

fuse has become the original equipment circuit protection

standard for foreign and domestic automobiles and trucks.

Readily identifiable and easily replaced, this fuse can be specified

for a variety of low voltage electronic applications.

Die ATO-Sicherung wurde von Littelfuse speziell für

die Fahrzeugindustrie entwickelt und hat sich als OEM-

Schaltungsschutz-Standard für in- und ausländische Personen-

und Lastkraftwagen etabliert. ATO-Sicherungen lassen sich

leicht identifizieren und austauschen und können für zahlreiche

Anwendungen im Niederspannungsbereich spezifiziert werden.

100

110

135

200

35-40

1-30

1-2

3-40

1-2

3-40

1-2

3-40

1-30

35-40

Opening Time

Schmelzcharakteristik

Min / Max (s)

360,000 s / –

500 ms /600 s

0.750 s / 600 s

100 ms/5.0 s

0.150 s / 5.0 s

20 ms / 500 ms

80 ms / 500 ms

–/ 100 ms

–/ 150 ms

350

600

Part Number

Artikel-Nr.

0257001_

0257002_

0257003_

0257004_

0257005_

025707.5_

0257010_

0257015_

0257020_

0257025_

0257030_

0257035_

0257040_

Current Rating

Nennstrom

7.5 A

10 A

15 A

20 A

25 A

30 A

35 A

40 A

Housing Color

Kennfarbe

Typ. Voltage Drop

Typ. Spannungsfall

176 mV

141 mV

137 mV

136 mV

128 mV

116 mV

109 mV

102 mV

98 mV

92 mV

84 mV

87 mV

96 mV

Cold Resistance

Kaltwiderstand

123 m

53.5 m

31.1 m

22.8 m

17.85 m

10.91 m

7.70 m

4.80 m

3.38 m

2.52 m

1.97 m

1.61 m

1.44 m

0.4 A²s

1.4 A²s

7.4 A²s

14 A²s

26 A²s

60 A²s

115 A²s

340 A²s

520 A²s

1080 A²s

1510 A²s

2280 A²s

3310 A²s

Corresponding holder see Section “Fuse Holders.”

www.littelfuse.com

•

Automotive Circuit Protection Products
