TOSHIBA
TLCS-900 Series
CMOS 16-bit Microcontrollers
TMP95C061F
1. Outline and Device Characteristics
TMP95C061F is a high-speed advanced 16-bit microcontrol-
ler developed for controlling medium to large-scale equipment.

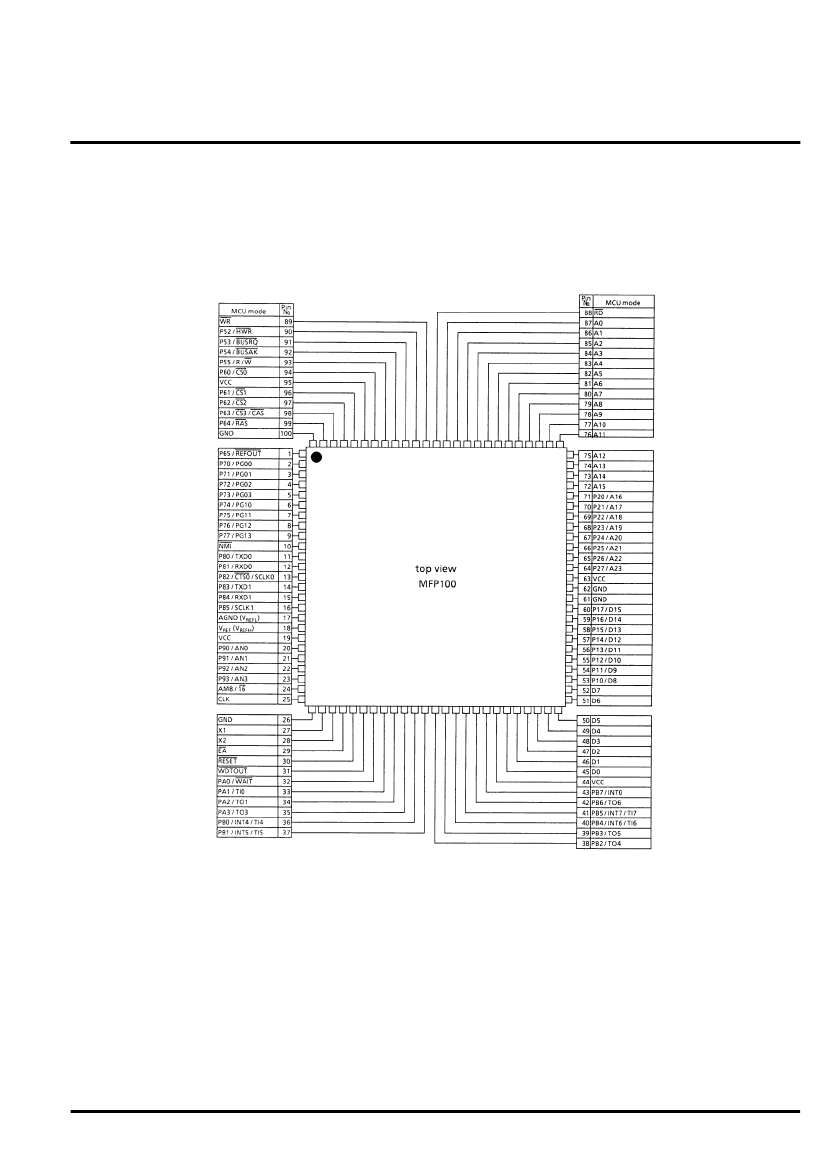

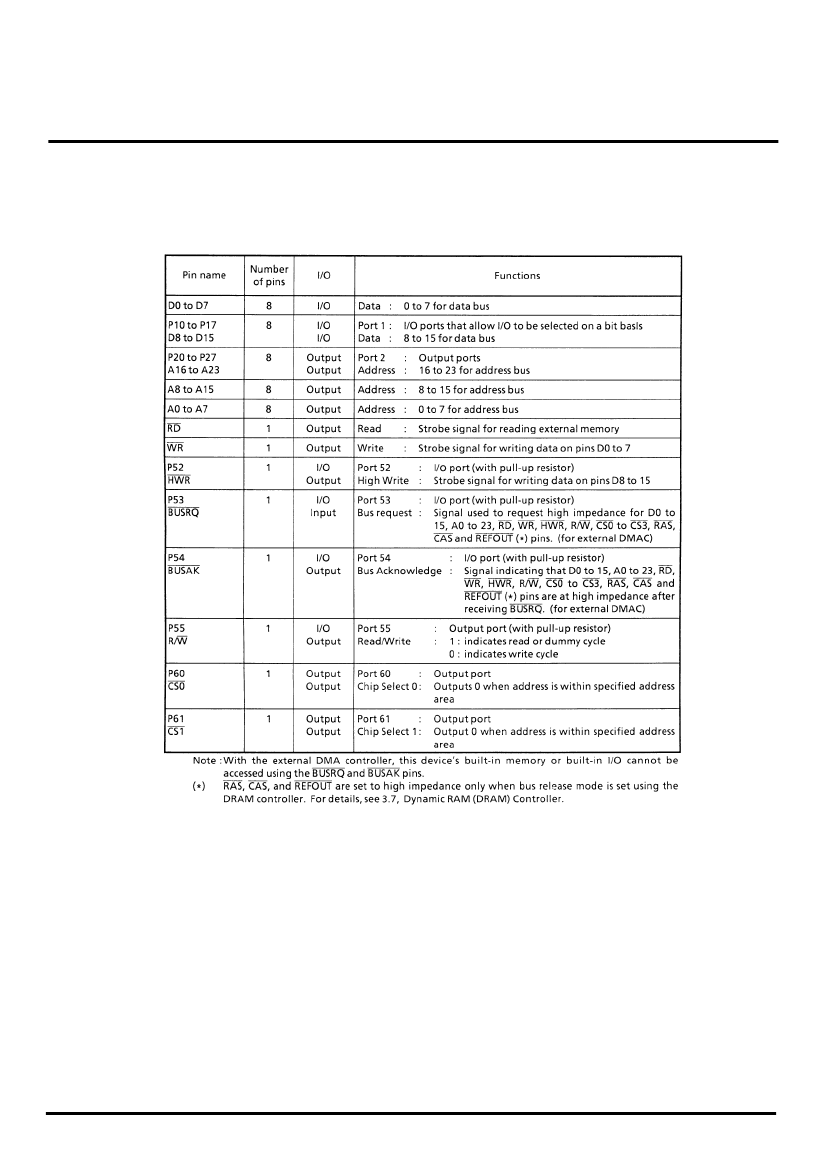

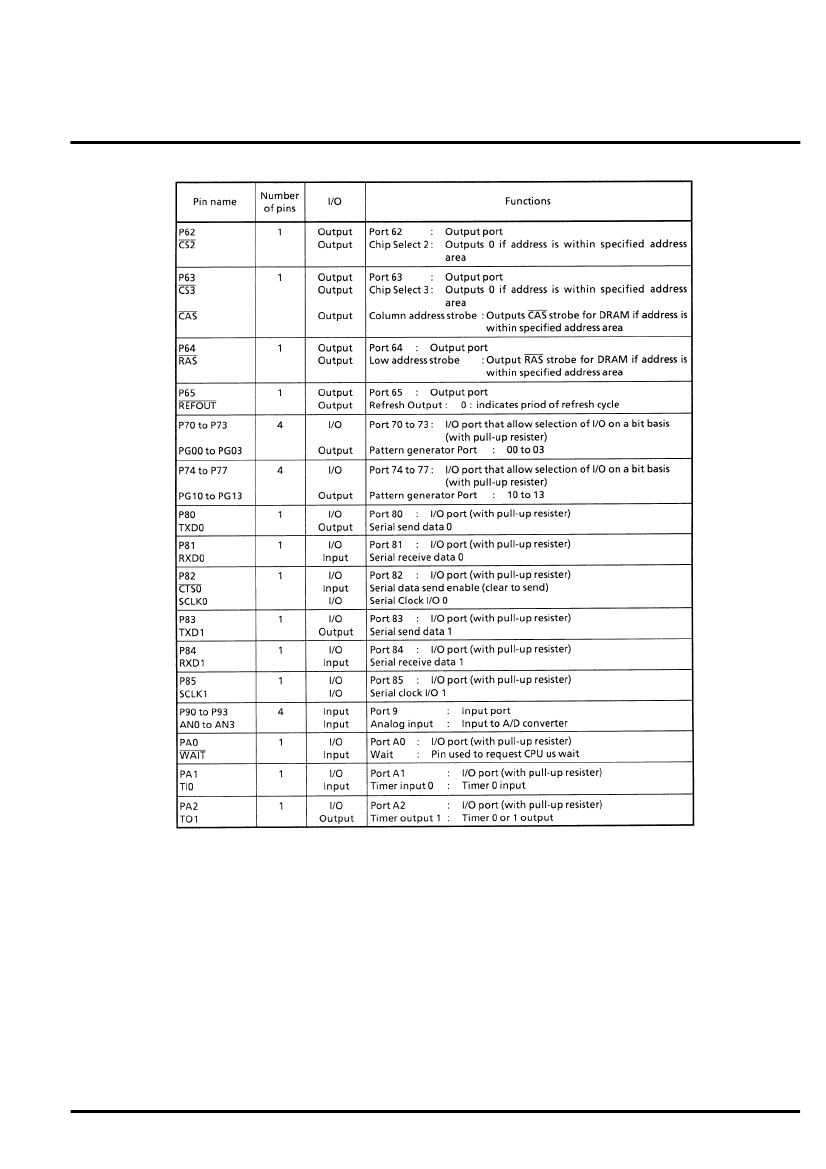

The TMP95C061F is housed in an 100-pin flat package.

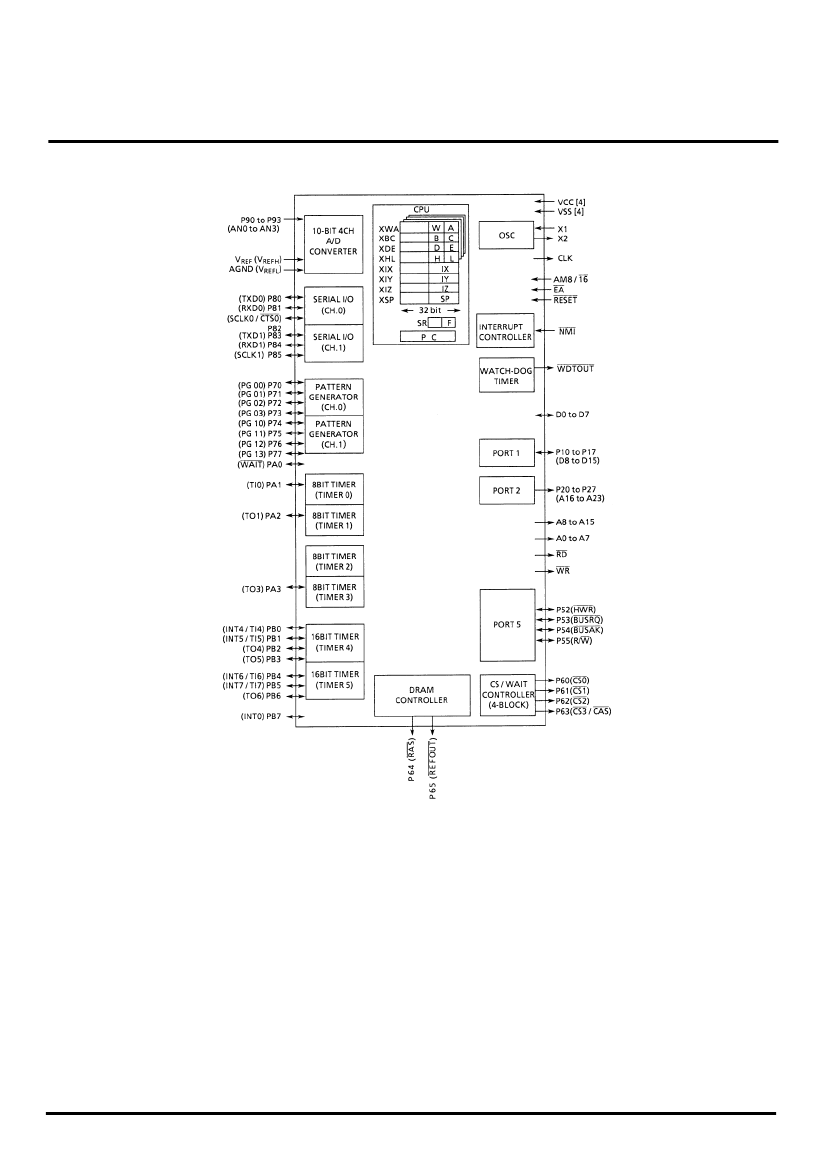

Device characteristics are as follows:
(1) Original 16-bit CPU
• TLCS-90/900 instruction mnemonic upward compatible.
• 16M-byte linear address space
• General-purpose registers and register bank system
• 16-bit multiplication/division and bit transfer/arithmetic
instructions
• High-speed DMA
- 4 channels (640ns/2 bytes at 25MHz)
(2) Minimum instruction execution time
- 160ns at 25MHz
(3) Internal RAM: None
Internal ROM: None
TMP95C061
(4) External memory expansion
• Can be expanded up to 16M bytes (for both programs and
data)
• AM8/16 pin (select external data bus width)
• Can mix 8- and 16-bit external data bus width.
…
Dynamic data bus sizing
(5) DRAM Controller
(6) 8-bit timer: 2 channels
(7) 16-bit timer: 2 channels
(8) Pattern generators: 4 bits, 2 channels
(9) Serial interface: 2 channels
(10) 10-bit A/D converter: 4 channels
(11) Watchdog timer
(12) Chip select/wait controller: 4 blocks
(13) Interrupt functions
• 2 CPU interrupts
… …
SWI instruction and Illegal instruction
• 18 internal interrupts
7-level priority can be set.
• 6 external interrupts
(14) I/O ports: 56 pins
(15) Standby function : 3 HALT modes (RUN, IDLE, STOP)
The information contained here is subject to change without notice.
The information contained herein is presented only as guide for the applications of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties
which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of TOSHIBA or others. These TOSHIBA products are intended for usage in general electronic
equipments (office equipment, communication equipment, measuring equipment, domestic electrification, etc.) Please make sure that you consult with us before you use these TOSHIBA products in equip-
ments which require high quality and/or reliability, and in equipments which could have major impact to the welfare of human life (atomic energy control, spaceship, traffic signal, combustion control, all types
of safety devices, etc.). TOSHIBA cannot accept liability to any damage which may occur in case these TOSHIBA products were used in the mentioned equipments without prior consultation with TOSHIBA.
TOSHIBA CORPORATION
1
