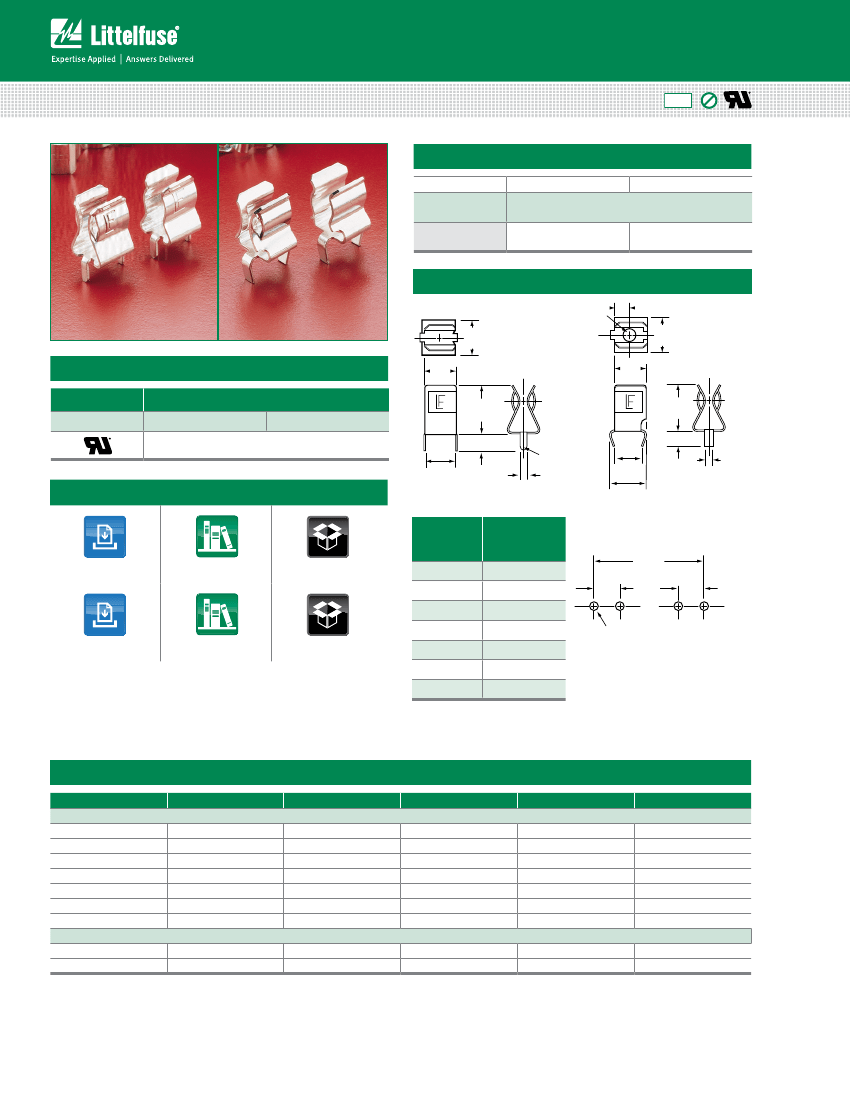

Cartridge Fuse Clips
102/122 Series Circuit Board Mount Fuse Clips for 1/4” Diameter Fuses
Product Characteristics
Compatible
Fuse Size
Current Level
102 Series
122 Series
1/4” Diameter Fuses
312, 313, 314, 326, 505, 506, 508 Series
15 amperes max
30 amperes max
RoHS
Pb
Product Dimensions
Straight Leads
Agency Approval
Agency
Agency File Number
102 Series
E14721
122 Series
7
.11
(.28")
Bowed Leads
7
.11
(.28")
7
.87
(.31")
Ø
3.35
(
Ø
.13")
3.18 (.13")
8.38
(.33")
8.08
(.32")
10.67
(.42")
3.56 (.14")
1.52
(.06")
R0.76
(R.03")
7
.11
(.28")
9.40
(.37")
10.67
(.42")
4.45 (.18")
2.03
(.08")
Additional Information
Straight Leads
Nominal
Fuse
Length
“A”
Length
.750
.875
1.000
1.125
1.187
1.347
1.562
Bowed Leads
Datasheet
102 Series
Resources
102 Series
Samples
102 Series
5/8
3/4
7/8
1
A
7
.62
(.30")
7
.62
(.30")
Datasheet
122 Series
Resources
122 Series
Samples
122 Series
1 1/16
1 1/4
1 7/16
1.98 (.078") DIA. Holes - Straight Leads
2.54 (.100") DIA. Holes - Bowed Leads
Recommended Mounting
Dimensions
Ordering Information
Ordering PN *
Traditional Clips
0102 0071
0102 0074
0102 0076
0122 0083
0122 0087
0122 0088
0122 0093
Bowed Tab Clips
0102 0078
0102 0079
Catalog No.
102 071
102 074
102 076
122 083
122 087
122 088
122 093
102 078
102 079
Clip Material
Spring Brass
Spring Brass
Spring Brass
Beryllium Copper
Beryllium Copper
Beryllium Copper
Beryllium Copper
Spring Brass
Spring Brass
Plating
Tin-plated
Tin-plated
Tin-plated
Silver-plated
Silver-plated
Tin-plated
Tin-plated
Tin-plated
Tin-plated
Style
Ear
Earless
Ear
Ear
Earless
Ear
Earless
Earless
Ear
Packaging Available
Z
Z
Z
Z
Z
Z
Z
H and Z
Z
*Add Suffix to the Ordering PN for Packaging:
“H” = std. package 100 pcs per pack
“Z” = for bulk package
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/22/15
