92856-003 datasheet, PDF - EEWORLD Datasheet

92856-003: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，17 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

92856-003 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TOP MOUNT
Board mount options	LOCATING POSTS
body width	0.228 inch
subject depth	1.417 inch
body length	2.356 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	10000 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	39.1424 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	92856
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	4u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Evacuation force-minimum value	6.672 N

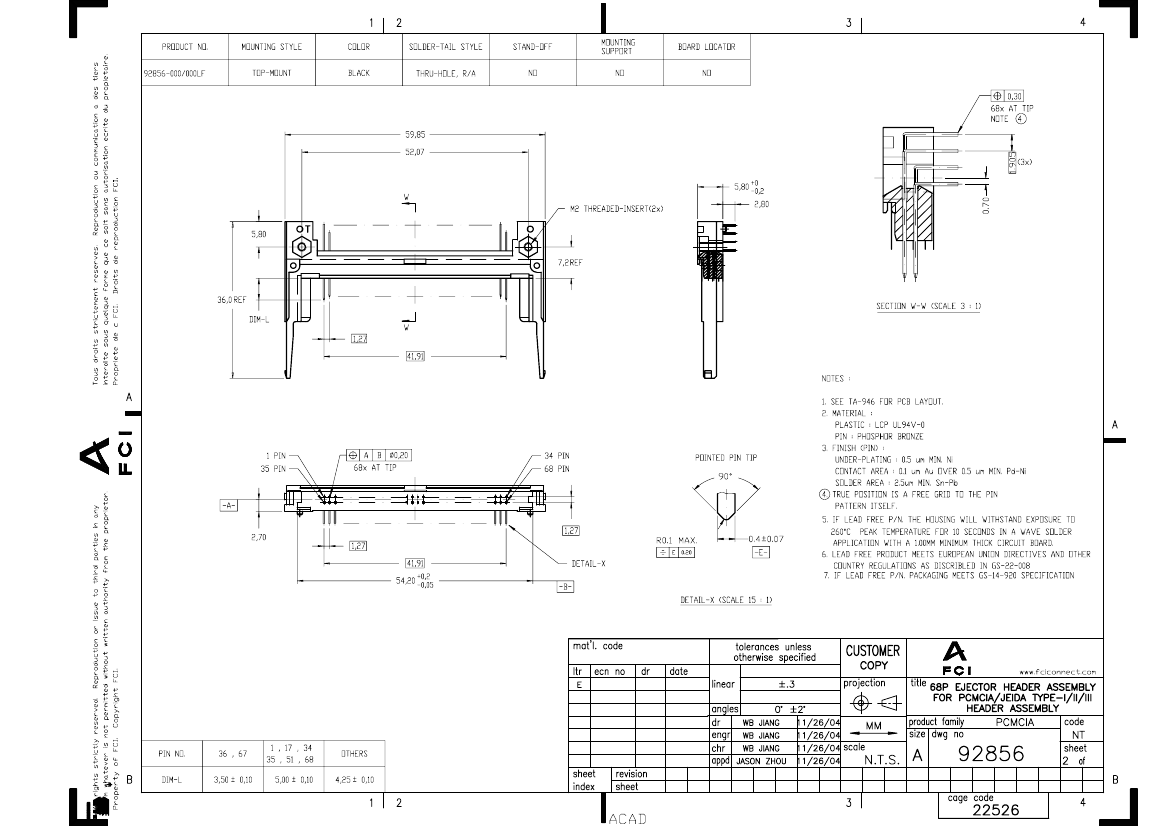

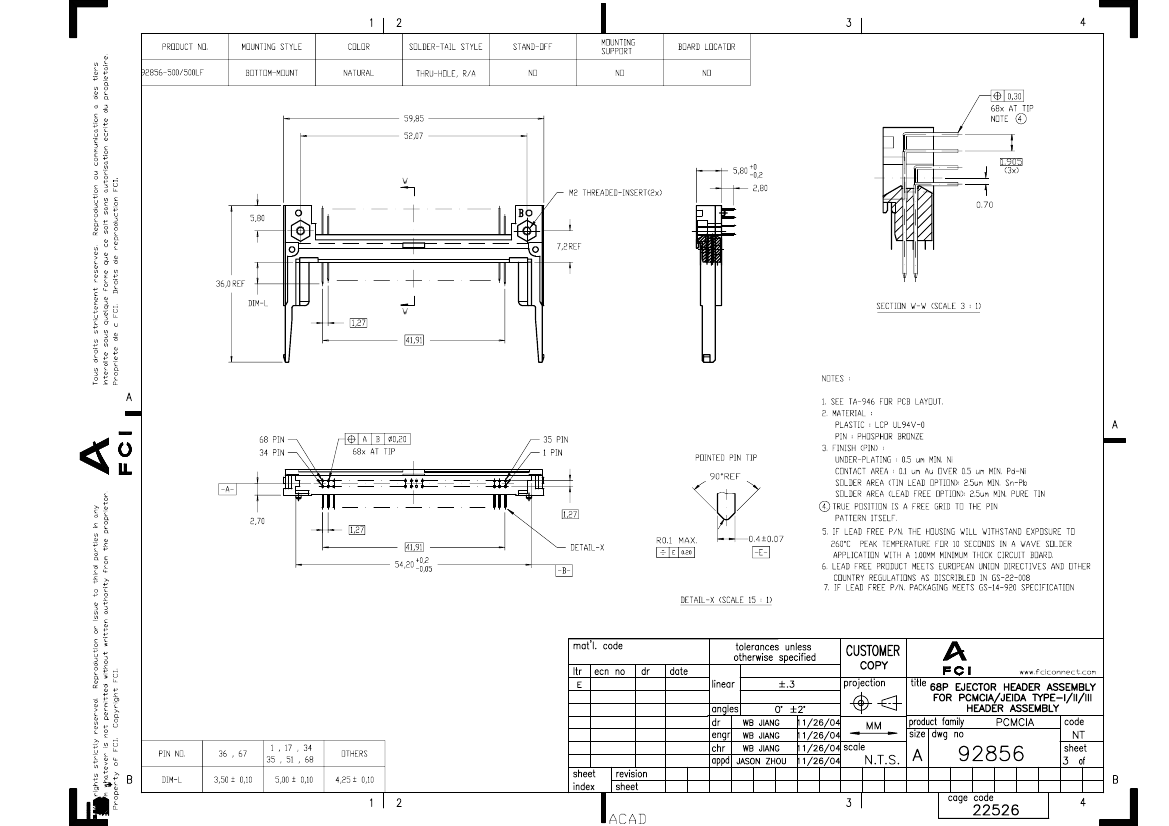

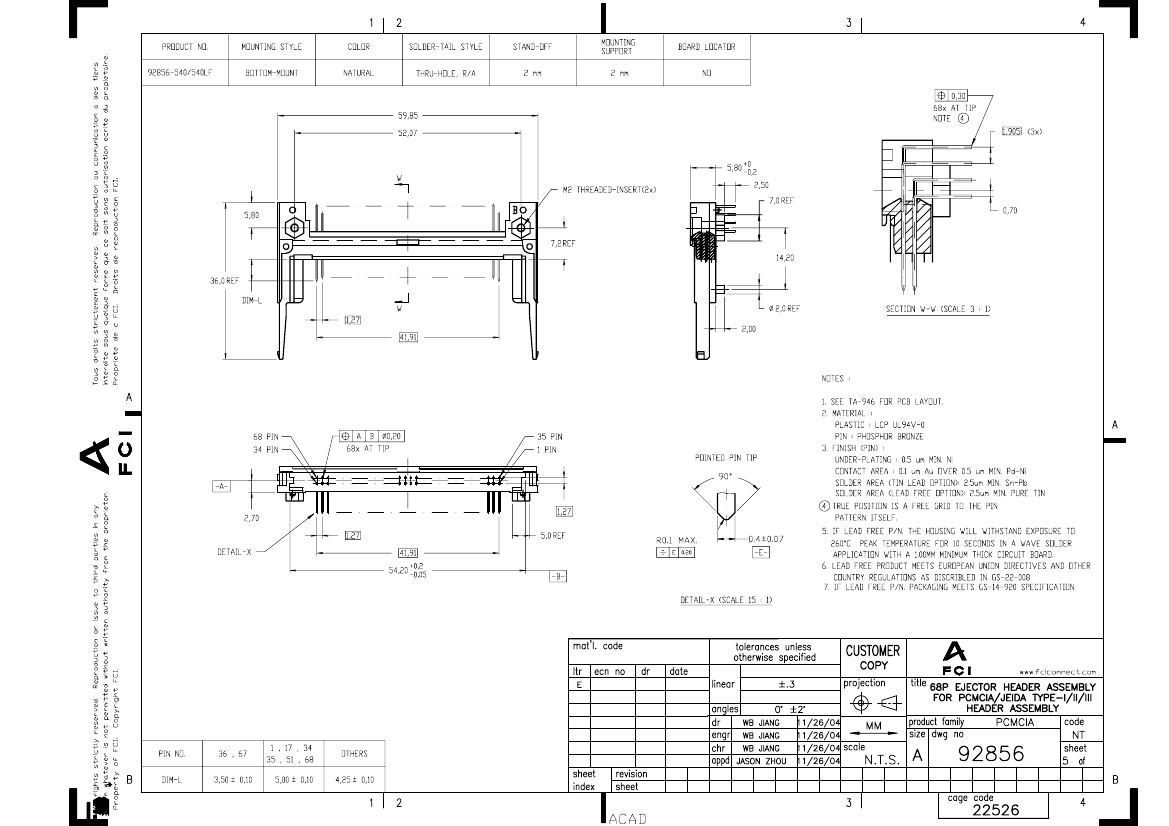

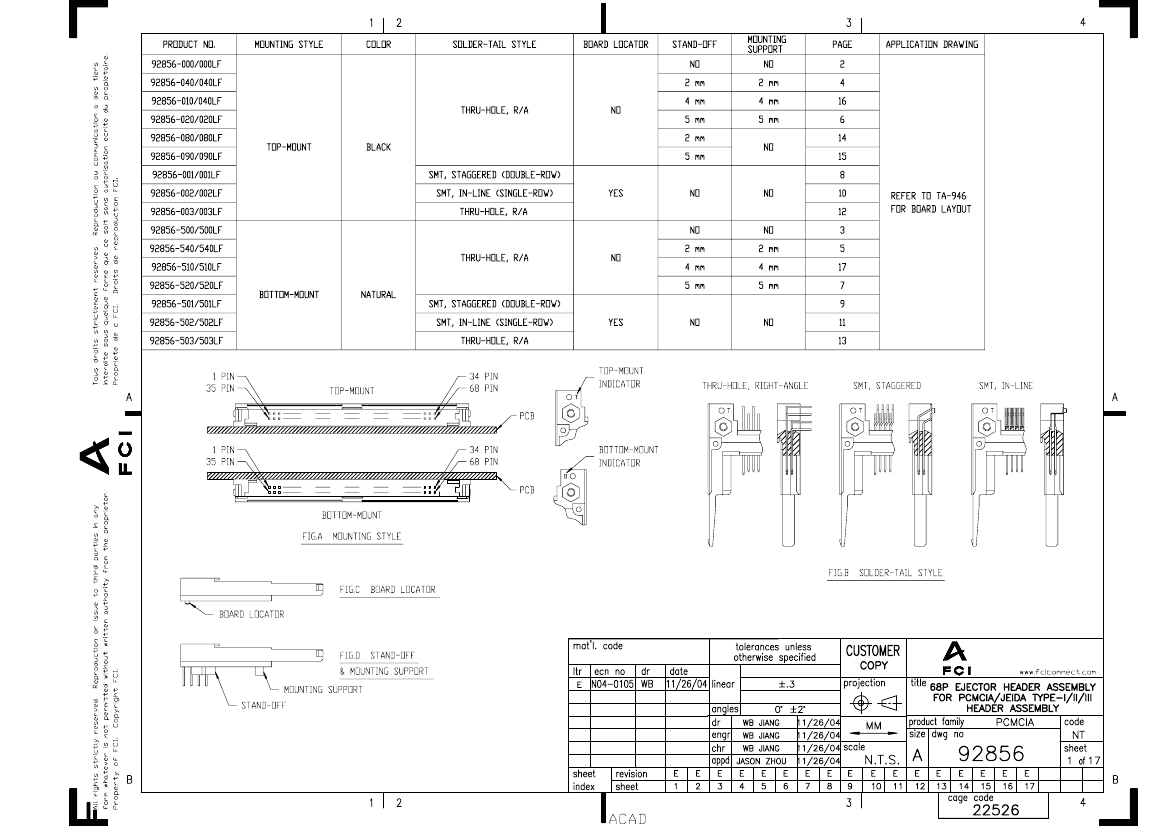

PDM: Rev:E

STATUS:

Released

Printed: Feb 20, 2010
