PD3S0230-7 Overview

SURFACE MOUNT SCHOTTKY BARRIER DIODE PowerDI 323

Preview

Download Datasheet

View All

PD3S0230

SURFACE MOUNT SCHOTTKY BARRIER DIODE

POWERDI323

Product Summary

(V)

(mA)

100

F MAX

(V)

@ +25°

0.485

R MAX

(µA)

@ +25°

2.0

Features and Benefits



Low Forward Voltage Drop

Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Description and Applications

This Schottky barrier rectifier has been designed to meet the Low

forward voltage applications. It is ideally suited to use as :



Polarity Protection Diode



Re-circulating Diode



Switching Diode

Mechanical Data



Case: POWERDI

323

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Polarity: Cathode Band

Terminals: Finish - Matte Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.005 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

PD3S0230-7

Notes:

Case

POWERDI

323

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

36 = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: D = 2016)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2011

Jan

2012

Feb

Mar

2013

Apr

2014

May

2015

Jun

2016

Jul

2017

Aug

Sep

2018

Oct

2019

Nov

2020

Dec

POWERDI is a registered trademark of Diodes Incorporated.

PD3S0230

Document number: DS30722 Rev.10 - 2

1 of 4

www.diodes.com

January 2016

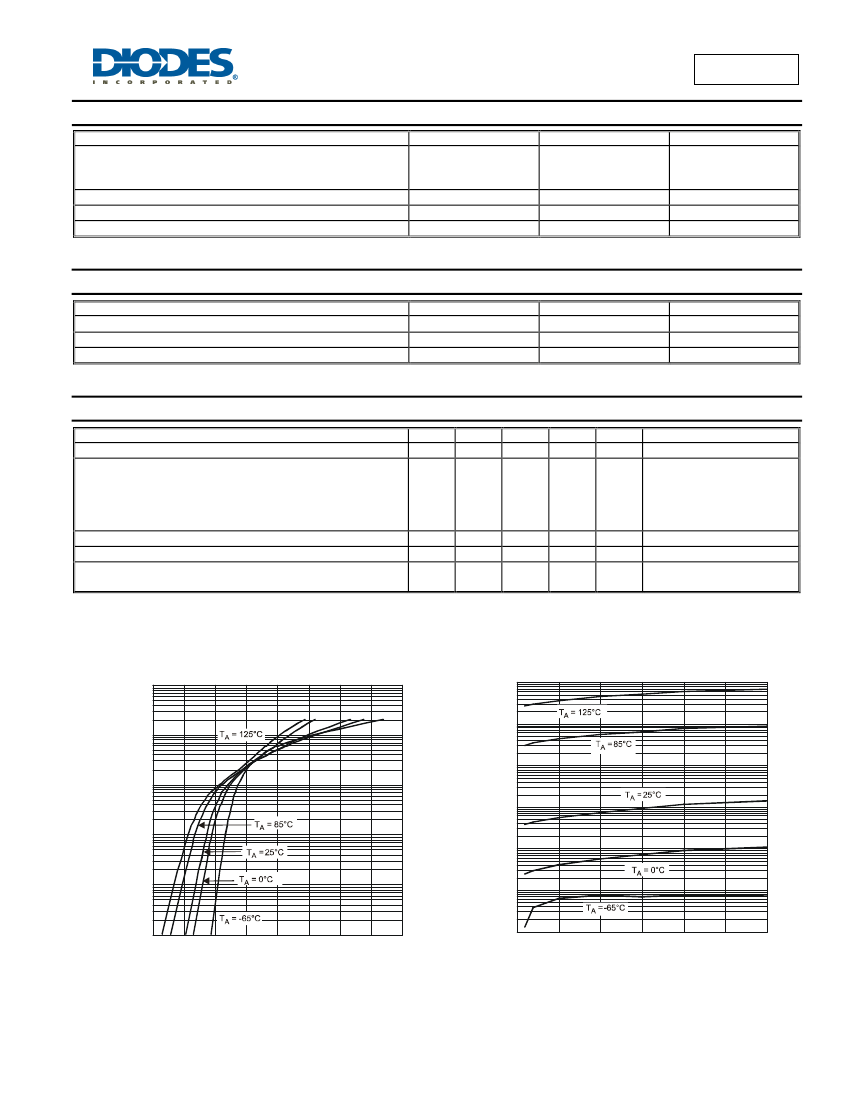

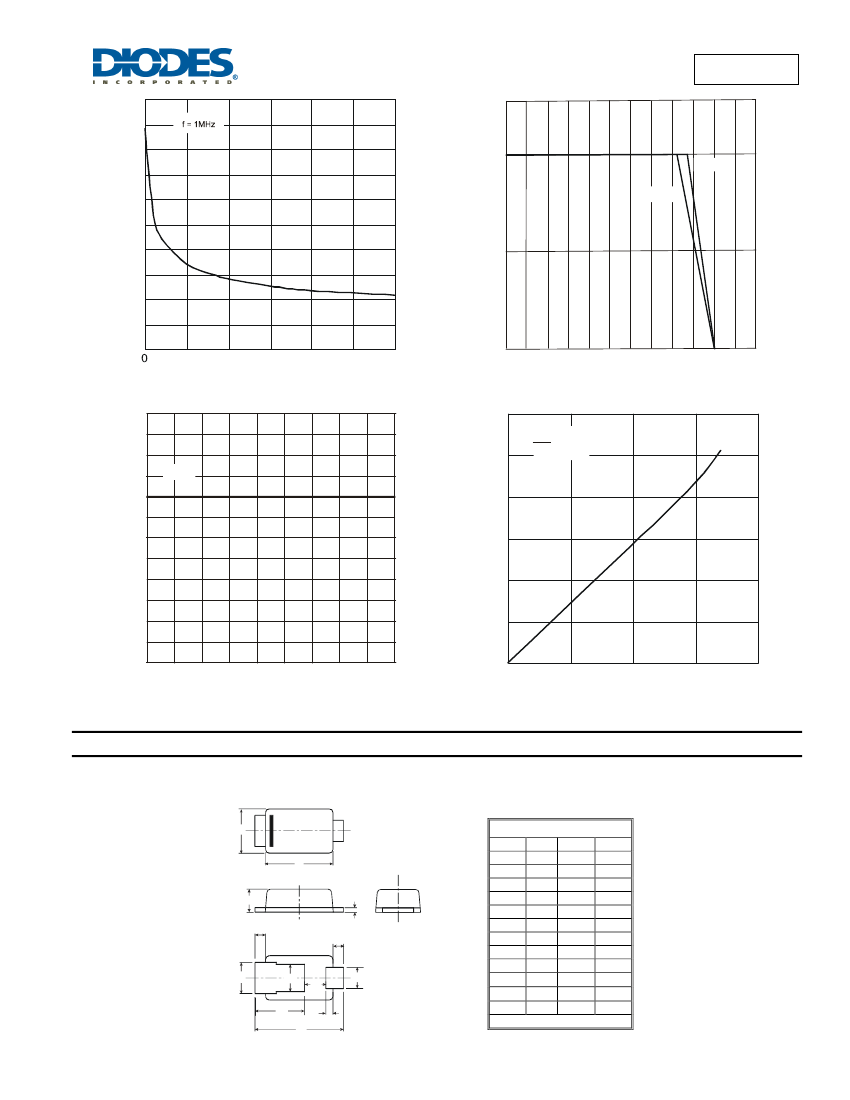

PD3S0230

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/_files/datasheets/ap02001.pdf for the latest version.

POWERDI

323

Dimensions

Value (in mm)

0.5

2.0

0.8

1.1

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

POWERDI is a registered trademark of Diodes Incorporated.

PD3S0230

Document number: DS30722 Rev.10 - 2

4 of 4

www.diodes.com

January 2016
