D Subminiature
Straight PCB – D*NG
T

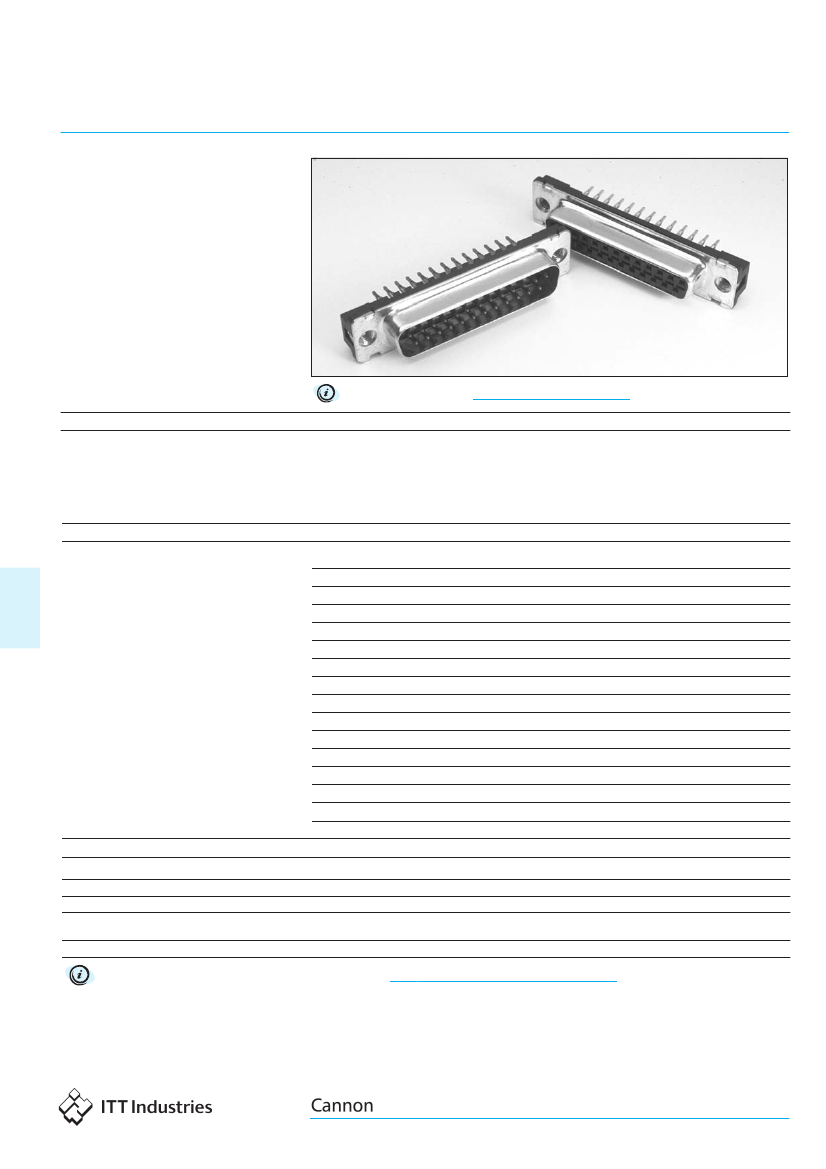

he D*NG, straight pressfit termination,
is based upon the specification
CECC 75 301 802. These connectors
provide a low-cost alternative to traditional
through hole solder contacts. Utilizing stamped
“Eye of the Needle” compliant contact tails per
IEC-352-5, the parts are quickly and easily
mounted onto PCBs without soldering,
crimping or specialized tooling. The socket
contact engaging area utilizes a “spoon” shape
with four points of interconnection.
Applications:
•
Communication Systems
•
Information Systems
•
Medical
•
Test Equipment
For more information: www.ittcannon.com/cat237
Product Features
•
Quick and easy press-in installation without
specialized tooling.
•
“Spoon” socket contact provides improved
interface compared to “Tuning Fork”.
•
Closed-entry socket for secure blind mating.
•
Front-shell only design based on
CECC 75 301 802.
•
Press-in bolt for ground continuity.
•
#4-40 UNC and M3 hardware options.
•
“Eye of the Needle” compliant contact tails.
10 mΩ
2,84 (.112)
Press-in
Friction/hardware
5 A at 25°C (77°F); 3.5 A at 70°C (158°F) ambient
Up to 50: 9, 15, 25, 37, 50
–55°C to 125°C (–67°F to 257°F)
2,40 to 3,20 (.095 to .125)
100 N per contact max.
30 N per contact min.
Ø 0,94 to 1,09 (.037 to .043)
Keystone shape of shell
1 piece design
5 sizes – E, A, B, C, D
1200 V ac rms at sea level
Performance Specifications
Contact Resistance
Contact Spacing
Contact Termination
Coupling
Current Rating
Number of Circuits
Operating Temperature
PC Board Thickness
PC Tail Press-in Force
PC Tail Push-out Force
Plated Through Hole
Polarization
Shell Style
Size or length
Test Voltage
D Subminiature
Materials and Finishes
Description
Shell
Insulator
Contact
Hardware
Material
Steel
Thermoplastic, UL 94V-0
Copper Alloy
Steel or Copper Alloy
Finish
Tin
Color: Black
Gold over Nickel (Standard)
or Gold
Tin
Please contact your local Cannon representative: www.ittcannon.com/support/ContactUs
Dimensions are shown in mm (inch)
Dimensions subject to change
F-16
Version 05.01.03
www.ittcannon.com
