C&K PF Series
5 Tumbler Miniature Snap-in Switchlocks
Features/Benefits
•
Snap-in mounting
•
Multi-pole and multi-position
•
Positive detent
Typical Applications
•
Computers
•
Point-of-sale terminals
•
Instrumentation
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page M-30 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45º: 3 positions, 90º:2 positions.
Materials
LOCK: 6/6 nylon with matte finish (UL 94V-2), black,
5 tumbler, single bitted lock with integral detent mechanism.
KEYS: Two nickel plated brass keys with black plastic head.
SWITCH HOUSING: 6/6 nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver plated.
See page M-30 for additional contact materials.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant. For the
latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages M–28 through M–30. For additional options not shown in catalog, consult Customer Service Center.
Switch and lock Function
PF011U
SP, 90º Index, keypull pos. 1 & 2
PF201U
DP, 45º Index, keypull pos. 1 & 3
PF211U
DP, 90º Index, keypull pos. 1 & 2
Keying
E
Two nickel plated
brass keys with insert
molded plastic head
Lock Type
B
5 Tumbler lock
with detent
Lock Finish
M
Plastic lock with matte finish
Terminations
03
Solder lug with hole
WC
Wire lead
M
Switchlock
Lock Style
K
Cone shaped facing
Contact Material
Q
Silver
B
Gold
Lock Color
2
Black
Key Color
2
Black
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–27
www.ittcannon.com
C&K PF Series
5 Tumbler Miniature Snap-in Switchlocks

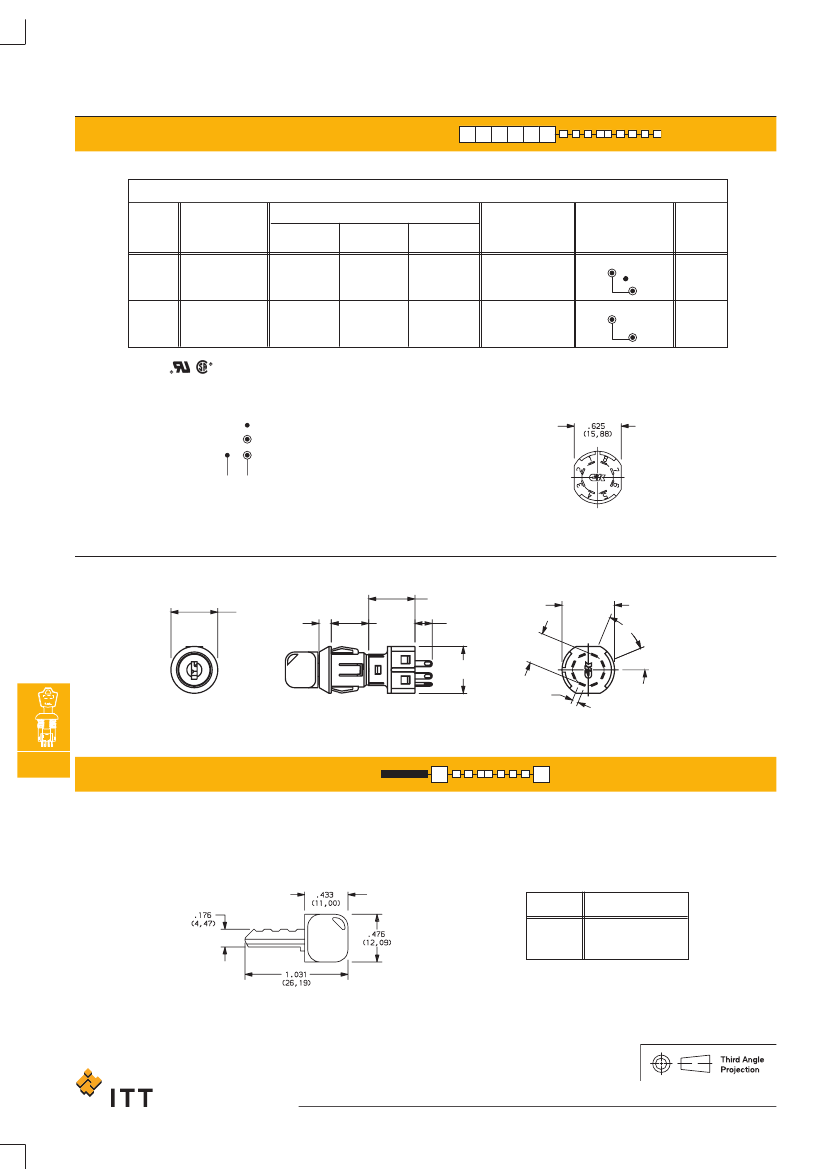

SWITCH AND LOCK FUNCTION
SINGLE & DOUBLE POLE SWITCHES
CONNECTED TERMINALS
NO.
POLES
MODEL
NO.
POS. 1
POS. 2
POS. 3
KEY PULL
POSITIONS
LOCK
CONFIGURATION
POS. 1
2
3
INDEXING
DP
PF201U
8-1, 4-5
1-2, 5-6
2-3, 6-7
Positions 1 & 3
45º
POS. 1
SP
DP
PF011U
PF211U
8-1
8-1, 4-5
1-3
1-3, 5-7
Positions 1 & 2
2
90º
All models
with all options when ordered with ‘Q’ contact material.
LEGEND
= Detent Positions (45º or 90º )
= Key pull possible in these positions.
= Stop Positions
TERMINAL NUMBERS
Terminal numbers
molded on housing.
.625
DIA
(15,88ø)
POS.1
.615
(15,62)
.163
(4,14)
.500
(12,70)
.230 TYP
(5,84)
.420 DIA
(10,67ø)
.700 DIA.
(17,78ø)
45º0'
7
1
8
6
22º30'
4
POS.2
.625
(15,88)
.080 x .020
(2,03)x(0,51)
2
3
Part number shown: PF011UEBM03KQ22
M
Switchlock
E
KEY COLOR
KEYING
KEYING
TWO NICKEL PLATED BRASS KEYS WITH INSERT MOLDED PLASTIC HEAD
OPTION
CODE
2
BLACK
Key part number: 334C1004102
NOTE:
All orders keyed alike, standard. For more than one key code, replacement keys,
or other special features, consult Customer Service Center.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
5
KEY COLOR
M–28
www.ittcannon.com
C&K PF Series
5 Tumbler Miniature Snap-in Switchlocks

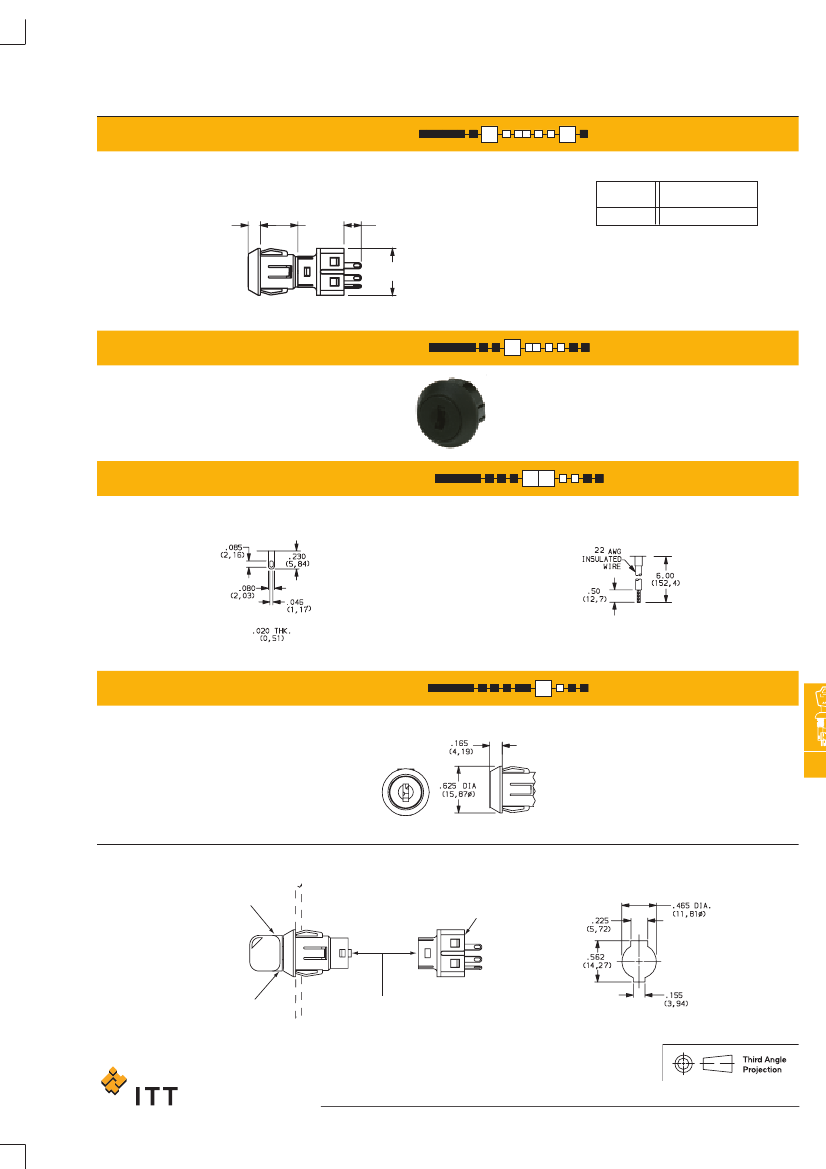

LOCK COLOR
LOCK TYPE
LOCK TYPE
B
5 TUMBLER LOCK WITH DETENT
OPTION
CODE
LOCK COLOR
BLACK
.615
(15,62)
.163
(4,14)
.500
(12,70)
.230 TYP
(5,84)
2
.625
(15,88)
LOCK FINISH
M
PLASTIC LOCK WITH MATTE FINISH
TERMINATIONS
03
SOLDER LUG WITH HOLE
WC
WIRE LEAD
Black wire standard, other colors and lengths available,
consult Customer Service Center. UL style 1015.
LOCK STYLE
K
CONE SHAPED FACING
M
Switchlock
Switch and Lock Assembly Instructions
LOCK MUST BE IN
PANEL BEFORE
ATTACHING
SWITCH BASE
PANEL MOUNTING
KEY SHOWN IN
POSITION ONE
SWITCH BASE
5 TUMBLE LOCK
ALIGN TAB WITH SLOT
AND SNAP TOGETHER
Panel thickness:
.050-.080 (1,27-2,03)
NOTE:
Switch installation is permanent. Switch cannot be
removed from lock after assembly. Attempts to separate
switch and lock may damage switch.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–29
www.ittcannon.com
C&K PF Series
5 Tumbler Miniature Snap-in Switchlocks
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT*
YES
YES
RoHS
COMPATIBLE*
YES
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
RATING
POWER
LOW LEVEL/DRY CIRCUIT
4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
2
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options).
All models
with all options when ordered with ‘Q’ contact material.
AVAILABLE HARDWARE
Key Code: 041
PART NO.
(ONE KEY)
334C1004102
BLACK
Material:
Brass
Finish: Nickel plate
6/6 Nylon insert molded head
M
Switchlock
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–30
www.ittcannon.com
