UBX1V4R7MPL1TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UBX1V4R7MPL1TD

UBX1V4R7MPL1TD: DescriptionAluminum Electrolytic Capacitors - Leaded 4.7uF 35V 20% Aluminum Capacitor; CategoryPassive components; File Size942KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UBX1V4R7MPL1TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UBX1V4R7MPL1TD	-	-	View	Buy Now

UBX1V4R7MPL1TD Overview

Aluminum Electrolytic Capacitors - Leaded 4.7uF 35V 20% Aluminum Capacitor

UBX1V4R7MPL1TD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Electrolytic Capacitors - Leaded
RoHS	Details
Termination Style	Radial
Capacitance	4.7 uF
Voltage Rating DC	35 VDC
Tolerance	20 %
Ripple Current	85 mArms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Diameter	10 mm
Length	12.5 mm
Lead Spacing	5 mm
Lead Style	Straight
Life	1000 Hour
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Package / Case	10 mm x 12.5 mm
Product	High Temp Electrolytic Capacitors
Type	Aluminum Electrolytic Capacitors
Capacitance - nF	4700 nF
Dissipation Factor DF	0.12
Factory Pack Quantity	500

Preview

Download Datasheet

View All

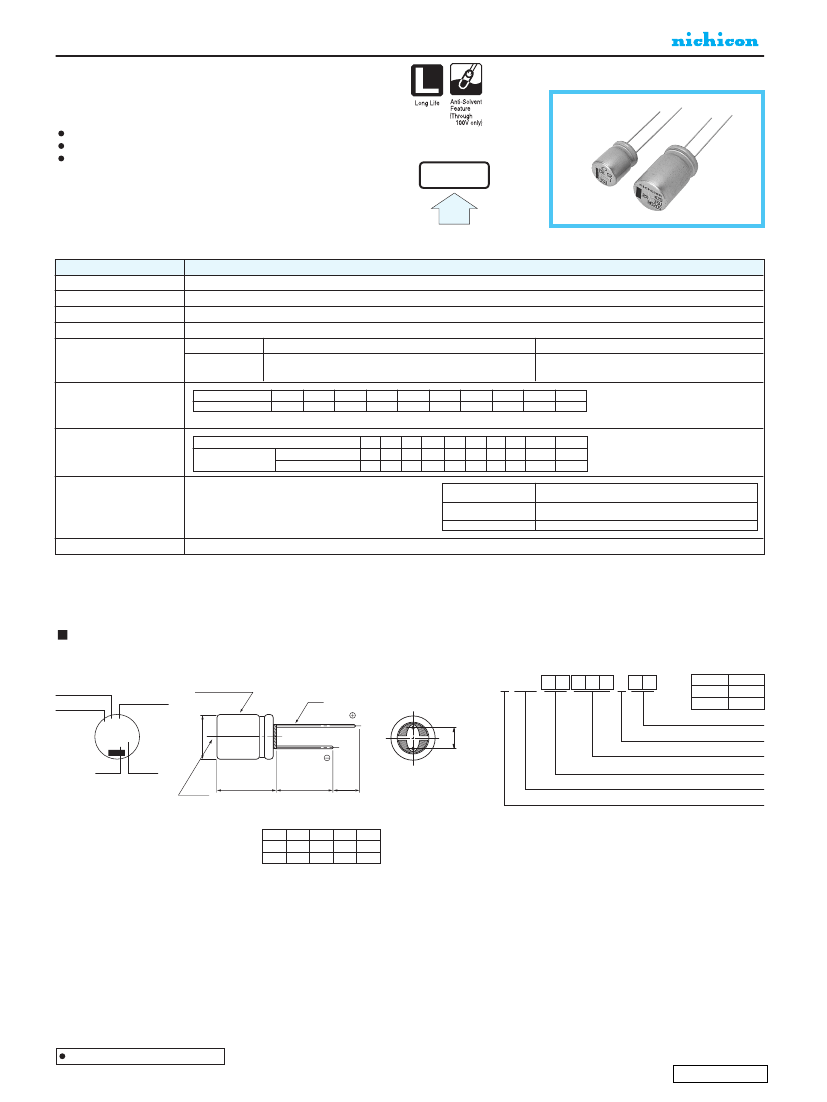

ALUMINUM ELECTROLYTIC CAPACITORS

High Temperature Range, For +150°C Use

series

Laminated case series.

Suited for automobile electronics where heavy duty services are indispensable.

Compliant to the RoHS directive (2011/65/EU).

High

Temperature

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +150°C (10 to 100V), –40 to +150°C (160

200V), –25 to +150°C (350

400V)

10 to 400V

1 to 4700µF

± 20% at 120Hz, 20°C

Rated Voltage (V)

Leakage current

10 to 100

After 1 minute's application of rated voltage at 20°C, leakage

current is not more than 0.03CV or 4 (µA), whichever is greater.

160 to 400

< 1000 :

= 0.1CV+40 (µA) max.

CV =

CV > 1000 :

= 0.04CV+100 (µA) max.

120Hz 20°C

Tangent of loss angle (tan

δ)

100

Rated voltage (V)

0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

160

200 350

400

0.20

0.24

Stability at Low Temperature

ZT / Z20 (MAX.)

Z– 40°C / Z+20°C

80 100

160

200 350

400

120Hz

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 2000 hours (1000 hours for

φD=10

and 12.5) at 150°C, the peak voltage shall not

exceed the rated voltage.

Black print on the case top.

Capacitance change

tan

Leakage current

Within ±30% of the initial capacitance value (10 to 100V)

Within ±20% of the initial capacitance value (160 to 400V)

300% or less than the initial specified value (10 to 100V)

200% or less than the initial specified value(160 to 400V)

Less than or equal to the initial specified value

Marking

Radial Lead Type

Type numbering system (Example : 10V 3300µF)

9 10 11

φD

12.5 to 18

Code

Rated Capacitance

Trade mark

nichicon

Laminated case

Rated Voltage

φD

0.5 MAX.

UB X 1 A 3 3 2 MH L

3300

BX 10V

H1001

Configuration

±0.5

Capacitance tolerance (±20%)

Rated capacitance (3300µF)

Rated voltage (10V)

Series

Lot No.

Pressure

relief vent

L+

1.5MAX.

MIN

Series name

Type

(mm)

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100D
