571-0600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 571-0600

571-0600: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerDeltron; Environmental Compliance

Download Datasheet Parametric Compare View All

571-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	571-0600	-	-	View	Buy Now

571-0600 Overview

Interconnection Device, ROHS COMPLIANT

571-0600 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Deltron
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

A single insulated 4mm socket, for direct mounting onto printer circuit boards. has

grooves in the outer acetal housing which provide side stacking alignment.

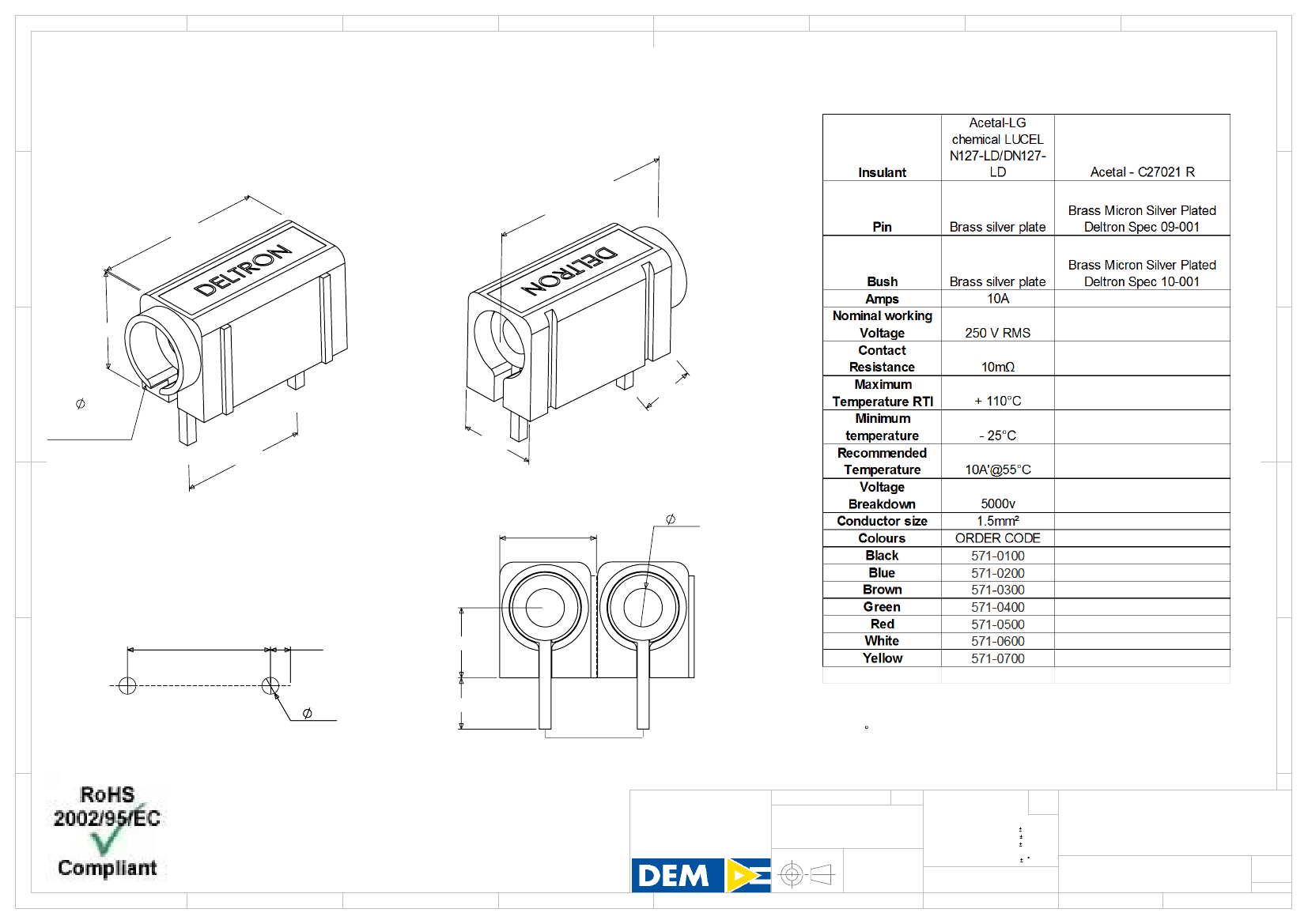

DIMENSIONS

23.3

OVERALL

LENGTH

20.9

12.4

9.5

PANEL

CUTOUT

15.3

2.15

9.8

10.5

HOLE TO ACCEPT

4mm PLUG

4.1

15.3

2.15

To Mounting Face

7.5

PCB LAYOUT

1.8

PCB PIN 5

LENGTH

STACKING

PITCH

10mm

PCB MOUNTED INSULATED SOCKET-SINGLE

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

DEM MANUFACTURING.

ANY REPRODUCTION IN PART OR AS A

WHOLE WITHOUT THE WRITTEN

PERMISSION OF

DEM MANUFACTURING

IS PROHIBITED.

Drawn by SPB

FINISH:

19/02/09

DEBUR AND BREAK

SHARP EDGES

DO NOT SCALE DRAWING

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETRES

LINEAR TOLERANCES:

NO DECIMAL PLACES

1 DECIMAL PLACE

2 DECIMAL PLACES

ANGULAR TOLERANCES:

MATERIAL:

0.5mm

0.1mm

0.03mm

TITLE:

THIRD ANGLE PROJECTION

GENERAL SPECIFICATION

FOR

571 SERIES

571-SERIES

SHEET 1 OF 1

DWG NO.

IF IN DOUBT ASK

WEIGHT: 5.325

ISSUE

TEL: +44 1724 273200 E-MAIL: SALES@DEM-UK.COM WEBSITE: WWW.DEM-UK.COM

SCALE:3:1

571-0600 Related Products

	571-0600	571-0500	571-0700	571-0200	571-0400	571-0300
Description	Interconnection Device, ROHS COMPLIANT	Interconnection Device, ROHS COMPLIANT	Interconnection Device, ROHS COMPLIANT	Interconnection Device, ROHS COMPLIANT	Interconnection Device, ROHS COMPLIANT	Interconnection Device, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Deltron	Deltron	Deltron	Deltron	Deltron	Deltron
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Base Number Matches	1	1	1	1	1	1
