782XAXCT-120A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 782XAXCT-120A

782XAXCT-120A: DescriptionElectromechanical Relay, SPDT, 12A (Contact), 28VDC (Contact), AC/DC Output; CategoryMechanical and electronic products relay; File Size277KB，4 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

782XAXCT-120A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	782XAXCT-120A	-	-	View	Buy Now

782XAXCT-120A Overview

Electromechanical Relay, SPDT, 12A (Contact), 28VDC (Contact), AC/DC Output

782XAXCT-120A Parametric

Parameter Name	Attribute value
Objectid	406107321
Reach Compliance Code	unknown
ECCN code	EAR99
body width	21 mm
body height	35.5 mm
Body length or diameter	27.9 mm
Coil operating voltage (AC)	102 V
Coil release voltage (AC)	18 V
Maximum coil voltage (AC)	132 V
Nominal coil voltage	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	20A@277VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	12 A
Contact (DC) maximum rated R load	12A@28VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1600 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Number of terminals	8
operating hours	20 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	27.9mm x 21mm x 35.5mm
Guideline	CE; CSA; UL
Relay style	1 FORM C
Relay function	SPDT
Terminal length	0.0035 inch
Termination type	SOLDER
weight	36 g

Preview

Download Datasheet

View All

700

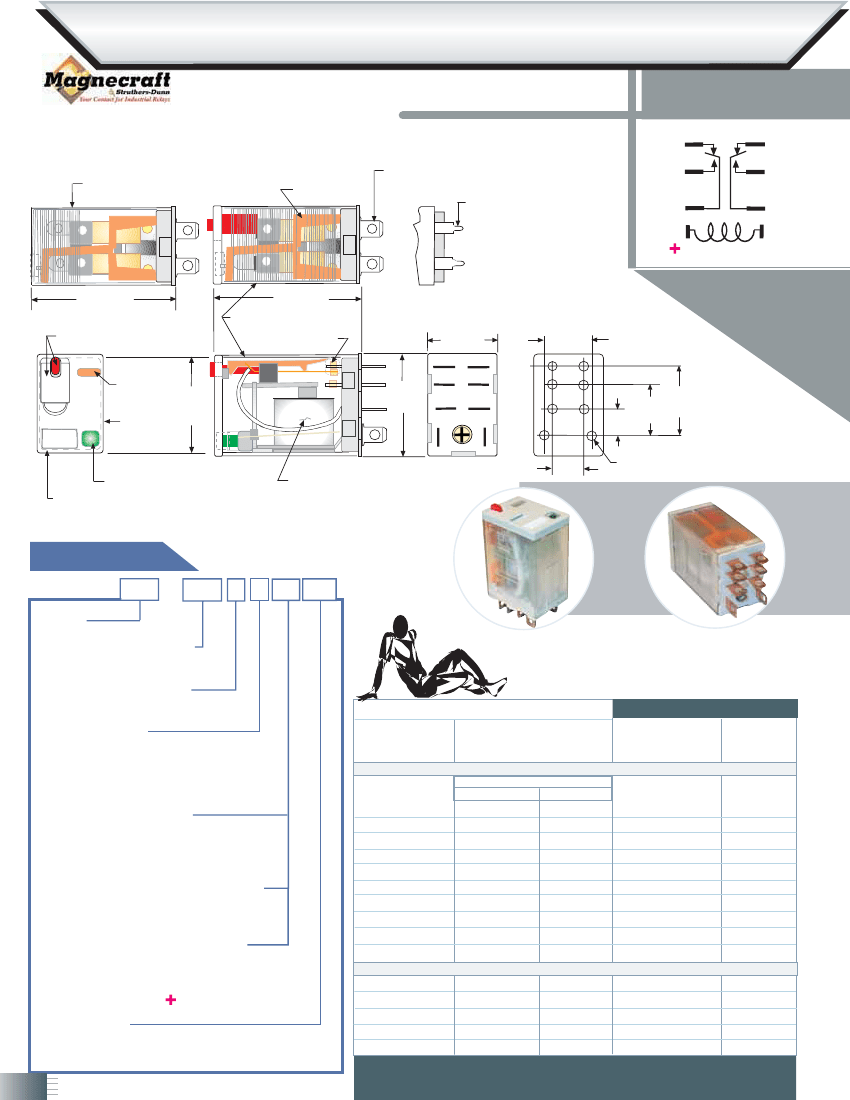

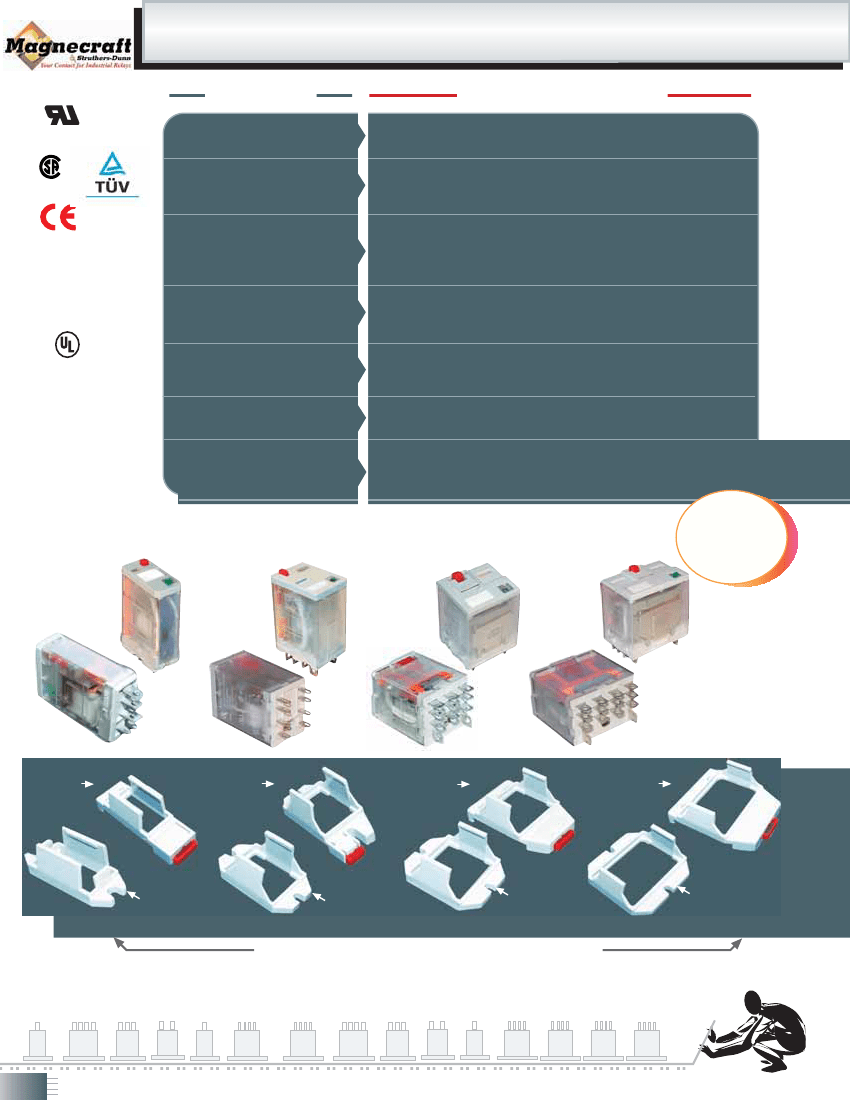

SERIES ICE CUBE POWER RELAYS

F E AT U R E S

B E N E F I T S

SHOWS RELAY STATUS IN MANUAL OR

POWERED CONDITION.

ALLOWS FOR REVERSE POLARITY APPLICATIONS,

SHOWS COIL "ON" OR "OFF" STATUS.

IDEAL IN LOW LIGHT CONDITIONS.

IDENTIFIES AC COILS WITH RED OR DC COILS WITH BLUE

PUSH BUTTONS. ALLOWS FOR MANUAL OPERATION OF

RELAY WITHOUT THE NEED FOR COIL POWER. IDEAL FOR

FIELD SERVICE PERSONNEL TO TEST CONTROL CIRCUITS.

WHEN ACTIVATED, HOLDS PUSH BUTTON

AND CONTACTS IN THE OPERATE POSITION.

EXCELLENT FOR ANALYZING CIRCUIT PROBLEMS.

ALLOWS OPERATOR TO REMOVE RELAYS FROM

SOCKETS MORE EASILY THAN

CONVENTIONAL RELAYS.

USED FOR IDENTIFICATION OF RELAYS

IN MULTI-RELAY CIRCUITS.

DIN RAIL ADAPTER OR TOP/BOTTOM FLANGE

ADAPTER, ALLOWS THE 700 RELAYS TO

BE DIRECT MOUNTED TO A DIN RAIL OR PANEL.

MANUFACTURED

UNDER

ISO 9002

& QS 9000

UL Recognized

File No. E43641

FLAG INDICATOR:

BI - POLAR L.E.D.

STATUS LAMP:

40787

COMPLIES WITH REQUIREMENTS OF

IEC STANDARDS 947-4-1 AND

947-5-1 LOW VOLTAGE DIRECTIVE

IEC = INTERNATIONALCOMMISSION

ELECTROTECHNICAL

EVALUATION

CE TESTING ANDTHE UNDERWRITERS

PERFORMED BY

LABORATORIES AS A THIRD PARTY

PARTICIPANT

COLOR CODED

PUSH BUTTON:

LOCK-DOWN DOOR:

LISTED 367G

IND. CONT. EQ.

WHEN USED WITH

SOCKETS:

781:70-781D-1

782:70-782D-1

70-459-1

70-461-1

783:70-783D-1

784:70-784D-1

CURRENT LIMITED

TO RATING OF

RELAY OR SOCKET

WHICHEVER IS LESS

FINGER - GRIP COVER:

WHITE PLASTIC

I.D. TAG/WRITE LABEL:

COVER ADAPTERS:

781

SPDT

15 AMPS

782

SPDT

20 AMPS

DPDT

15 AMPS

783

3PDT

15 AMPS

784

4PDT

15 AMPS

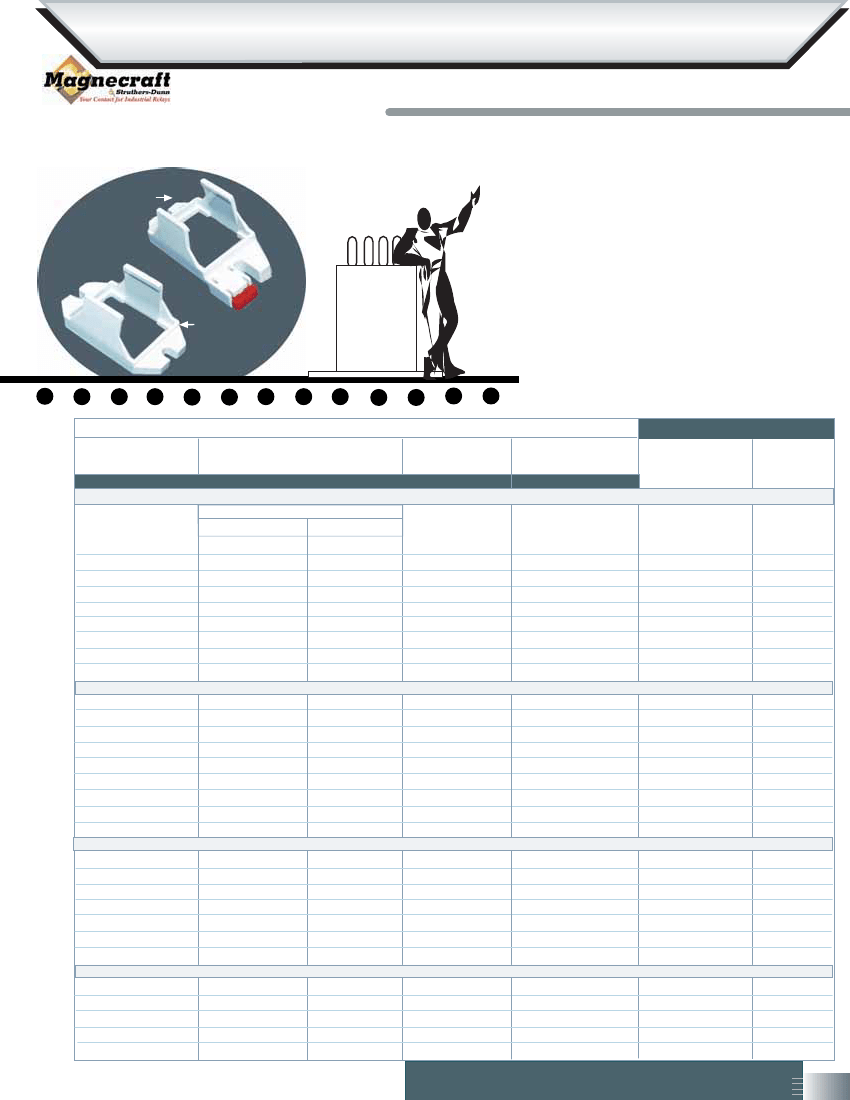

DIN ADAPTER

16-781C

DIN ADAPTER

16-782C

DIN ADAPTER

16-783C

DIN ADAPTER

16-784C

FLANGE ADAPTER

16-781C1

FLANGE ADAPTER

16-782C1

FLANGE ADAPTER

16-783C1

FLANGE ADAPTER

16-784C1

OPTIONAL ADAPTERS ORDERED SEPARATELY

9/04

1...

PHONE: (843) 393-5778 FAX: (843) 393-4123 EMAIL: info@magnecraft.com
