Max. 6ms (Approx. 3ms) [Max. 10ms (Approx. 5ms)] (Nominal operating voltage applied to
the coil, excluding contact bounce time.) (without diode)
Min. 200 m/s
2
{20 G} (Half-wave pulse of sine wave: 11ms; detection time: 10µs.)
Min. 1,000m/s
2
{100 G} (Half-wave pulse of sine wave: 6ms.)
10 to 55 Hz at double amplitude of 3mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 5mm
Min. 5×10
6
(at 180 cpm)
Min. 10
5
(10W 2.5 GHz, Impedance 50Ω, V.S.W.R. 1.2)
Min. 3×10
5
(10mA 24V DC resistive load)
Ambient temperature: –40°C to +70°C
–40°F to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 5 g
.18 oz
Rating
High frequency
characteristics
(Initial) (~2.5GHz,
Impedance 50Ω)
Electrical
characteristics
Temperature rise (at 20°C)
Operate time [Set time] (at 20°C)
Release time [Reset time] (at 20°C)
Shock
resistance
Vibration
resistance
Mechanical
Functional
Destructive
Functional
Destructive
Mechanical
characteristics
Expected life
Conditions
Unit weight
Electrical
Conditions for operation, transport and storage*
Note: * The upper operation ambient temperature limit is the maximum temperature that can satisfy the coil temperature rise value. Refer to [6] AMBIENT ENVIRONMENT
in GENERAL APPLICATION GUIDELINES.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
ASCTB74E 201201-T
RX (ARX)
REFERENCE DATA

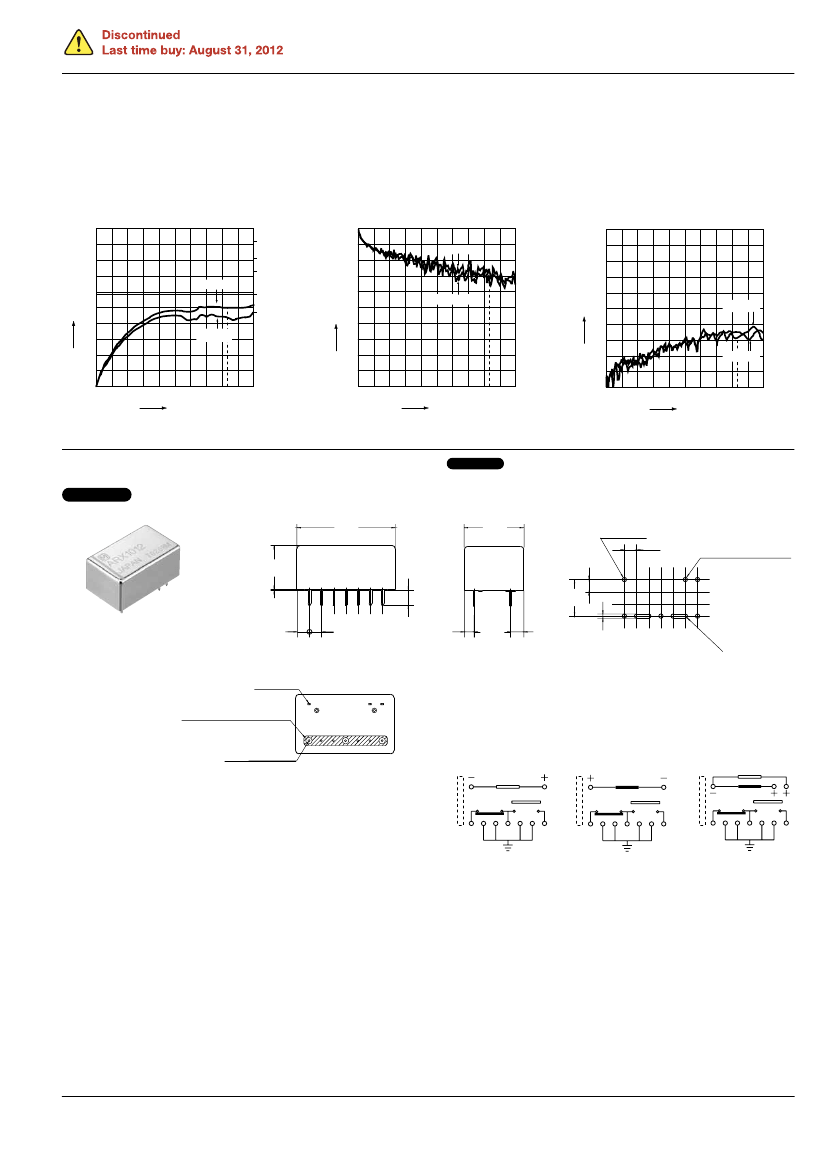

1. High frequency characteristics
Sample: ARX1012
Measuring method: Measured with HP network analyzer (HP8753C).
The details for the high frequency characteristics and the measurement
procedures and conditions are listed in the RX relay test report.
• V.S.W.R. (Return loss)
0
5.0
Insertion loss, dB
Return loss, dB
10
COM-NO
1.2
1.1
30
COM-NC
40
0.4
80
COM-NO
2.0
1.5
20
V.S.W.R.
COM-NC
0.1
Isolation, dB
20
• Insertion loss
0
• Isolation
0
0.2
COM-NO
0.3
40
COM-NC
60
50
300kHz
1.5GHz
Frequency
2.5GHz 3GHz
0.5
300kHz
1.5GHz
Frequency
2.5GHz3GHz
100
300kHz
1.5GHz
Frequency
2.5GHz 3GHz
DIMENSIONS
(mm
inch)
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e
PC board pattern (Bottom view)
20.5
.807
12.4
.488
2.54
.100
0.9 dia hole
.035 dia hole
(2 coil latching type only)
9.2
.362
0.2
.008
2.63
.104
2.54
.100
3.0
.118
(2.04)
(.080)
7.62
.300
(2.74)
(.108)
7.62
.300
R
0.90
.035
0.
45
2-0.6×0.3
2-.024×.012
Tolerance:
±0.1
±.004
General tolerance:
±0.3
±.012
Solder to the PC board earth.
Schematic (Bottom view)
7-0.40 to 0.45 dia.
7-.016 to .018 dia.
Direction indication
Single side stable
Direction indication
1
7
1 coil latching
Direction indication
1
7
2 coil latching
1
6
7
14 13 12 11 10 9
NC
COM
8
14 13 12 11 10 9
RESET
COM
8
14 13 12 11 10 9
RESET
COM
8
NO
SET
SET
(Deenergized condition)
(Reset condition)
(Reset condition)
ASCTB74E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
RX (ARX)
NOTES
1. Coil operating power
Pure DC current should be applied to the
coil. The wave form should be
rectangular. lf it includes ripple, the ripple
factor should be less than 5%.
However, check it with the actual circuit
since the characteristics may be slightly
different. The nominal operating voltage
should be applied to the coil for more
than 30 ms to set/reset the latching type
relay.
2. Coil connection
When connecting coils, refer to the wiring
diagram to prevent mis-operation or
malfunction.
3. External magnetic field
Since RX relays are highly sensitive
polarized relays, their characteristics will
be affected by a strong external magnetic
field. Avoid using the relay under that
condition.
4. Cleaning
For automatic cleaning, the boiling
method is recommended. Avoid
ultrasonic cleaning which subjects the
relays to high frequency vibrations, which
may cause the contacts to stick.
lt is recommended that a fluorinated
hydrocarbon or other alcoholic solvents
be used.
5. Soldering
The manual soldering shall be performed
under following condition.
Max. 260°C
500°F
10s
Max. 350°C
662°F
3s
In addition, when soldering the case to
the PC board, the plating may swell
depending on the soldering conditions.
6. Conditions for operation, transport
and storage conditions
1) Ambient temperature, humidity, and
atmospheric pressure during usage,
transport, and storage of the relay:
(1) Temperature:
–40 to +70°C
–40 to +158°F
(2) Humidity: 5 to 85% RH
(Avoid freezing and condensation.)
The humidity range varies with the
temperature. Use within the range
indicated in the graph below.
(3) Atmospheric pressure: 86 to 106 kPa
Temperature and humidity range for
usage, transport, and storage:
Humidity, %RH
4) Low temperature, low humidity
environments
The plastic becomes brittle if the relay is
exposed to a low temperature, low
humidity environment for long periods of
time.
7. Latching relay
In order to assure proper operating
regardless of changes in the ambient
usage temperature and usage conditions,
nominal operating voltage should be
applied to the coil for more than 30 ms to
set/reset the latching type relay.
For general cautions for use, please
refer to the “General Application
Guidelines”.
;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
85
Tolerance range
(Avoid freezing
when used at
temperatures lower
than 0°C
32°F
5
(Avoid
condensation
when used at
temperatures higher
than 0°C
32°F
–40
–40
0
+32
Temperature,
°C
°F
70
+158
2) Condensation
Condensation forms when there is a
sudden change in temperature under
high temperature and high humidity
conditions. Condensation will cause
deterioration of the relay insulation.
3) Freezing
Condensation or other moisture may
freeze on the relay when the temperature
is lower than 0°C
32°F.
This causes
problems such as sticking of movable
parts or operational time lags.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
ASCTB74E 201201-T
