329-0701-037 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 329-0701-037

Preview

329-0701-037: DescriptionSwitch Bezels / Switch Caps 3290701037 CAP KIT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size74KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

329-0701-037 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	329-0701-037	-	-	View	Buy Now

329-0701-037 Overview

Switch Bezels / Switch Caps 3290701037 CAP KIT

329-0701-037 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	DIALIGHT
Product Category	Switch Bezels / Switch Caps
Packaging	Bulk

Preview

Download Datasheet

View All

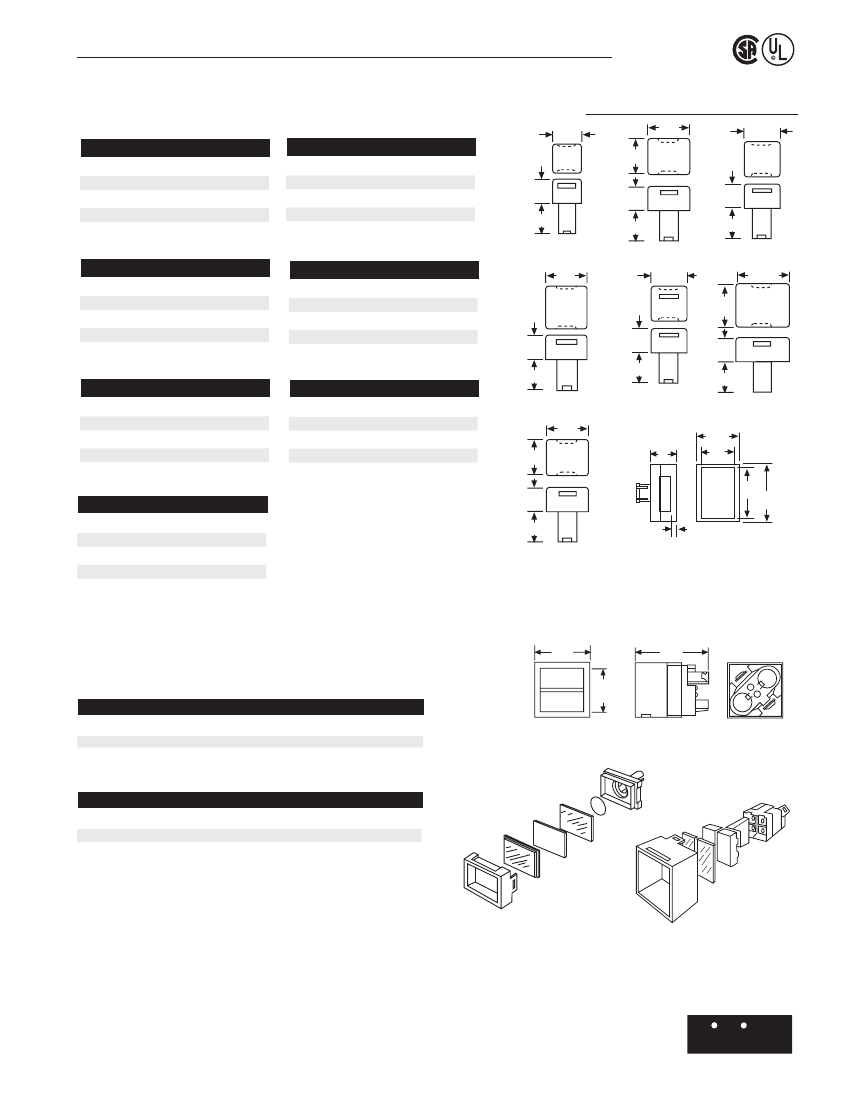

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

324, 325, 326, 327, 328, 332 & 333 SERIES CAPS

1/2" SQUARE

CAP PART NO.

324-0071

324-0072

324-0073

324-0075

5/8" x 3/4" RECTANGULAR

COLOR

RED

GREEN

YELLOW

WHITE

12.85

[.506]

SQ.

18.95

[.746]

15.77

[.621]

15.77

[.621]

SQ.

FIG

1

CAP PART NO.

COLOR

FIG

2

11.13

[.438]

14.83

[.584]

333-0071*

RED

333-0072*

GREEN

333-0073*

YELLOW

333-0075*

WHITE

* Has Fingertip Grips

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

5/8" SQUARE

CAP PART NO.

325-0071

325-0072

325-0073

325-0075

3/4" SQUARE

COLOR

RED

GREEN

YELLOW

WHITE

Fig 1

Fig 2

15.77

[.621]

SQ.

18.57

[.731]

Fig 3

24.66

[.971]

FIG

3

CAP PART NO.

327-0071

327-0072

327-0073

327-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

4

18.95

[.746]

SQ.

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

5/8" SQUARE LED

3/4" x 1" RECTANGULAR

CAP PART NO. LED/CAP

332-0010

332-0015

332-0020

332-0030

FIG

5

CAP PART NO.

328-0071

328-0072

328-0073

328-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

6

Fig 4

18.95

[.746]

11.13

[.438]

RED/BLACK

RED/WHITE

GREEN/BLACK

YELLOW/BLACK

Fig 5

18.54

[.730]

13.97

[.550]

Fig 6

15.77

[.621]

5/8" x 3/4" RECTANGULAR

CAP PART NO.

326-0071

326-0072

326-0073

326-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

7

11.13

[.438]

14.83

[.584]

20.07

[.790] 24.64

[.970]

1.96

[.078]

Fig 7

Fig. 8

Please contact factory for legend information available on Figures 1 thru 8.

329 & 330 SERIES CAP KITS

3/4" X 1" LEGEND KITS - SINGLE LAMP

18.57

[.731]

25.32

[.997]

REF

14.86

[.585]

SQ.

KIT PART NO.

329-0701-030

329-0701-037

329-0701-537

LENS/FILTER COLOR

RED, GREEN, AMBER, BLUE/NONE

CLEAR/NONE

CLEAR/RED, GREEN, AMBER, BLUE

FIG

8

Fig 9

CAP BASE

UNDERLYING

FILTER

DIFFUSING

LENS

LEGEND

PLATE

BLACK

FRAME

3/4" LEGEND KITS - DUAL LAMP

KIT PART NO. LENS/FILTER COLOR

FIG

330-0100-100 RED, GREEN, AMBER, BLUE, WHITE/NONE 9

330-0255-155 (2) WHITE/RED, GREEN, AMBER, BLUE

9

Legends provided by Dialight Stocking Distributors

Material: Cap, High Temperature Scratch-Resistant Plastic

BLACK

BARRIER

DIFFUSER

LENS

CAP

BASE

329-0701-537 SHOWN

330-0100-100 SHOWN

FRAME

27

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com

Dialight

329-0701-037 Related Products

	329-0701-037	328-0073	GUB-GM7A-03-1042-D-	GUS-SL8ALF-02-1841-C	PCF1206-25-133RWT1	329-0701-537	231219771652
Description	Switch Bezels / Switch Caps 3290701037 CAP KIT	Switch Bezels / Switch Caps SWITCH CAP	Array/Network Resistor, Isolated, Thin Film, 0.16W, 10400ohm, 0.5% +/-Tol, -25,25ppm/Cel, 3922,	Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.1W, 1840ohm, 100V, 0.25% +/-Tol, -50,50ppm/Cel, 4030,	Fixed Resistor, Metal Film, 0.125W, 133ohm, 150V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP	Switch Bezels / Switch Caps 329-0701 W/MULTI COLOR FILTERS	Fixed Resistor, Thin Film, 0.4W, 1650ohm, 300V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 2309, MELF, ROHS COMPLIANT
Is it Rohs certified?	-	incompatible	incompatible	conform to	conform to	-	conform to
Reach Compliance Code	-	compliant	compliant	compliant	compliant	-	unknown
JESD-609 code	-	e0	-	e3	e3	-	e3
Number of terminals	-	1	14	16	2	-	2
method of packing	-	BULK	-	TR	TR	-	TR, BLISTER, 7 INCH
Terminal surface	-	Tin/Lead (Sn/Pb)	-	Matte Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier
Objectid	-	-	795787401	798467817	1237235210	-	1474280487
package instruction	-	-	SMT, 3922	SMT, 4030	CHIP	-	MELF, ROHS COMPLIANT
Country Of Origin	-	-	USA	USA	Taiwan	-	Germany
YTEOL	-	-	6.2	7.25	7.8	-	7.55
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	-	125 °C
Rated power dissipation(P)	-	-	0.16 W	0.1 W	0.125 W	-	0.4 W
resistance	-	-	10400 Ω	1840 Ω	133 Ω	-	1650 Ω
Resistor type	-	-	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	FIXED RESISTOR	-	FIXED RESISTOR
size code	-	-	3922	4030	1206	-	2309
technology	-	-	THIN FILM	TANTALUM NITRIDE/NICKEL CHROME	METAL FILM	-	THIN FILM
Temperature Coefficient	-	-	25 ppm/°C	50 ppm/°C	25 ppm/°C	-	15 ppm/°C
Tolerance	-	-	0.5%	0.25%	0.05%	-	0.1%
