Varitronix VMD6100
1920x1280 Active Matrix
LCOS Microdisplay
High-Resolution,
High Performance LCOS
Microdisplay Solution
Key Feature and Benefits
!
High resolution supporting 1920x1280 High
Definition Television Broadcasting standard
!
High aperture ratio to optimize the light efficiency
!
Flexible LC supply voltages supporting a variety
of liquid crystal optical mode to achieve high
contrast
!
Proprietary driving scheme enhancing color depth
and image quality
!
Supports standard CMOS input signals
!
Supports up to 60 Hz field rate
!
Flexible timing control to support 3 panel
solutions
!
Flexible image controls such as contrast and
display orientation

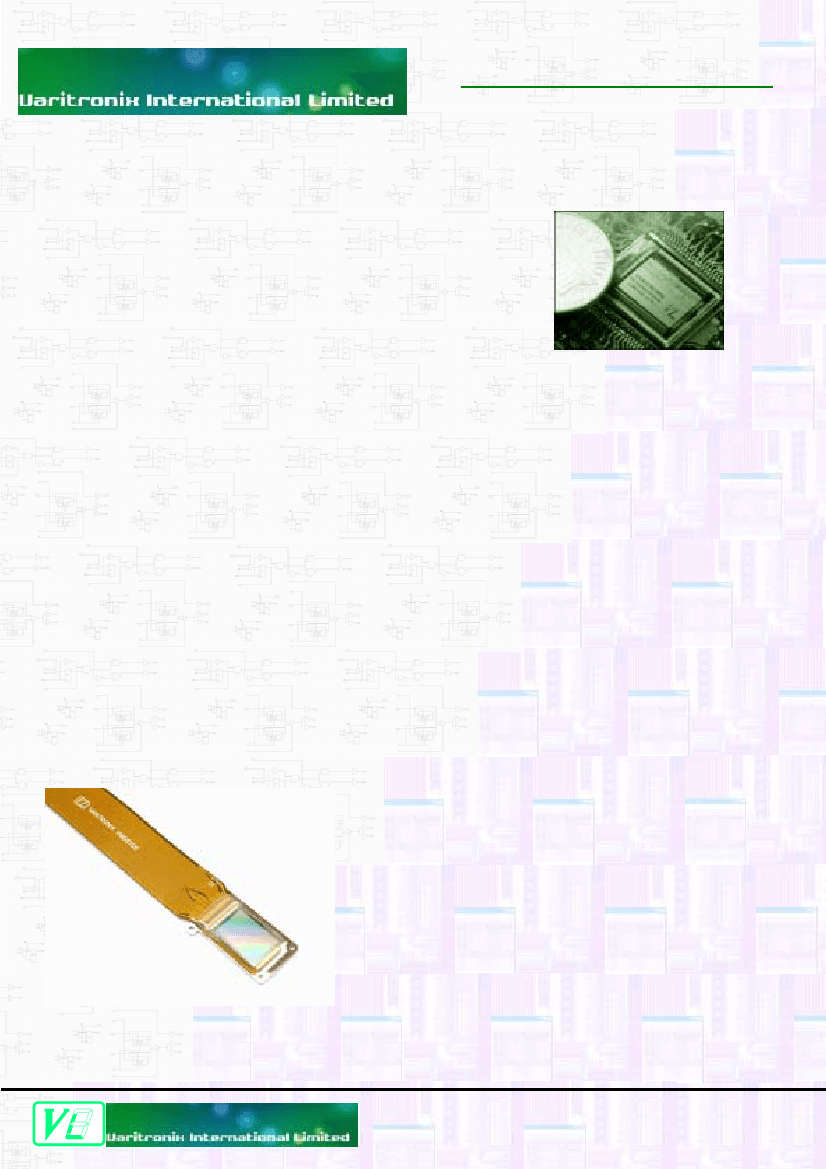

The Varitronix VMD6100 is an active matrix LCOS microdisplay with 1920
x 1280 spatial resolution and 0.82” in diagonal. It is designed and fabricated
using standard CMOS VLSI technology. It supports 5V liquid crystal driving
and thus enhances flexibility in using different liquid crystal optical modes.
VMD6100, which is integrated with proprietary driving scheme and new
gamma correction algorithm, enriches image quality and enhances color
depth.
Functional Description
VMD6100 is easy for interface with all digital inputs compatible with 3.3V to
5V standard CMOS logic level. With proprietary gamma correction scheme,
grayscale can be fine tuned by a predefined look up table for various
application environments. It greatly improves the manual tuning by
programmability.
Designed with proprietary driving scheme, data shifting and scanning
directions can be programmable controlled. It can enhance the capability of
display effect such as horizontal and vertical flip without affecting video data
structure.
VMD6100 is integrated with new architecture meeting the performance
demands for high-speed and high-resolution display applications such as rear
projection television and home theater front projection systems.
Headquarter
22 Chun Cheong Street, TKO Industrial Estate,
Tseung Kwan O, Hong Kong
Tel : (852) 2197 6000
Fax : (852) 2343 9555
URL : http://www.varitronix.com
E-mail : info@varitronix.com
VMD6100
Specifications – VMD6100
Feature
Specification
Monochrome active matrix LCOS
Reflective NB/NW MTN, VAN
1920 (H) x 1280 (V)
> 256
17.3mm H x 11.52mm V
9um
~90%
> 1500:1
< 12 ms
3.3V, 5V
60 Hz
3.3V Standard CMOS Compatible
16:9 Aspect Ratio
Support 3 panel solutions

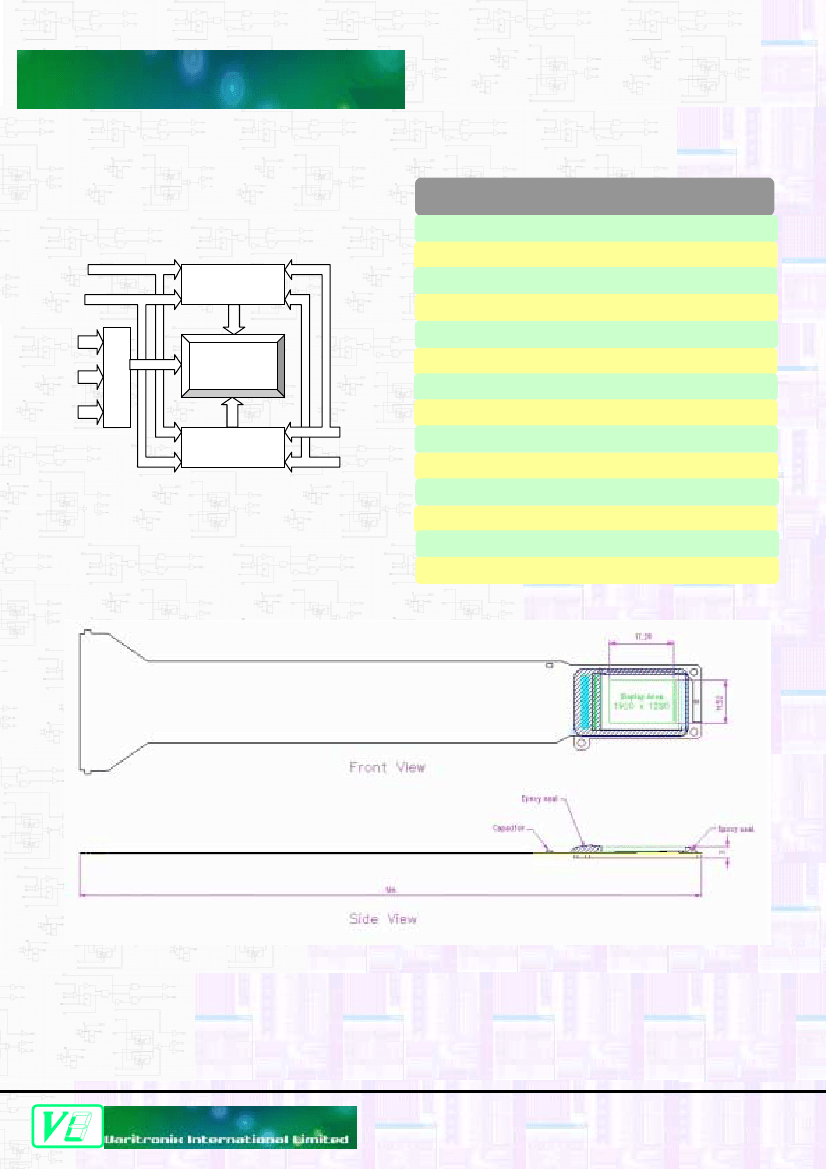

Internal architecture of VMD6100
SHR
Display Type
Display Mode
Column Driver
DATA
Resolution
Grayscale accuracy
Display Size
SCLK
Row driver
1920 x 1280
Pixel Array
Pixel pitch
Aperture ratio
Contrast ratio
CLK
SCAN_DN
CONTROL
Column Driver
CONTROL
LC Response time
Supply voltages
Field rate
Signal interface
Projection
Additional Features
Varitronix is one of a few companies providing LCOS liquid crystal filling process and module assembly. We have state-of-the-art LCD and silicon processing equipment housed in 5K sq-ft
clean room for LCOS microdisplay production. Utilizing Varitronix’ 20+ years of LCD manufacturing experience, we are able to tackle the difficulties arise from LCOS manufacturing process.
VARITRONIX reserves the right to make changes to any specifications without further notice for performance, reliability, production technique and other considerations.
