TL6110DF160QP: DescriptionTactile Switches 7.2mm x 5.08 mm Thru-hole 10mm act; CategoryTopical application Mechanical and electrical/engineering/automation; File Size363KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

TL6110DF160QP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL6110DF160QP	-	-	View	Buy Now

TL6110DF160QP Overview

Tactile Switches 7.2mm x 5.08 mm Thru-hole 10mm act

TL6110DF160QP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	E-Switch
Product Category	Tactile Switches
RoHS	Details
Mounting Style	Through Hole
Mounting Direction	Right Angle
Stem Height	8.7 mm
Actuator	Round
Switch Function	OFF - (ON)
Operating Force	1.6 N
Current Rating	50 mA
Voltage Rating DC	12 VDC
Contact Form	SPST
Termination Style	Solder Pin
Length	8 mm
Width	7.2 mm
Height	8 mm
Contact Plating	Silver
Operating Temperature Range	- 40 C to + 85 C
Factory Pack Quantity	52

Preview

Download Datasheet

View All

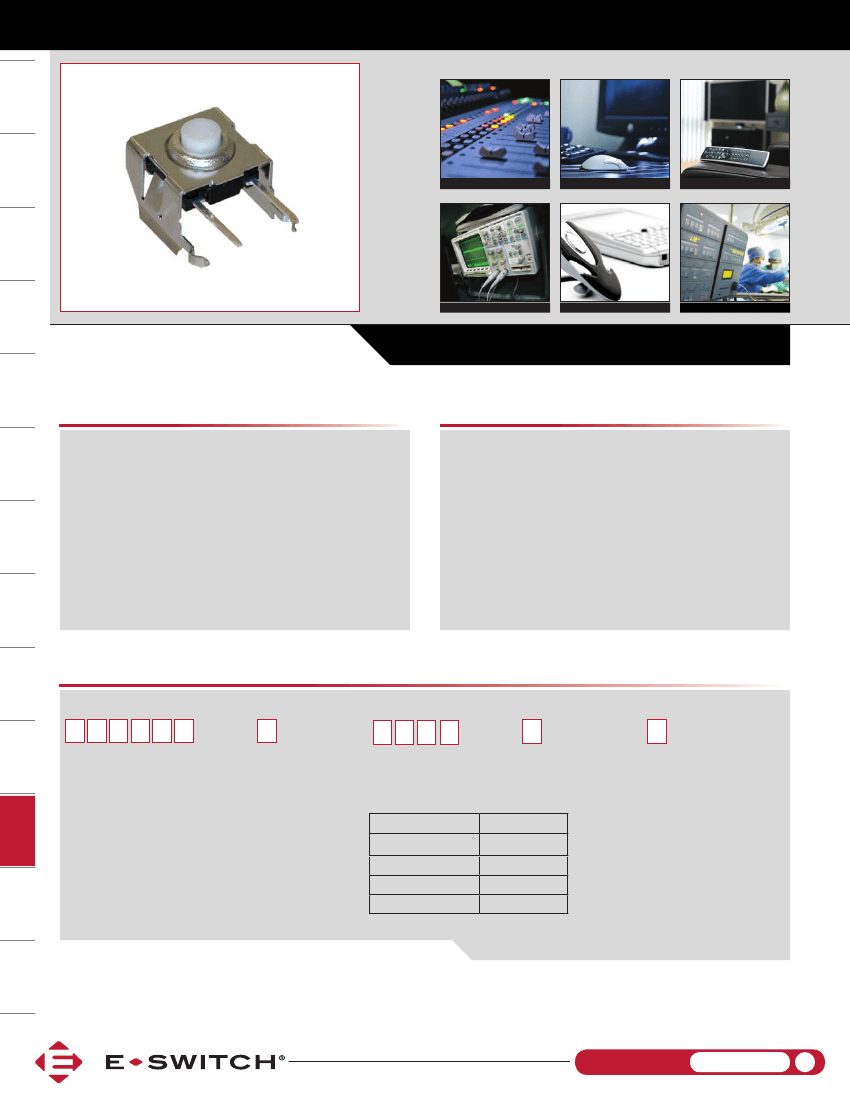

tl6110 S

erieS

t

act

S

witch

ANTI-VANDAL

SWITCHES

a

pplicationS

/ m

arketS

DETECTOR

SWITCHES

Audio / Visual

Computer Peripherals

Consumer Electronics

KEYLOCK

SWITCHES

DIP

SWITCHES

Instrumentation

Telecommunication

Medical Equipment

NAVIGATION

SWITCHES

RoHS

S

pecificationS

Electrical Rating:

50mA @ 12VDC

Life Expectancy:

per chart

Contact Resistance: 100mΩ

Max. Initial

Insulation Resistance:

100 MΩ Min. at 100VAC

Dielectric Strength: 250VAC

for 1 min.

Operating Temperature:

-40°C to 85°C

Storage Temperature:

-40°C to 85°C

Operating Force:

130 gf, 160 gf, 300 gf, 500 gf

Travel:

0.50mm

Contact Arrangement:

SPST

f

eatureS

& b

enefitS

•

Tube packaging

Multiple operating forces

Gold or silver contact option

Multiple actuator lengths

Process sealed

SLIDE

SWITCHES

ROTARY

SWITCHES

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

p

art

n

umber

c

onfigurator

Series

Actuator Options

Actuation

Force

F130 - 130

gf

F160 - 160

gf

F300 - 300

gf

F500 - 500

gf

Contact Plating

Termination

SNAP ACTION

SWITCHES

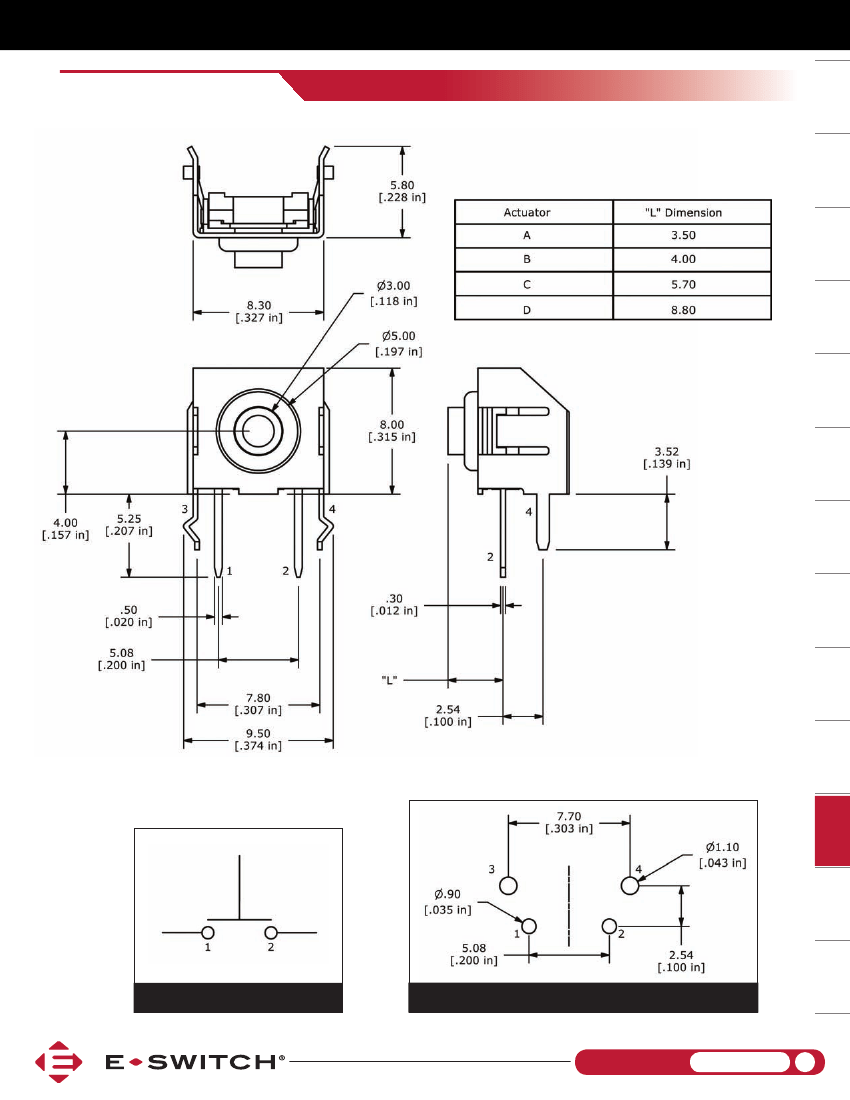

TL6110 - right angle

A

- 3.50mm

B

- 4.00mm

C

- 5.70mm

D

- 8.80mm

Q

- Silver

R

- Gold

P

- PCB Pins

TACTILE

SWITCHES

Actuation Force

130 gf

160 gf

300 gf

500 gf

Life Cycles

1,000,000

500,000

200,000

TOGGLE

SWITCHES

CAP

OPTIONS

Specifications subject to change without notice

www.e-switch.com

800.867.2717

2

TL6110DF160QP Related Products

	TL6110DF160QP	TL6110CF160RP	TL6110CF500QP	TL6110AF500QP	TL6110AF130QP	GUS-SS4A-02-6342-D	TL6110BF300QP	TL6110BF160QP	TL6110CF160QP
Description	Tactile Switches 7.2mm x 5.08 mm Thru-hole 10mm act	Tactile Switches 50mA 50VDC 6.9mm Gold PC Pin	Tactile Switches Sealed Right Angle SPST 0.05A 50V	Tactile Switches Sealed Right Angle SPST 0.05A 50V	Tactile Switches 7.2mm x 5.08 mm Thru-hole 4.7mm act	Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.4W, 63400ohm, 100V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 1519, SOIC-8	Tactile Switches 7.2mm x 5.08 mm Thru-hole 5.2mm act	Tactile Switches Sealed Right Angle SPST 0.05A 50V	Tactile Switches 7.2mm x 5.08 mm Thru-hole 6.9mm act
Product Attribute	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value	-
Manufacturer	E-Switch	E-Switch	-	E-Switch	E-Switch	-	E-Switch	E-Switch	-
Product Category	Tactile Switches	Tactile Switches	-	Tactile Switches	Tactile Switches	-	Tactile Switches	Tactile Switches	-
RoHS	Details	-	-	Details	Details	-	Details	Details	-
Mounting Style	Through Hole	-	-	Through Hole	Through Hole	-	Through Hole	Through Hole	-
Stem Height	8.7 mm	-	-	4.7 mm	3.5 mm	-	4 mm	5.2 mm	-
Actuator	Round	-	-	Round	Round	-	Round	Without Cap	-
Operating Force	1.6 N	-	-	5 N	1.3 N	-	2.9 N	1.6 N	-
Current Rating	50 mA	-	-	50 mA	50 mA	-	50 mA	50 mA	-
Voltage Rating DC	12 VDC	-	-	50 VDC	12 VDC	-	12 VDC	12 VDC	-
Termination Style	Solder Pin	-	-	Solder Pin	Solder Pin	-	Solder Pin	Solder Pin	-
Operating Temperature Range	- 40 C to + 85 C	-	-	- 40 C to + 85 C	- 40 C to + 85 C	-	- 40 C to + 85 C	- 40 C to + 85 C	-
Factory Pack Quantity	52	60	-	52	52	-	52	60	-
