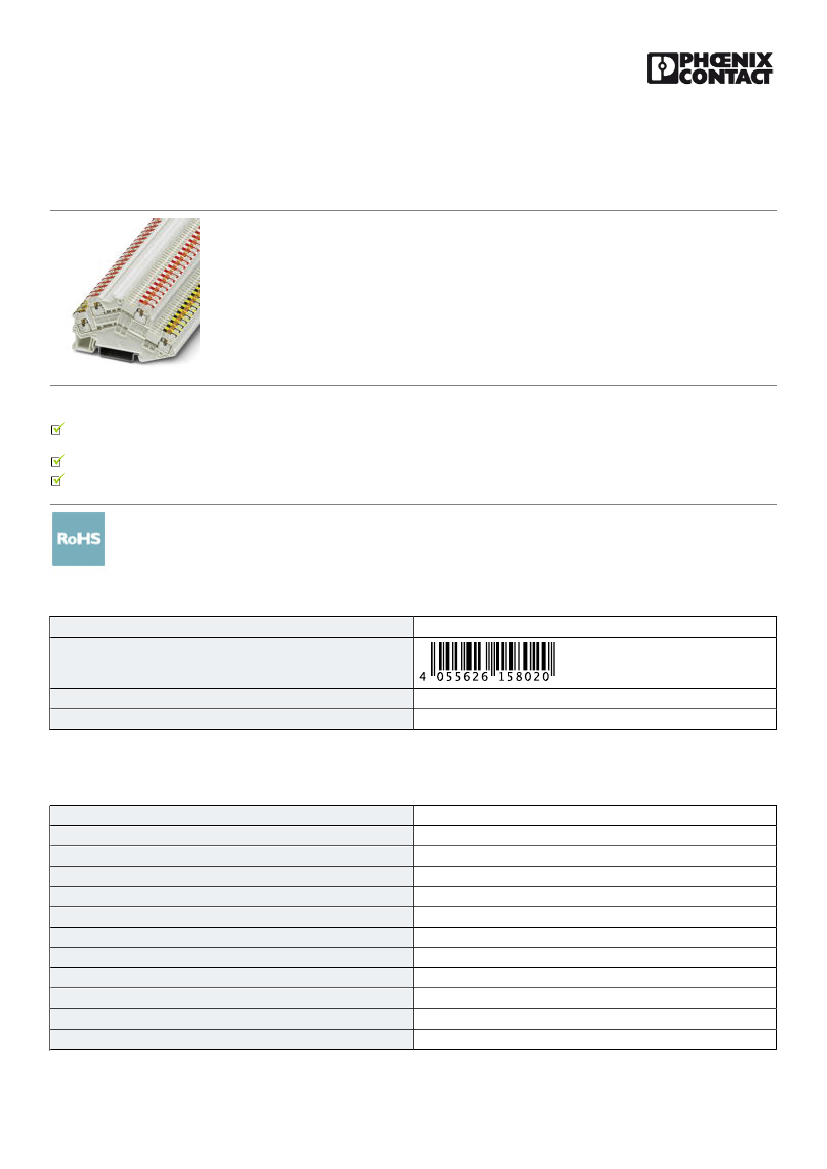

Double-level terminal block - PTTBS 1,5/S-KNX - 3214663
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Double-level terminal block, for KNX bus in building installation, packed in pairs (25 pairs = 50 pcs.), Cross
section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, Connection type: Push-in connection, Width: 7 mm, Color: white,
Mounting type: NS 35/7,5, NS 35/15
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626158020
85369010
50 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
2
8
1.5 mm²
white
PA
V0
6 kV
III
I
IEC 60947-7-1
16 A
16 A
11/15/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/3214663
Double-level terminal block - PTTBS 1,5/S-KNX - 3214663
Technical data
General
Nominal voltage U
N
Open side panel
500 V
Yes
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
7 mm
78.8 mm
48.2 mm
55.7 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Push-in connection
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
14
0.14 mm²
0.14 mm²
1 mm²
8 mm ... 10 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
The circuit symbol indicates one of the terminals in the pair
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 2 / 2
