Programmable touch panels MTP6/50 & MTP8/50 RD Part number 88970494
MTP6/50 & MTP8/50
4.3''TFT-LCD compact resistive touch panels, 65536 colors, LED backlight
Graphical resolution : 480 x 272 pixels
Wide viewing angle : 70° horizontally and vertically
Fan-less cooling system
Text, data, graphic, animation display
Processing of alarms and recipes
400 M Hz core logic, 64 MB RAM
128 MB flash memory storage
Direct communication via the Millenium 3 programming port
Programmable with user-friendly EB software (compatible with Windows 2000/XP/Vista/7)
RS232/RS485 serial port
MTP6/50
USB 2.0 port (programming)
MTP8/50
Ethernet port (programming and communication)
Part numbers
Type
Designation
88970494
RD
MTP8/50 user kit (fixing brackets, MTP-M3 cable)
Size Programming
4"3
Connection
Ethernet RJ45 crossover cable Direct connection M3-MTPModbus RS232/RS485 serial port, Ethernet TCP/IP port
Specifications
Environmental characteristics
Certifications
Conformity to standards
Operating temperature
Storage temperature
Relative humidity
Protection rating
Vibration resistance
Shock resistance
UL, cUL
IEC 61000-4
0 →+45 °C
-20 →+60 °C
10 →90 % (operation
IP65 - Dust and droplets
Front panel seal watertight at standard
10 - 25 Hz, 2G
30 minutes in each of the X, Y, Z axes
Free fall from 1 meter in each of the X, Y, Z axes
Electrical characteristics
Supply voltage
Voltage limits
Consumption
24 VDC
Internalinsulation via transformer
19,2 →28,8 VDC
7,2 W max
Mechanical characteristics

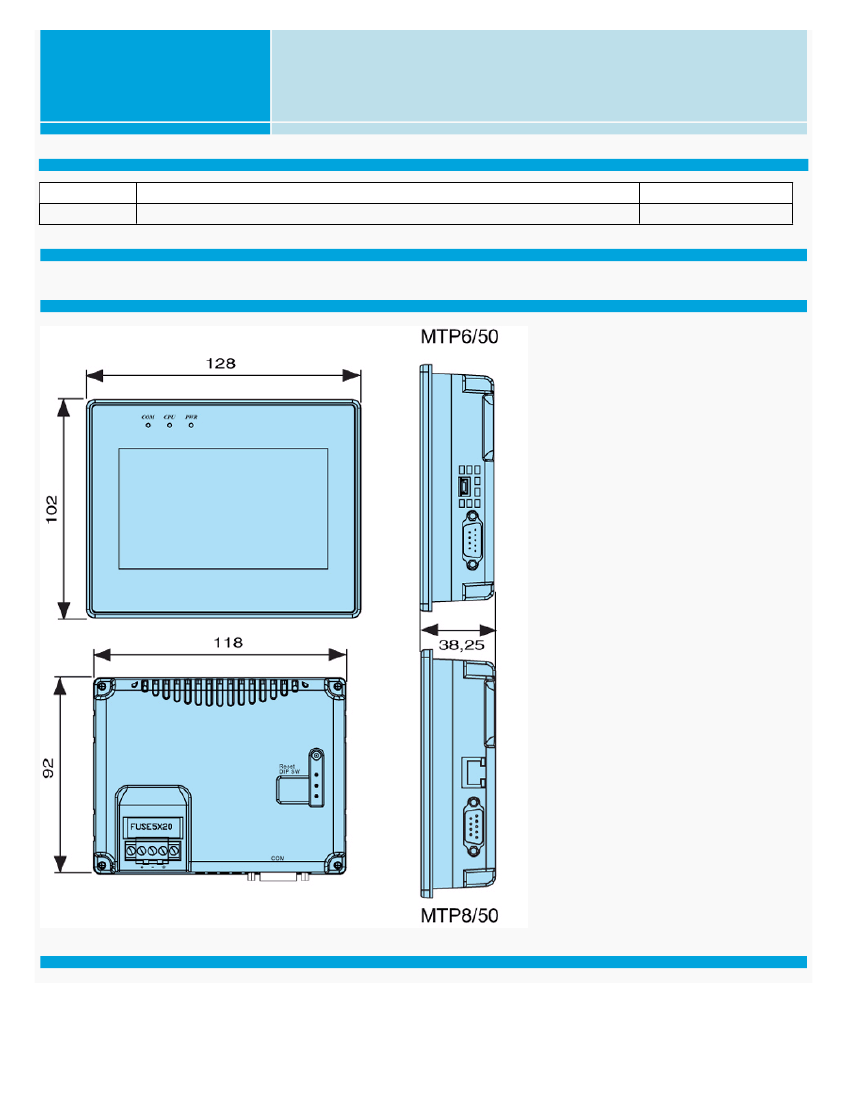

Dimensions (l x h x w)
Panel cut-out
Mounting
Connection
Weight
128 x 102 x 38 mm
Useful screen area : 95 x 54 mm
119 x 93 mm
Panel thickness 1-10 mm
Built-in, fixing by 2 screw clamps (supplied) for 1 to 10 mm panel
Removable 3-pin screw terminal block (supplied)
AC 300 g
Display characteristics
Description
TFT-LCD 4.3''polychrome, 65536 colors
LED backlight
Resolution 480 x 272 pixels
400 M Hz core logic, 64 MB RAM
128 MB flash memory (programs and recipes backup)
Programmable with EB software
Touch panel with user-definable layout
Key life : 1 million operations minimum
Straight lines, free lines, squares, ovals, arcs, polygons, bitmaps, animations.gif, standard fonts
Buttons, switches, levers, LEDs, messages, data, password-secured buttons,triggers
Bar charts, linear gauges, clocks, alphanumeric keyboards, graphics, recipes, alarm lists
Text scrolling, multiple windows, data transfer, multiple language
Archive
Communication
MTP6/50 and MTP8/50
Direct M3-MTP communication (supplied)
RS485 Modbus connection : 2/4 cables (2 cables with accessory 88970503)
Display details
Functions
Connection
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Embedded System
