286377 Overview

Fuse Holder FUSEHOLDER PANEL MOUNT

286377 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Fuse Holder
RoHS	Details
Product	Fuse Holders
Fuse Size / Group	5 x 20 mm, 5 x 15 mm (2AG)
Mounting Style	Snap In
Number of Poles	1 Pole
Current Rating	10 A
Voltage Rating	250 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Color	Black
Illumination	Not Illuminated

Preview

Download Datasheet

View All

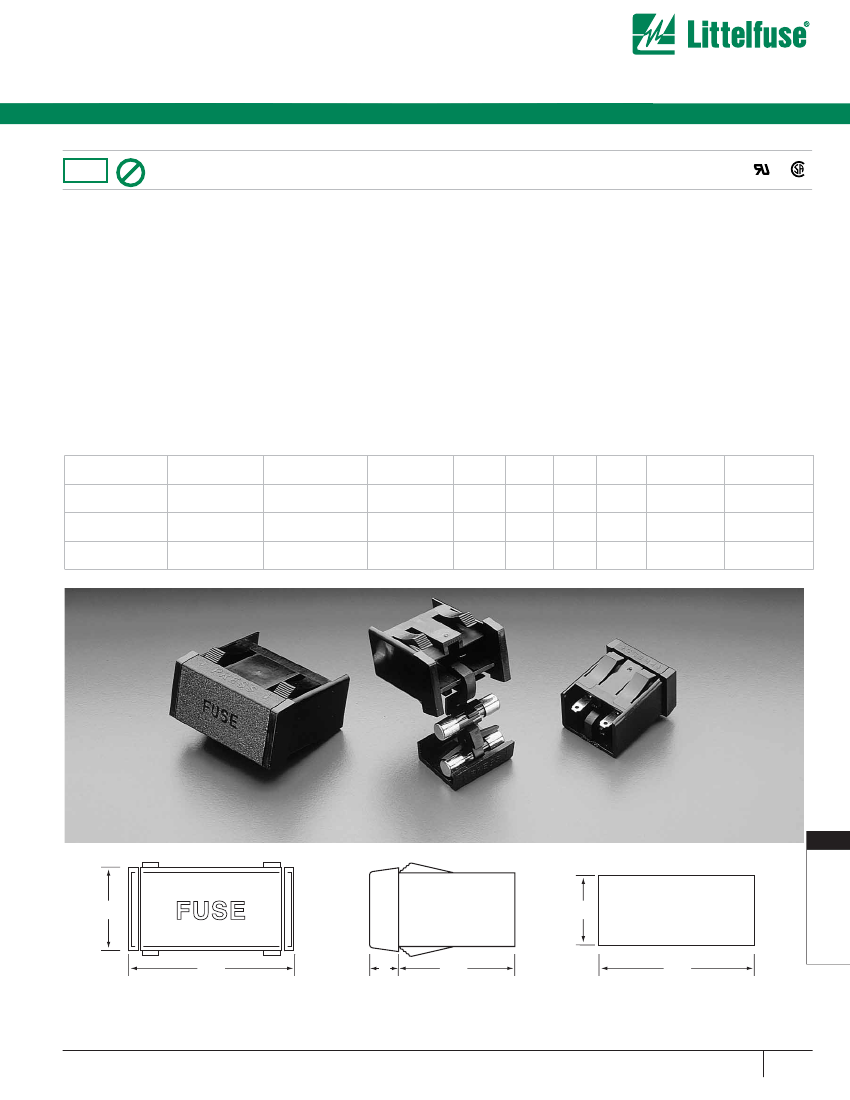

Fuseholders

For 3AG, 5 x 20mm, or 2AG Fuses

RoHS

Flip-Top Shock-Safe

Panel Mount Type

Shock-Safe design eliminates any possibility of electrical shock, per IEC

Standards 60127 and 60065. Fuse carrier holds spare fuse for fast, easy

fuse replacement and convenient servicing. Low profile design comple-

ments modern panels.

Fuse Carrier:

Spring-loaded. Unlocks with a press of the finger.

Locks

into place to prevent accidental circuit interruption. Permanently attached

to fuseholder body to prevent loss. Extracts fuse from live terminals.

Holds spare fuse.

Terminals:

Copper alloy, tin plate. Accepts quick-connect or solder.

Ambient Temperature:

– 40°C to +85°C.

Vibration:

10-55-10 Hz at .06" double amplitude

(Method 201, MIL-STD-202).

APPROVALS:

Recognized under the Components Program of

Underwriters Laboratories and Certified by CSA.

SPECIFICATIONS:

Electrical:

Rating: See TABLE.

Insulation Resistance: 10,000 megohm minimum at 500 VDC.

Contact Resistance: Less than 0.01 ohm.

Mounting:

Snap-in mounting. No hardware required. Panel thickness

range: .032" through .125".

Molded Parts:

Thermoplastic (UL 94V0) black standard

(other colors available as special).

* Please refer to Fuseology section for information on

proper fuseholder de-rating.

ORDERING INFORMATION:

Catalog Number

346 877

286 677

286 377

Fuse Size

3AG

5 x 20mm

2AG

Q.C. Terminals

.250" x .032"

.072" Dia. Hole

.187" x .032"

.055" Dia. Hole

.110" x .020"

.048" Dia. Hole

Max. Amps

At 250V.

.75"

.70"

.61"

1.5"

1.03"

.85"

.27"

.26"

.20"

1.04"

.94"

.87"

+.005"/-.000"

.688"

.625"

.550"

+.005"/-.000"

1.445"

.953"

.775"

BARRIER-PROTECTED

TERMINALS

LOW PROFILE DESIGN

FUSE CARRIER

HOLDS SPARE

FUSE

FUSEHOLDERS

469

w w w. l i t t e l f u s e . c o m
